AI-L3POE-10TX800-150: AirCore 8-Port L3 and AI Management 10GE PoE+ Switch

ADD INQUIRY

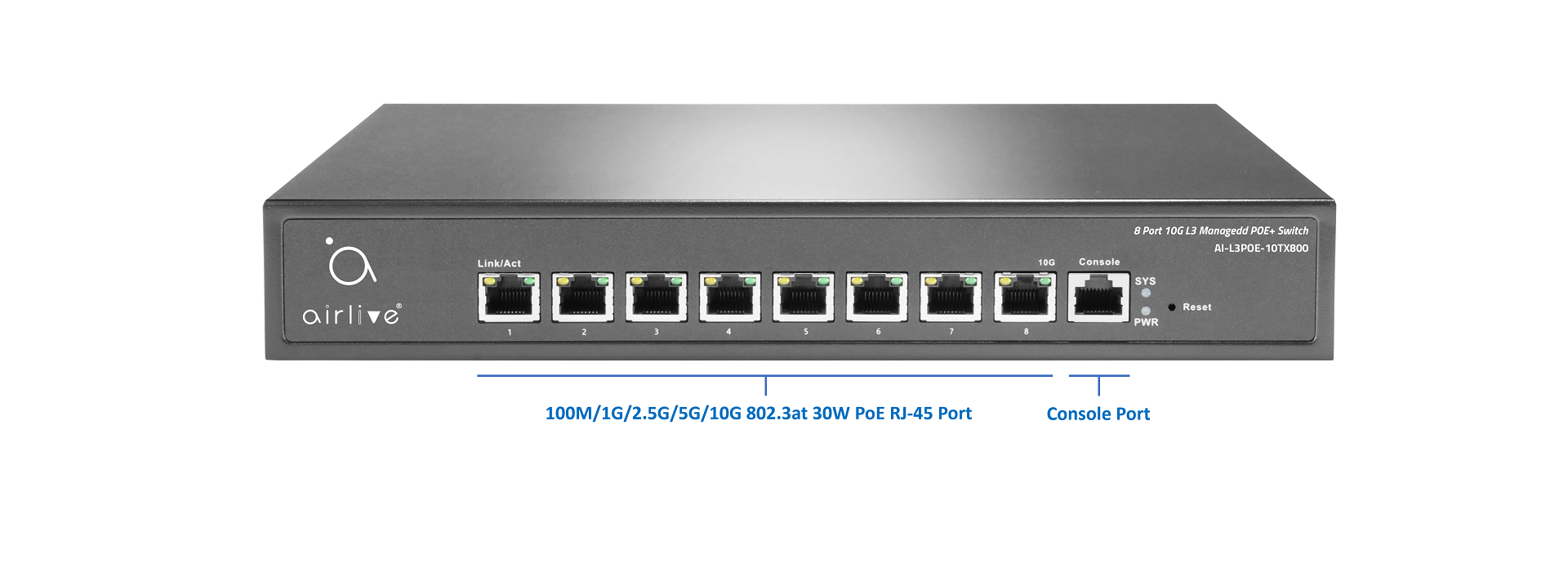

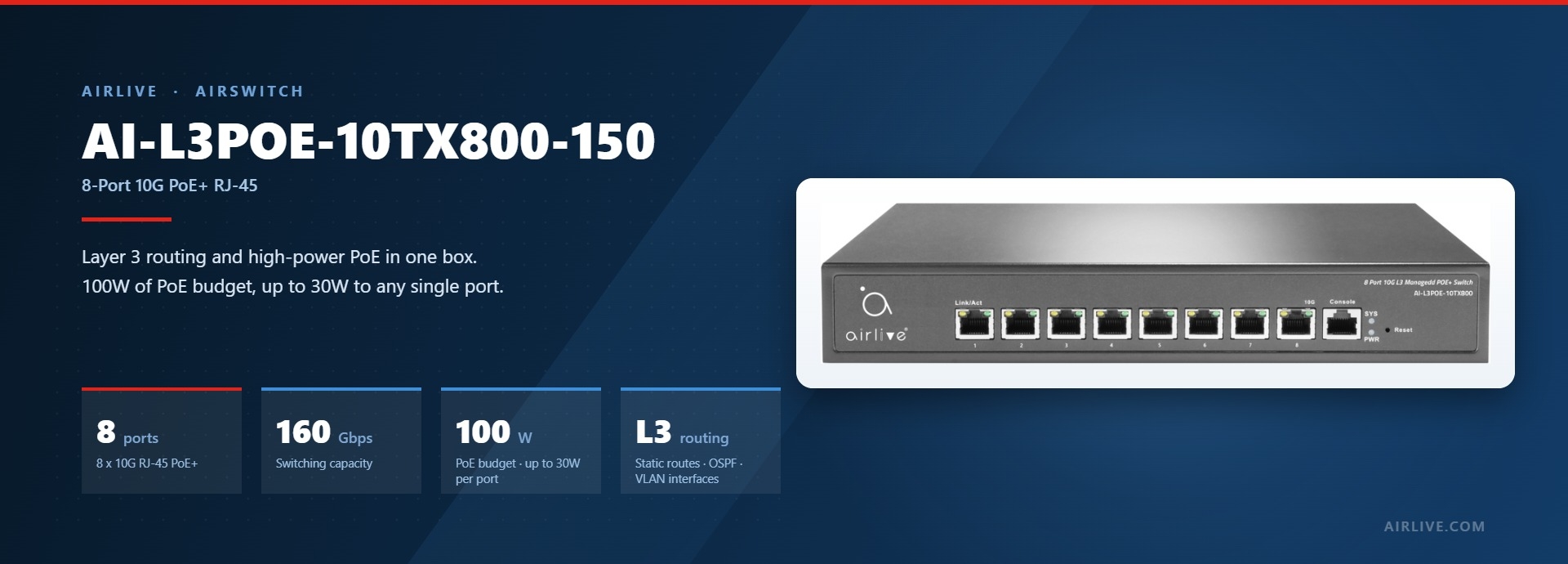

Overview
Overview
One box that powers your devices, connects them, and manages the lot.
The AI-L3POE-10TX800-150 is an AirLive L3 150W Managed Full 10G PoE+ Switch for small and medium business, branch, school and factory sites. It gives you 8 × 10G PoE+ RJ-45 ports, so access points, cameras, NVRs and servers each run at full speed instead of sharing one crowded pipe. Every port also carries power, so cameras, access points and IP phones need nothing but the network cable: 100W of PoE budget across the switch (150W total switch power). Because AirLive AI-L3POE-10TX800 routes as well as switches, traffic between VLANs stays inside the box instead of going out to the router and back, therefore whole system performance is much enhanced. Moreover, it is supported by AirLive AirCore – a cloud platform. Set it up on site through the web interface, then run it.

8 ports
All 10G PoE+ RJ-45		160 Gbps
Switching capacity		100 W
PoE power budget		Cloud
Managed by AirCore



Choose this model if…

  • Every device on the switch needs a full 10G lane and PoE on the same port.
  • You are powering a handful of high-end cameras or access points, not dozens.
  • You want VLAN routing done on site instead of at the router.
Why Layer 3 on AI-L3POE-10TX800-150
  • A cloud switch on the AirLive AirCore AI platform. Around 300 functions run for you, so the platform works like an SI’s virtual engineer, 24/7.
  • It is a Layer 3 switch. Traffic between VLANs stays inside the box instead of going out to the router and back, so the whole network system performs dramatically better.
  • PoE is built in. Data and power travel on the same cable — less time, less cabling and less electrical work. 100 W PoE power budget on this model.
  • 10 Gigabit to every port. Over Cat.6A/7 copper or fibre.

The full Layer 3 detail — IGMP multicast, OSPF routing, DHCP snooping, VLAN IP routing interfaces, and how Layer 2 compares with Layer 3 — is in the Applications section of this page.

Features
  • Rich Layer 3 Features
  • AirCore AI Platform for centralized topology visualization supported.
  • Fully L2 features provide easier manageability, security and QoS.
  • Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control
  • Support IPV4/ IPV6, RIP V1/V2, OSPF V2.
  • Support multiple VLAN division, Voice, VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, Private VLAN and more.
  • Support IP address+ MAC address +VLAN+ port binding, DHCP Snooping, IP source
  • PoE Port configuration and scheduling.
  • 100W High PoE power, ensure full power for connected device.
  • Easy management; Support WEB, TELNET, CLI, SSH, SNMP, RMON management.
Major Specfication
  • 8 x 30W PoE 100/1000M/2.5G/5G/10Gbps RJ-45 Ports
  • 802.3at/802.3af compliant
  • Each port up to 30Watts,
  • Max. 100W Poe Power
  • L3 DHCP Server/Relay
  • L3 DHCP Snooping
  • IPv4/IPv6 L3 static route
  • OSPF Routes dynamic routing
  • Surge Protection 6KV, ESD Protection 6KV
  • PoE management, PoE Watchdog
  • Authentication: 802.1x, AAA
  • DHCP Snooping prevents unauthorized router installed
  • Clear Statues display including traffic, CPU, POE consumption, per-port status.

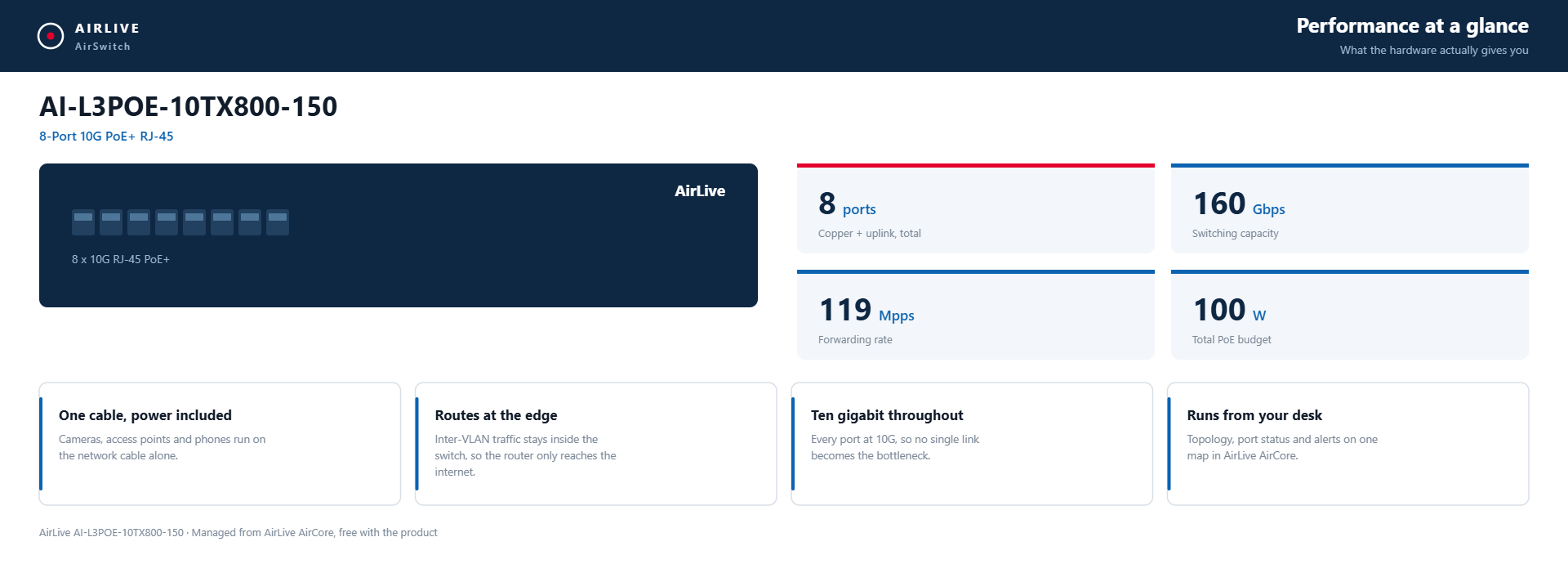

Performance at a glance
Performance at a glance

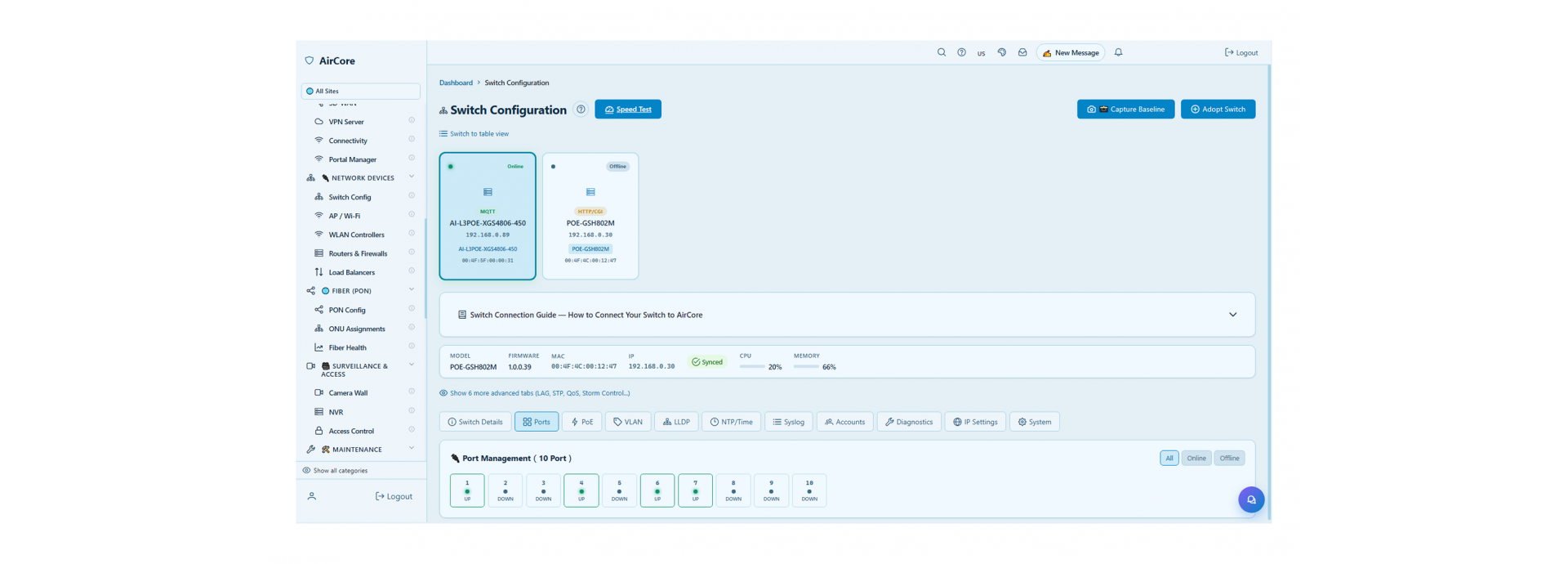

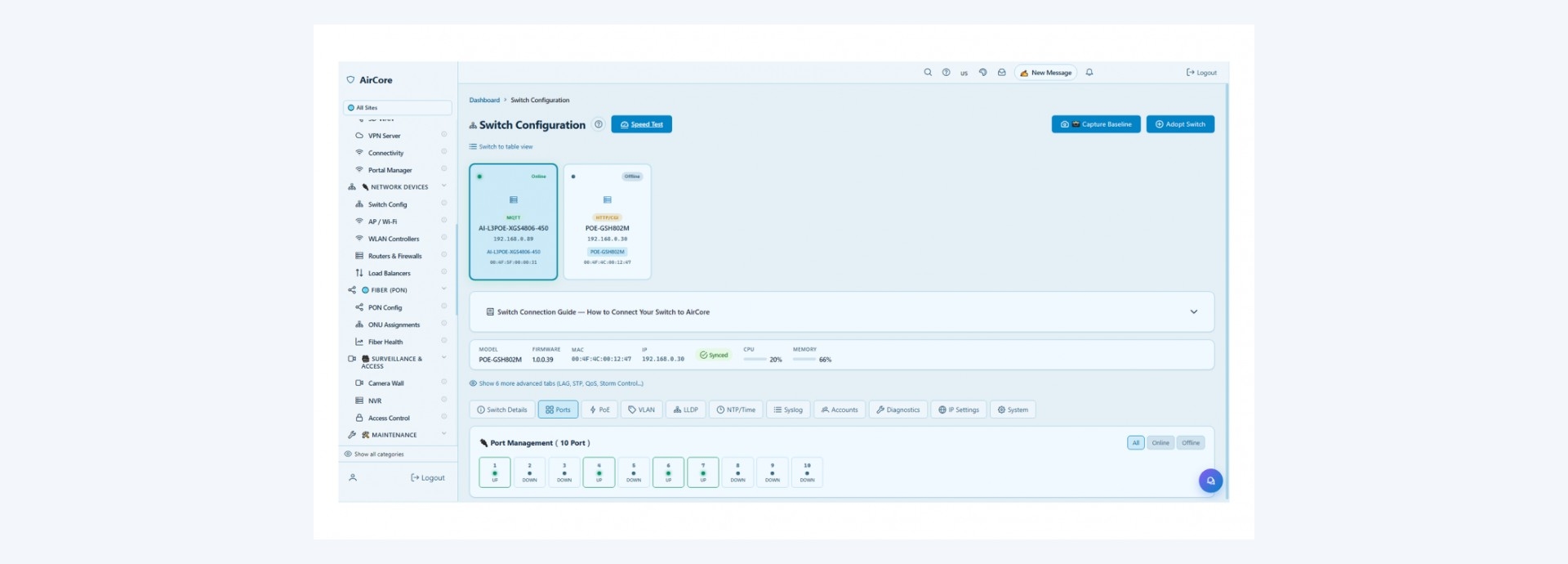

AirLive AirCore AI Support
AirLive AirCore AI Support
A virtual engineer to assist SI/MIS to find where a problem is if any; AirLive built-in AI analysis function helps to analysis and report a problems. Able to expand devices and functions in the future. An easy to interface to control the different AirLive switches, setup ports, PoE, VLAN, VLAN member, LAG, STP, LLDP And more all via AirLive AirCore from a remote location The software is designed by AirLive. AirLive provides AirCore as a Free charge commercial service & management facility for Distributor and SI. AirCore also supports the AirLive Wireless products, IP Camera’s and Telecom Solutions.

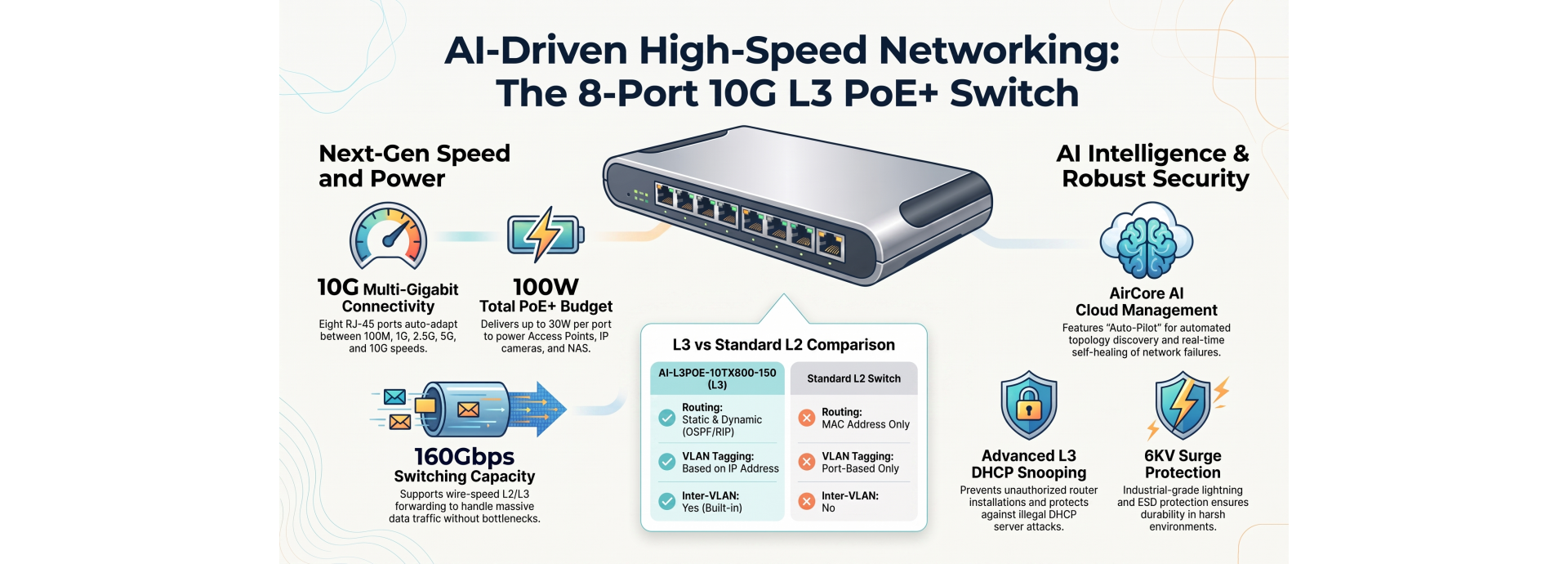

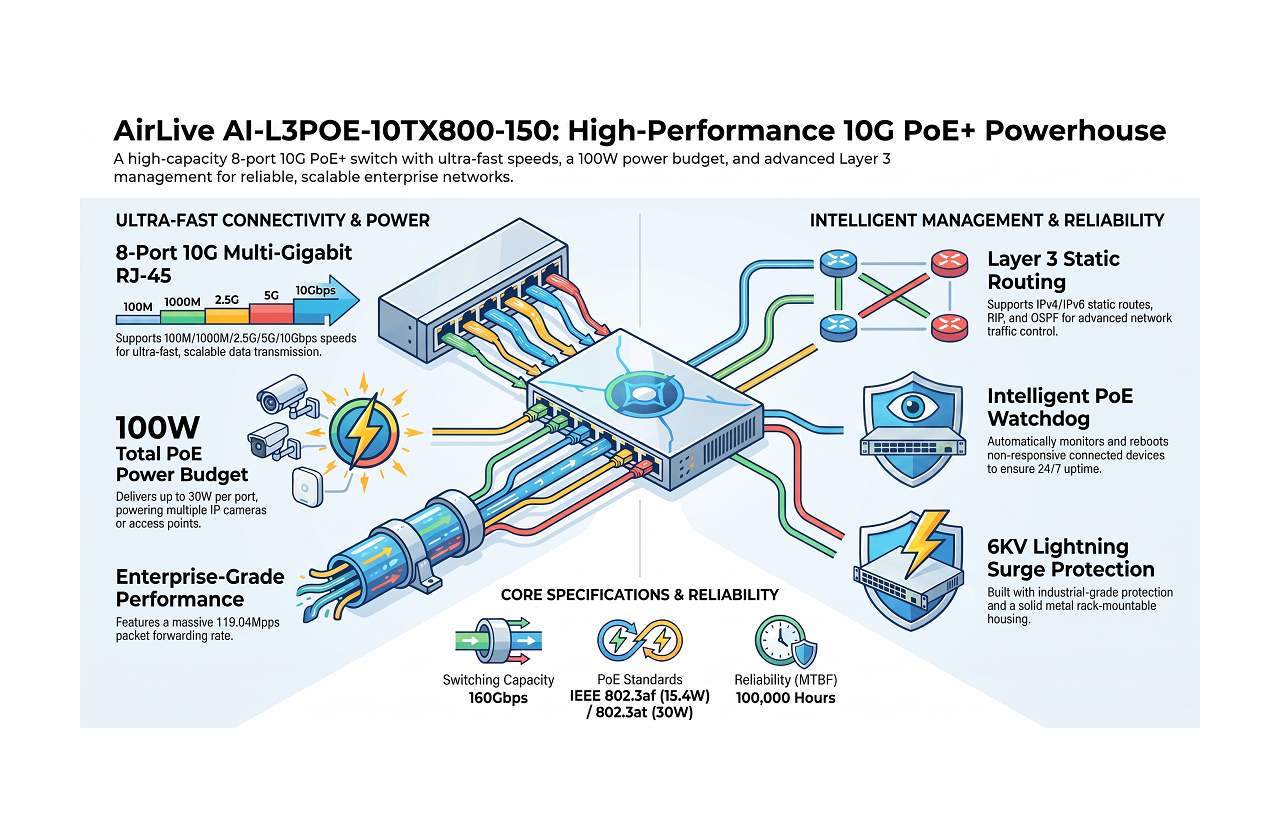

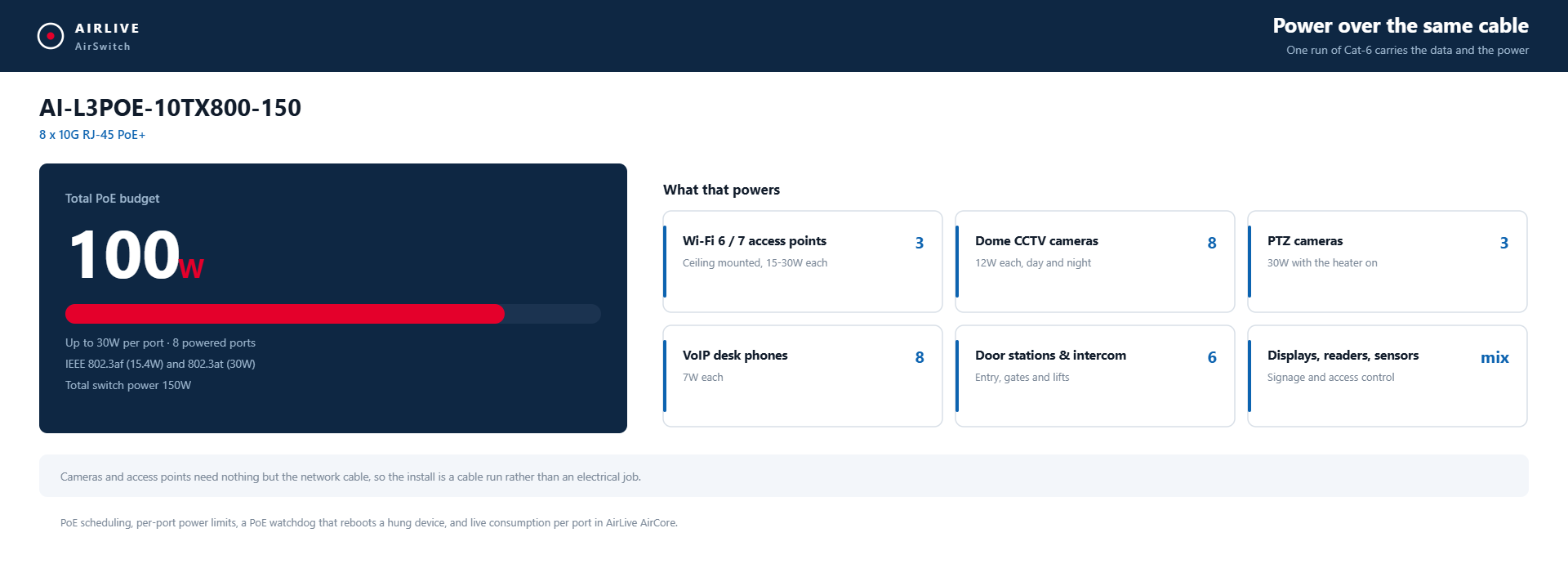

Reliable 100W PoE Power
Reliable 100W PoE Power
Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3af/at standard and the unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

AirLive AI-L3POE-10TX800 provides a 100W PoE budget (150W total switch power), with up to 30W available on each of its 8 ports. That is enough to power up to 8 PoE devices simultaneously — IP cameras, access points, IP phones or PoE lighting — over the network cable alone, with no separate power run. It is sized for SMB sites, branch offices and client-site or edge deployments, including a branch of a larger enterprise. For an enterprise core or a campus backbone, choose one of the higher port-count AirLive PoE switches listed at the end of this page.

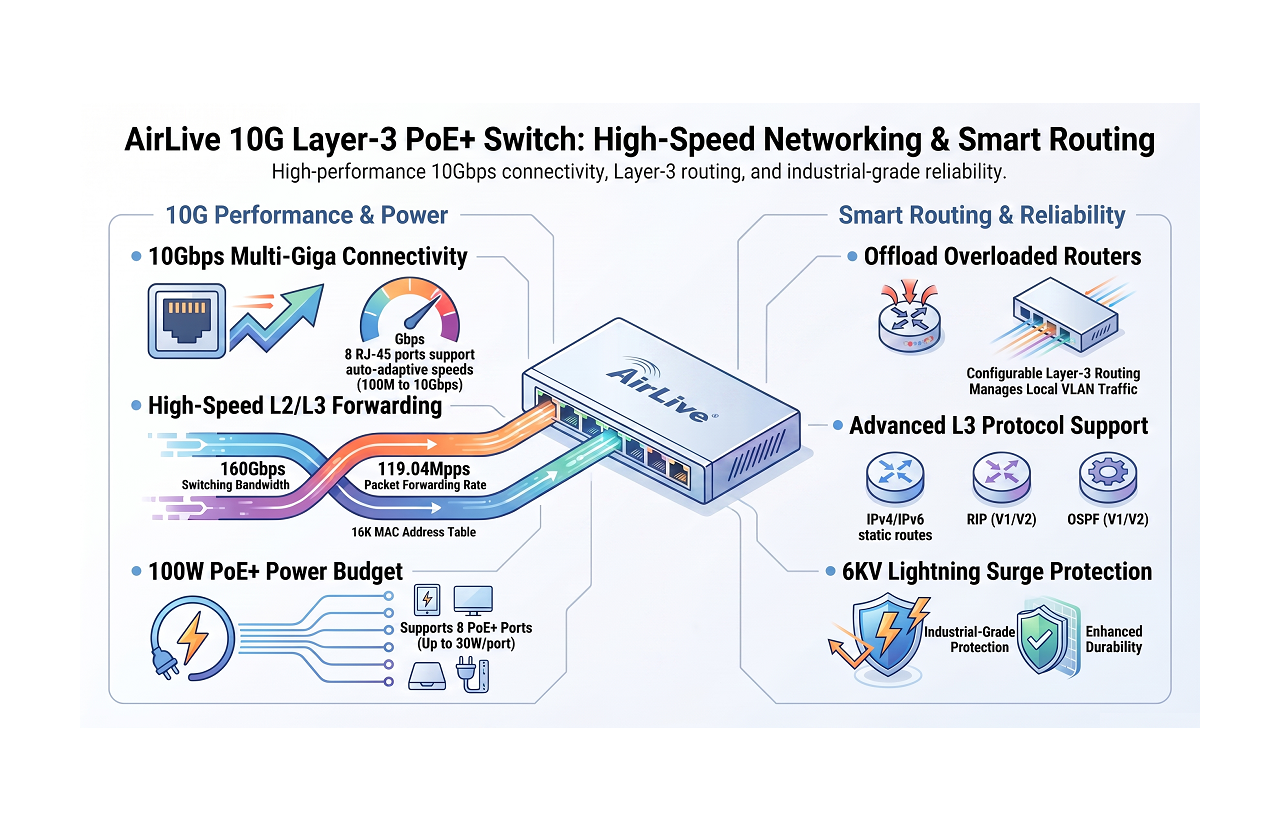

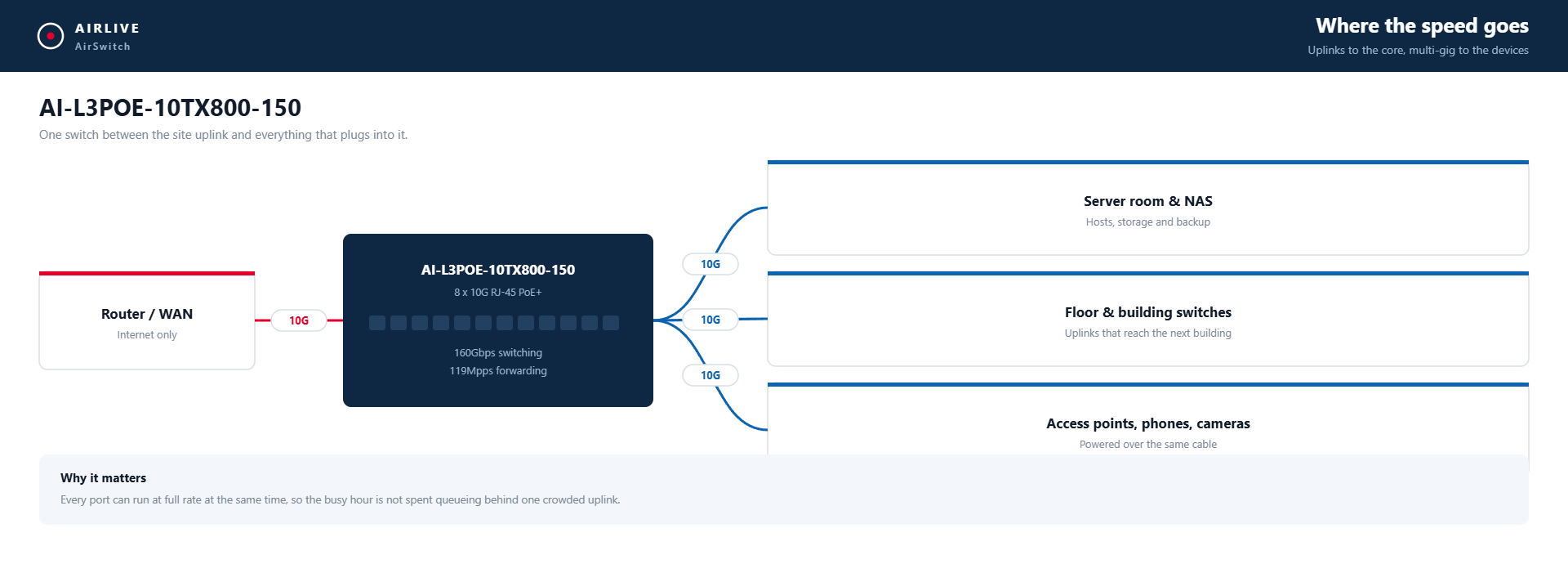

10G Performance and Scalability
10G Performance and Scalability
With high switching capacity, the AI-L3POE-10TX800 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. With the AirLive 10G Multi-Giga switch AI-L3POE-10TX800, you can connect to a variety of 10GbE-enabled devices, such as Access Point | IP Camera |NAS | NVR | PC | Server and more, the RJ-45 ports are fully auto adaptive and can also work at multiple speeds for enjoying faster experience and handle bandwidth-hungry applications. The 10 Gigabit Ethernet connectivity of AI-L3POE-10TX800 is accomplished via hot-pluggable 10 Gigabit RJ-45 ports which supports a distance up to 100m over Cat7 and 55m over (The distance depends on the cable type used).


Other AirLive switches with PoE

The number in an AirLive PoE model name is the switch’s total power, not its PoE budget. The PoE budget is the part of that power actually available to the connected devices.

ModelPortsSwitchingPoE / Switch total powerPoE budget (available to devices)Max per port
AI-WPOE-2TX801-1508 × 2.5G PoE+ · 1 × 10G SFP+60 Gbps150W120W30W
AI-L3POE-2TX804-250 BT8 × 2.5G PoE++ · 4 × 10G SFP+120 Gbps250W—†90W
AI-L3POE-2TX1606-420 BT16 × 2.5G PoE+/++ · 6 × 10G SFP+200 Gbps420W—†90W
AI-L3POE-2TX2402-40024 × 2.5G PoE+ · 2 × 10G SFP+160 Gbps400W—†30W
AI-L3POE-XGS2404-40024 × 1G PoE+ · 4 × 10G SFP+128 Gbps400W370W30W
AI-L3POE-XGS4806-45048 × 1G PoE+ · 6 × 10G SFP+216 Gbps450W400W30W
AI-L3POE-2TX2406-850 BT24 × 2.5G PoE+/++ · 6 × 10G SFP+240 Gbps850W—†90W

† PoE budget not published for this model. We list only budget figures AirLive has confirmed, so this one is left open rather than estimated — please contact AirLive for the figure.

Office & enterprise

Reception, meeting rooms, the open-plan floor and the comms cupboard on one switch. Access points go up in the ceiling, and each department sits in its own VLAN so finance traffic never lands on the guest network.

  • Wi-Fi 6 / Wi-Fi 7 access points
  • VoIP desk phones, PCs, printers
  • Door access, intercom, lobby displays
  • Uplink to the firewall or router

School & campus

Classrooms, labs, the hall and the admin block — and a timetable that puts several hundred devices online at exactly the same minute.

  • Ceiling access points in every classroom
  • Interactive panels and lab PCs
  • Corridor and playground CCTV
  • 10G run back to the server room

Factory & warehouse

Production lines, handheld scanners and machine-vision cameras, plus the office at the front. Long cable runs, high ceilings, and no electrician on call for aisle 12.

  • Machine-vision and CCTV cameras
  • Barcode and RFID readers
  • Industrial access points
  • PLC, SCADA and line controllers

Server & data room

Where the NAS, the hypervisor hosts, the backup target and the site uplink all meet — the one place where a slow port is felt by everybody at once.

  • NAS and backup appliances
  • Virtualisation and application hosts
  • NVR / video recording storage
  • 10G links down to the floor switches

Why this model
Every copper port on the AI-L3POE-10TX800-150 carries power as well as data — 100W of PoE budget across the switch (150W total switch power), so cameras, access points and phones need nothing but the network cable. Traffic between VLANs is routed inside the switch, so the router only has to reach the internet. Ten-gigabit uplinks keep the link back to the core clear, and the whole site is visible in AirLive AirCore, free with the product.

  • Layer3 Switch is widely used in data centers and universities, factory, enterprise where there is a very big setup of computer networking. Owing to its features like static and dynamic routing and its fast-switching speed than a router, it is used in LAN connectivity for interconnection of several VLAN and LAN networks.
  • AI-L3POE-10TX800 have the skills to offload the overloaded routers. This can be done by configuring a layer-3 switch, each with a main router in a wide area networking scenario so that the switch can manage all the local level VLAN routing.
  • The layer-3 switch in combination with a number of layer-2 switches supports more users to connect on the network without the need for implementation of an extra layer-3 switch and more bandwidth. Thus, it is widely implemented in universities and small-scale industries. In case if the number of end users on a network platform increases, then without any enhancement of the network, it can be accommodated in the same running scenario easily.
  • A layer-3 switch is smart enough to handle and manage the routing and traffic controlling of locally connected servers and end devices utilizing its high bandwidth.

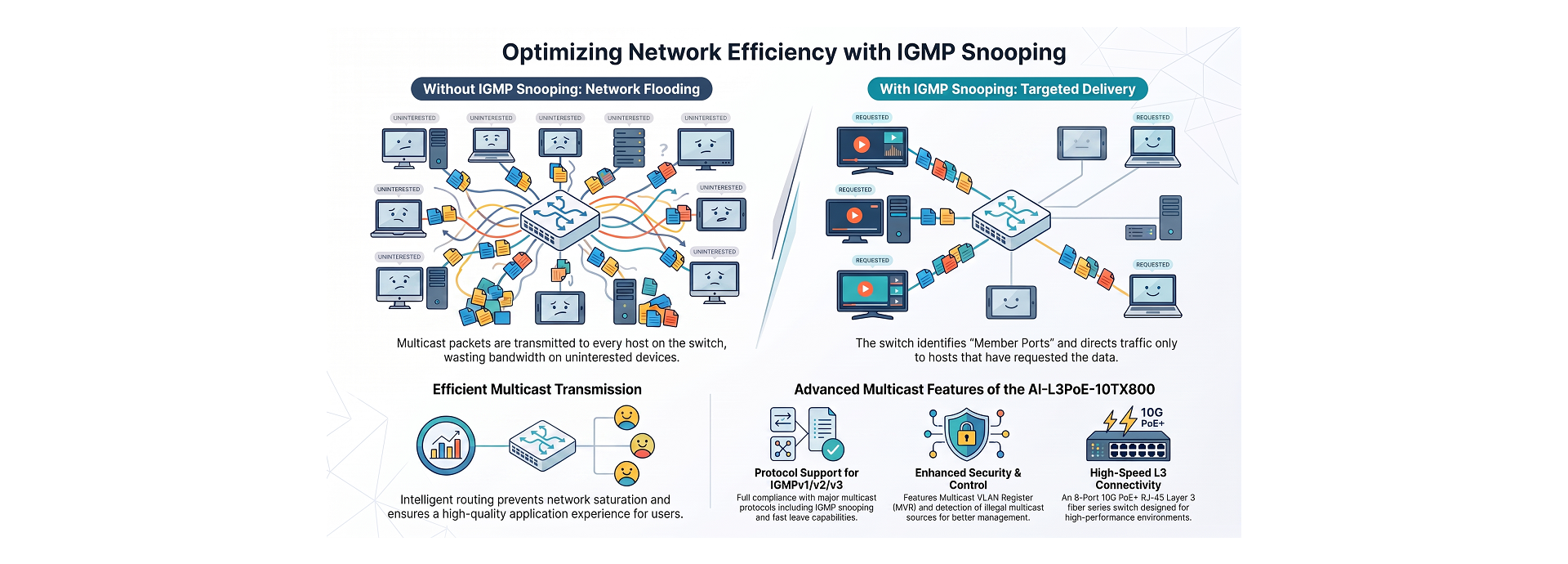

L3 multicast protocols is compliant with IGMPv1/v2/v3 and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; the AI-L3POE-10TX800 fiber series provides a great application experience for the customer.

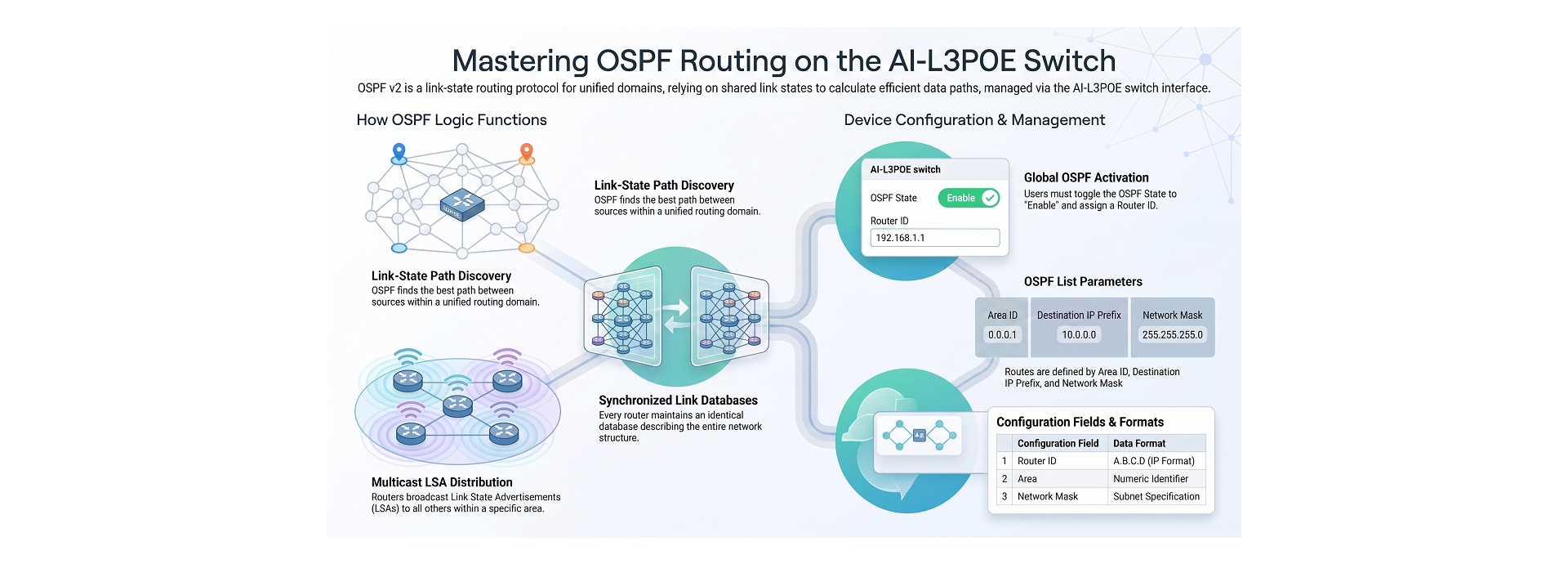

Open shortest path first (OSPF) is a link-state routing protocol that is used to find the best path between the source, which is generally used in the same routing domain. Here, routing domain refers to an autonomous system (as), which refers to a group of networks that exchange routing information through a unified routing policy or routing protocol. In this as, all OSPF routers maintain the same database describing the as structure, which stores the state information of the corresponding links in the routing domain. It is through this database that OSPF routers calculate their OSPF routing tables.

As a link state routing protocol, OSPF transmits link state multicast data LSA (link state advertisement) to all routers in a certain area, which is different from distance vector routing protocol. The router running distance vector routing protocol passes part or all of the routing tables to its neighboring routers.

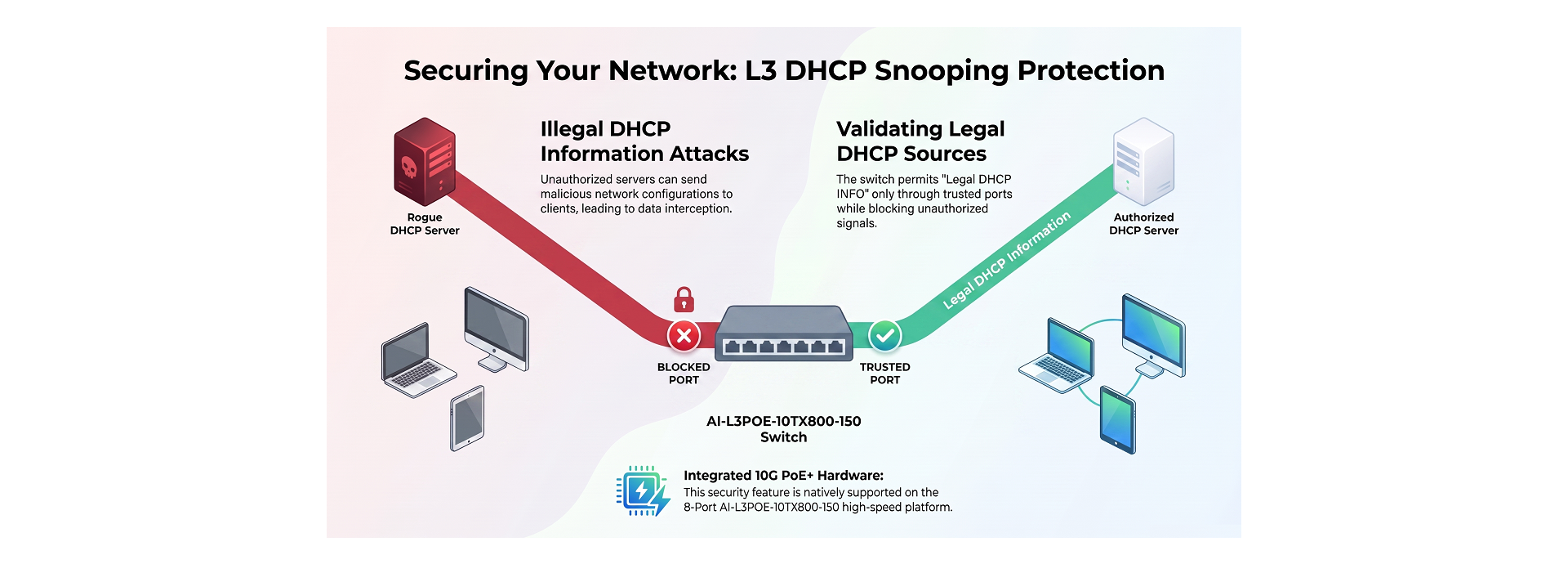

Prevention against illegal Router(DHCP Server) attacks or sending DHCP information.

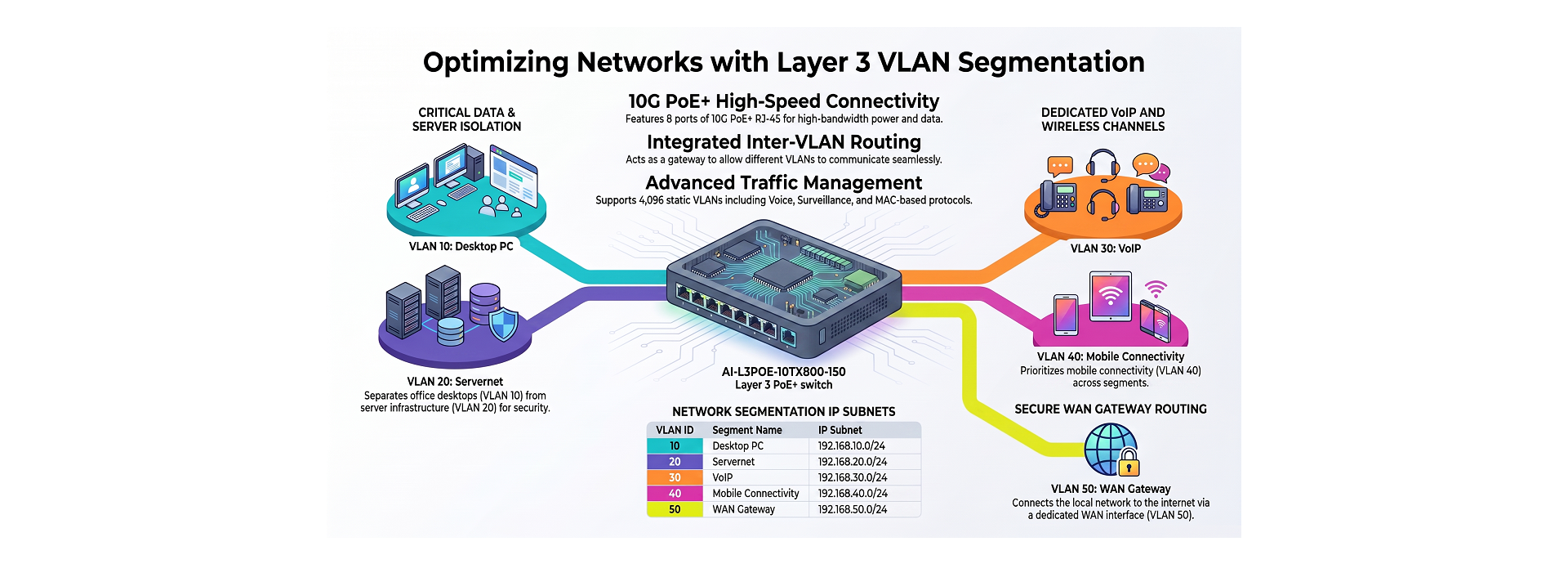

The AI-L3POE-10TX800 provides 3 layers of VLAN interface, which is used to communicate with network layer devices. VLAN interface is a network layer interface, which can be configured with IP address. Before creating VLAN interface, the corresponding VLAN should be created first. With the help of VLAN interface, switches can communicate with other network layer devices.

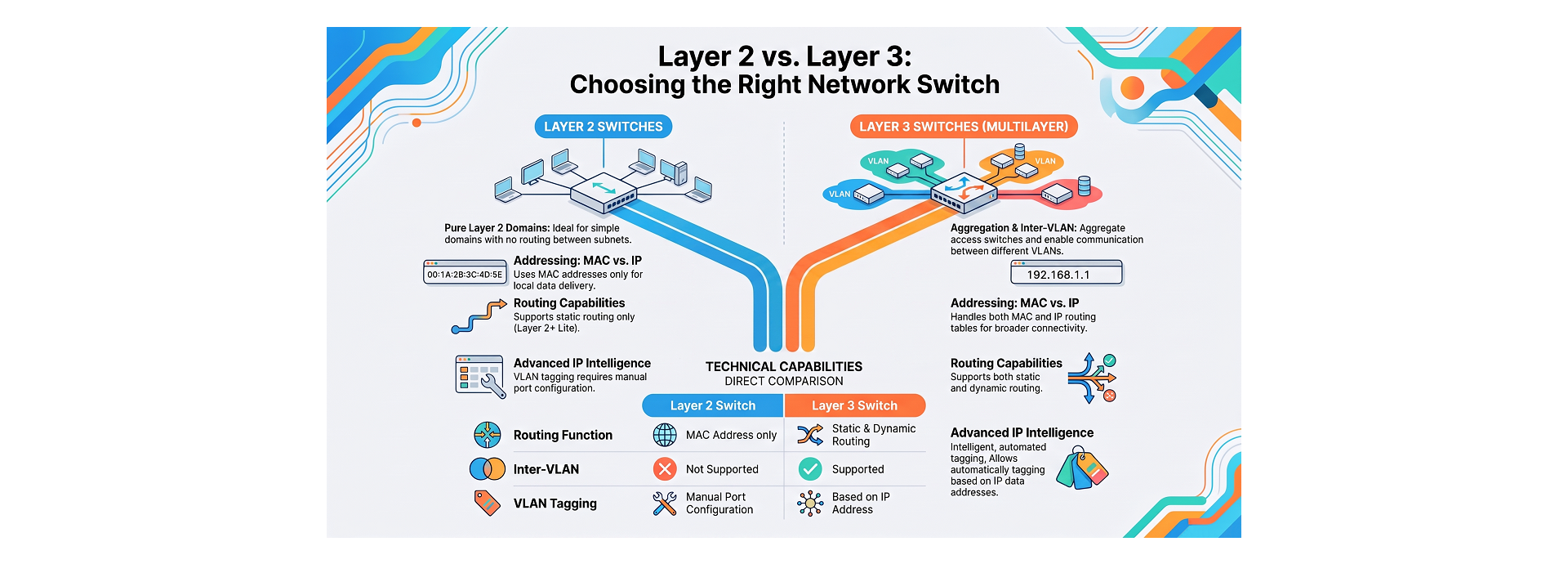

The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well. That means, a Layer 3 switch has both MAC address table and IP routing table and handles intra-VLAN communication and packets routing between different VLANs. There is also layer 2+ (layer 3 Lite) switch that adds only static routing. Other than routing packets, layer 3 switches also include functions that require to understand the IP address information of data entering the switch, such as tagging VLAN traffic based on IP address instead of manually configuring a port. Layer 3 switches are increased in power and security as demanded.

One cable, power included
Cameras, access points and phones run on the network cable alone — 100W across the switch.

Routes at the edge
Inter-VLAN traffic stays inside the switch, so the router only reaches the internet.

Runs from your desk
Topology, port status and alerts on one map in AirLive AirCore. Free with the product.

Hardware
ModelAirLive AI-L3POE-10TX800
Device Interface8 x 100/1000M/2.G/5G/10G PoE 30W RJ-45 Ports
1 x RJ-45 Console Port
StandardsIEEE 802.3: Ethernet MAC Protocol
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE802.3bz 2.5G and 5G Base-T
IEEE802.3cb 2.5G and 5G Operation over Backplane
IEEE 802.3an 10G Base-T
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.3az: Energy Efficient Ethernet
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p:  VLAN Tag LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1ad: QinQ
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP
IEEE 802.3af（15.4W）
IEEE 802.3at（30W）
LED Indicators8 link/act indicators, 8 10G speed indicators, power input indicator, system operation indicator.
Lighting Surge ProtectionLightning protection: 6KV, Air discharge: 8KV, Surge: Common mode 6KV, Differential mode 2KV, Power supply: Common mode 6KV, Differential mode 2KV
MechanicalSolid metal rack-mountable housing
Power
Power InputAC100~240VAC
Total Switch Power150W
Power Consumption SwitchMaximum 50W
Power and PoE
Power InputAC100~240VAC
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port8
PoE Power Output / PoE Port 1~8max. 30 watts
PoE Power Output / PoE switchmax. 100 watts
PoE Software FunctionSupport PoE time management, Support PoE automatic monitoring and Watchdog,
Support PoE Port power supply and AI smart PoE.
Switch Architecture | Performance
Switching architectureBandwidth: 160Gbps
Packet Forwarding Rate: 119.04Mpps
Package Buffer: 12Mbit
MAC Address: 16K
Jumbo frame: 10Kbytes
VLAN range 1-4094, maximum active VLAN is 4KVLANs: 4096
MTBF: 100000 hour
Software Function L3
IPv4Support IPv4 Static Routes
IPv6Support IPv6 Static Routes
RIPSupport V1/V2
OSPFSupport V1/V2
Software Function L2
Port FunctionPort Switch Configuration, Port Description Configuration, Port Speed Configuration, Port Duplex Configuration, Port Flow Control Configuration, Error Disabled Recovery, Fiber Module (DDM)
Link AggregationSupport IEEE 802.3ad LACP, Static Trunk, Max 8 Group, Max 8 Ports/Group, Traffic Load Balancing
Storm ControlSupport Broadcast Suppression, Unknown Multicast, Unknown Unicast
Port MirroringSupport Port mirroring, RSPAN (remote port mirroring), Mirroring 4 sessions port-based (Many to One)
Port IsolationSupported
Port Rate-limitSupported
VLANSupport  Surveillance VLAN (16 OUI Mode (Auto/ Manual)), Voice VLAN (16 OUI Mode (Auto/Manual))
QinQ (IEEE 802.1ad) Basic, GARP VLAN Registration Protocol (GVRP), 4096 Static VLAN, 8 groups Protocol-based, 256 MAC-based, IEEE 802.1Q Tagged-based, Hybrid VLAN, protocol-based VLAN, MAC address-based
MAC AddressSupports Dynamic Address, Static MAC address, Filtering MAC Address, MAC address Black Hole, MAC address learning limit
Spanning treeSupport STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocol
Support BPDU Filter, BPDU Guard, Auto Edge Port
ERPS (Ethernet Ring Protection)Supported
LLDPSupport LLDP, LLDP MED
MulticastSupport Common - 256 Multicast Groups, - Immediate Leave, - Static/Forbidden Router Port, - Static/Forbidden Forward Port, - 128 profiles Filtering , - Throttling, IGMP Snooping, IGMP v1/v2, IGMP v3 Basic (BISS), IGMP v2/v3 Querier, MLD Snooping, MLD v1/v2, Multicast VLAN Registration (MVR) - IPv4
QoSSupport Trusted QoS/Priority 8 Queue, Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid(WRR+SP or WFQ+SP)), Class of Service, Port-based, 802.1p, IP TOS Precedence, IP DSCP, Rate Limit Port-based (Ingress/Egress)
ACLSupport ACL Type L2/L3/L4 , 512 MAC, based, 512 IPv4-based, 512 IPv6-based, Access Rules 1024
IPv6
IPv6 HostSupport Auto Configuration, Static IPv6 Address and Prefix Length, Static IPv6 Default Gateway, IPv6 Neighbor Discovery (ND), IPv6 Duplicate Address Detection, ICMPv6
IPv6 ApplicationSupport HTTP/HTTPS, TELNET, SSH, SNMP, TFTP, Syslog, PING, DHCPv6
DHCP
DHCPSupport DHCP server, DHCP relay, BootP/DHCP client, DHCP snooping, DHCP relay option82, DHCP snooping option82, Requirements for Remote-ID (Access Switch Identifier), Requirements for Circuit-ID (Access port identifier), IP Pool, Static Binding
Security
AAA AuthenticationSupport 8 TACACS+, 8 RADIUS
Authentication ManagerSupport IEEE 802.1X, MAC Auth, Web Auth, Guest VLAN,  Port-based, Host-based
Account ManagerSupport Local Authentication, 8 Multiple User Account, Multi-Level Security (Manager/Operator), Password Recovery Procedures
Management AccessSupport Management VLAN, 256Management ACL
SSLSupport SSLv2, SSLv3, TLSv1
Port SecuritySupport 256 Dynamic Lock
 CPU Defense Engine, DoS Prevention, DHCP Snooping (with Option 82), Dynamic ARP Inspection, 256 IP Source Guard, IP/MAC/Port Binding (IMPB), Dynamic VLAN Assignment
Diagnostics
Syslog (RFC3164)Support Local RAM, Local Flash, 8 Remote Server
System DiagnosticsSupport CPU Utilization, Memory Utilization, Port Utilization, Technical Support Log
Port DiagnosticsSupport Cable Test, Fiber Module Status
Network DiagnosticsPing Test, Traceroute
UDLDSupported
Management
Manager AccessSupport CLI 3 sessions Console, 3 sessions Telnet (RFC854), WebUI HTTPS, SSH v1/v2
Manager IPSupport DHCP Client, DNS Client
Cloud ControlRemote Control via Airlive Aircore
Time ManagementSupport SNTP, Local
SNMPSupport V1/V2C/V3
SNMP MIBSupport RFC1213 MIB-II, RFC1493 Bridge MIB, RFC2674 Bridge MIB Extensions, RFC1215 Generic Traps MIB, RFC2819 RMON MIB (Groups 1, 2, 3 and 9), RFC2737 Entity MIB, RFC3635 Ethernet-Like MIB, RFC2863 Interface MIB, SNMP-Community-MIB, SNMPv3-MIB
RMONSupport 32 entries / type RMON Management
Firmware ManagementSupport Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup
Configuration ManagementSupport Upload and Download (TFTP (RFC783), HTTP, UART), Save, Restart, Factory Defaults
Network Medium
RJ-45100BASE-TX:UTP/STP of Cat. 5 or above (Max 100 m)
1000BASE-T: UTP/STP of Cat. 5e or above (Max 100m)
2.5GBASE-T: UTP/STP of Cat. 5e or above (Max 100m)
5GBASE-T: UTP/STP of Cat. 5e or above (Max 100m)
10GBASE-T: UTP of Cat 6 (Max 55m) or STP of Cat 7 (Max 100m)
Environment
Operating Temperature0°C to +45°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelAI L3POE-10TX800-150
L3 Managed 10G PoE+ 802.3at Switch, 150W 8-Port 10G PoE RJ-45
Standard Package
Product Size29.0(L) x 20.0(W) x 4.4(H) cm
Package Size34.9(L) x 28.3(W) x 7.6(H) cm
Package WeightN.W: 1.70kg
G.W: 2.25kg
Package ContentSwitch x 1, QIG x 1, Power cord x 1, Rack ear x 1
Carton Package
Quantity6PCS / 1 Carton
Dimensions50.5(L) x 36.0(W) x 30.0(H) cm
Weight14.50kg
Spec Sheet
NameDescriptionDownloadDate
AI-L3POE-10TX800-150 Spec Sheet
2026/07/15
