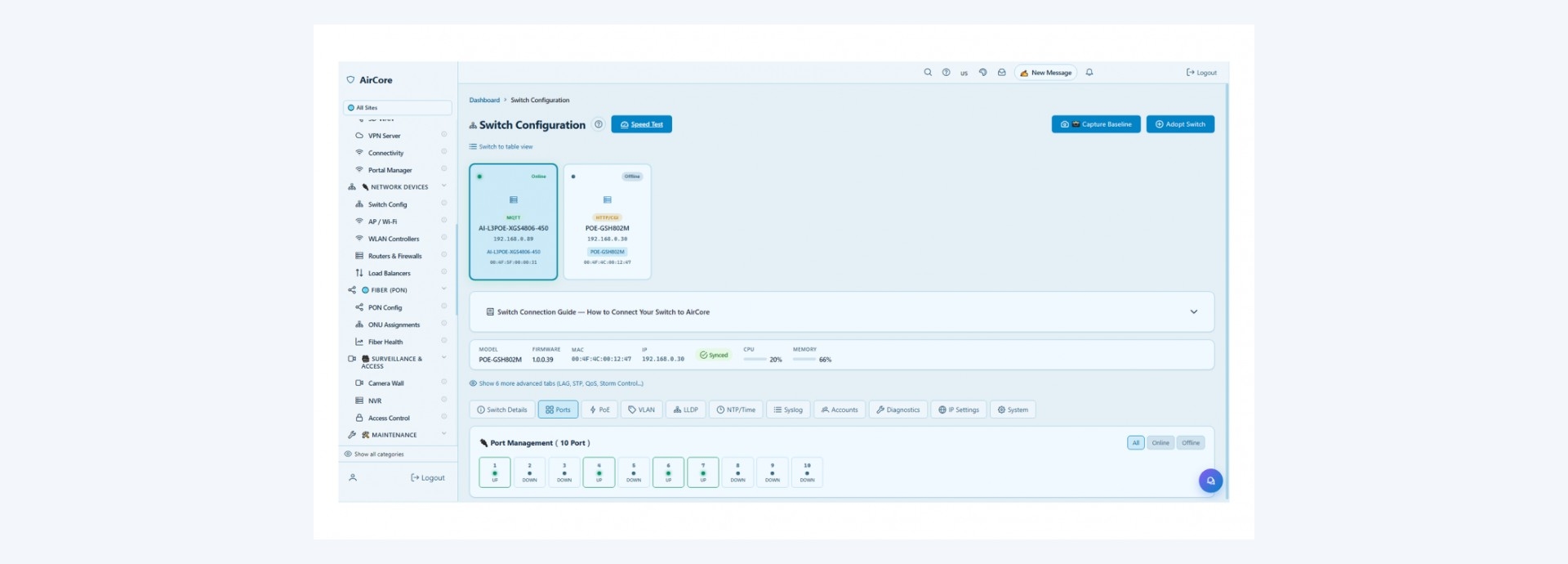

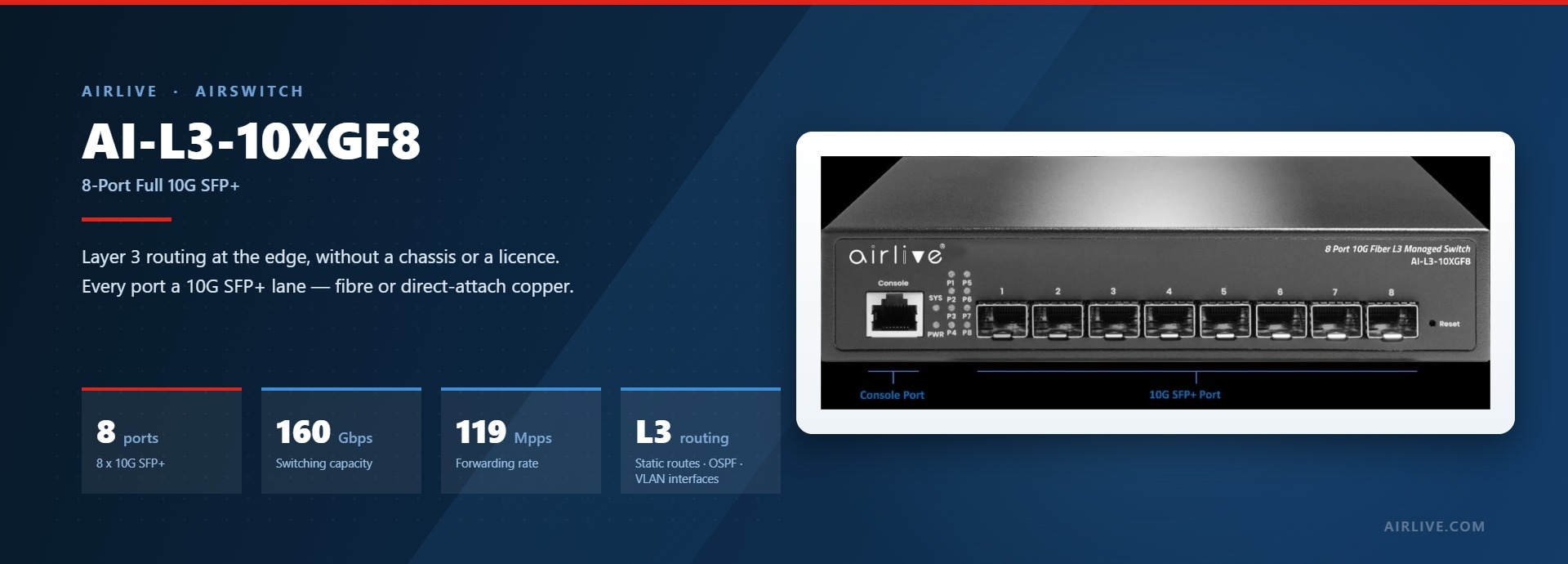

The AI-L3-10XGF8 is an AirCore L3 Managed switch with 8 10G SFP+ Fiber ports. Like the rest of the AirCore AI AutoPilot AirSwitch line, it is designed to be managed through the AirCore AI Platform for centralized topology visualization, zero-touch provisioning, and monitoring alongside other AirLive/AirCore-managed devices on the same network.
| Hardware | |
| Model | AirLive AI-L3-10XGF8 |
| Device Interface | 8 x 10G SFP+ Ports 1 x RJ-45 Console Port |
| Standards | IEEE 802.3: Ethernet MAC Protocol IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet (optical fiber) IEEE 802.3az: Energy Efficient Ethernet IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.3x: Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: VLAN Tag LAN Layer QoS/CoS Protocol Traffic Prioritization (Multicast filtering function) IEEE 802.1q: VLAN Bridge Operation IEEE 802.1ad: QinQ IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
| LED Indicators | 8 link/act indicators, power input indicator, system operation indicator |
| Lighting Surge Protection | Lightning protection: 6KV, Air discharge: 8KV, Surge: Common mode 6KV, Differential mode 2KV, Power supply: Common mode 6KV, Differential mode 2KV |
| Mechanical | Solid metal rack-mountable housing |
| Power | |
| Power Input | AC100~240VAC |
| Power Consumption Switch | Maximum 24W |
| Fiber Medium | |
| 1000BASE-SX | 62.5um MMF (min. range: 2m~275m) or 50um MMF (min. range: 2m~550m) |
| 1000BASE-LX | 62.5um/50um MMF (min. range: 2m~550m) or 9um SMF (min. range: 2m~5000m) |
| 10GBASE-SR | OM1/OM2/OM3 or above MMF (operating range: 2m ~ 300m) |
| 10GBASE-LR | IEC's B1.1 and B1.3 SMF (min. range: 2m ~ 10km) |
| Switch Architecture | Performance | |
| Switching architecture | Bandwidth: 160Gbps Packet Forwarding Rate: 119.04Mpps Package Buffer: 12Mbit MAC Address: 16K Jumbo frame: Up to 12Kbytes VLAN range 1-4094, maximum active VLAN is 4KVLANs: 4096 MTBF: 100000 hour |
| Software Function L3 | |
| IPv4 | Support IPv4 Static Routes |
| IPv6 | Support IPv6 Static Routes |
| Address Resolution Protocol (ARP) | Static ARP |
| RIP | Support V1/V2 |
| OSPF | Support V1/V2 |
| Software Function L2 | |
| Port Function | Port Switch Configuration, Port Description Configuration, Port Speed Configuration, Port Duplex Configuration, Port Flow Control Configuration, Error Disabled Recovery, Fiber Module (DDM) |
| Link Aggregation | Support IEEE 802.3ad LACP, Static Trunk, Max 8 Group, Max 8 Ports/Group, Traffic Load Balancing |
| Storm Control | Support Broadcast Suppression, Unknown Multicast, Unknown Unicast |
| Port Mirroring | Support Port mirroring, RSPAN (remote port mirroring), Mirroring 4 sessions port-based (Many to One) |
| Port Isolation | Supported |
| Port Rate-limit | Supported |
| VLAN | Support Surveillance VLAN (16 OUI Mode (Auto/ Manual)), Voice VLAN (16 OUI Mode (Auto/Manual)) QinQ (IEEE 802.1ad) Basic, GARP VLAN Registration Protocol (GVRP), 4096 Static VLAN, 8 groups Protocol-based, 256 MAC-based, IEEE 802.1Q Tagged-based, Hybrid VLAN, protocol-based VLAN, MAC address-based |
| MAC Address | Supports Dynamic Address, Static MAC address, Filtering MAC Address, MAC address Black Hole, MAC address learning limit |
| Spanning tree | Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocol Support BPDU Filter, BPDU Guard, Auto Edge Port |
| ERPS (Ethernet Ring Protection) | Supported |
| LLDP | Support LLDP, LLDP MED |
| Multicast | Support Common - 256 Multicast Groups, - Immediate Leave, - Static/Forbidden Router Port, - Static/Forbidden Forward Port, - 128 profiles Filtering , - Throttling, IGMP Snooping, IGMP v1/v2, IGMP v3 Basic (BISS), IGMP v2/v3 Querier, MLD Snooping, MLD v1/v2, Multicast VLAN Registration (MVR) - IPv4 |
| QoS | Support Trusted QoS, Queue Scheduling (WRR, WFQ, Strict Priority, Hybrid(WRR+SP or WFQ+SP)), Class of Service, Port-based, 802.1p, IP TOS Precedence, IP DSCP, Rate Limit Port-based (Ingress/Egress) |
| ACL | Support ACL Type L2/L3/L4 , 512 MAC, based, 512 IPv4-based, 512 IPv6-based, Access Rules 1024 |
| IPv6 | |
| IPv6 Host | Support Auto Configuration, Static IPv6 Address and Prefix Length, Static IPv6 Default Gateway, IPv6 Neighbor Discovery (ND), IPv6 Duplicate Address Detection, ICMPv6 |
| IPv6 Application | Support HTTP/HTTPS, TELNET, SSH, SNMP, TFTP, Syslog, PING, DHCPv6 |
| DHCP | |
| DHCP | Support DHCP server, DHCP relay, BootP/DHCP client, DHCP snooping, DHCP relay option82, DHCP snooping option82, Requirements for Remote-ID (Access Switch Identifier), Requirements for Circuit-ID (Access port identifier), IP Pool, Static Binding |
| Security | |
| AAA Authentication | Support 8 TACACS+, 8 RADIUS |
| Authentication Manager | Support IEEE 802.1X, MAC Auth, Web Auth, Guest VLAN, Port-based, Host-based |
| Account Manager | Support Local Authentication, 8 Multiple User Account, Multi-Level Security (Manager/Operator), Password Recovery Procedures |
| Management Access | Support Management VLAN, 256Management ACL |
| SSL | Support SSLv2, SSLv3, TLSv1 |
| Port Security | Support 256 Dynamic Lock |
| CPU Defense Engine, DoS Prevention, DHCP Snooping (with Option 82), Dynamic ARP Inspection, 256 IP Source Guard, IP/MAC/Port Binding (IMPB), Dynamic VLAN Assignment | |
| Diagnostics | |
| Syslog (RFC3164) | Support Local RAM, Local Flash, 8 Remote Server |
| System Diagnostics | Support CPU Utilization, Memory Utilization, Port Utilization, Technical Support Log |
| Port Diagnostics | Support Cable Test, Fiber Module Status |
| Network Diagnostics | Ping Test, Traceroute |
| UDLD | Supported |
| Management | |
| Manager Access | Support CLI 3 sessions Console, 3 sessions Telnet (RFC854), WebUI HTTPS, SSH v1/v2 |
| Manager IP | Support DHCP Client, DNS Client |
| Cloud Control | Remote Control via Airlive Aircore |
| Time Management | Support SNTP, Local |
| SNMP | Support V1/V2C/V3 |
| SNMP MIB | Support RFC1213 MIB-II, RFC1493 Bridge MIB, RFC2674 Bridge MIB Extensions, RFC1215 Generic Traps MIB, RFC2819 RMON MIB (Groups 1, 2, 3 and 9), RFC2737 Entity MIB, RFC3635 Ethernet-Like MIB, RFC2863 Interface MIB, SNMP-Community-MIB, SNMPv3-MIB |
| RMON | Support 32 entries / type RMON Management |
| Firmware Management | Support Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup, Multiple Configurations |
| Configuration Management | Support Upload and Download (TFTP (RFC783), HTTP, UART), Save, Restart, Factory Defaults |
| Environment | |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Model | AI-L3-10XGF8 L3 Managed Full 10G Fiber Switch, 8-Port Full 10G SFP+ Fiber |
| Standard Package | |
| Product Size | 19.5(L) x 16.0(W) x 4.0(H) cm |
| Package Size | 23.9(L) x 25.8(W) x 5.8(H) cm |
| Package Weight | N.W: 1.00kg G.W: 1.45kg |
| Package Content | Switch x 1, QIG x 1, Power cord x 1, Rack ear x 1 |
| Carton Package | |
| Quantity | 10PCS / 1 Carton |
| Dimensions | 50.0(L) x 34.0(W) x 27.0(H) cm |
| Weight | 15.50kg |
| Name | Description | Download | Date |
| AI-L3-10XGF8 Spec Sheet | 2026/07/17 |
