POE-GSH2404M-400: Managed 400W Gigabit PoE+ Switch

SNMP & PoE managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data
SNMP & PoE managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data

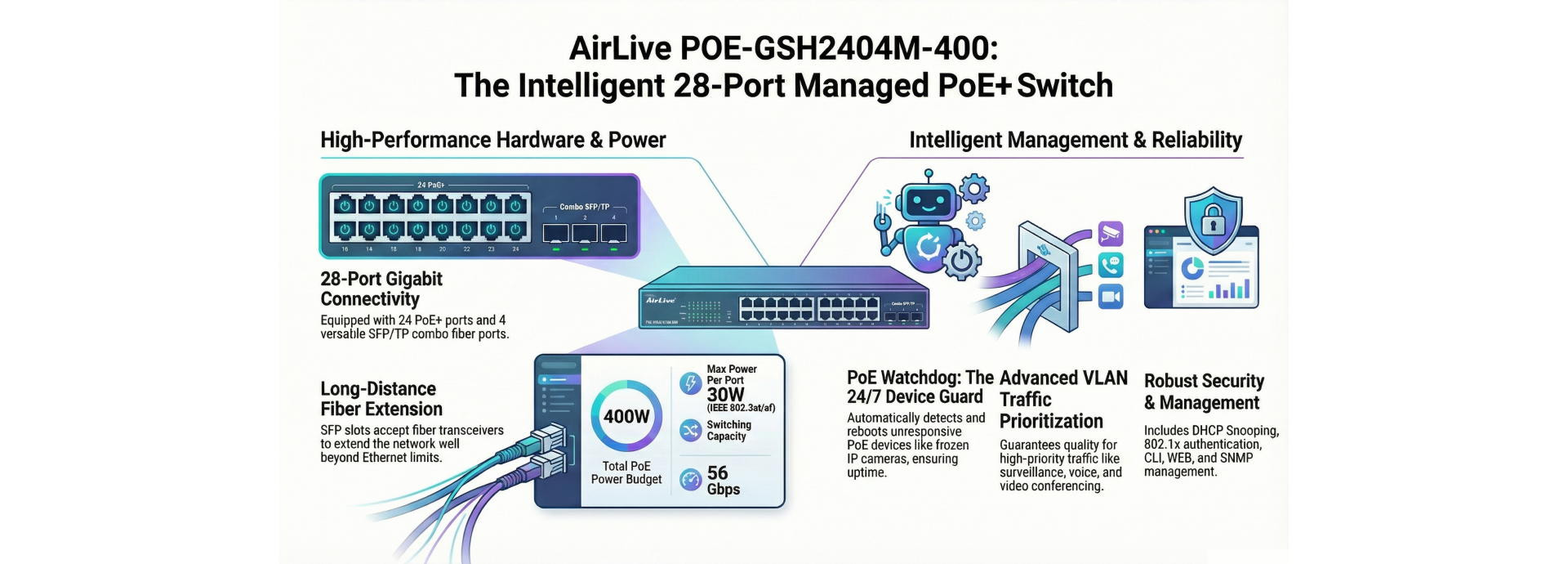

AirLive POE-GSH2404M-400 is an L2+ managed 28-port Gigabit PoE+ switch including 24 PoE ports and 4 Gigabit SFP/TP combo ports with high 400W PoE power. Each PoE port is 802.3at/af compliant of up to 30W, automatically adaptive. It supports comprehensive SNMP management function such as IGMP Ring Network, VLAN Division, Port aggregation, QoS port mirroring, bandwidth control. Providing VLAN Division Policy function for setting higher priority for Video Conference, Surveillance, Voice, or data that prevents package loss or lags. Furthermore, the PoE watchdog can detect and restart crashed IPCAM or PD, the best 24/7 PoE device guard. No manual is required, and it can provide timely and reliable solutions for later operation and maintenance of the projects.
Features

  • All 28-port, each port delivers Gigabit high speed
  • Extend the network further with 4 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • 400W High PoE power, ensure full power for connected device
  • Automatically detect and offer power for connected PD
  • Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
  • Surveillance VLAN property and Voice VLAN support for high priority transmission
  • PoE watchdog support to detect and restart connected PD
  • Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management
Major Specifications

  • 24 x 30W PoE 10/100/1000
  • 4 x 1000T/SFP (combo port)
  • 802.3at/802.3af compliant
  • Each port up to 30Watts; PoE Power 400W
  • Lighting Surge ESD protection: 6KV / Port ESD Static Protection: 15KV /Switch
  • L2+ SNMP v1/2/3, Trap
  • PoE management, PoE Watchdog
  • Authentication: 802.1x, AAA, TACACS+
  • SNMP, WEB, CLI, SSH, Telnet, RMON
  • VLAN Division (Surveillance, Voice, MED Conference, Data)
  • DHCP Snooping prevents unauthorized router installed
  • Support 802.3az Energy Efficient Ethernet
Efficient PoE Watch Guard - PoE Watch dog technology and PoE Management
Efficient PoE Watch Guard - PoE Watch dog technology and PoE Management
400W PoE powered Switch, POE-GSH2404M-400 will detect and provide full power to connected PD adaptively automatically. Moreover, it features PoE Watchdog technology that can automatically detect connected PD and restart the crashed devices. For example, when “PoE Watchdog” function is turned on, the switch auto-detects the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera is restarted through PoE power failure to solve the problem of camera crash. No manual operation is required, and it can provide timely and reliable solutions for later operation and maintenance of the system.
Automatic Surveillance VLAN Support
Automatic Surveillance VLAN Support
Choose Surveillance Mode on the Web Interface for a smooth surveillance experience with user-friendly features. Your security devices are detected automatically and segregated into a dedicated Auto Surveillance Virtual LAN, ensuring secure and efficient handling of video surveillance data. Utilize Surveillance Mode in the Web UI for easy and effortless surveillance network management. Features are designed for user convenience and the system will automatically detect your security devices and allocate them into a separate Auto Surveillance VLAN for secure and efficient handling of video surveillance traffic.
VLAN Policy for Video Conferring/Voice/Data
VLAN Policy for Video Conferring/Voice/Data
A VLAN policy for video conferencing, voice, and data separates network traffic for optimized performance and security. This allows for efficient management of different types of network traffic, such as video conferencing, voice communications, and data transfers, to ensure smooth and secure network operations.

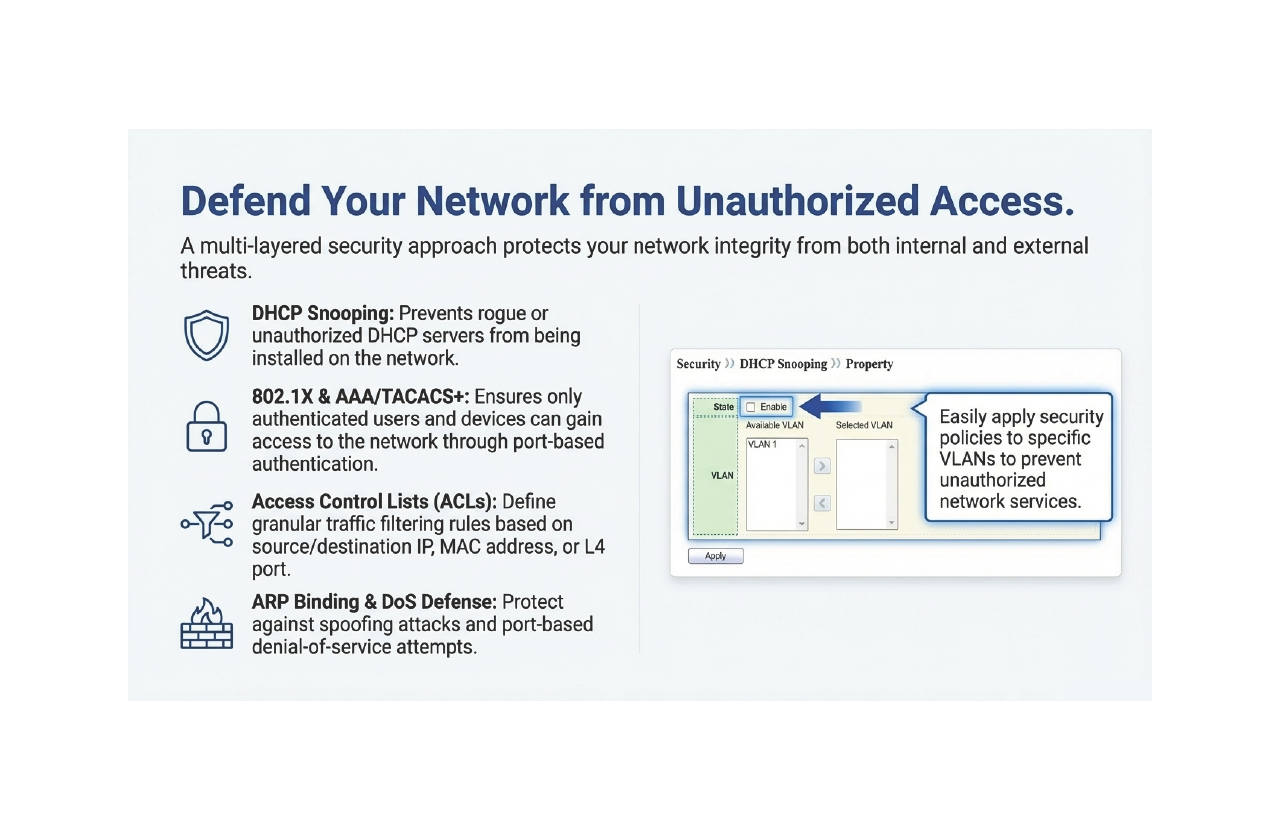

DHCP Snooping Support
DHCP Snooping Support
DHCP snooping is a network security feature that helps prevent malicious attacks by monitoring and filtering untrusted DHCP messages. It verifies the DHCP packets received on a network and only allows those from trusted sources, such as a DHCP server, to be processed, protecting against rogue DHCP servers that can potentially assign incorrect IP addresses to devices on the network.

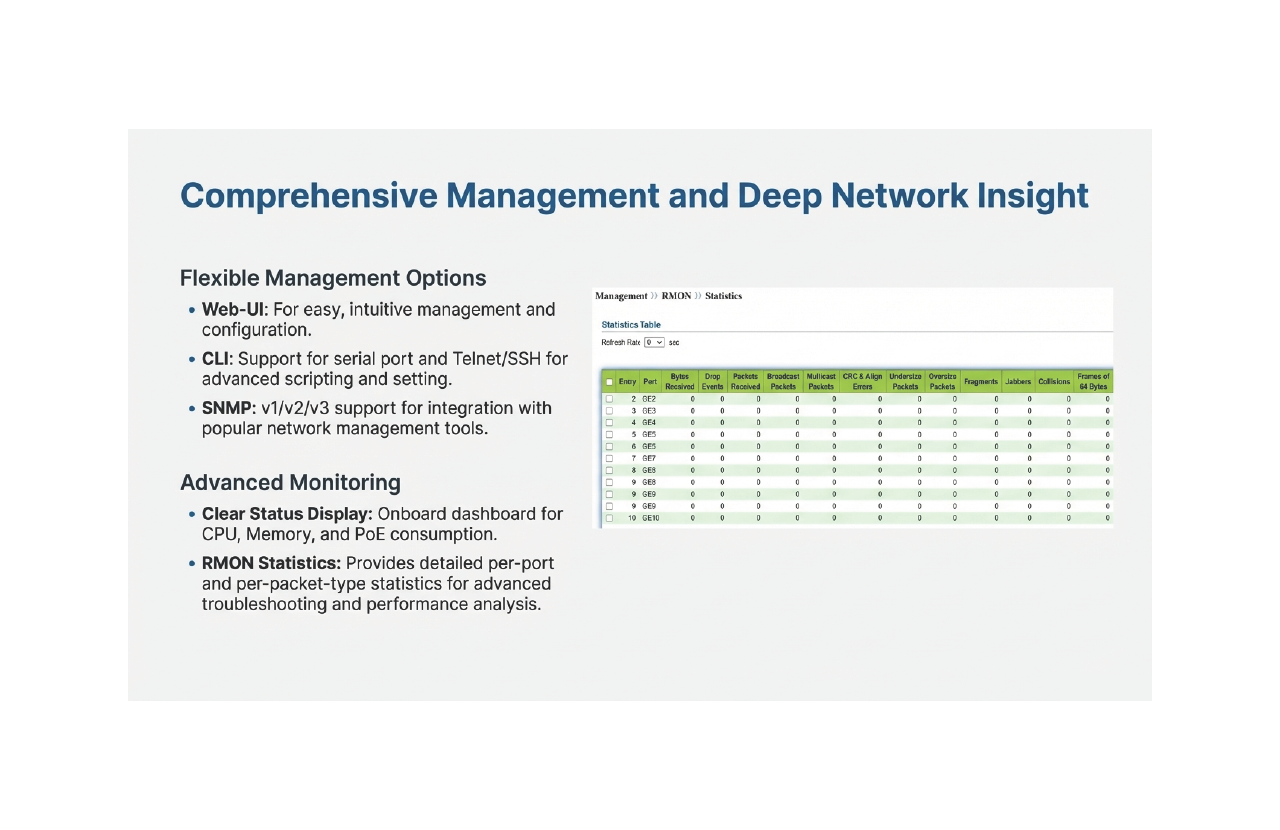

RMON Statistics Support
RMON Statistics Support
RMON (Remote Monitoring) statistics support is a feature in networking equipment that allows for remote monitoring and management of network performance. It provides information on network traffic, such as packet and byte counts, and allows network administrators to monitor network performance and troubleshoot network issues from a remote location. RMON statistics help provide detailed network visibility and are an important tool for network management and optimization.

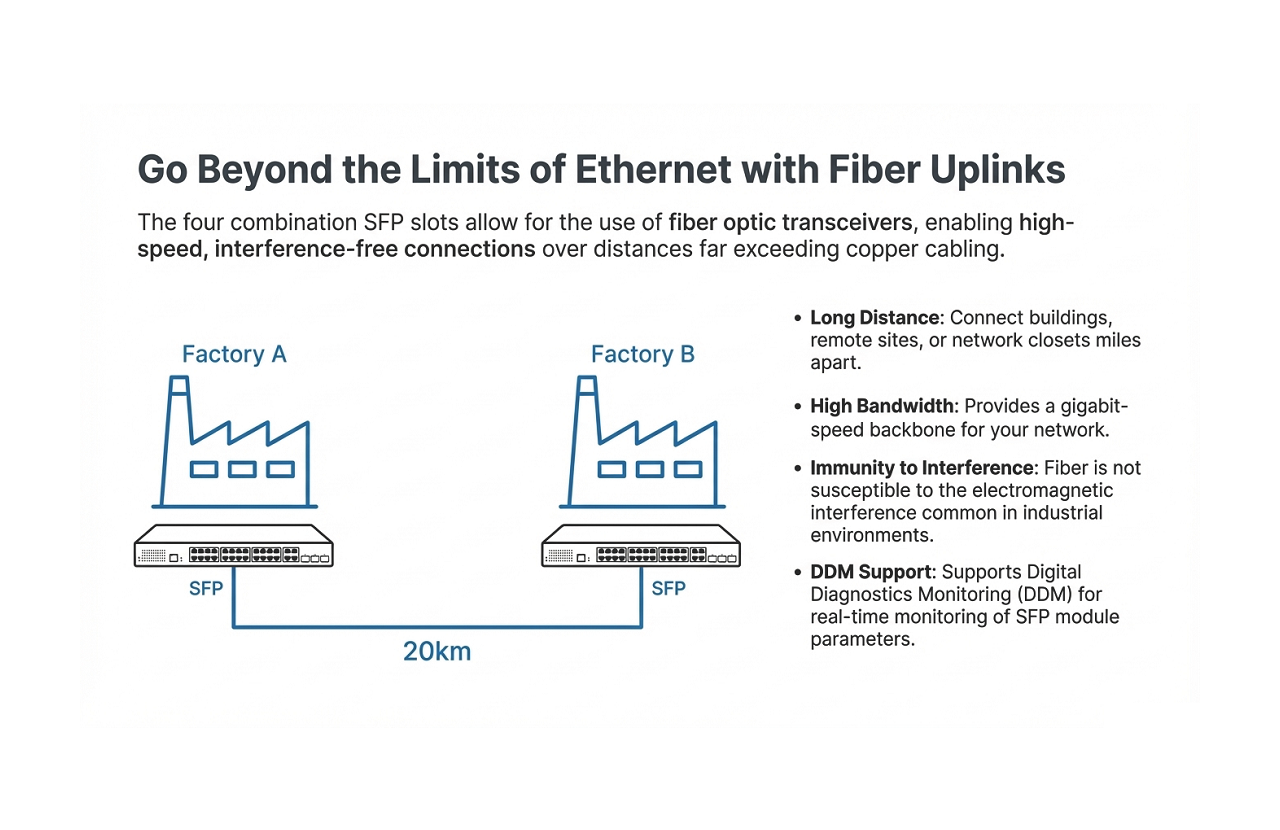

Fiber for Long Distance
Fiber for Long Distance
Fiber optic technology is used for long distance communication due to its high bandwidth capacity and immunity to electromagnetic interference. Fiber optic cables are made of thin glass or plastic fibers that carry light signals over long distances, providing fast and reliable data transmission. This makes fiber optics ideal for applications where large amounts of data need to be transmitted over long distances, such as in long-haul telecommunications and data center networks.
Efficient PoE Watch Guard - PoE Watch dog technology and PoE Management
Efficient PoE Watch Guard - PoE Watch dog technology and PoE Management
400W PoE powered Switch, POE-GSH2404M-400 will detect and provide full power to connected PD adaptively automatically. Moreover, it features PoE Watchdog technology that can automatically detect connected PD and restart the crashed devices. For example, when “PoE Watchdog” function is turned on, the switch auto-detects the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera is restarted through PoE power failure to solve the problem of camera crash. No manual operation is required, and it can provide timely and reliable solutions for later operation and maintenance of the system.
Surveillance VLAN Support
Surveillance VLAN Support
POE-GSH2404M-400 VLAN division includes Surveillance VLAN, Voice VLAN, MED Network (Video Conferring) and Data VLAN. When Enable Surveillance VLAN functions that ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.

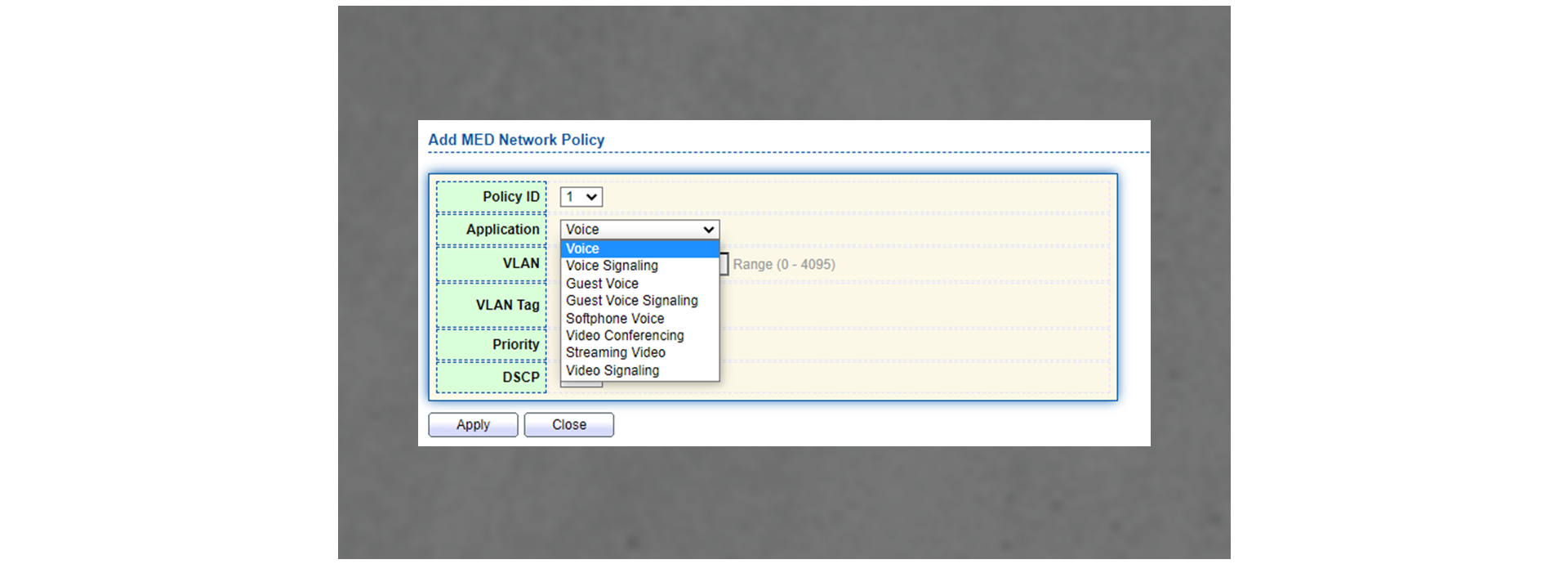

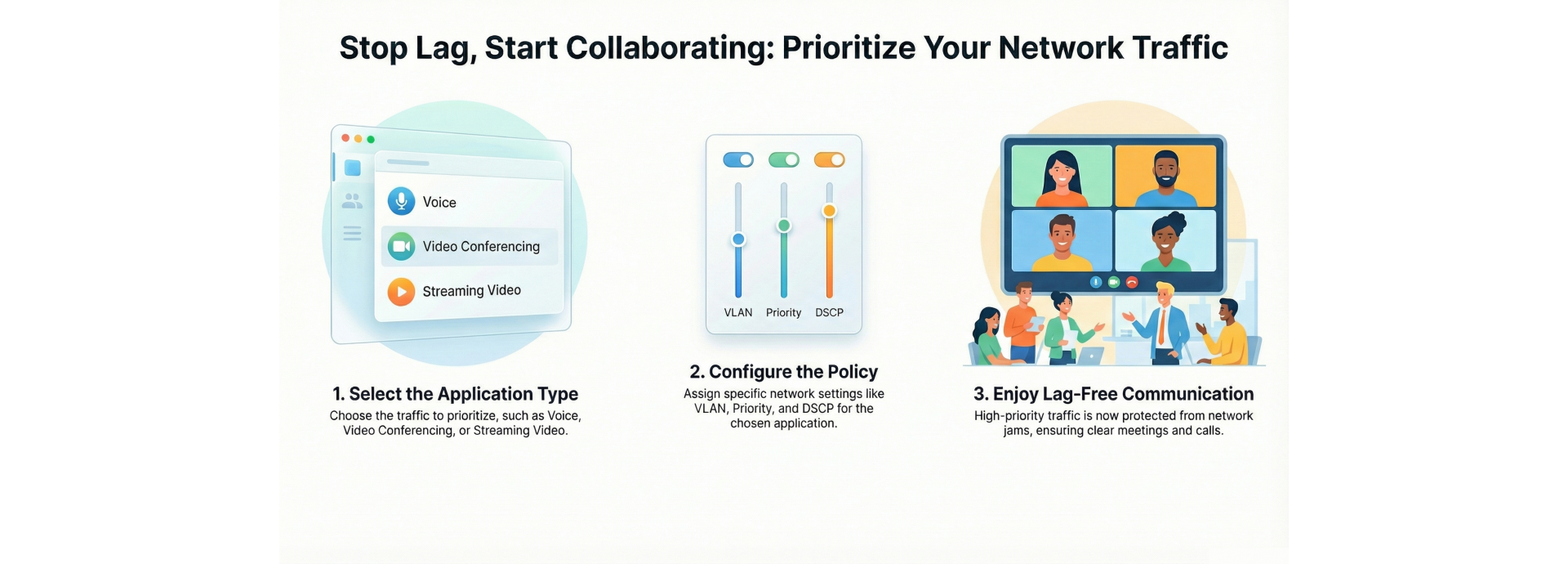

VLAN Policy for Video Conferring/Voice/Data
VLAN Policy for Video Conferring/Voice/Data
User can define policy for video conferring / voice data in high priority, to ensure your video meeting will not lag coursing by any networking jam.
DHCP Snooping Support
DHCP Snooping Support
Managing DHCP server; prevent stranger / Hacker
RMON Statistics Support
RMON Statistics Support
For each port and different packets item.
Fiber for Long Distance
Fiber for Long Distance
Extend the network further with SPF slots.
POE-GSH2404M-400 Photo-1
* IGMP Ring Network
* VLAN Policy
(Video Conferring | Surveillance | Voice | Data)
* PoE Watchdog and Timing
* High PoE Power 400W
* Auto detect and Power PD
* SFP Fiber Long Distance
Hardware
ModelAirLive POE-GSH2404M-400
Device Interface24 x 30W PoE 10/100/1000 RJ45
4 x Combo ports Gigabit TP/SFP
28-port totally
1 x RJ45 console port
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Standard method for performing link aggregation
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and Authentication
IEEE802.3at/af PoE
IEEE802.3az Energy Efficient Ethernet
IEEE802.1ab LLDP/LLDP-MED Device Link Layer Discovery Protocol
LED IndicatorsPWR (power supply), SYS(System), 1-24 PoE & ACT (POE), 1-24 Link & ACT (Link & ACT), 25-28 Link (Link), 25-28 Act (Act)
Lighting Surge Protection6KV (general mode), 4KV (differential mode), ESD15KV
MechanicalSolid metal 19” 1U rack-mountable, fan-less
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port24
PoE Power Output / PoE Portmax. 30 watts
PoE Power Output / PoE switchmax. 370 watts
Power InputAC100~240VAC, 400W
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 56Gbps
Switch packets Capacity; 41.66Mpps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Packet Buffer: 4Mb
Flash Memory: 16MB
DDR SDRAM: 128MB
L2/L2+ Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, MTU setting
Flow-Control
Port Information Check
Port MirroringSupport both side-way port mirroring
Port Speed LimitPort-based input/output bandwidth management
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link AggregationSupport static manual aggregation
Support LACP dynamic aggregation
VLANAccess, Trunk, Hybrid
Support Port-based, Protocol-Based, MAC-Base VLAN partitioning
Support Generic GVRP dynamic VLAN registration
Voice VLAN
MACSupport static addition, deletion
MAC address learning limit
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1w Spanning Tree protocol
MulticastSupport Static addition, deletion
Support IGMP-Snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDMSupport SFP/SFP+ DDM
Layer 3 SwitchingIPv4 Static Routing
IPv6 Static Routing
DHCP Server
L2/L2+ Management Extension Function
ACL (Access Control List)Based on source MAC, destination MAC, Protocol type, source IP, destination IP, L4 port
QoSBased on 802.1p (CoS) classification
Based on DSCP Classification
Classification based on source IP, destination IP and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP DiscoverySupport LLDP discovery protocol, LLDP with LLDP-MED extensions (IPv4 ACL, IPv6ACL, MAC ACL)
User SettingsADD/Delete users
LogUser login, operation, status, events
Anti-attack (Security)DOS defense (port-based)
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
Certification | AuthenticationSupport 802.1x port authentication
Support AAA authentication
Support TACAS+ authentication
Network diagnosisSupport Ping, Telnet, Trace
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc.
System Management
CLISupport serial port command line management
SSHSupport SSHv1/2 remote management
TelnetSupport Telnet remote management
WEBSupport Layer2 setting, layer2 and layer3 monitor
SNMPSNMP V1/V2/V3; support trap (ColdStart, Warmstart, LinkDown, LinkUp)
RMON (remotely management)Support RMON1
PoESupport PoE power
Other FunctionsSupport DHCP Snooping, Option 82, DHCP Server
Support dynamic ARP detection
Support DNS certification
Support Port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +85°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing



Ordering Information

ModelPOE-GSH2404M-400
L2 Managed Gigabit PoE+ switch, 400W
28 Ports including 4-combo port (TP/SFP Fiber)
Standard Package
Product Size44(L) x 28(W) x 4.4(H) cm
Package Size50(L) x 35(W) x 9(H) cm
Package WeightN.W: 3.9KGS
G.W: 4.6KGS
Package Content1 x Switch, 1 x Power code
1 x Mounting bracket 1-pair (selectable)
Carton Package
Quantity5 PCS / 1 Carton
Dimensions52(L) x 44.5(W) x 38.5(H) cm
Weight24 KGS
QIG
NameDescriptionDownloadDate
POE-GSH2404M-400 QIG
POE-GSH2404M-400 QIG
2022/06/08
User Guide
NameDescriptionDownloadDate
POE-GSH2404M-400 User Guide
POE-GSH2404M-400 User Guide
2021/05/27
POE-GSH2404M-400 User Guide (ES)
POE-GSH2404M-400 User Guide (ES)
2022/11/21
Spec Sheet
NameDescriptionDownloadDate
POE-GSH2404M-400 SpecSheet
400W Managed Gigabit PoE+ switch
2021/11/23
CE
NameDescriptionDownloadDate
AirLive L2+ and L3 Switch Series CE+RoHS
AirLive L2+ and L3 Switch Series CE+RoHS
2022/06/07
FCC
NameDescriptionDownloadDate
AirLive L2+ and L3 Switch Series FCC
AirLive L2+ and L3 Switch Series FCC
2022/06/07
Others
NameDescriptionDownloadDate
POE-GSH2404M-400 CLI User Guide
POE-GSH2404M-400 CLI User Guide
2021/08/27
Firmware & Software
NameDescriptionDownloadDate
POE-GSH2404M-400 Firmware v1.01
Firmware Initial Version
2021/04/23
AirLive POE-GSH2404M-400 Managed 400W Gigabit PoE+ switch
AirLive POE-GSH2404M-400 Managed 400W Gigabit PoE+ switch
Tutorial on how to configure Surveillance VLAN to IPcameras?
step 1
login to switch and click vlan-surveillance vlan-Surveillance OUI


step 2 apply to vlan-surveillance vlan-Property

click save apply configure

How to setup Voice VLAN
How to setup Voice VLAN for a VoIP Phone and Computer on the same port. Please click the PDF file.

Download
