Live-10TX800: 8-port 10Gbps Base-T Multi Gigabit Switch

Upgrading your system to 10Gbps
Upgrading your system to 10Gbps
AirLive Live-10TX800 multi Gigabit Switch is equipped with 8 RJ45 port, each port supporting super high speed up to 10G. Each port can auto-adaptively deliver speed at 100M/1000M or 2.5G/5G/10G to connected devices. It is perfect for various applications. For example, port 1 and port 2 connecting to your server or NAS Storage at 10Gbps, port 3 ~ port 5 connecting to your Notebook or PC at 2.5G or 1Gbps, port 6 connecting to gaming box at 5G or 10Gbps. Designed in a solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.
Features and Specifications
  • 8  x 100/1000M/2.5G/5G/10G RJ45 ports
  • All ports at Multi Gigabit high speed, auto-negotiation
  • Zero configuration
Features and Specifications
  • Compact size for Home or SMB Network Connectivity
  • ESD protection

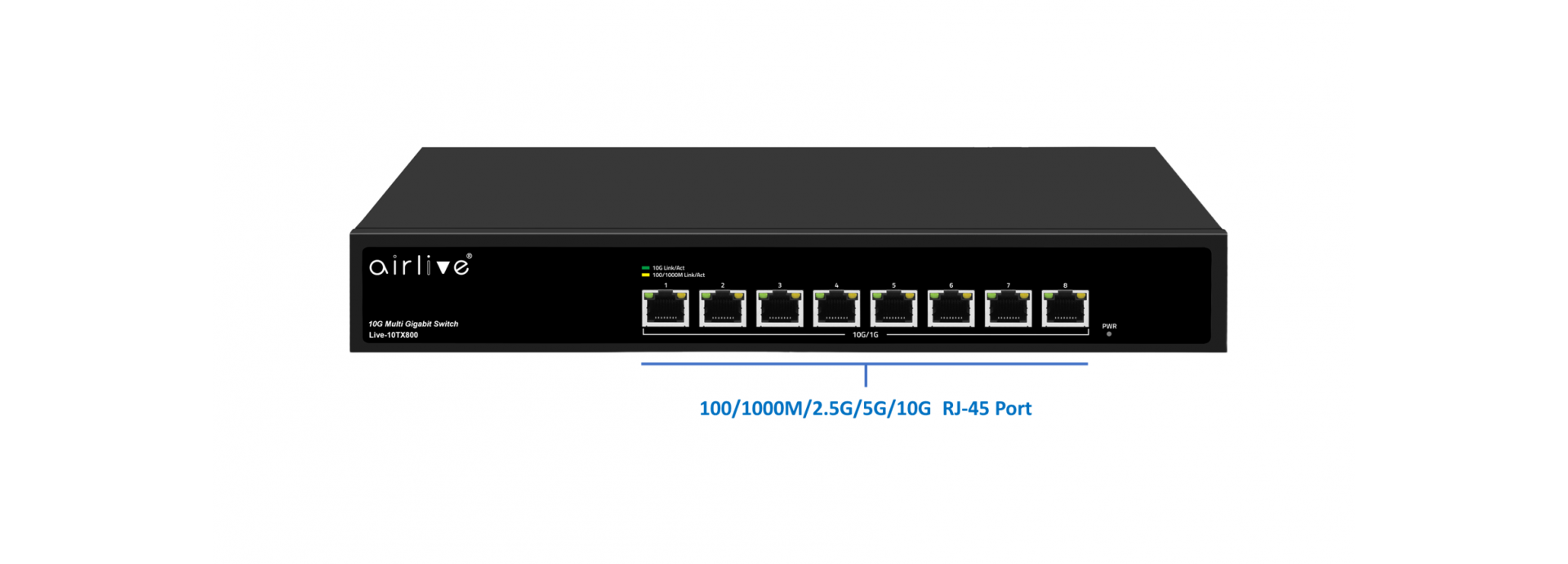

1G/2.5G/5G/10G RJ-45 Multi Gigabit, perfect for various applications
1G/2.5G/5G/10G RJ-45 Multi Gigabit, perfect for various applications
With the AirLive 10G multi-Giga switch, you can connect to a variety of 10GbE-enabled devices, such as NAS | NVR | PC | Server, the RJ45 ports are auto adaptive and can also work at 100/1000M/2.5G/5G , for enjoying faster experience and handle bandwidth-hungry applications.
High Video Streaming
High Video Streaming
Moreover, higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed when doing backup to a NAS drive.
Hardware
ModelAirLive Live-10TX800
Device Interface8 x 100/1000M/2.5G/5G/10G RJ45
8-port totally
StandardsIEEE802.3 10Base-TX
IEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5/5G Base-T
IEEE 802.3ae 10G Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE802.3x Flow Control and Back Pressure
Industry standard compliantEMI: FCC 47 CFR Part 15 Subpart B (Class A)
EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
LED IndicatorsPWR (power supply), Port LED Green (5/10G Link), Port LED Yellow (100/1000M Link)
ESD ProtectionCommon mode 6KV, ESD: Air 8KV, Contact 6KV
MechanicalSolid Metal Housing
Power
Power InputAC100-240V , 50/60Hz
Switch Architecture | Performance
Switching architecture: Store and ForwardBandwidth: 160Gbps
Packet Forward Rate; 119.04Mpps
RAM: 128Mb
Flash Memory: 16Mb
Memory Cache: 12Mbit
VLAN: 4K
MAC Address: 16K
Jumbo Frame: 12Kbytes
Transfer mode: Store and forward
MTBF:100000 hour
Transmission Distance10Base-T: Cat3,4,5 UTP(≤250 meter)
100Base-TX: Cat5 or later UTP(150 meter)
1000Base-TX: Cat5e or later UTP(150 meter)
10000Base-TX: Cat6e/Cat6a or later UTP(100 meter)
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Operating Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelLive-10TX800
8-port 10Gbps Multi Gigabit Switch, incl. 8x RJ45, Plug and Play, 100/1000M/2.5G/5G/10G  Auto-negotiation
Standard Package
Product Size32.0(L) x 20.7(W) x 4.5(H) cm
Package Size37.0(L) x 29.0(W) x 8.5(H) cm
Package WeightN.W: 1.72KGS
G.W: 2.12KGS
Package Content1 x Switch, 1 x Power Cord, 1 x Pair of rack ears
Carton Package
Quantity5 PCS / 1 Carton
Dimensions44.5(L) x 31.0(W) x 39.0(H) cm
Weight11.6 KGS
Spec Sheet
NameDescriptionDownloadDate
Live-10TX800 Spec Sheet
2023/11/28
