XGSPON OLT-1XGS: 1 Port 10G XGSPON OLT with 10G SFP+

ADD INQUIRY

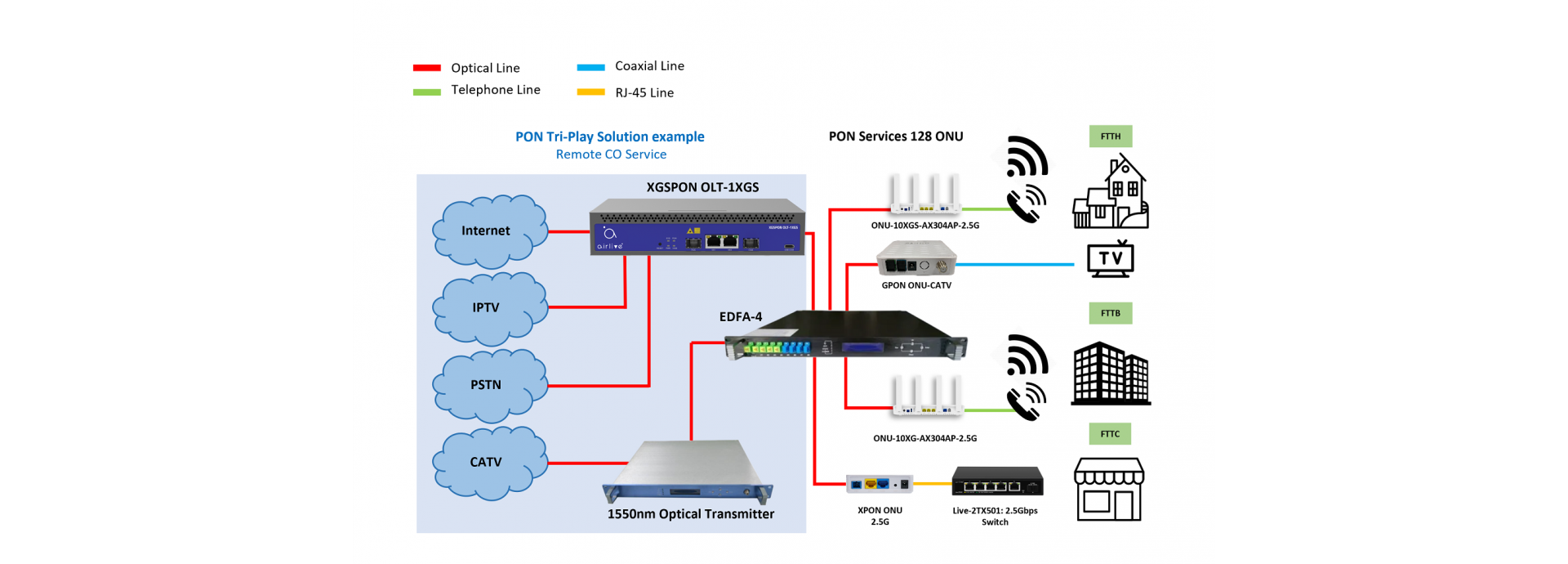

GPON to XG(S)-PON: Seamless Evolution in a Single Port.
GPON to XG(S)-PON: Seamless Evolution in a Single Port.
The XGSPON OLT-1XGS is a XG(S)-PON OLT that caters to new optical fiber communication networks. It conforms to international standards like ITU-T G.9807 (XGS-PON) and ITU-T G.987 (XG-PON) and supports two bandwidth access modes: 1. Asymmetric mode with 2.5Gbps upstream and 10Gbps downstream speed, and 2. Symmetrical mode with 10Gbps upstream and downstream speeds. It also support ITU-T G.984 (GPON) making triple mode possible. It is an ideal fit for high-bandwidth small to medium-scale scenarios such as upscale apartments, high-end SOHO and premium office, FTTx, and local building networks.
The compact chassis of the XGSPON OLT-1XGS makes it easy to deploy in tight spaces. Its Realtek chipset solution ensures a robust performance. The OLT-1XGS boasts many ports, providing 1x 10G SFP+ and 2x 1G RJ45 uplink ports for full line-speed data forwarding. It also offers a single PON downlink interface with a splitting ratio of 1:128 to access the user's ONT. This device is designed for use with applications the require the new higher data transfer speeds. To use XG(S)/GPON The Airlive XGS-PON/GPON Combo N2_C+ module is needed (comes default with the OLT). When using this module, the autosensing function in the OLT will set the correct speed for the connected XG/XGS/GPON ONU. All can be used at the same time on a single PON port.

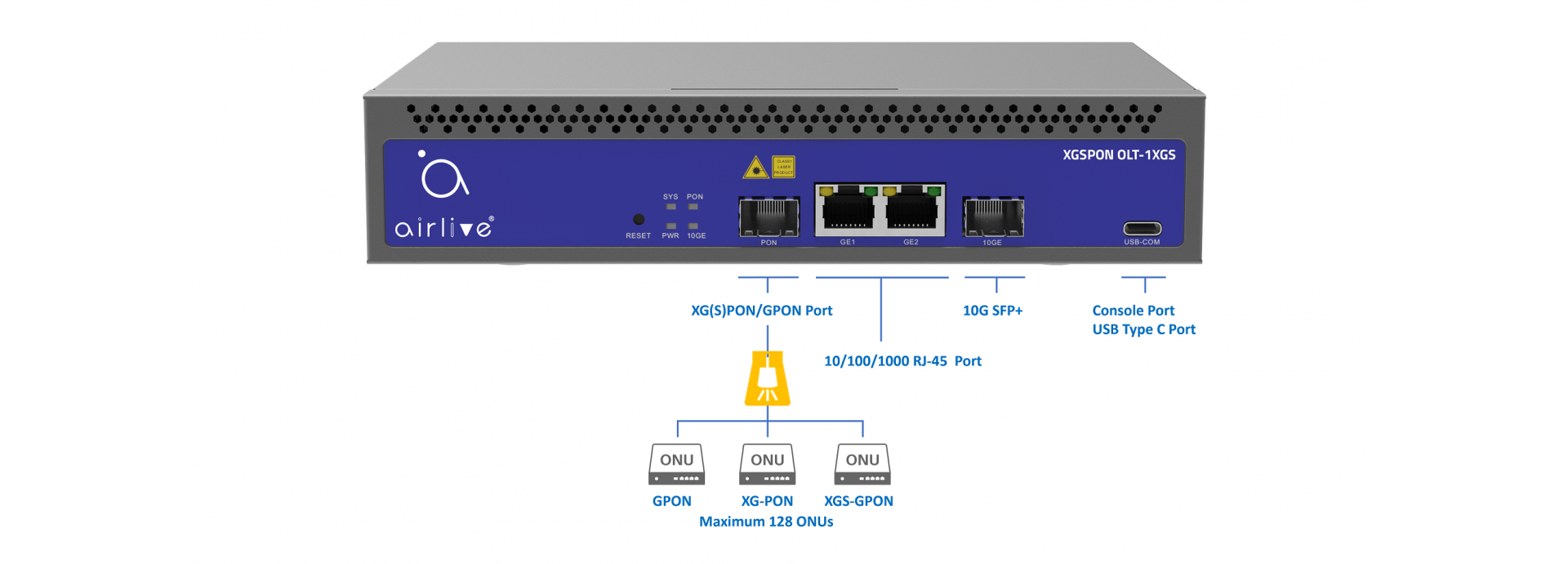

Highlight Feature
Highlight Feature
Features
  • Supports XGS-PON/XG-PON/GPON Triple mode.
  • GPON ONU: Upstream 1.2Gbps, Downstream: 2.5Gbps
  • XG-PON ONU: Upstream 2.5Gbps, Downstream: 10Gbps
  • XGS-PON ONU: Upstream 10Gbps, Downstream: 10Gbps
  • 1 PON port, 1x 10G SFP+, 2x 1G RJ-45
  • PON port supports up to 128 ONUs
  • Support WAN, NAT
Hardware
ModelAirLive XGSPON OLT-1XGS
Device Interface•PON Port: 1x XG(S)-PON (SFP+) N2_C+ SFP+
•Uplink: 2x 1G RJ-45
•Uplink: 1x 10G SFP+
•Console: 1x USB-COM Type C USB port
•Connector: XG(S)-PON&GPON Combo mode: N2_C+
•Supported ONUs: 128
•PON port speed:
          GPON ONU: Upstream 1.244Gbps, Downstream: 2.488Gbps
XG-PON ONU: Upstream 2.488Gbps, Downstream: 9.953Gbps
XGS-PON ONU: Upstream 9.953Gbps, Downstream: 9.953Gbps
•Wavelength: XG(S)-PON TX 1577nm, RX 1270nm GPON TX 1490nm, RX 1310nm
•Max splitting ratio: 1:128
•Transmission Distance: 20km
•Backplane Bandwidth: 30Gbps
•Port Forwarding Rate: 44.64Mpps
•Management Mode: WEB/Telnet/CLI/SNMP
•Lightning protection level: Power supply 6KV/Device Interface 4KV
Firmware features
Management FunctionSNMP, Telnet, CLI, WEB, SSH
Port Status monitoring and configuration management
Online ONU configuration and management
User management
Alarm management
Layer2 Switch8K MAC address
Support 4096 VLANs
Support port VLAN
Support VLAN tag/Un-tag, VLAN transparent transmission
Support VLAN translation, QinQ and P2P
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Access control list
IEEE802.x flow control
Port stability statistic and monitoring
Multicast
 		IGMP Snooping
256 IP Multicast Groups
DHCPDHCP server, DHCP relay, DHCP snooping
DHCP option82
DHCPv6 server, DHCPv6 relay
Layer 3 RouteSupport Dynamic/Static ARP
Support WAN (DHCP/PPPOE/Statics)
Support static routing, NAT, DMZ
Support QoS based on DSCP, MAC, IP, L4 port, protocol
Support ACL based on Source MAC address, Source IP address, Source L4 port,
Destination IP address, Destination L4 port, Protocol type
IPv6Support IPv6 Ping, IPv6 Telnet, IPv6 routing
Support ACL based on source MAC address, Source IPv6 address, Source L4 port,
Destination IPv6 address, Destination L4 port, Protocol type
Support IPv6 SLAAC
Support MLD v1/v2 snooping (Multicast Listener Discovery snooping)
PON FunctionT-CONT DBA
x-GEM traffic
In compliant with ITU-T G.9807(XGS-PON), ITU-T G.987(XG-PON) and with ITU-T G.984 (GPON).
Support Up to 20km transmission distance.
Support data encryption, multi-cast, port VLAN, separation
Support ONU auto-discovery/link detection/remote upgrade of software.
Support VLAN division and user separation to avoid broadcast storm.
Support power-off alarm function, easy for link problem detection.
Power Consumption
PowerAC 100~240V, 50/60Hz (Default)
DC 12V/1A (Optional)
Power Consumption≤12W
Environment
Working Temperature-20°C to +60°C
Storage Temperature-40°C to +70°C
Working Humidity5%~95%, non-condensing
Storage Humidity5%~95%, non-condensing
MTBF200000 hrs.
**Note**
PON ModeThe OLT-1XGS supports GPON, XG-PON and XGS-PON Triple play. The AirLive XG(S)-PON/GPON Combo Pon module which comes with the OLT is recommended to be used. All 3 modes can run at the same time.



Ordering Information

ModelXGSPON OLT-1XGS
AirLive XGSPON OLT-1XGS 1 Port 10G XGSPON OLT with 1x 10G SPF+, 2x 1G RJ45
Standard Package
Product Size21.0(L) x 17.3(W) x 4.36(H) cm
Package Size(L) x (W) x (H) cm
Package WeightN.W: 1.07kg
G.W: kg
Package Content1 x Device, 1 x Power Cable , Installation Kits, QIG
Carton Package
Quantity PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
Weight kg
