AirCloud TOP-18AX: Wi-Fi 6 AX1800 Gigabit PoE Access Point

TOP-18AX service 24/7 365 Management via the AirCloud
TOP-18AX service 24/7 365 Management via the AirCloud
You can centrally set up, configure, monitor, and manage certain Airlive devices around the clock, every day of the year, using cloud-based remote network management. This unified remote management solution helps cut costs and save time. Airlive offers an full range of access points, in-wall APs, outdoor CPEs, and mobile hotspots through AirCloud, providing a comprehensive network ecosystem.
Multi function High Speed Access Point
Multi function High Speed Access Point
The Airlive TOP-18AX is a multi function WiFi6 Access Point which features 1x 1Gbps LAN port and 1x 1Gbps WAN PoE input port. The TOP-18AX supports FIT/FAT Operation mode. Meaning it can work as a standalone access point at home or office, or as an access point which is controlled by an AirLive WLAN Controller like the AirLive WLAN-128GM/64GM for large Enterprises or organizations were central management is preferred.

Choose AP or AP Gateway mode, In AP Gateway mode the TOP-18AX offers the WAN port features like PPPoE and functions like QoS, URL & MAC filtering. In AP mode the TOP-18AX is a standalone default Access Point. The TOP-18AX can also be controlled via AirCloud, Cloud control.
Features
  • WiFi 6 11a/b/g/n/ac/ax compliant
  • OFDMA, MU-MIMO
  • 2T2R 1800Mbps Wireless High Speed (600Mbps + 1200Mbps)
  • 20/40/80Mhz Channel
  • Concurrent dual bands
  • Seamless Roaming
  • 1 x 10/100/1000mbps WAN
  • 1 x 10/100/1000mbps LAN
  • 802.3af PoE power input (WAN)
Features
  • FIT/FAT Operation mode
  • AP and AP Gateway Operation Mode
  • Cloud Management Support via AirCloud
  • AC Controller Support with AirLive WLAN-128GM/64GM
  • Up to 8 Multiple SSID
  • VLAN Support in AP Mode
  • QoS in AP Gateway Mode
  • URL/MAC/IP Filtering
  • WiFi Timer
Advanced Management
Advanced Management
Advanced Management Fit (central management) and Fat (Stand-alone AP) Operation Mode or, Cloud management

The AirLive TOP-18AX offers several different ways to control and operate it.

Fit mode: In this mode the Access Point (TOP-18AX) works with an AirLive WLAN Access Controller (WLAN-128GM), the controller is the “brain” of the TOP-18AX Access Point and controls all functions like wireless settings, encryption and more. The Fit mode is used for large enterprise setups were a large numbers of AP’s need to be controlled all at ones. Using the Fit mode in the TOP-18AX and an WLAN Access Controller it will save a lot of the time and difficulties in setup.

Fat mode: In this mode the Access Point (TOP-18AX) works as a standalone device with all wireless and encryption functions being setup and controlled within the AP itself. This is more suitable for residents or offices where less AP’s are installed. The Fat mode has an AP mode and AP Gateway mode. In Gateway mode the WAN port can be to connect to a Modem/Router via PPPoE, DHCP or Static IP. In AP Mode the TOP-18AX can connected to an exciting network and work without the WAN port features.

Cloud Control: The AirLive TOP-18AX can be controlled via AirCloud, ones the AP has been added to the Cloud. It can be controlled from any location. This offers extra benefits when dealing with a large network of Access Points, as local access is not needed, and support can be giving from a remote office. Also, multiple levels of control can be giving in the Cloud from Admin to only viewer rights. AP’s can be added and removed at anytime.

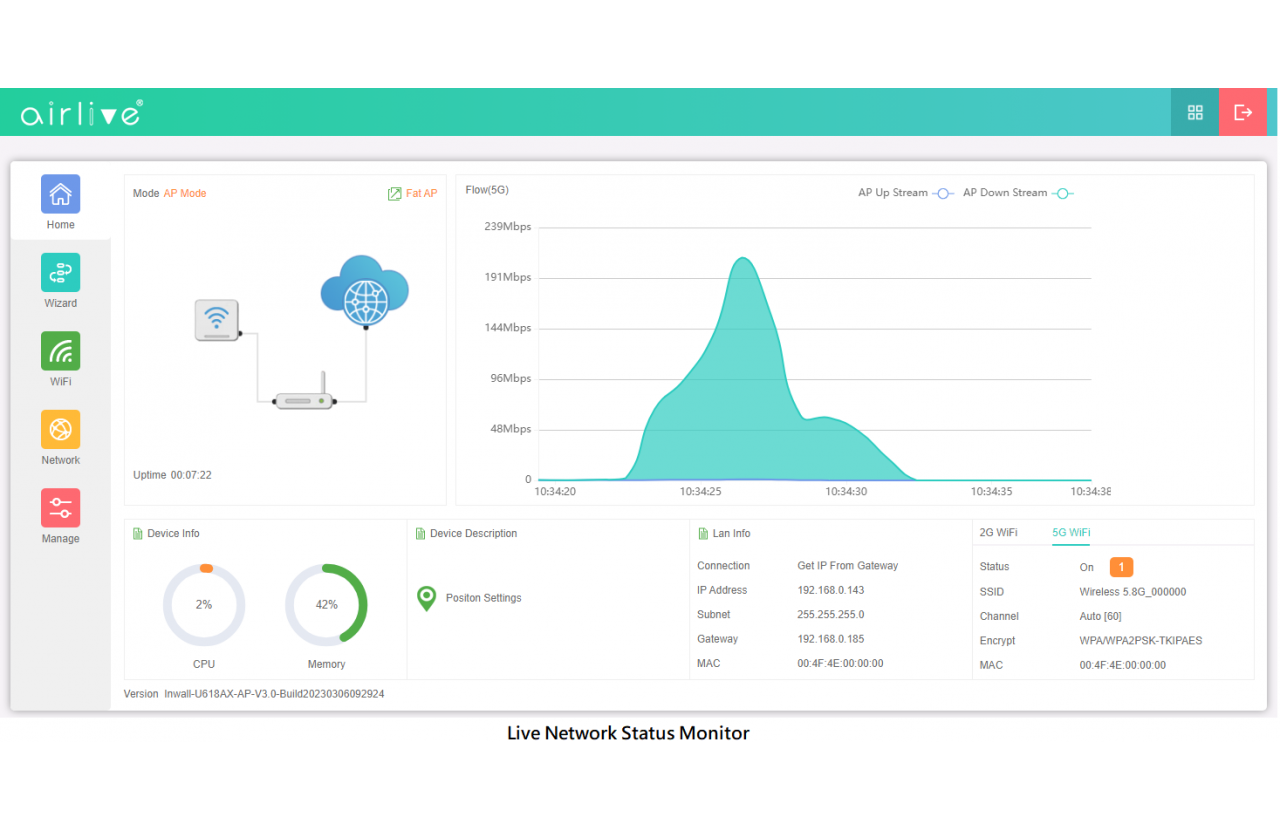

Live Network Status Monitor
Live Network Status Monitor
Monitoring your wireless internet usage by live stream graph, you can gain real-time insight into your network activity and make informed decisions about managing your internet resources.
Wireless Seamless Roaming
Wireless Seamless Roaming
Wireless seamless roaming allows devices to switch between different wireless access points without any interruption to their connection note that the SSID and wireless password of the all the access points should be the same.
It is particularly useful in environments where users need to move around frequently while staying connected to the network, such as in large office buildings, hospitals, and public areas like airports or train stations. To enable seamless roaming, wireless networks use a combination of protocols and technologies, such as 802.11r, 802.11k, and 802.11v, which are supported by the aircloud ceiling and inwall access points that allow devices to make quick and accurate decisions about which access point to connect to. The overall goal of wireless seamless roaming is to simplify the process of staying connected to a wireless network as the user moves around, without any interruption or loss of connectivity.

Overall, wireless seamless roaming is an important technology that enables users to stay connected to the network while moving around, without any interruption or loss of connectivity. Wireless seamless roaming simplifies the process of maintaining a continuous connection to a wireless network as a device moves from one area to another without any interruption. Here are a few key points to simplify the concept:
  • 802.11r: This protocol enables fast handovers between access points by pre-authenticating the device with the next access point before it actually moves there.
  • 802.11k: This protocol enables the wireless network to provide more accurate and timely information about the signal strength and capabilities of nearby access points, allowing the device to make better decisions about which access point to connect to.
  • 802.11v: This protocol enables the wireless network to provide information about the quality of service (QoS) offered by different access points, allowing the device to choose the best access point based on its needs.
Hardware
ModelAirCloud TOP-18AX
Device InterfaceMain Chip: MTK, Dual Core MT7621AT
Flash:16MB
RAM:256MB
Ethernet (LAN): 1 x RJ45 10/100/1000Mbps
WAN (PoE): 1x RJ-45 10/100/1000Mbps
WiFi: 802.11b/g/n/n/ac/ax 2T2R(2.4Ghz), 802.11a/n/ac/ax 2T2R (5Ghz)
Button: Reset x 1
Power Input: 1 x 12VDC or 1 x 48V (802.3af PoE)
Antenna Connector:
Internal Wireless Antenna 4dBi (2.4/5Ghz) MIMO
WANPPPoE, DHCP, Static IP, (Bridge (AP Mode))
WiFiStandard: IEEE 802.11a/b/g/n/ac/ax, 2x2, 20/40/80 MHz channels
Functions: Multi-SSID 8 (4 per radio), SSID hidden ,SSID isolation, Band Steering, RF power adjustable, Wi-Fi time on/off to save energy
Security: WPA/WPA2PSK-TKIPAES, WPA3PSK-TKIPAES
Modulation: OFDMA, 1024QAM
Seamless Roaming: 802.11k, 802.11v, 802.11r
Wi-fi Advanced: Wireless client isolation
Wireless Channel:
2.4G:1~13 (CE Channel) (region dependent)
5.8G: (region dependent) 36~48, 36~64,100~140,149~165
Wireless Speed:
1800Mbps Wireless High Speed (600Mbps + 1200Mbps)
Wireless TX Power:
2.4G: ≤20dbm, 5.8G: ≤18dbm
SecurityFilter Rule: URL Filter/Mac Filter/IP Filter
URL/MAC/IP filtering: White list/Black List.
DMZDMZ

Port Forwarding Rule/Range

TCP/UDP
VLANVLAN support SSID Max 4 per Band
CloudAirCloud access support in Gateway/AP Mode

FIT/FAT Operation Mode

FIT Mode: AP works with AC Controller (Enterprise use)
FAT Mode: AP works standalone (Home use)
ManagementWeb-UI, Remote Management, WLAN Controller, Cloud Management System AirCloud
DDNSOray

Max Concurrent users

120
Parental Control (Gateway Mode)Mac Address Filtering, URL Filtering, IP Filtering
AP/AP Gateway ModeAP: In this mode, the AP Wireless and Cable Interface are bridging together. Without NAT, Firewall and all network related functions.
AP Gateway: In this mode, the WAN page is enabled and PPPoE, DHCP or Static IP can be selected. NAT is enabled and PC’s in LAN ports share the IP to ISP through WAN port.
VPN Pass Through (Gateway Mode)IPsec, PPTP, L2TP
Data Statistics•WAN Down Stream, WAN UP Stream
•WiFi Analyzer (2.4 and 5Ghz)
Multiple LanguageEnglish/Spanish
ESD Protection±6KV
Environment
Operating Temperature-20°C to +45°C
Storage Temperature-40°C to +70°C
Storage Humidity5%~95%(non-condensing)
EnclosureABS fireproof material



Ordering Information

ModelAirCloud TOP-18AX
11ax 1800Mbps Gigabit PoE Access Point supports FIT/FAT Mode, AP and Gateway Mode Central and Cloud management supported
Standard Package
Package Size24.5(L) x 23.5(W) x 7.5(H) cm
Package WeightN.W: TBC KGS
G.W: TBC KGS
Package Content1 x Access Point
Carton Package
Quantity PCS / 1 Carton
DimensionsTBC
WeightTBC KGS
QIG
NameDescriptionDownloadDate
AirCloud AC/AX Series QIG
2023/08/04
User Guide
NameDescriptionDownloadDate
AirCloud Ceiling and inWall Access Point Series User Guide
2024/03/14
Spec Sheet
NameDescriptionDownloadDate
AirCloud TOP-18AX Spec Sheet
2023/03/10
CE
NameDescriptionDownloadDate
AirCloud AX Series Access Point CE
2023/04/18
Firmware & Software
NameDescriptionDownloadDate
AirCloud TOP-18AX Firmware 30-10
Release 30-10-2023
2023/10/30
Why is my Access Point Speed changed after connecting it to the Access Point Controller.
Why is my Access Point Speed changed after connecting it to the Access Point Controller. Please click the PDF file.
