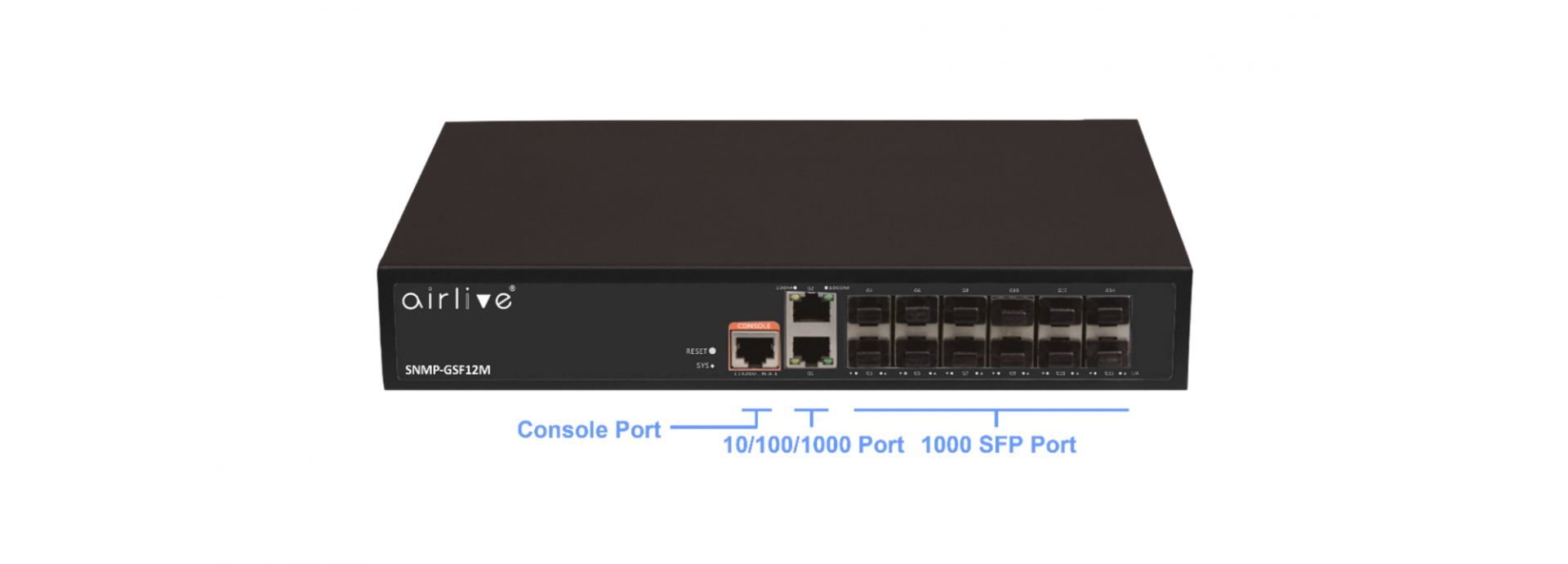

SNMP-GSF12M: Managed Multi Gigabit Fiber Switch

SNMP & Fiber managed Switch with Advanced VLAN Policy for  Voice | Data
SNMP & Fiber managed Switch with Advanced VLAN Policy for Voice | Data

The AirLive SNMP-GSF12M is an L2+ managed 14-port Multi Giga Fiber switch including 12 x 1G SFP and 2 RJ-45 ports. It supports comprehensive SNMP management function such as IGMP ERPS Super Ring Network, VLAN Division, Port aggregation, QoS port mirroring, bandwidth control. Providing VLAN Division Policy function for setting higher priority for Video Voice, or data that prevents package loss or lags. Full 12 Port Gigabit fiber connections which can work as the backbone of your network.

Features

  • Full 12 ports Fiber delivers Gigabit high speed
  • 2 Ethernet ports delivers Gigabit high speed
  • Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
  • Voice VLAN support for high priority transmission
  • Clear Statues display including traffic, CPU, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.

Major Specifications


  • 12 x 1000 SFP
  • 2 x 10/100/1000 RJ-45
  • Lighting Surge ESD protection: 4KV 8/20us
  • L2 SNMP v1/2/3
  • Authentication: 802.1x, AAA
  • SNMP, WEB, CLI, SSH2.0, Telnet
  • VLAN Division Voice
  • DHCP Snooping prevents unauthorized router installed

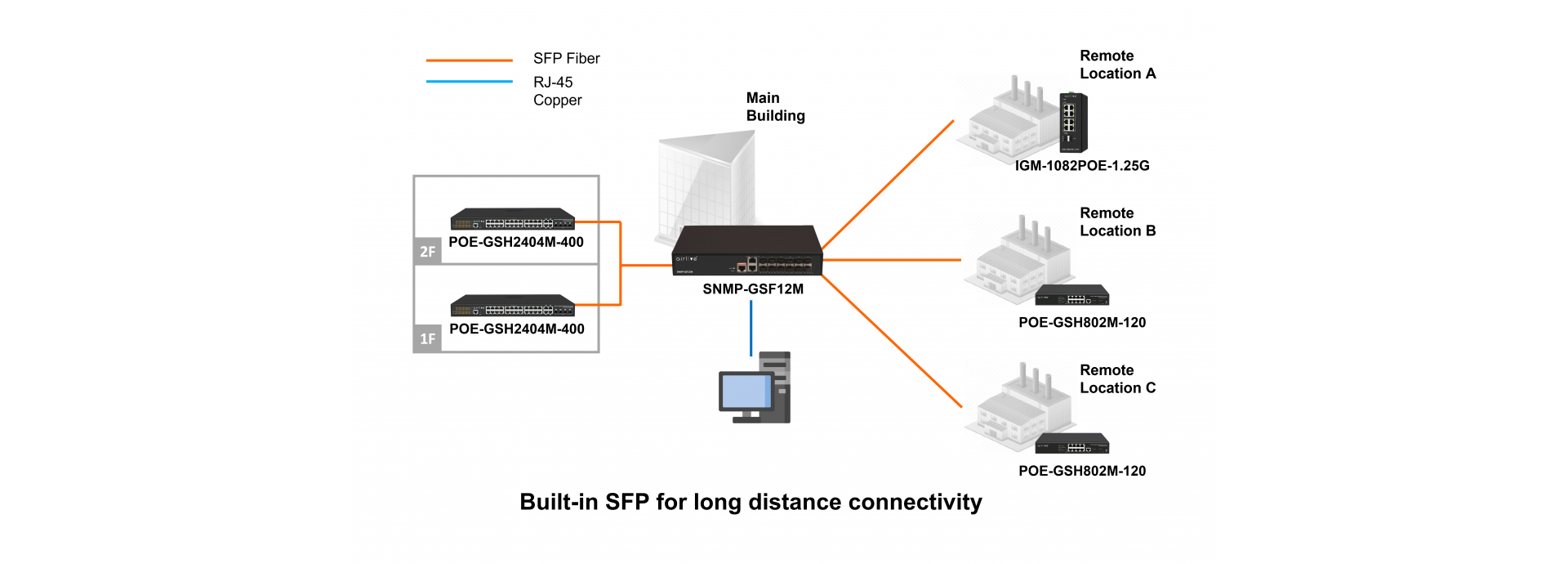

Multiple Fiber for Interconnect, at Gigabit speed
Multiple Fiber for Interconnect, at Gigabit speed
Full 12 Port Gigabit fiber connections which can work as the backbone of your network.

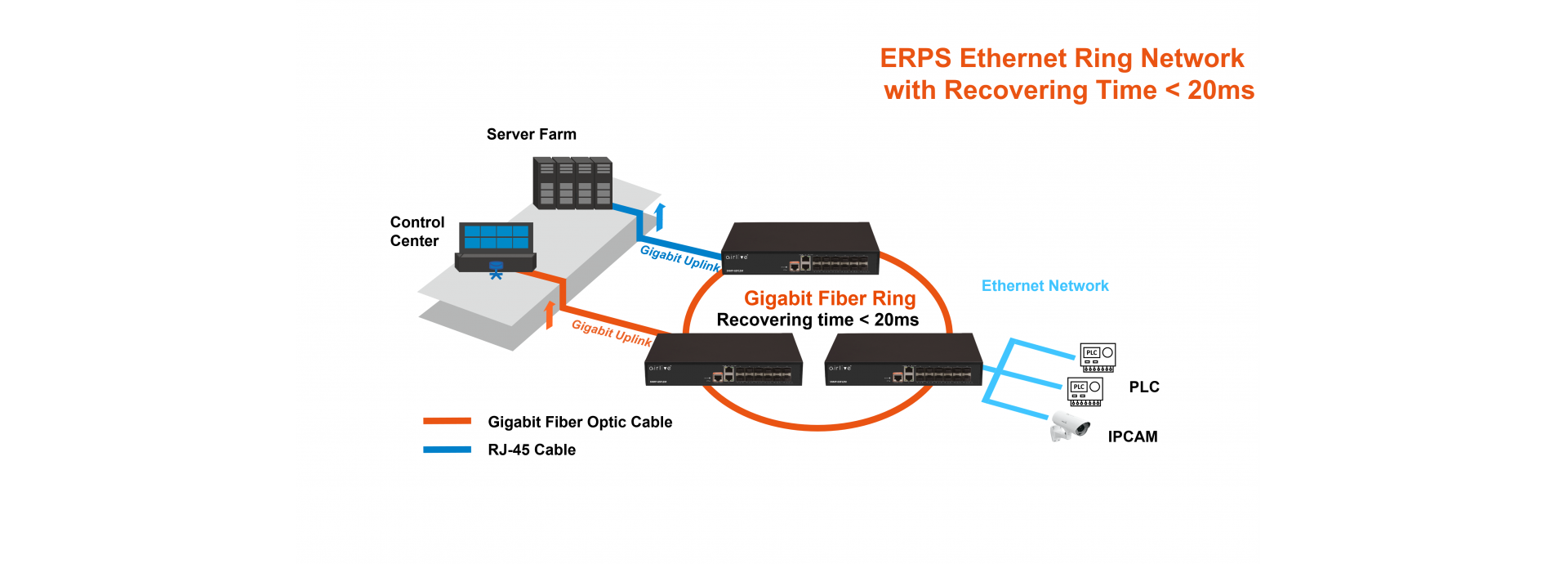

ERPS Ethernet Super Ring Protection
ERPS Ethernet Super Ring Protection
ERPS is supported by the SNMP-GSF12M Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backups, load sharing and other work methods in <20ms switching.

This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover within 20ms or less. Meaning the critical network like automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.

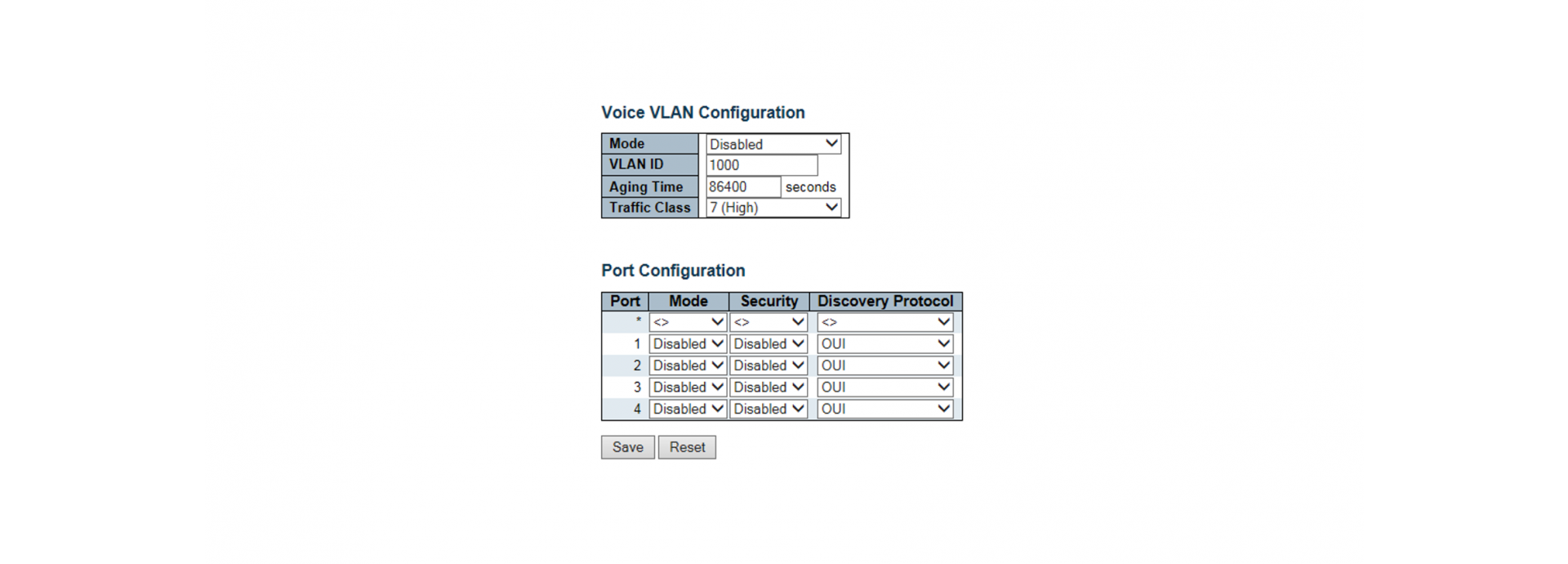

VLAN Policy for Voice – set in high priority to avoid of voice lag
VLAN Policy for Voice – set in high priority to avoid of voice lag
User can define policy for voice data in high priority, to ensure your voice data will not lag coursing by any networking jam.
Why people need VLAN and what VLAN for?

Easy to Manage and Efficiency - Improve or enhance up network performance
To define various VLAN groups that can help management to be more organized and reduce backbone server system load, so the performance is improved, for example, all RD Users set in same VLAN group, VOIP Voice set in another VLAN group.

Security - Improve or enhance up network security
Isolate group, if one group to be hacked, VLAN prevents influence for the other isolated group.
AirLive SNMP-GSF12M supports VLAN function. Moreover, user can define policy for voice data in high priority, to ensure your voice data will not lag coursing by any networking jam.

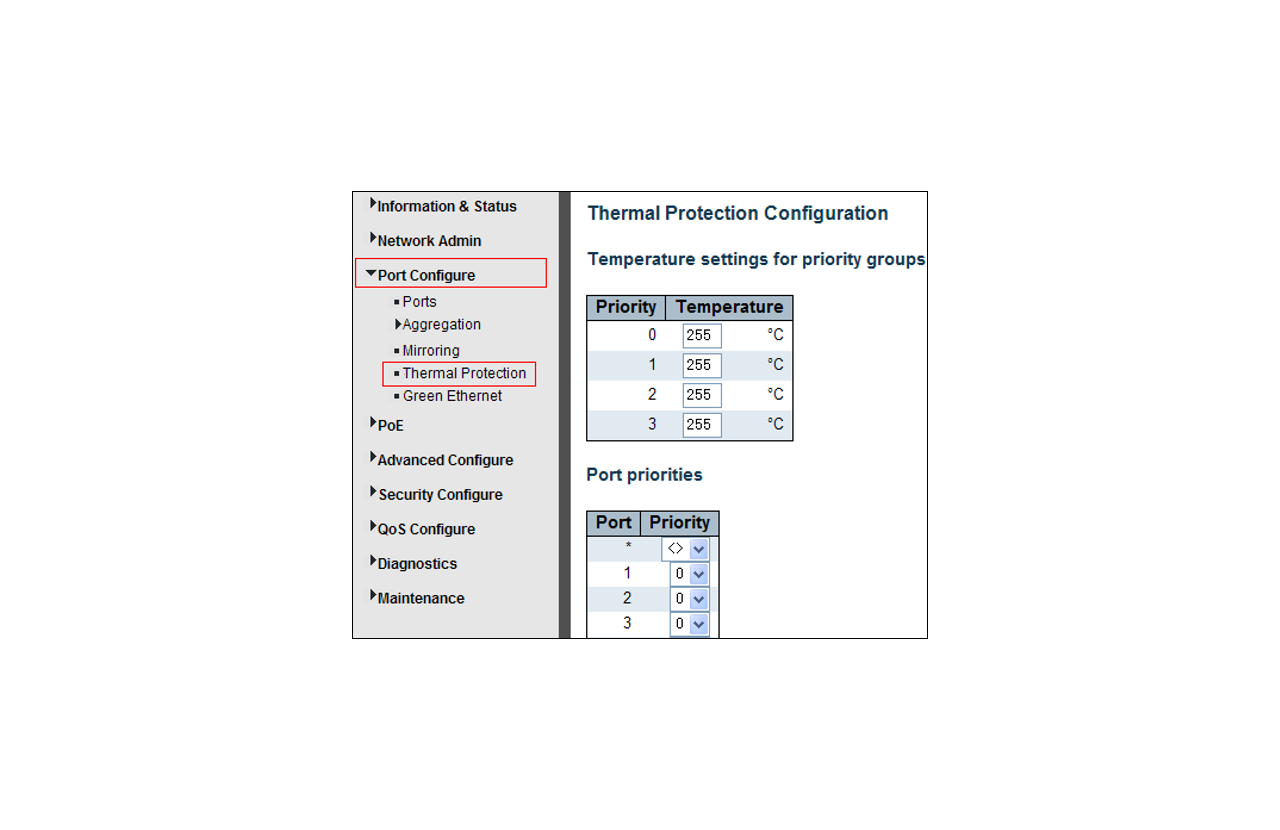

Thermal Protection Configuration
Thermal Protection Configuration
Thermal protection is for detecting and protecting the working switch. When the switch detected the port temperature is higher that defined temperature, the system will disable the port, to protect switch itself.
This switch support 4 Thermal Protection priority groups, and each of them can have a defined temperature for protection.

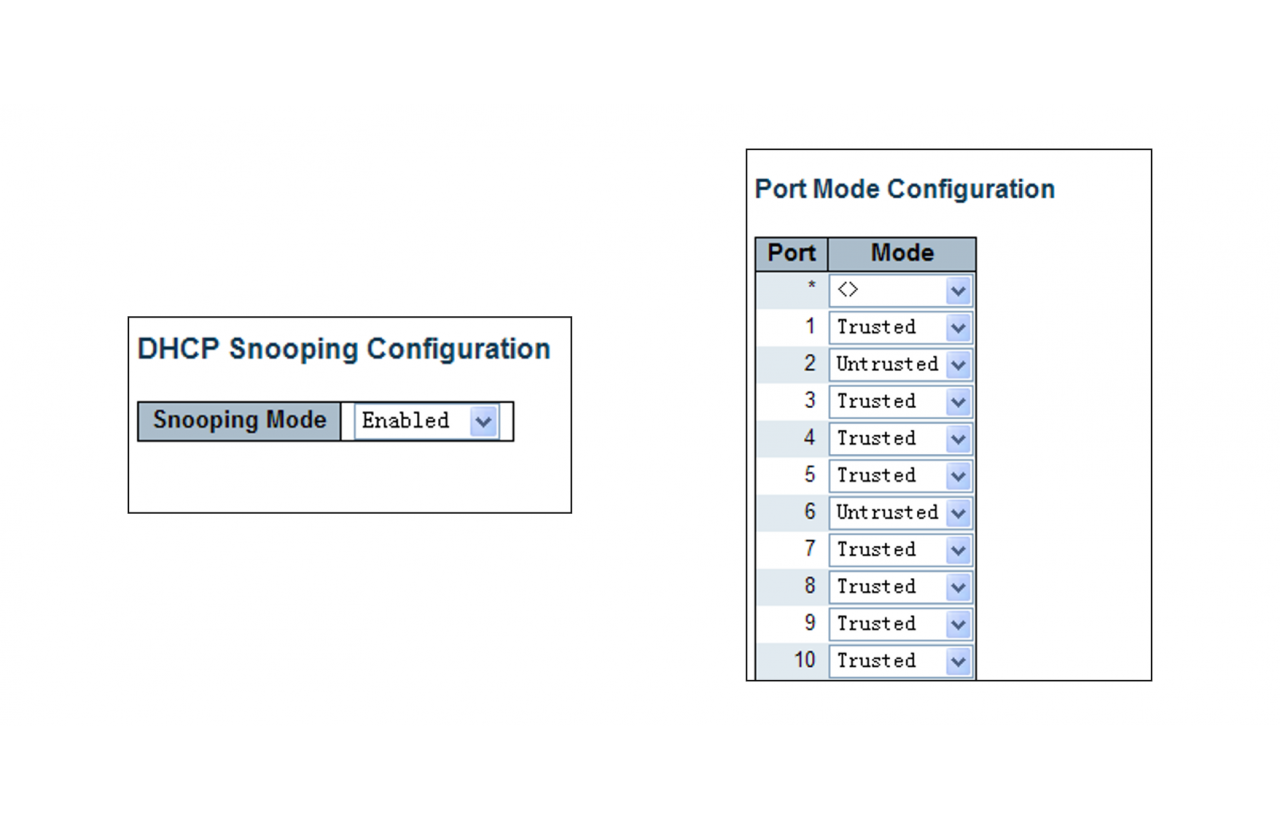

DHCP Snooping Support
DHCP Snooping Support
Managing DHCP server; prevent stranger / Hacker.
Hardware
ModelSNMP-GSF12M
Device Interface12 x Ports 1000 SFP
2 x 10/100/1000 RJ45
14-port totally
1 x RJ45 console port
StandardIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3ae 10GBase
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Standard method for performing link aggregation
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic
Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and
Authentication
IEEE802.3az Energy Efficient Ethernet
LED IndicatorsPWR (power supply), SYS(System), Link (Network Indicator), Fiber (Indicator).
Lighting Surge Protection4KV 8/20us (general mode)
MechanicalSolid metal 19” 1U rack-mountable, IP30
Power
Power InputAC100~240VAC
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm (500m)
Single-mode Fiber: 1310nm (0~40Km), 1550nm (0~120Km)
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 256Gbps (non-blocking)
Forwarding Rate@64byte; 20.83Mpps
MAC Address: 8K
Buffer Memory: 6Mb
Jumbo Frames: 9.6K
ERPS Ethernet Ring Protection
ERPS Ethernet Ring Protection

Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring.
The self-healing time of the ring network is less than 20ms

L2 Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, Flow-Control
Port Information Check, Temperature protection setting
Port MirroringSupport both side-way port mirroring
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Port AggregationSupport LACP
Support Static Polymerization
Support the largest 7 aggregation groups, each aggregation group supports 8 ports
VLANSupport port based VLAN (4K),
Support protocol based VLAN
Support Access, Trunk, Hybrid three types of port configuration
Support QinQ configuration
Voice VLAN
MACSupport static addition, deletion
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1w Spanning Tree protocol
MulticastSupport IGMP-Snooping
Support MLD-Snooping
Support multicast VLAN
Support the user’s quick departure mechanism
DDMSupport SFP DDM
Layer 3 switching functionSupport L2+ managed function,
Static routing / default routing, 128 maximum entries
ARP protocol, 1024 maximum entries
L2+ Management Extension Function
ACL (Access Control List)Support L2 to L4 packet filtering function.
Based on source MAC, destination MAC, IP Protocol type, source IP, destination IP, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL
Support ACL based on Port and VLAN
QoSDiff-Serv QoS
Each port supports 8 output queues
Support 802.1p/DSCP priority mapping
Support queue scheduling mechanism (SP, WRR, SP+WRR)
Priority tag Mark/Remark
Stream based packet filtering
Support for stream-based redirection
Support flow-based speed limit
User SettingsSupport user grading management and password protection
LogUser login, operation, status, events
Network diagnosisSupport Ping, Cable Diagnostics
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc
System Management
CLISupport serial port command line management
SSH2.0Support SSH remote management
TelnetSupport Telnet remote management
WEBHTTPS
SNMPSNMP V1/V2/V3
RMON (remotely management)Support RMON1
Console/AUX Modem
Support FTP, TFTP, Xmodem, SFTP file download management
Support one bond reduction
Support NTP clock
Support system work log
Support CPU instant utilization status view
Support link layer discovery protocol LLDP
Support NMS intelligent management center
System Management
System ManagementSupport DHCP Client
Support DHCP Snooping
Support DHCP Server
Support DHCP Relay
Security Functions
Security FunctionsSupport IEEE802.1X authentication / centralized MAC address authentication
Support AAA&RADIUS authentication
Support the number of MAC address learning restrictions
Support MAC address black hole
Support SSH 2.0 to provide secure passwords for user login.
Support SSL to ensure data transmission security
Support port isolation
Support the speed limit function of ARP message
Support IP source address protection
Support ARP intrusion detection function
Support against DoS attacks
Support port broadcast message suppression
Support host data backup mechanism
Binding capabilities of IP + MAC + VLAN + ports
Environment
Operating Temperature-20°C to +55°C
Storage Temperature-40°C to +80°C
Working Humidity5%~95%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelSNMP-GSF12M
SNMP L2+ Managed Multi Giga Fiber Switch, 14 Ports SFP including 12 x SFP, 2x RJ-45
Standard Package
Package Size27(L) x 18(W) x 4.5(H) cm
Package WeightN.W: 1.5KGS
G.W: 2KGS
Package Content1 x Switch, 1 x Power code
Carton Package
QuantityTBD PCS / 1 Carton
DimensionsTBD
WeightTBD KGS
