POE-GSH820-120 AT: 10-port Gigabit POE+ Switch, 802.3af/at, 120W

ADD INQUIRY
802.3af/at PoE Gigabit Switch, with 2x RJ-45 Uplink
802.3af/at PoE Gigabit Switch, with 2x RJ-45 Uplink

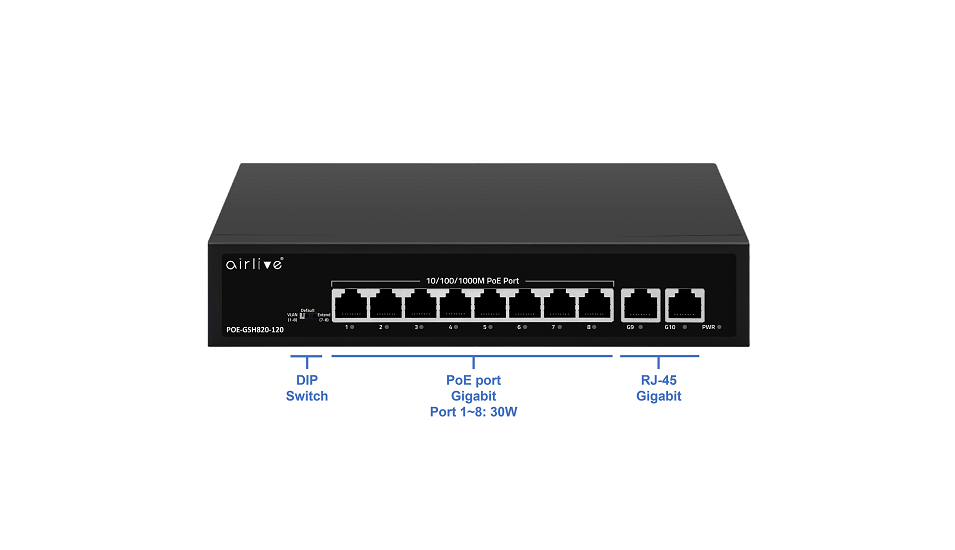

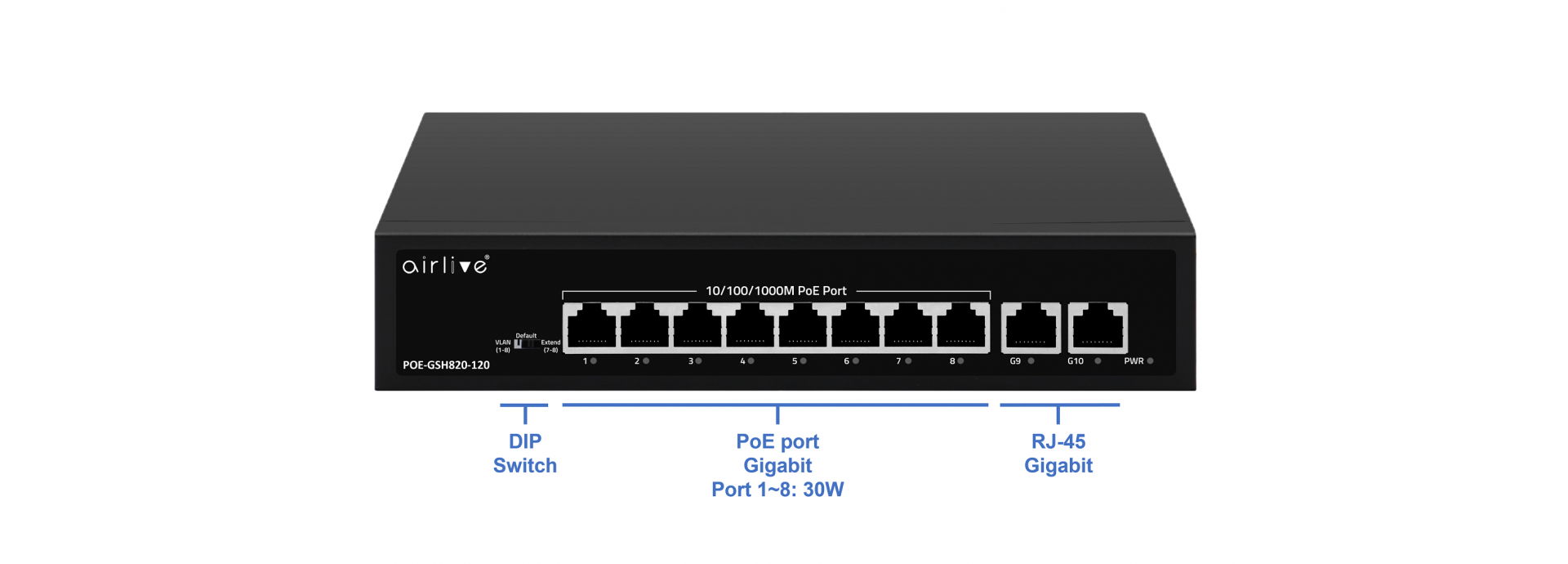

The AirLive POE-GSH820-120 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W). It supports 8 Gigabit PoE+ ports and 2 Gigabit RJ-45 uplink ports. The total PoE power is 120W. The AirLive POE-GSH820-120 switch is a plug and play unmanaged PoE switch with VLAN and 250meter cabling extension, which can be easily set up via its DIP switch. The two Gigabit Uplink ports help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office. Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at).
Features
  • All 10-port, each port delivers Gigabit high speed
  • 8 x PoE port 10/100/1000 (up to 30W)
  • Extend the network further with 2 x 10/100/1000Mbps RJ-45 Uplink ports
  • PoE power, supports 802.3af/802.3at PoE+
  • Internal Power, 120W or 150W (Option)
Features
  • VLAN Mode: gives the switch extra security as Port isolation Setting by hardware DIP switch
  • Extended Mode: transmission of up to 250M in Extend Mode Setting by hardware DIP switch
  • PoE Watchdog in Extended Mode
  • Surge Protection; ESD Protection
VLAN Mode
VLAN Mode

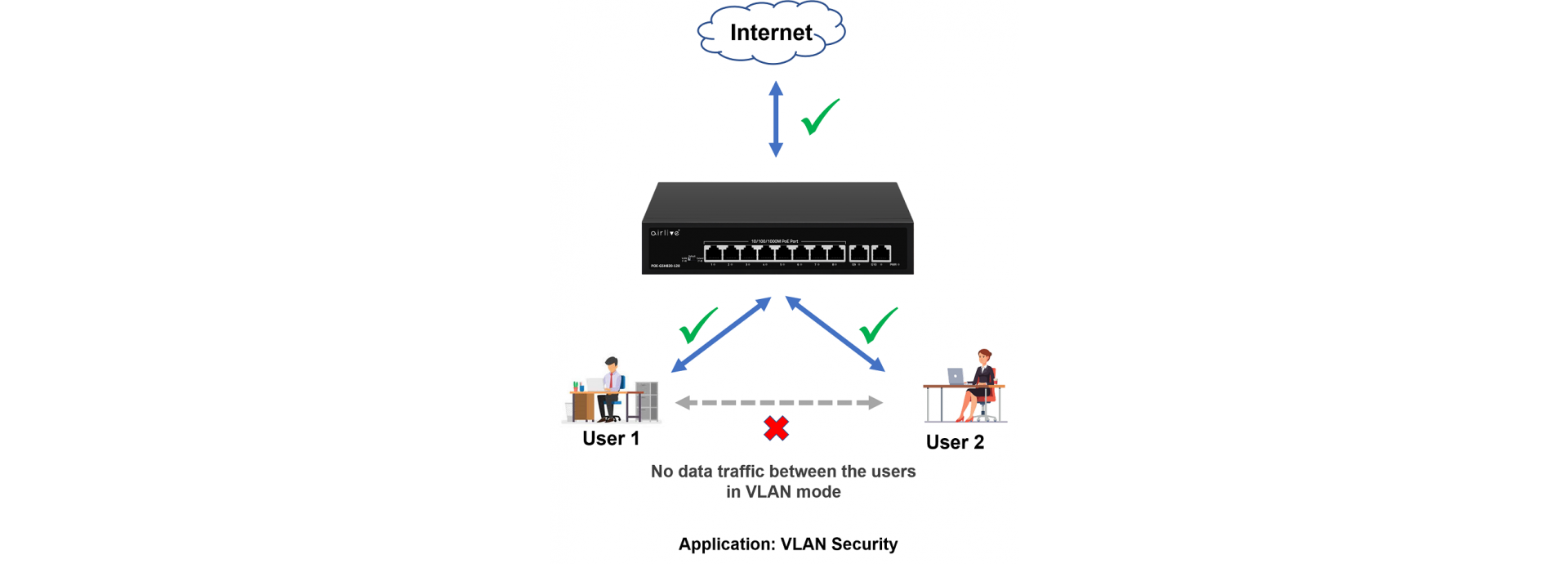

VLAN mode: This additional feature gives the switch extra security for the users connected to it. The VLAN mode works as Port isolation, meaning that when it’s enabled the users connected to the LAN ports cannot communicate with each other but only communicate with the UP-Link ports (port 9/10). This way there is an extra layer of security and data will not be shared between the users. This can be used in a small office to separated guests from the company network or in a home to separate tenants.
Extend Mode
Extend Mode
Extend mode:  The POE-GSH820-120 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 7 and 8 on the switch and when enabled the transmission rate will be 10Mbps. PoE Watchdog is also enabled when Extend mode is on.
ges
* No independent power supply system required

*Two-in-one network and power cable

*Shortened construction period

*Reduced costs of power and network deployment

*PoE power, supports 802.3af/802.3at PoE+

*VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
Hardware
ModelPOE-GSH820-120 AT
Device Interface8 x 30W PoE 10/100/1000 RJ45
2 x 10/100/1000 RJ-45 Uplink
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3af/at PoE
IEEE802.3x
Industry standard compliantEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4(EFT), EN61000-4-5(Surge)
LED IndicatorsPWR (power supply)
Link and Data
MechanicalMetal
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port8
PoE Power Output / PoE Portmax. 30W (port 1~8)
PoE Power Output / PoE switch120W
Surge and ESD protection
Surge and ESD protectionCommon mode 4KV, ESD: Air 8KV, Contact 6KV
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 20Gbps
Forwarding Rate: 14.88Mpps
MAC Address: 2K
Packet Buffer: 448Kb
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF:100000 hour
DIP Switch Control
VLAN

Port isolation mode. In this mode PoE ports (1~8) cannot communicate with each other and can only communicate with the UP-Link ports 9~10.

DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m,   the transmission rate is 10M/100/1000M adaptive
ExtendExtension mode, PoE power supply and data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 7~8 only
Power Supply
Input VoltageAC100~240V
Power Supply52V/2.3A (120W) Internal, (52V2.88A 150W in option).
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing



Ordering Information

ModelPOE-GSH820-120 AT: 8 x PoE 10/100/1000, 2 x 1G RJ-45 Uplink, 120W
Standard Package
Product Size22(L) x 16.1(W) x 4.4(H) cm
Package Size31.5(L) x 21.5(W) x 8.5(H) cm
Package WeightN.W: 0.88KGS
G.W: 1.38KGS
Package Content1 x Switch, 1 x Power code
Carton Package
Quantity10 PCS / 1 Carton
Dimensions44.5(L) x 44.5(W) x 33.5(H) cm
Weight14.8 KGS
Spec Sheet
NameDescriptionDownloadDate
POE-GSH820-120 AT Spec Sheet
2023/06/16
