POE-GSH420-60: Plug and Play Gigabit POE+ Switch, VLAN, 60W

ADD INQUIRY
6-Port Gigabit PoE+ Switch with VLAN | PoE Watchdog and dual Uplink
6-Port Gigabit PoE+ Switch with VLAN | PoE Watchdog and dual Uplink
Compliant with the PoE technology 802.3at/af, the AirLive POE-GSH420-60 switch supports a standard power of 15.4W (802.3af) and has a max of 30W (802.3at) on Port 1~4 with 2 Gigabit Uplink ports. The switch automatically detects and adaptively supplies needed power to connected PoE devices; for non-PoE devices, it will just transfer data intelligently.

For the application where management is not really needed but VLAN is useful and budget is controlled, the AirLive POE-GSH420-60 can help. Using a smart DIP-switch to turn the POE-GSH420-60 VLAN feature and PoE Watchdog on. Moreover, the switch also supports a Extend mode which allows data and power up to 250meter at 10Mbps over a Cat.5e cable. This helps where a PD is installed far away, and a power source is hard to get.

The AirLive POE-GSH420-60 tiny SOHO Gigabit switch supports PoE+ for PD, Gigabit for uplink, VLAN mode. It is the most cost-efficient client switch for various applications at Home or Office.
Features

  • All 6-port, each port delivers Gigabit high speed
  • PoE power, supports 802.3at PoE+
  • Priority Port
hhh

  • Support PoE watchdog
  • VLAN port Isolation
  • Extended transmission of up to 250M in Extend Mode

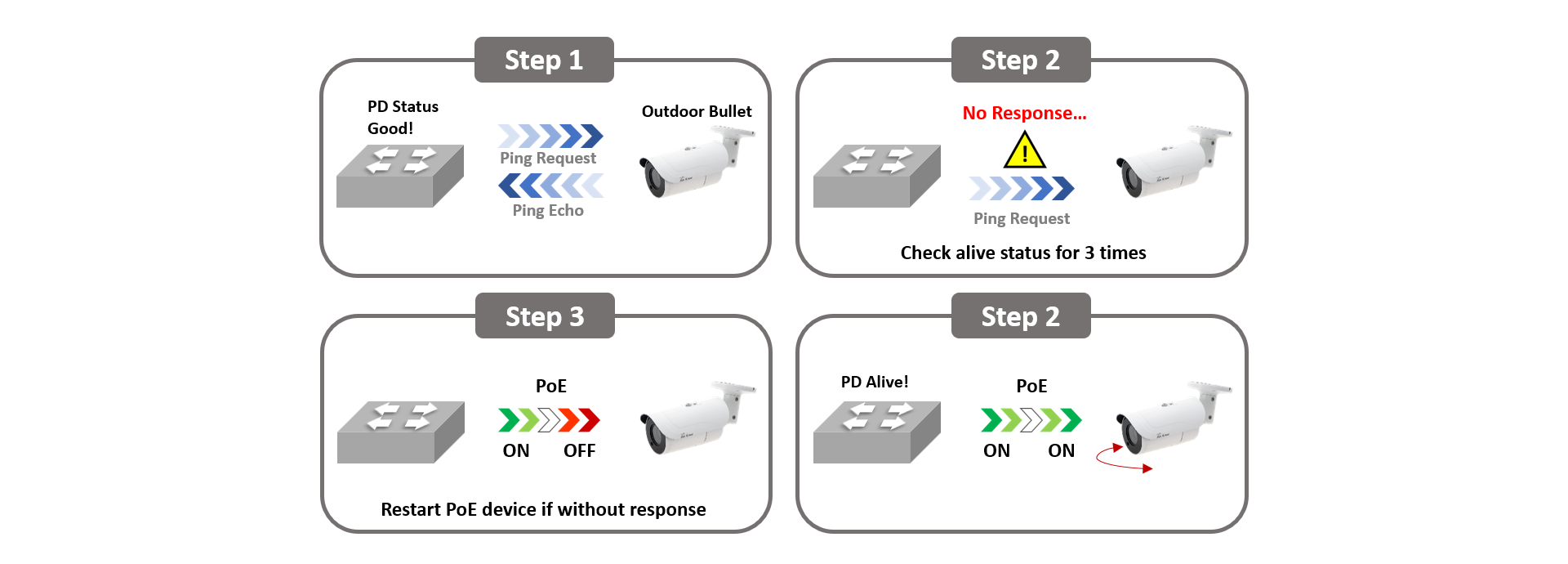

Efficient PoE Watch dog technology
Efficient PoE Watch dog technology
The Switch POE-GSH420-60 supports PoE Watchdog when the Dip-Switch switches to either VLAN mode or Extend mode. After PoE Watchdog function enabled, the POE-GSH420-60 switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on.

The PoE watchdog is particularly useful for cameras. For example, when the switch is turned on, it will recognize the front camera 24 hours a day, 7 days a week. If there is no data traffic from the camera, the camera is considered to be frozen, and the PoE watchdog is used to restart the front camera to solve the problem.
VLAN and Extend Mode
VLAN and Extend Mode
The POE-GSH420-60 switch can in Extend mode reach a distance of up to 250m(limited at 10Mbps), this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. When VLAN mode is enabled the PoE port VLAN isolation function will start to work. In this mode PoE ports (1~4) cannot communicate with each other and can only communicate with the UP-Link ports.
Hardware
ModelPOE-GSH420-60
Device Interface4 x 30W PoE 10/100/1000 RJ45
2 x Uplink Port Gigabit RJ45
6-port totally
StandardIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3at/af PoE
IEEE802.3x
IEEE802.3az Energy Efficient Ethernet
Industry standard compliantCE/LVD EN60950
LED IndicatorsPWR (power supply), 1-4 PoE, 1-6 Link, 5-6 SPD (Uplink port)
Lighting Surge Protection:4KV 8/20us (general mode)
MechanicalAluminum case, IP-30
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port4
PoE Power Output / PoE Portmax. 30 Watts (port 1~4)
PoE Power Output / PoE switchmax 60W
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: 10Gbps
Packet Forwarding Rate; 7.44Mpps
MAC Address: 4K
Cache: 1MB
Transfer mode: Store and forward
DIP Switch Control
VLAN

Port isolation mode. In this mode PoE ports (1~4) cannot communicate with each other and can only communicate with the UP-Link port

DefaultEnables the PoE port self-healing network restart (Watchdog) function. When a connected PD devices does not send data, the switch will repower the device automatically.
ExtendLink extension mode, PoE power supply and data transmission distance can be extended to 250 meter at the transmission rate 10Mbps.
Power Supply
Input VoltageExternal AC/DC Adapter 52V/1.15A
Power SupplyJack type
Environment
Operating Temperature-20°C to +55°C
Storage Temperature-40°C to +75°C
Operating Humidity5%~90%, non-condensing
Stroage Humidity5%~95%, non-condensing



Ordering Information

ModelPOE-GSH420-60
Plug and Play Gigabit PoE+ switch, VLAN, 60W
6-Port including 4 x 30W PoE+, 2 x 1000T Uplink
Standard Package
Package Size12.7(L) x 9.7(W) x 2.8(H) cm
Package WeightN.W: 0.29KGS
G.W: 0.8KGS
Package Content1 x Switch, 1 x AC/DC Adapter, 1 x Power Cord.
Carton Package
Quantity20 PCS / 1 Carton
Dimensions53.5(L) x 34.5(W) x 15.4(H) cm
WeightN.W: 14.9 KGS , G.W: 15.4KGS
QIG
NameDescriptionDownloadDate
POE-GSH420-60 QIG
POE-GSH420-60 QIG
2022/02/16
Spec Sheet
NameDescriptionDownloadDate
POE-GSH420-60 Spec Sheet
POE-GSH420-60 Spec Sheet
2021/11/24
