POE-GSH1622-200 AT: 20-port Gigabit POE+ Switch, 802.3af/at, 200W

ADD INQUIRY
802.3af/at PoE Gigabit Switch, with 2x SFP and 2x RJ45 Uplink
802.3af/at PoE Gigabit Switch, with 2x SFP and 2x RJ45 Uplink
The AirLive POE-GSH1622-200 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W). It supports 8 Gigabit PoE+ ports and 2 Gigabit SPF Fiber uplink ports. The total PoE power is 120W. The AirLive POE-GSH1622-200 switch is a plug and play unmanaged PoE switch with 250meter cabling extension, which can be easily set up via its DIP switch. The four Gigabit Uplink ports (2x SFP and 2x RJ-45) help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office.
Features
  • All 20-port, each port delivers Gigabit high speed
  • 16 x PoE port 10/100/1000 (up to 30W) + 4 x UpLink Port (2 x SFP, 2 x RJ45)
  • PoE Priority
  • Extend the network further with 2 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • PoE power, supports 802.3af/802.3at PoE+
Features
  • Internal Power, 200W
  • Extended Mode: transmission of up to 250M in Extend Mode Setting by hardware DIP switch
  • PoE Watchdog in Extended Mode
  • Surge Protection; ESD Protection

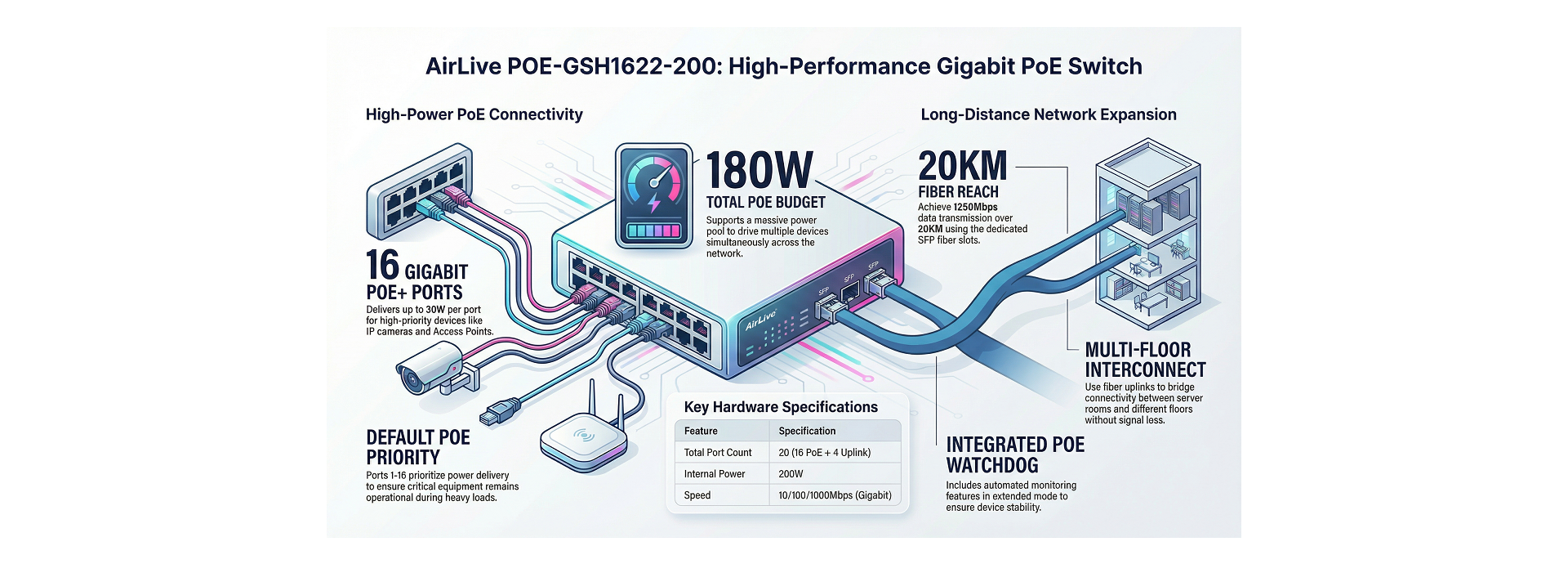

Fiber backbone for Long Distance and Interconnect between floors
Fiber backbone for Long Distance and Interconnect between floors
Extend the network further with SFP slot. Use the POE-GSH1622-200 fiber port to connect different floors together in a large building or to the main office over a longer distance. Depending on the module used it can reach up to 20KM in distance with 1250Mbps data transmission rate.

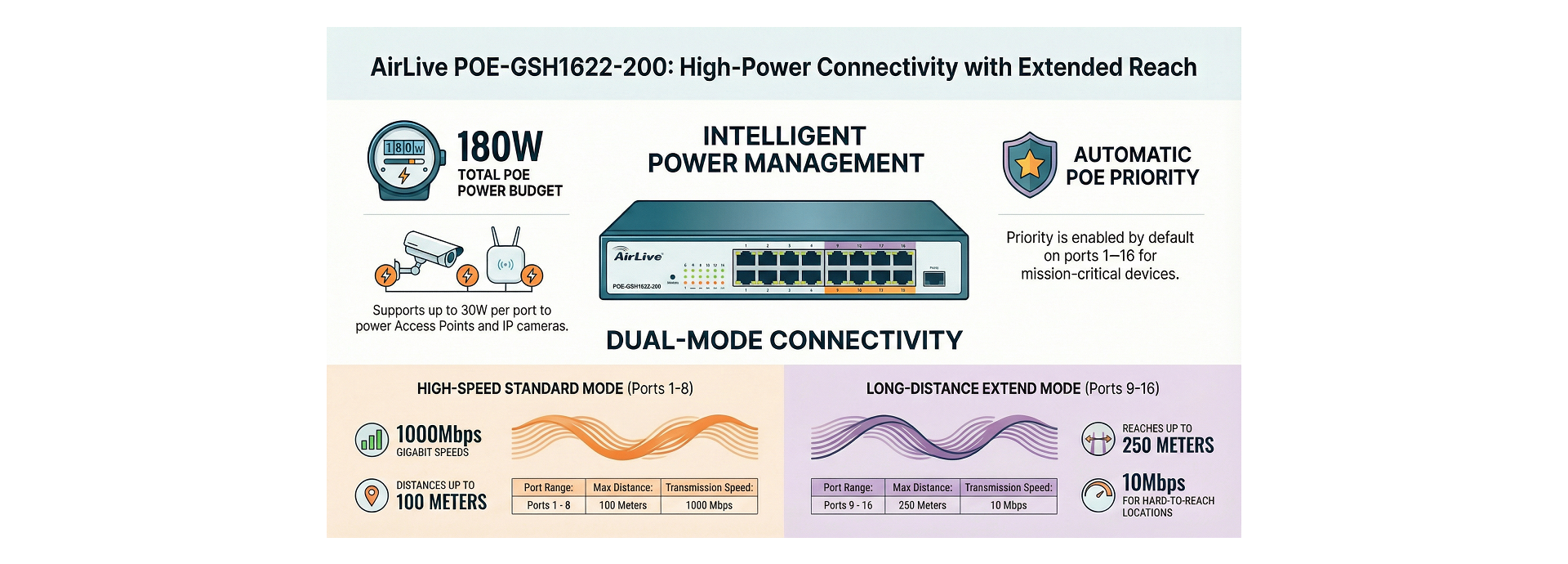

PoE and Extend Mode
PoE and Extend Mode
Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at). The POE-GSH1622-200 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 9 and 16 on the switch and when enabled the transmission rate will be 10Mbps. PoE Watchdog is also enabled when Extend mode is on.
ges
* No independent power supply system required

*Two-in-one network and power cable

*Shortened construction period

*Reduced costs of power and network deployment

*PoE power, supports 802.3af/802.3at PoE+

*Extended Mode: transmission of up to 250M in Extend Mode
Hardware
ModelPOE-GSH1622-200 AT
Device Interface16 x 30W PoE 10/100/1000 RJ45
2 x 1000 RJ45
2 x 1.25G SFP
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3af/at PoE
IEEE802.3x
Industry standard compliantEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4(EFT), EN61000-4-5(Surge)
LED IndicatorsPWR (Power), 1-20 Green LED (Link & Data), 1-16 (Yellow LED), DIP Switch Mode LED
PoE Max LED:
Off: indicates PoE power usage is less than 90%
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
On: indicates that PoE power is used at 95% <P <100%
MechanicalMetal
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port16
PoE Power Output / PoE Portmax. 30W (port 1~16)
PoE Power Output / PoE switchProduct power: ≤10W, POE power: ≤180W
Surge and ESD protection
Surge and ESD protectionCommon mode 4KV, ESD: Air 8KV, Contact 6KV
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/Km
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 40Gbps
Forwarding Rate: 29.76Mpps
MAC Address: 8K
Packet Buffer: 3Mbit
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF:100000 hour
DIP Switch Control
DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m,  the transmission rate is 10M/100/1000M adaptive
ExtendExtension mode, PoE power supply and data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 9~16 only. PoE Watchdog will also be enabled when the Extend mode is in use. Port AI mode is enabled.
Power Supply
Input VoltageAC100~240V
Power Supply52V/3.84A (200W) Internal.
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelPOE-GSH1622-200 AT: 16 x PoE 10/100/1000 + 2 x 1.25G SFP, 2 x 1000 RJ45 Uplink, 200W
Standard Package
Product Size32(L) x 20.7(W) x 4.4(H) cm
Package Size37(L) x 29(W) x 8.5(H) cm
Package WeightN.W: 1.78KGS
G.W: 2.28KGS
Package Content1 x Switch, 1 x Power code
Carton Package
Quantity5 PCS / 1 Carton
Dimensions44.5(L) x 31(W) x 39(H) cm
Weight12.4 KGS
