L3POE-XGS2404-400: Managed Gigabit PoE+ Switch with 10G Uplink

Gigabit Layer 3 Managed with 10G Uplink
Gigabit Layer 3 Managed with 10G Uplink
Rich L3 Features

The AirLive L3POE-XGS2404-400 Series is a next-generation multiservice switch collection that offers remarkable performance and enhanced security. The switches offer high CPU capacity, improved hardware processing power and easier user operation. The L3POE-XGS2404-400 series supports flexible gigabit access and scalability of high-density 10G ports. All models provide fixed 4X10G fiber ports, With high switching capacity, the L3POE-XGS2404-400 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. With end-to-end service delivery and a wide range of security configurations available, the L3POE-XGS2404-400 series meets the high-speed, security, and intelligence needs of enterprise networks.

Layer 3 switch is a specialized hardware device used in network routing. It supports routing protocols, inspects incoming packets, make dynamic routing decisions based on the source and destination address insides. Besides, Layer 3 switches are much lower network latency since packets don't have to take additional steps through a router. It is widely used in Data centers and Universities, Factory Industrial Park, Enterprises where there is a large setup of computer networking. Owning to its features like static and dynamic routing and its fast switching speed than a router, it is used in LAN connectivity of several VLAN and LAN networks.

What Is a Layer 3 Switch?
A Layer 3 switch is a specialized hardware device used in network routing. Layer 3 switches technically have a lot in common with typical routers, and not only in physical appearance. Both can support the same routing protocols, inspect incoming packets, and make dynamic routing decisions based on the source and destination addresses inside. One of the main advantages of a Layer 3 switch over a router is in the way routing decisions are performed. Layer 3 switches are much low network latency since packets don't have to take additional steps through a router.
Features

  • Rich Layer 3 Features
  • Fully L2 features provide easier manageability, security and QoS
  • ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  • SNMP, WEB, CLI, SSH2.0, Telnet
  • VLAN Division Voice
  • IPv4/IPv6 L3 static route
  • OSPF Routes dynamic routing
  • SFP+ 10Gbps Fiber Long Distance
  • Voice Vlan Support
  • PoE Port configuration and scheduling
  • 802.3af/802.3at high power PoE standard
  • 400W High PoE power, ensure full power for connected device
  • Clear Statues display including traffic, CPU, POE consumption, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.
Major Specification
f
  • 24 x 30W PoE 10/100/1000
  • 4 x 10G SFP+
  • 802.3at/802.3af compliant
  • Each port up to 30Watts; PoE Power 400W
  • Rich Layer 3 Features
  • L3 DHCP Server/Relay
  • L3 DHCP Snooping
  • IPv4/IPv6 L3 static route
  • OSPF Routes dynamic routing
  • Surge Protection 6KV,ESD Protection 8KV
  • PoE management, PoE Watchdog
  • Authentication: 802.1x, AAA
  • DHCP Snooping prevents unauthorized router installed
Applications of Layer-3 Switches
Applications of Layer-3 Switches
  • Layer3 Switch is widely used in data centers and universities , factory enterprise. where there is a very big setup of computer networking. Owing to its features like static and dynamic routing and its fast switching speed than a router, it is used in LAN connectivity for interconnection of several VLAN and LAN networks.
  • L3POE-XGS2404 have the skills to offload the overloaded routers. This can be done by configuring a layer-3 switch, each with a main router in a wide area networking scenario so that the switch can manage all the local level VLAN routing.
  • The layer-3 switch in combination with a number of layer-2 switches supports more users to connect on the network without the need for implementation of an extra layer-3 switch and more bandwidth. Thus it is widely implemented in universities and small-scale industries. In case if the number of end users on a network platform increases, then without any enhancement of the network, it can be accommodated in the same running scenario easily.
  • A layer-3 switch is smart enough to handle and manage the routing and traffic controlling of locally connected servers and end devices utilizing its high bandwidth.

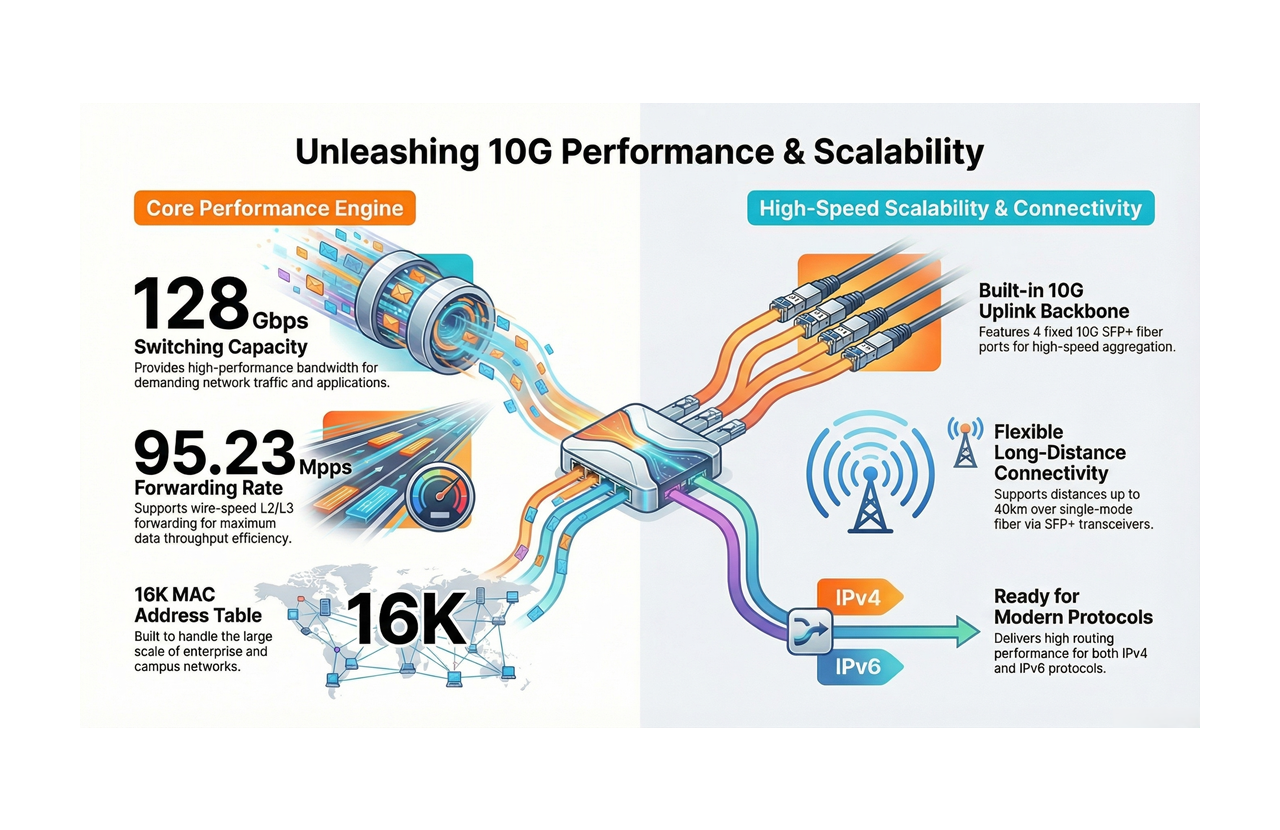

10G Performance and Scalability
10G Performance and Scalability
With high switching capacity, the L3POE-XGS2404 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. The 10 Gigabit Ethernet connectivity of L3POE-XGS2404 is accomplished via a hot-pluggable 10 Gigabit SFP+ transceiver which supports distance up to 300 meters over multimode fiber and 10 to 40km over single-mode fiber (The distance depends on the optical module chosen).

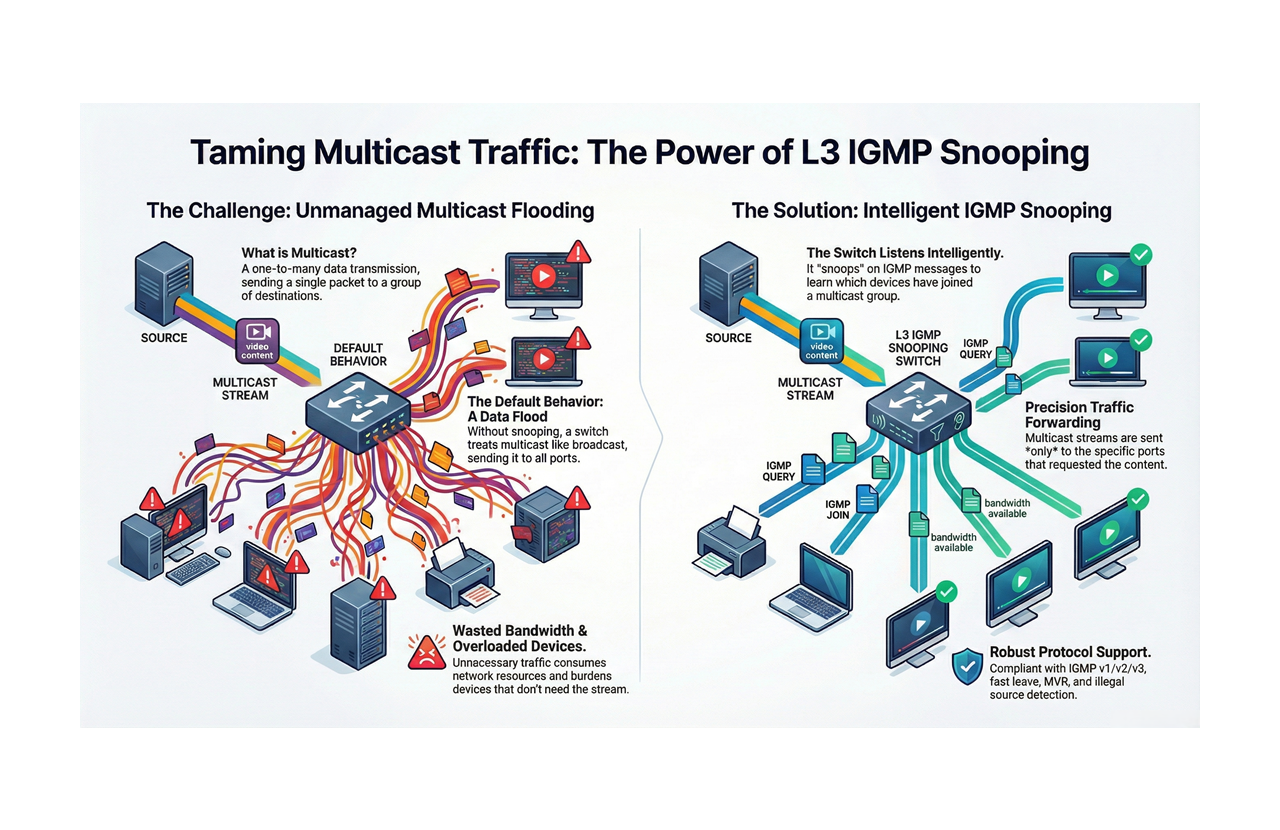

Strong L3 IGMP Snooping Multicast
Strong L3 IGMP Snooping Multicast
L3 multicast protocols is compliant with IGMPv1/v2/v3, and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; the L3POE-XGS2404 fiber series provides a great application experience for the customer.

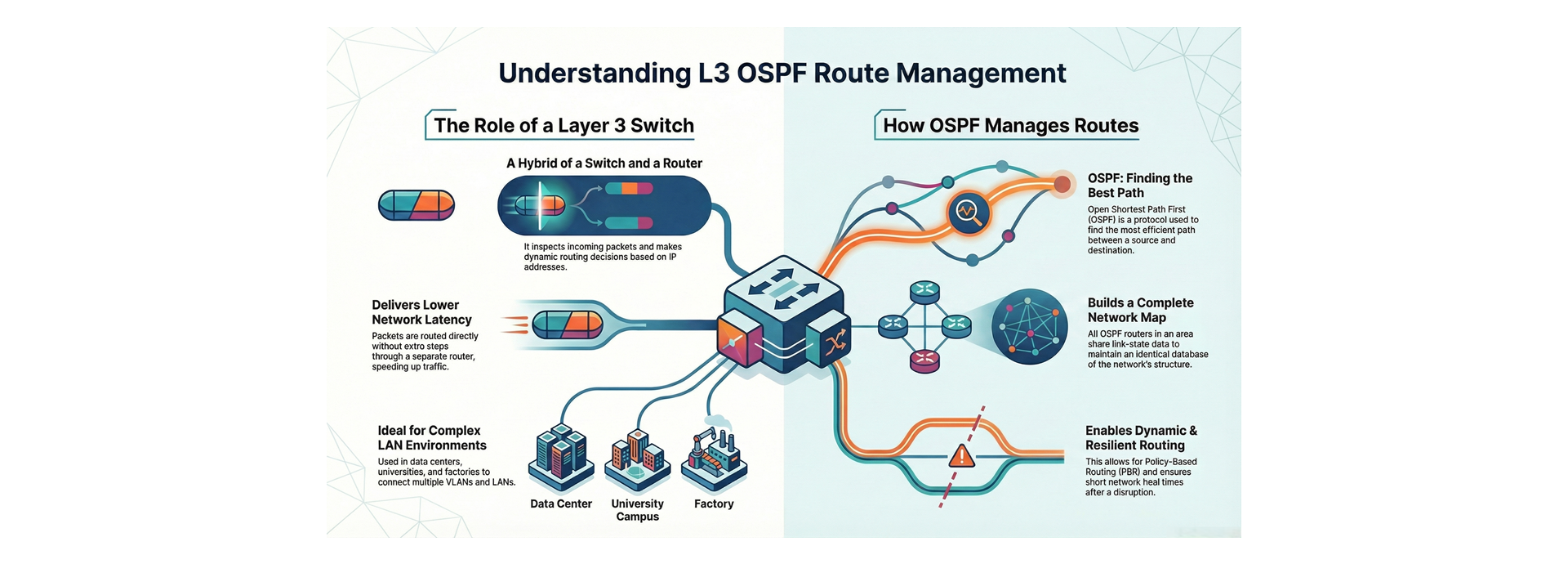

L3 OSPF Routes Management
L3 OSPF Routes Management
Open shortest path first (OSPF) is a link-state routing protocol that is used to find the best path between the source, which is generally used in the same routing domain. Here, routing domain refers to an autonomous system (as), which refers to a group of networks that exchange routing information through a unified routing policy or routing protocol. In this as, all OSPF routers maintain the same database describing the as structure, which stores the state information of the corresponding links in the routing domain. It is through this database that OSPF routers calculate their OSPF routing tables.

As a link state routing protocol, OSPF transmits link state multicast data LSA (link state advertisement) to all routers in a certain area, which is different from distance vector routing protocol. The router running distance vector routing protocol passes part or all of the routing tables to its neighboring routers.

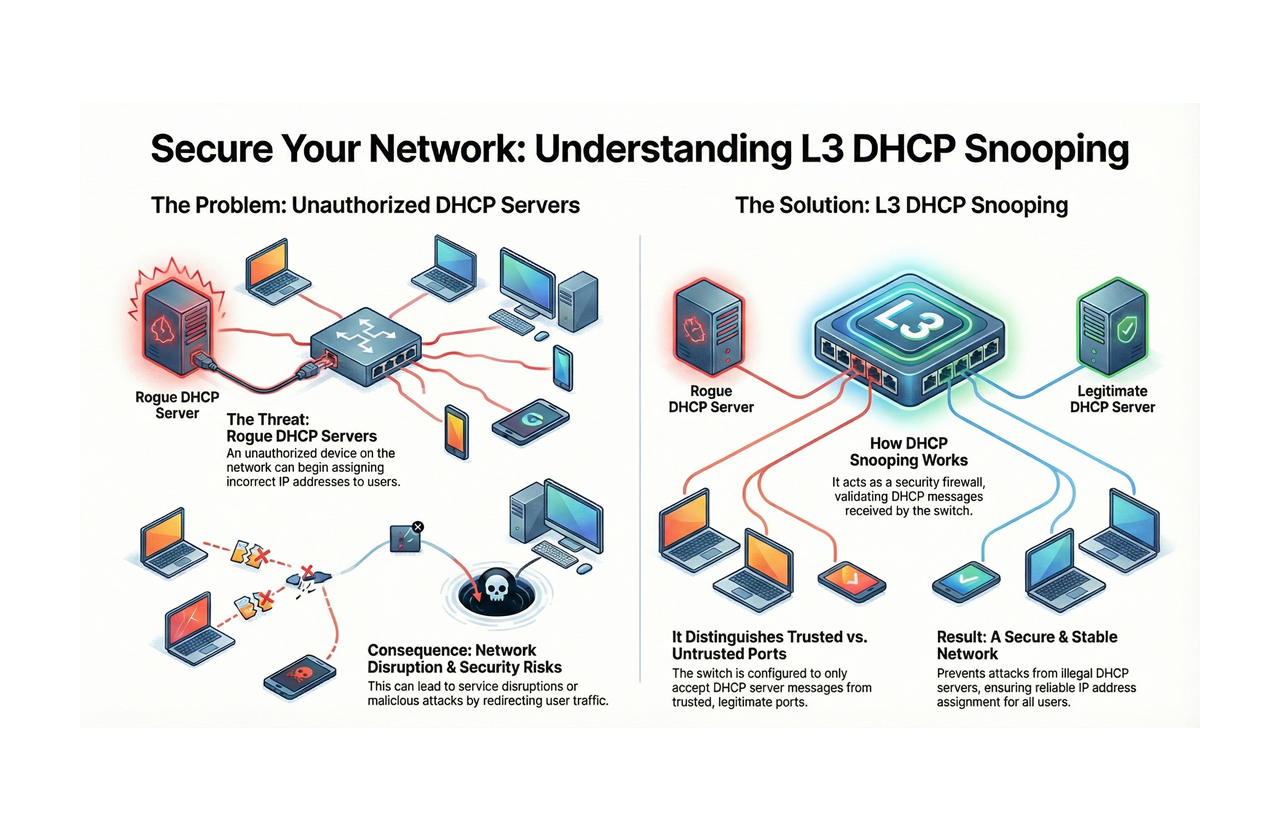

L3 DHCP Snooping Support
L3 DHCP Snooping Support
Prevention against illegal Router(DHCP Server) attacks or sending DHCP information.

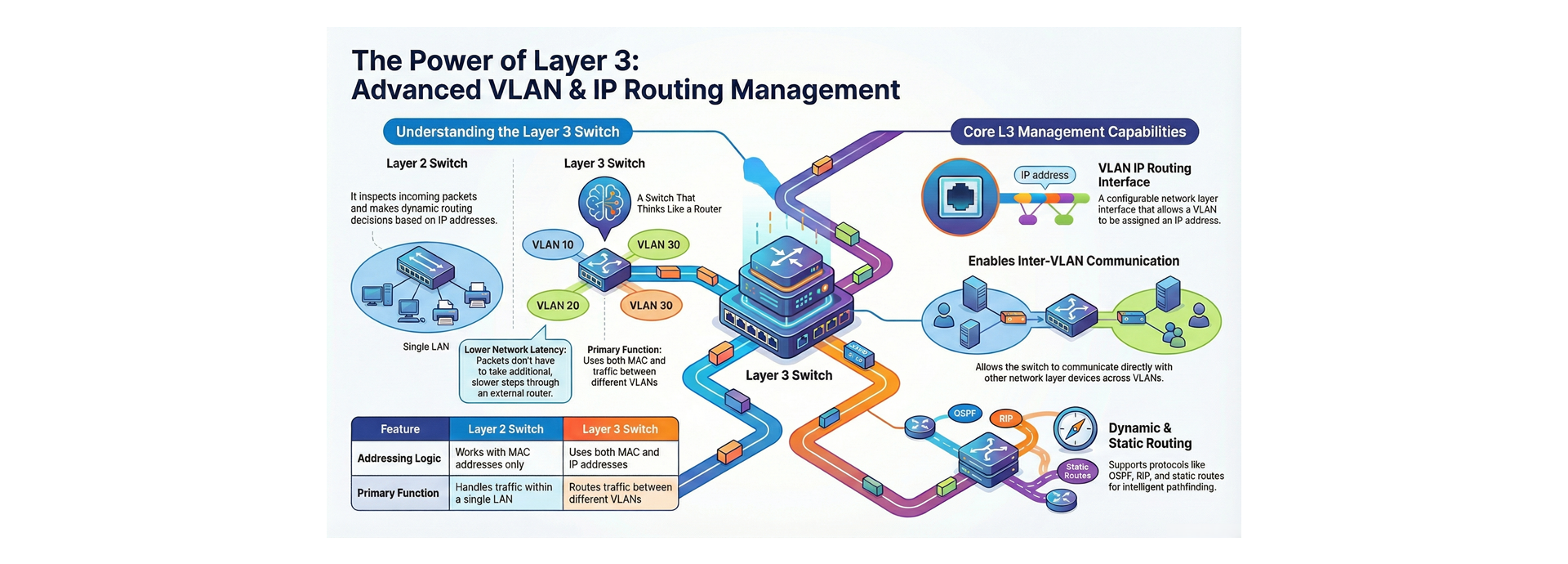

L3 VLAN IP Routing Interface Management
L3 VLAN IP Routing Interface Management
The L3POE-XGS2404-400 provides 3 layers of VLAN interface, which is used to communicate with network layer devices. VLAN interface is a network layer interface, which can be configured with IP address. Before creating VLAN interface, the corresponding VLAN should be created first. With the help of VLAN interface, switches can communicate with other network layer devices.

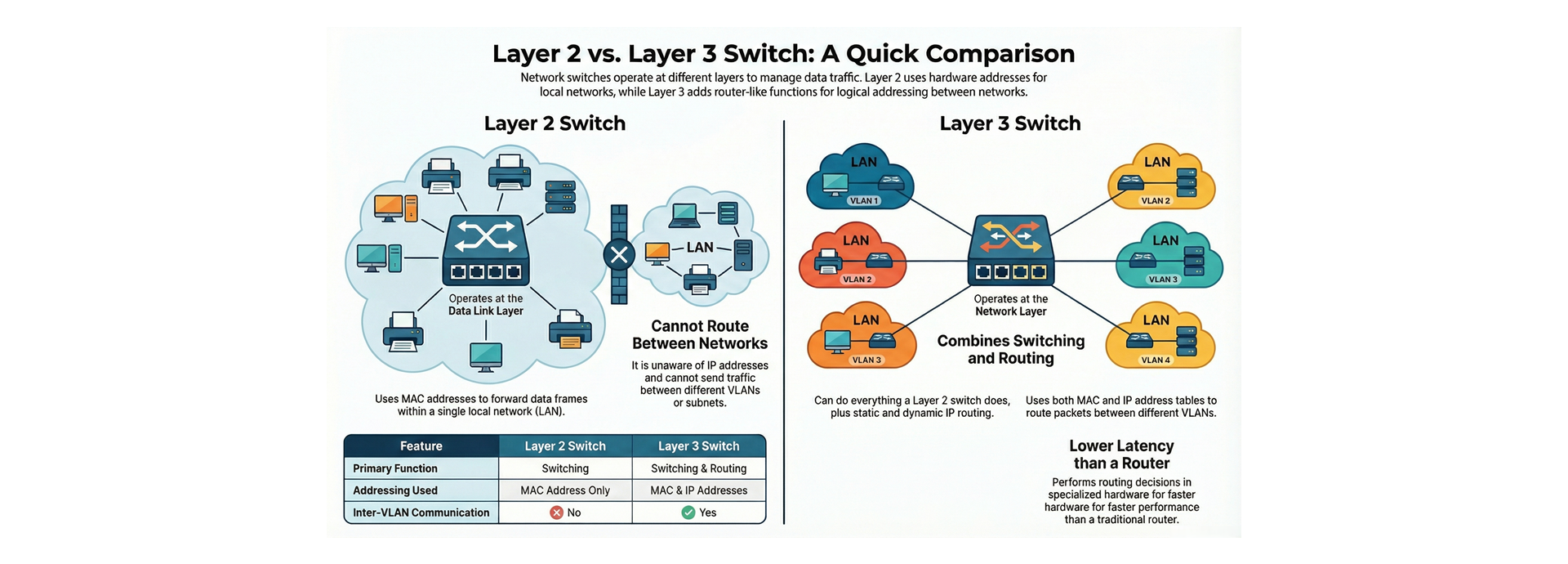

Layer 2 vs Layer 3 Switch
Layer 2 vs Layer 3 Switch
The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well. That means, a Layer 3 switch has both MAC address table and IP routing table, and handles intra-VLAN communication and packets routing between different VLANs. There is also layer 2+ (layer 3 Lite) switch that adds only static routing. Other than routing packets, layer 3 switches also include functions that require to understand the IP address information of data entering the switch, such as tagging VLAN traffic based on IP address instead of manually configuring a port. Layer 3 switches are increased in power and security as demanded.
Office Application 1
Office Application 1
Advanced Layer 3 basic features are supported which are necessary for an access or core switch of SME.
Enterprise Application 2
Enterprise Application 2
The L3POE-XGS2404-400 Series Switches can be deployed as core switches in small and medium enterprises. The Airlive L3 Series Switches not only simplifies the network architecture, but also significantly improves the reliability and efficiency of the network system.
Campus/Hospital Application 3
Campus/Hospital Application 3
As the aggregation layer switch of large campus network, L3POE-XGS2404-400 Series Switches offers high-performance bandwidth link with 10G aggregation to core and higher bandwidth for the access device to meet the growing demand of user traffic.
Hotel Application 4
Hotel Application 4
As the aggregation layer switch of hotel network, L3POE-XGS2404-400 Series Switches offers high-performance bandwidth link with the high-speed, security, and intelligence needs of Hotel mix networks.
2404-400pannel

* Customized for large campus network: up to 16K MAC address
* Exceptional performance & scalability: up to 128Gbps switching bandwidth capacity
* Out-of-box with advanced Layer 3 IP routing, OSPF features
* Aggregation layer of a large network, core layer of medium-sized network, access of a server cluster, and full Gigabit Layer 3 access of buildings in large enterprise or campus networks.
* The 4 fixed 10G BASE-X ports upgrade the network to a 10G uplink backbone to protect user investment.
* Strong security management mechanisms provide network security defense, high-security access control, and effective network access control.
* Superior management policies facilitate bandwidth management and ensure the performance of key applications such as voice/video conference, music and video streaming and Video on Demand (VoD).
Hardware
ModelAirLive L3POE-XGS2404-400
Device Interface24 x 10/100/1000M PoE Ports
4 x 10G SFP+ Ports
1 x RJ45 Console Port
1 x USB Port
StandardsIEEE 802.3:Ethernet MAC Protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u:100BASE-TX Fast Ethernet
IEEE 802.3ab:1000BASE-T Gigabit Ethernet
IEEE 802.3z:1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae:10G Ethernet (optical fiber)
IEEE 802.3az:Energy Efficient Ethernet
IEEE 802.3ad:Standard method for performing link aggregation
IEEE 802.3x:Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p:LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q:VLAN Bridge Operation
IEEE 802.1x:Client/Server Access Control and Authentication Protocol
IEEE 802.1d:STP
IEEE 802.1s:MSTP IEEE 802.1w:RSTP
IEEE802.3af(15.4W)
IEEE802.3at(30W)
LED IndicatorsPWR (power indicator), SYS(System lights), PoE (light), Link (Link light), Act (data light).
Lighting Surge ProtectionSurge 6KV,ESD 8KV
MechanicalSolid metal 19” 1U rack-mountable, IP30
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port24
PoE Power Output / PoE Portmax. 30 watts
PoE Power Output / PoE switchmax. 400 watts
Power InputAC100~240VAC, 400W
Switch Architecture | Performance
Switching architectureBandwidth:128Gbps
Packet Forwarding Rate:95.23Mpps
DDR SDRAM:512MB
Flash Memory:32MB
Package cache:12Mbit
MAC Address:16K
Jumbo frame:12Kbytes
VLANs:4096
MTBF:100000 hour
Fiber MediumMulti-mode Fiber: 50/125 、 62.5/125 、 100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
ERPS Ethernet Ring Protection
ERPS Ethernet Ring Protection

Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring.
The self-healing time of the ring network is less than 20ms

Software Function
Basic functionsSupport hardware watchdog, factory reset, system and port LED
Support global information, statistical information, log information
Support User management, alarm management, configuration management
Support Port rate, duplex, flow control, maximum frame length configuration
Support Port mirroring, port speed limit, port energy saving
Layer 3 InterfaceSupport Layer 3 interface
Support IPv4, IPv6 address configuration
Support ARP configuration
Support ND configuration
Layer 3 RoutingSupport IPv4 static routing
Support IPv6 static routing
DHCPSupport DHCP server
Support DHCP relay
Support DHCP Snooping
VLANSupport 4K VLAN
Support 802.1Q VLAN,baesd on port VLAN
Support Access、Trunk、Hybrid VLAN mode
Support GVRP (VLAN registration protocol)
Support MAC VLAN 、IP VLAN
Support Voice VLAN
MAC AddressSupport MAC address automatic learning and aging
Support Static, dynamic, filtered address table
Security featuresPassword protection
Support Restrict user access based on port number, IP address, MAC address
Support HTTPS、SSH V1/V2
Support VLAN-IP-MAC-PORT binding
Support ARP detection, IP source protection, DoS protection
Support DHCP Snooping、DHCP Attack protection
Support 802.1X Certification
Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol
Support Port security, port isolation
Access controlSupport L2(Layer 2)~L4(Layer 4) Packet filtering function
Support Port mirroring, flow rate limiting, QoS remarking
QoSSupport 8 port queues
Support Port priority, 802.1P priority, DSCP priority
Support SP, WRR Priority scheduling algorithm
Spanning treeSupport STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol
Support Multi-instance, Support Aggregate interface
Support BPDU protection
MulticastSupport IGMP v1/v2/v3 Snooping
Support MLD v1/v2 Snooping
Support Layer 2 multicast fast leave mechanism, querier
Support Layer 2 IPv4 static multicast
Support Layer 2 IPv6 static multicast
Support IGMP v1/v2/v3 Layer 3 multicast
Storm SuppressionSupport multicast suppression
Support broadcast storm suppression
Support unknown unicast suppression
Ring protectionSupport Ring protection
Link AggregationSupport Static Aggregation
Support LACP Dynamic Aggregation
Support based on IP, MAC, mixed load-balancing modes
Maximum support 8 aggregation groups (8 ports per aggregation group)
IPv6Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet
Support IPv6 SSH
Support IPv6 HTTP 、IPv6 HTTPS
Management and Maintenance
Management and MaintenanceSupport WEB Management (HTTP、HTTPS)
Support CLI (Telnet, SSH V1/V2, Local serial port)
Support SNMP V1/V2/V3
Support RMON V2
Support LLDP Device discovery
Support SNTP Time synchronization
Support CPU Monitoring, Memory Monitoring
Support System log, classification warning
Support Ping, Traceroute detection, cable detection
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-45°C to +85°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing



Ordering Information

ModelL3POE-XGS2404-400
L3 Managed Gigabit PoE+ 802.3at switch, 400W 24-Port including 4 10G SFP+ Fiber ports.
Standard Package
Product Size44x20.5x4.4 cm
Package Size50 x 38.5 x 9 cm
Package WeightN.W: 3.9KGS
G.W: 4.6KGS
Package ContentPoE Switch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1
Carton Package
Quantity 4PCS / 1 Carton
Dimensions52 x 38 x 40.5 cm
Weight 18.4 KGS
QIG
