L3-2TX2406: L3 Managed Multi Giga Switch with 10G uplink

ADD INQUIRY
Overview
Overview
Rich L3 Features

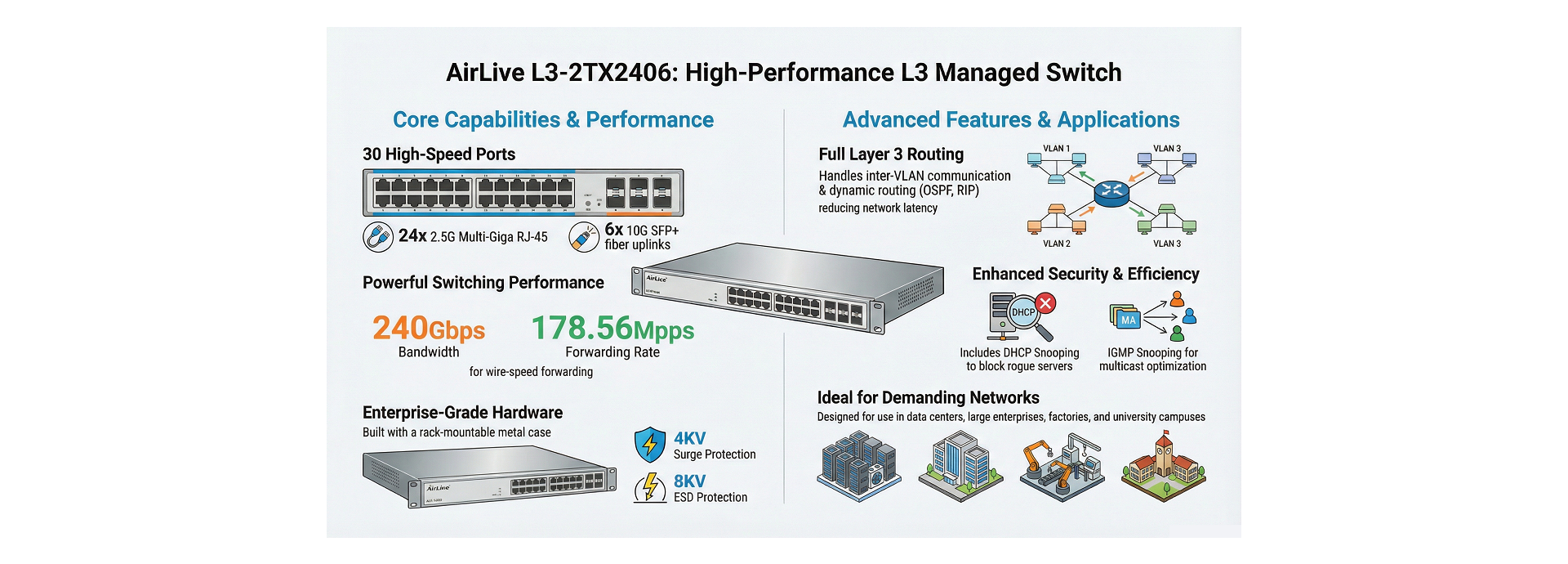

The AirLive L3-2TX2406 Series is a next-generation multiservice switch collection that offers remarkable performance and enhanced security. The switches offer high CPU capacity, improved hardware processing power and easier user operation. The L3-2TX2406 series supports flexible multi giga (2.5G) access and scalability of high-density 10G ports. All models provide fixed 6x10G fiber ports, With high switching capacity, the L3-2TX2406 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. With end-to-end service delivery and a wide range of security configurations available, the L3-2TX2406 series meets the high-speed, security, and intelligence needs of enterprise networks.

Layer 3 switch is a specialized hardware device used in network routing. It supports routing protocols, inspects incoming packets, make dynamic routing decisions based on the source and destination address insides. Besides, Layer 3 switches are much lower network latency since packets don't have to take additional steps through a router. It is widely used in Data centers and Universities, Factory Industrial Park, Enterprises where there is a large setup of computer networking. Owning to its features like static and dynamic routing and its fast switching speed than a router, it is used in LAN connectivity of several VLAN and LAN networks.

What Is a Layer 3 Switch?

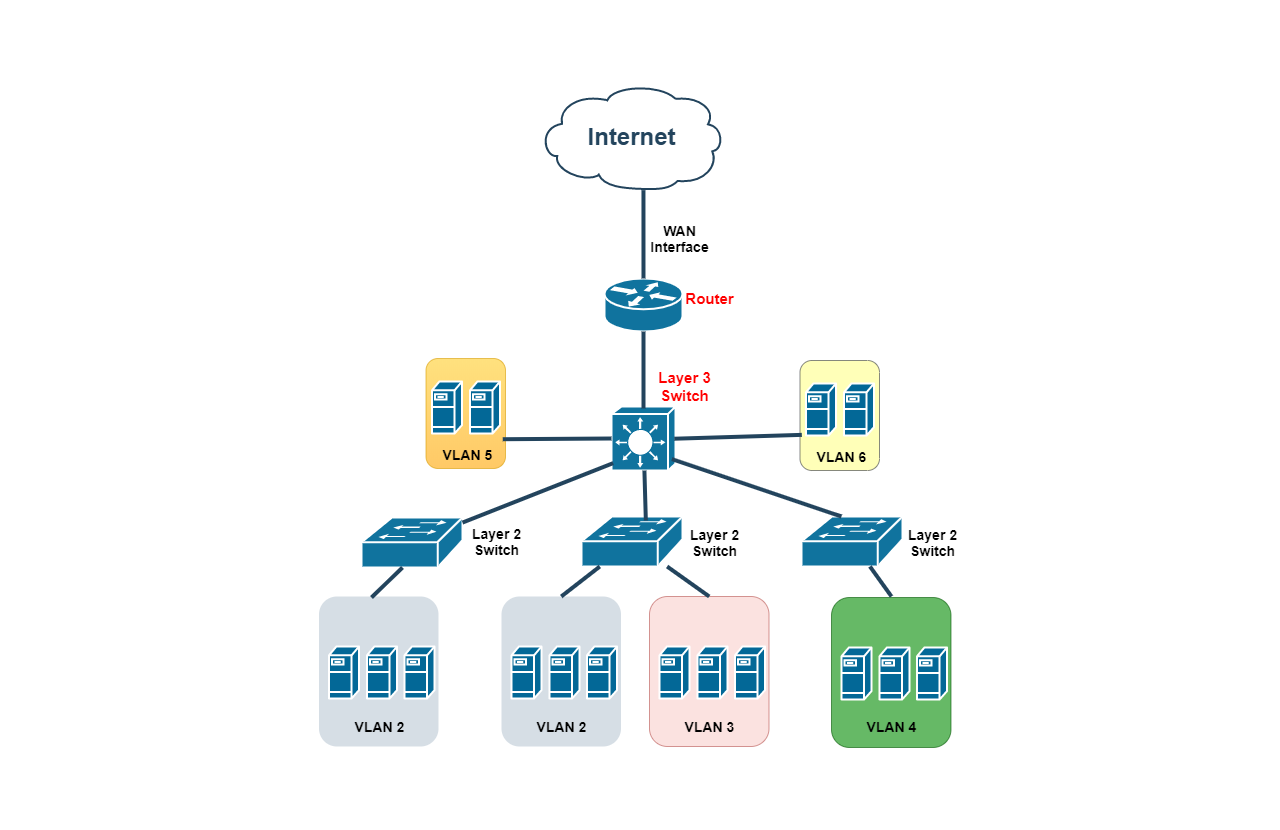

A Layer 3 switch is a specialized hardware device used in network routing. Layer 3 switches technically have a lot in common with typical routers, and not only in physical appearance. Both can support the same routing protocols, inspect incoming packets, and make dynamic routing decisions based on the source and destination addresses inside.

One of the main advantages of a Layer 3 switch over a router is in the way routing decisions are performed. Layer 3 switches are much low network latency since packets don't have to take additional steps through a router.
Features
  • L3 Management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2.
  • Fully L2 features provide easier manageability, security and QoS.
  • ITU-T G.8032 Ethernet Ring Protection Switching (ERPS).
  • IPv4/IPv6 L3 static route.
  • Support STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM).
  • Support IPV4/IPV6,RIP v1/v2,OSPF v2.
  • SFP+ 10Gbps Fiber Long Distance.
  • Support multiple VLAN division, Voice, VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, Private VLAN and more.
  • Support IP address+ MAC address +VLAN+ port binding, DHCP Snooping, IP source and DAI protection.
  • Clear Statues display including traffic, CPU, per-port status.
  • Easy management; Support WEB, TELNET, CLI, SSH, SNMP, RMON management.
Major Specfication
  • 24 x 10/100/1000/2500Mbps
  • 6 x 2.5/10G SFP+
  • Rich Layer 3 Features
  • L3 DHCP Server/Relay
  • L3 DHCP Snooping
  • IPv4/IPv6 L3 static route
  • OSPF Routes dynamic routing
  • Surge Protection 6KV, ESD Protection 6KV
  • Authentication: 802.1x, AAA
  • DHCP Snooping prevents unauthorized router installed
Applications of Layer-3 Switches
Applications of Layer-3 Switches

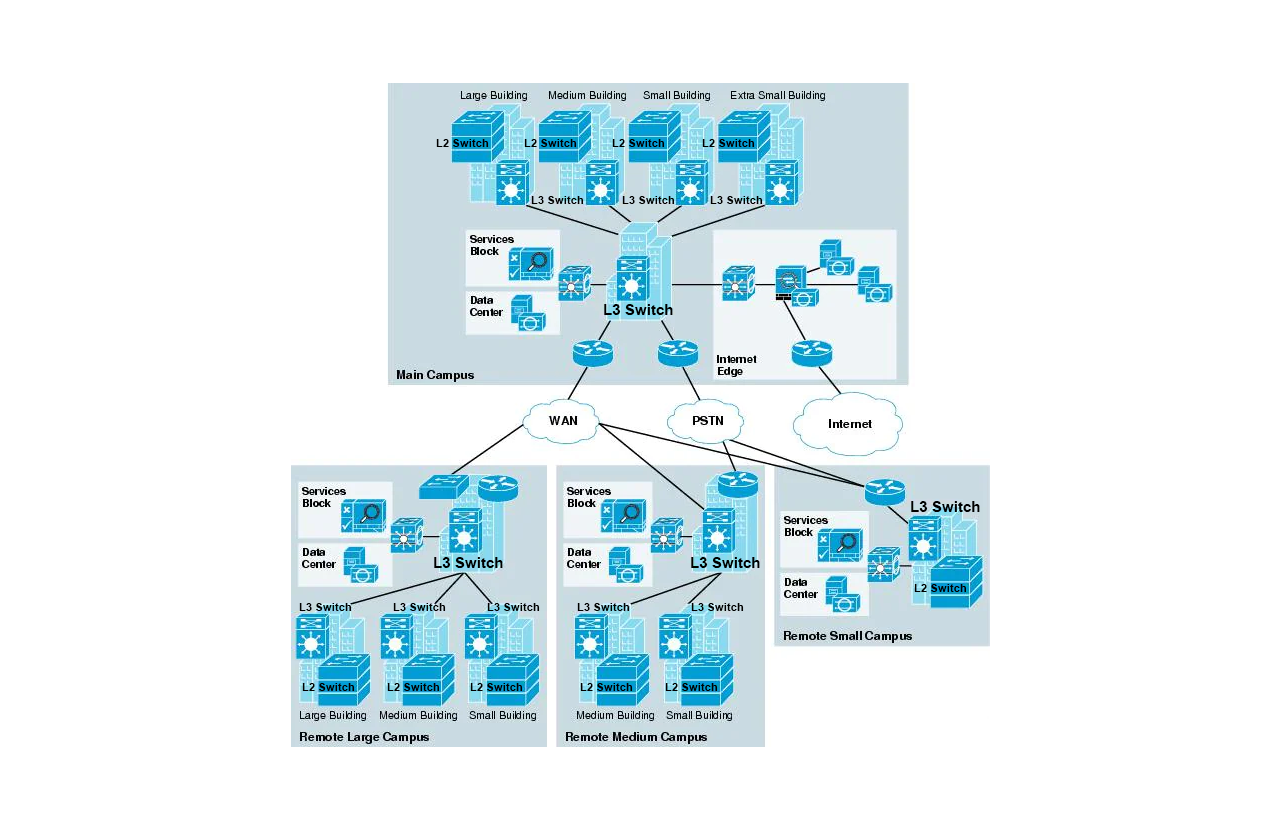

  • Layer3 Switch is widely used in data centers and universities, factory, enterprise where there is a very big setup of computer networking. Owing to its features like static and dynamic routing and its fast-switching speed than a router, it is used in LAN connectivity for interconnection of several VLAN and LAN networks.
  • L3-2TX2406 have the skills to offload the overloaded routers. This can be done by configuring a layer-3 switch, each with a main router in a wide area networking scenario so that the switch can manage all the local level VLAN routing.
  • The layer-3 switch in combination with a number of layer-2 switches supports more users to connect on the network without the need for implementation of an extra layer-3 switch and more bandwidth. Thus, it is widely implemented in universities and small-scale industries. In case if the number of end users on a network platform increases, then without any enhancement of the network, it can be accommodated in the same running scenario easily.
  • A layer-3 switch is smart enough to handle and manage the routing and traffic controlling of locally connected servers and end devices utilizing its high bandwidth.

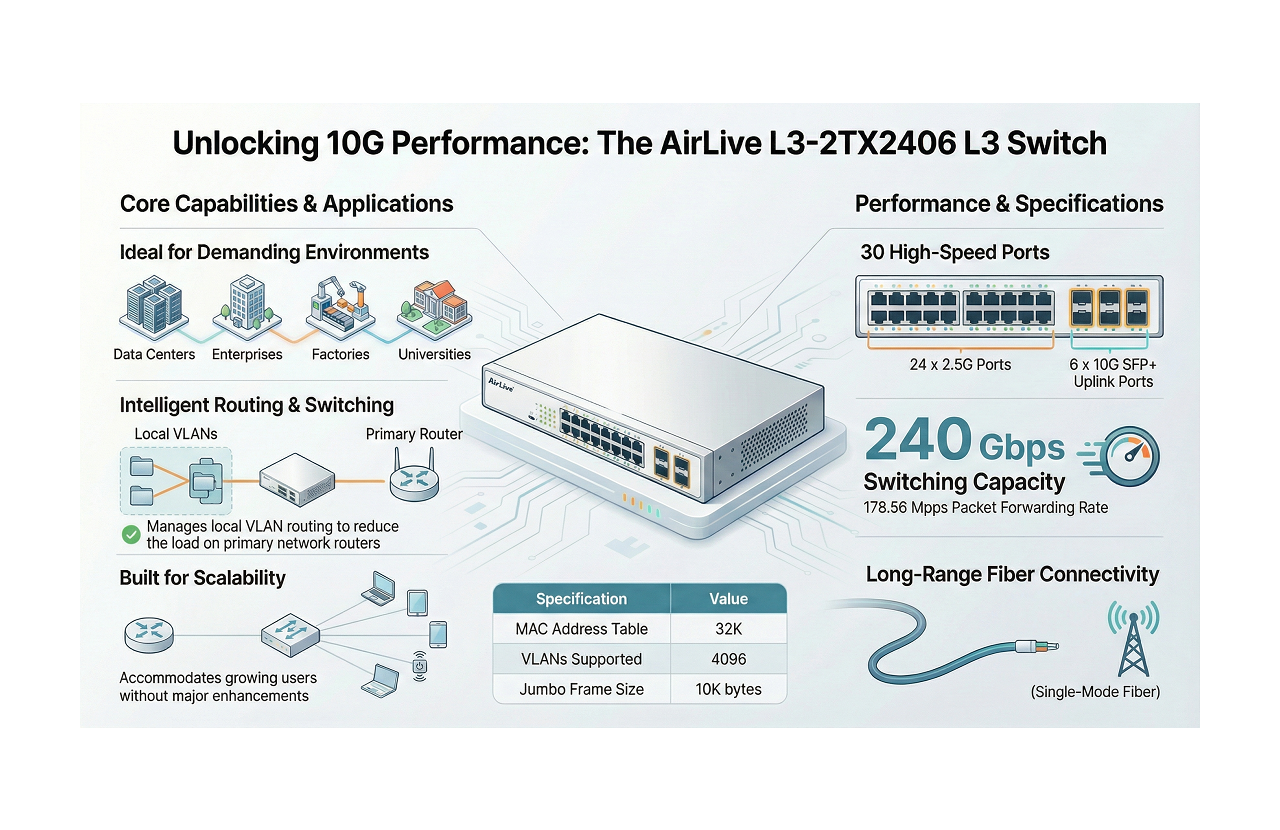

10G Performance and Scalability
10G Performance and Scalability
With high switching capacity, L3-2TX2406 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols.
The 10 Gigabit Ethernet connectivity of L3-2TX2406 is accomplished via a hot-pluggable 10 Gigabit SFP+ transceiver which supports distance up to 300 meters over multimode fiber and 10 to 40km over single-mode fiber (The distance depends on the optical module chosen).

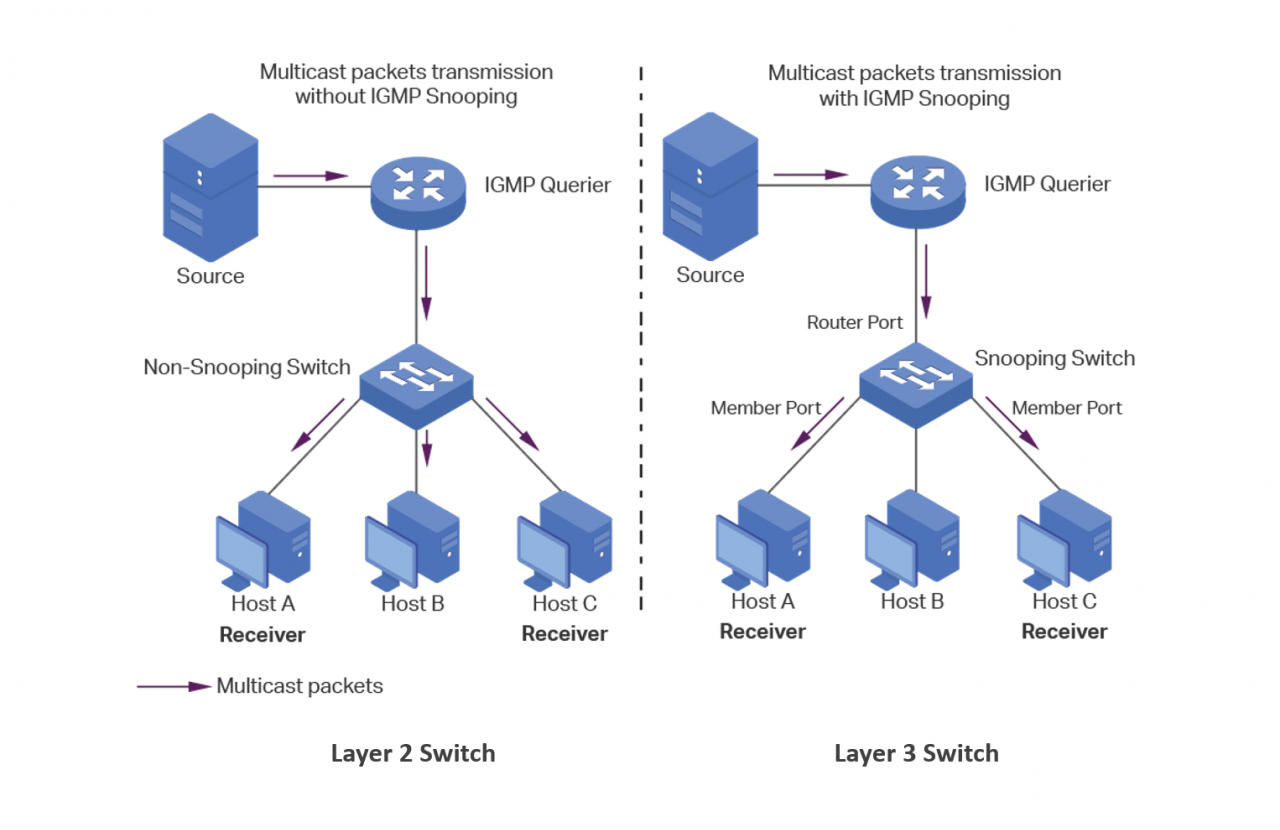

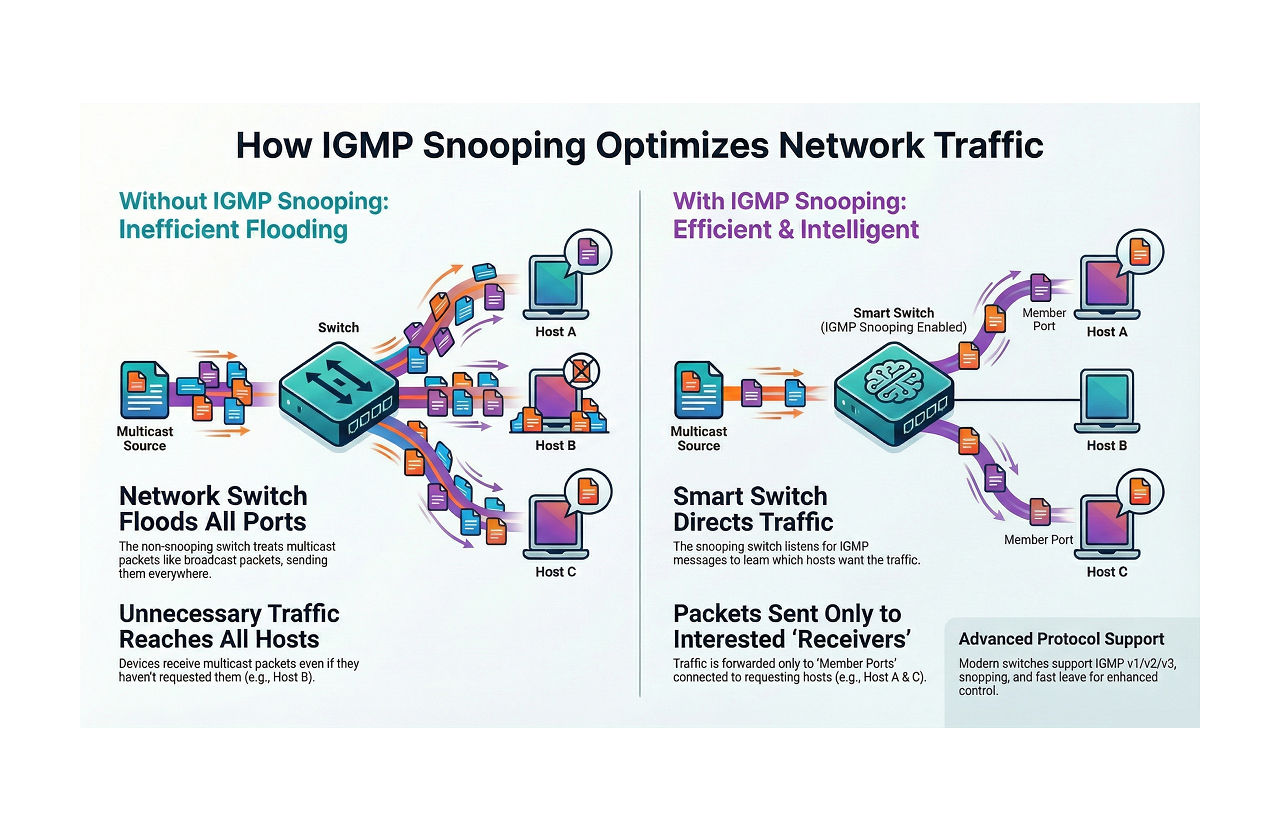

Strong L3 IGMP Snooping Multicast
Strong L3 IGMP Snooping Multicast
L3 multicast protocols is compliant with IGMPv1/v2/v3 and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions; L3-2TX2406 fiber series provides a great application experience for the customer.
L3 OSPF Routes Management

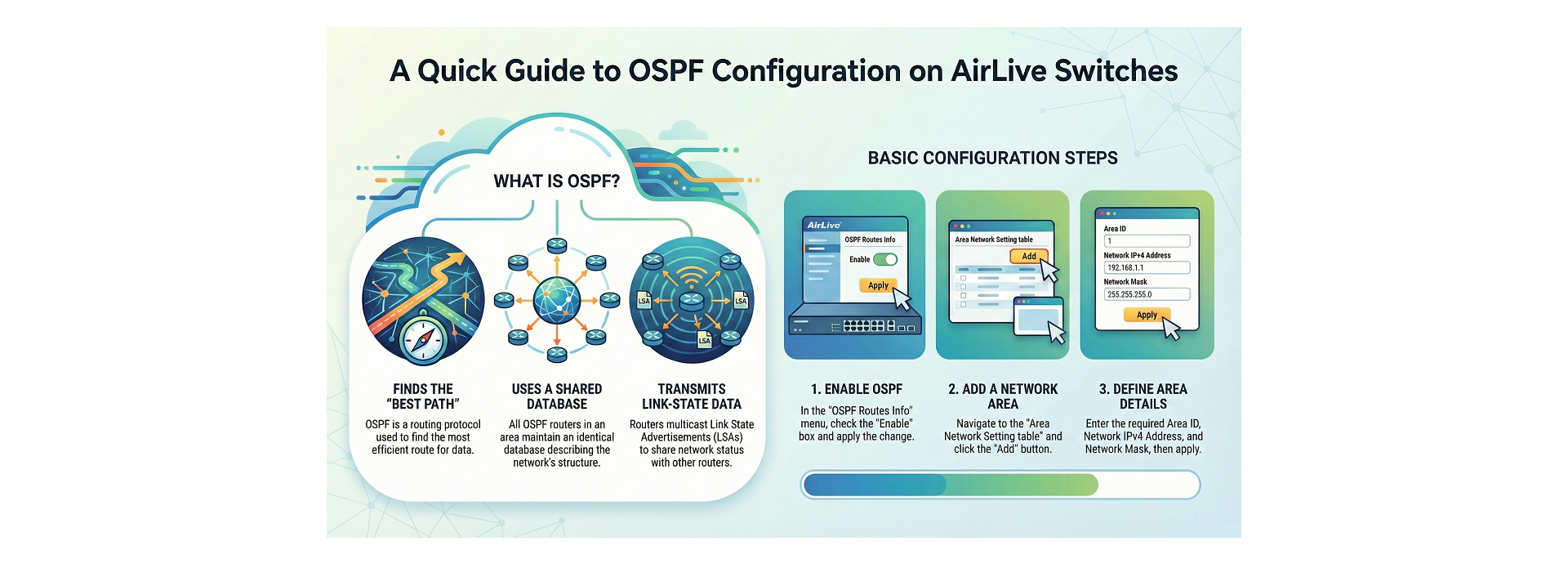

L3 OSPF Routes Management

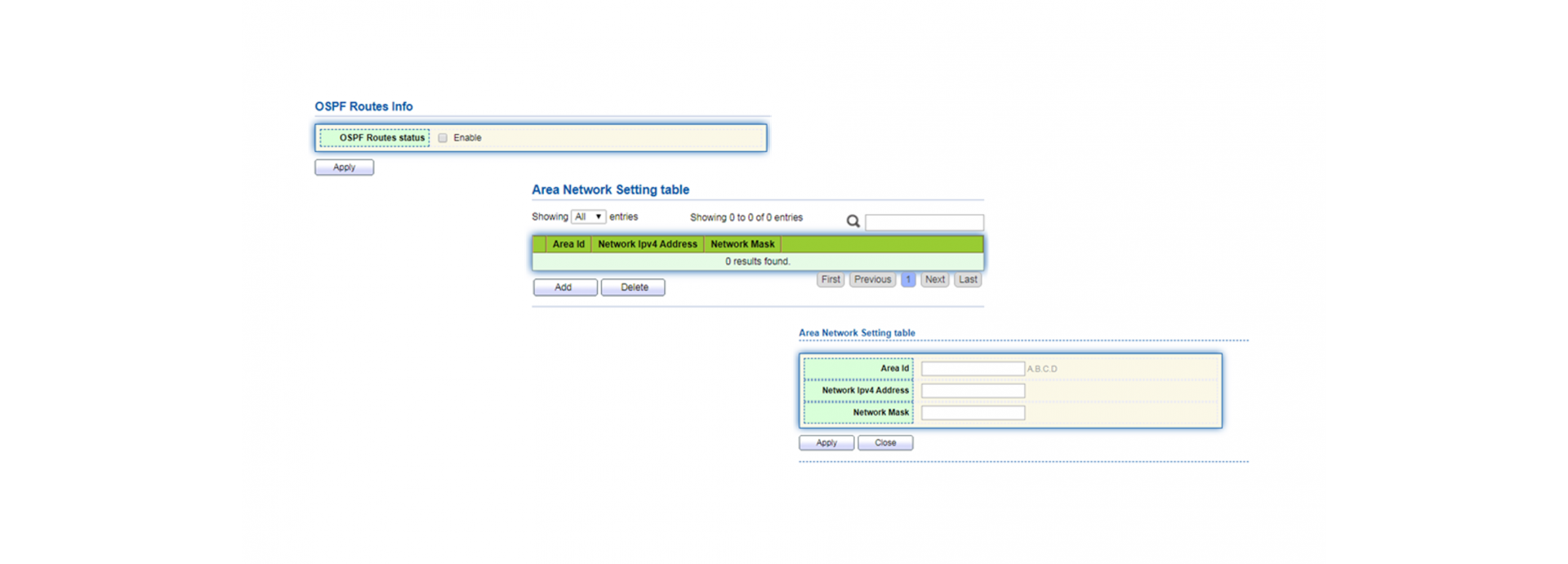

Open shortest path first (OSPF) is a link-state routing protocol that is used to find the best path between the source, which is generally used in the same routing domain. Here, routing domain refers to an autonomous system (as), which refers to a group of networks that exchange routing information through a unified routing policy or routing protocol. In this as, all OSPF routers maintain the same database describing the as structure, which stores the state information of the corresponding links in the routing domain. It is through this database that OSPF routers calculate their OSPF routing tables.

As a link state routing protocol, OSPF transmits link state multicast data LSA (link state advertisement) to all routers in a certain area, which is different from distance vector routing protocol. The router running distance vector routing protocol passes part or all of the routing tables to its neighboring routers.

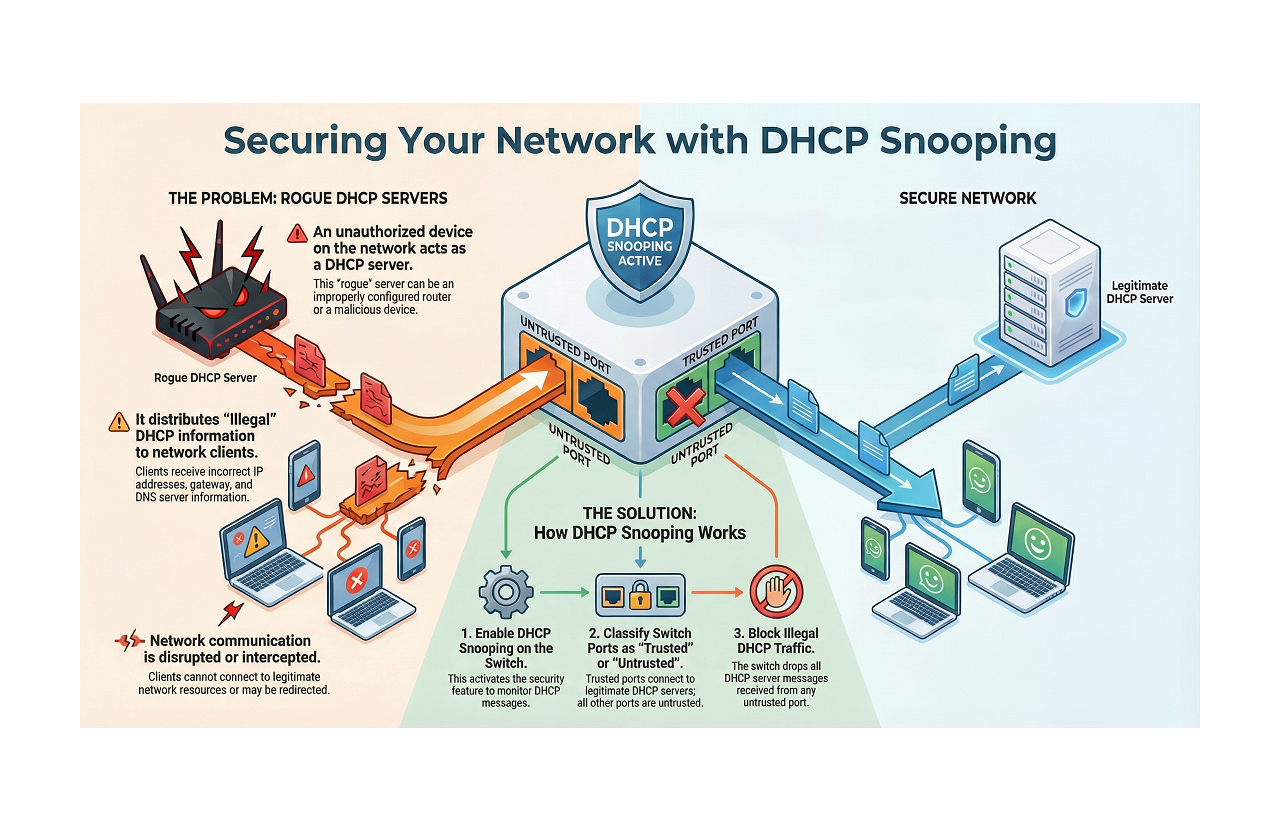

L3 DHCP Snooping Support
L3 DHCP Snooping Support

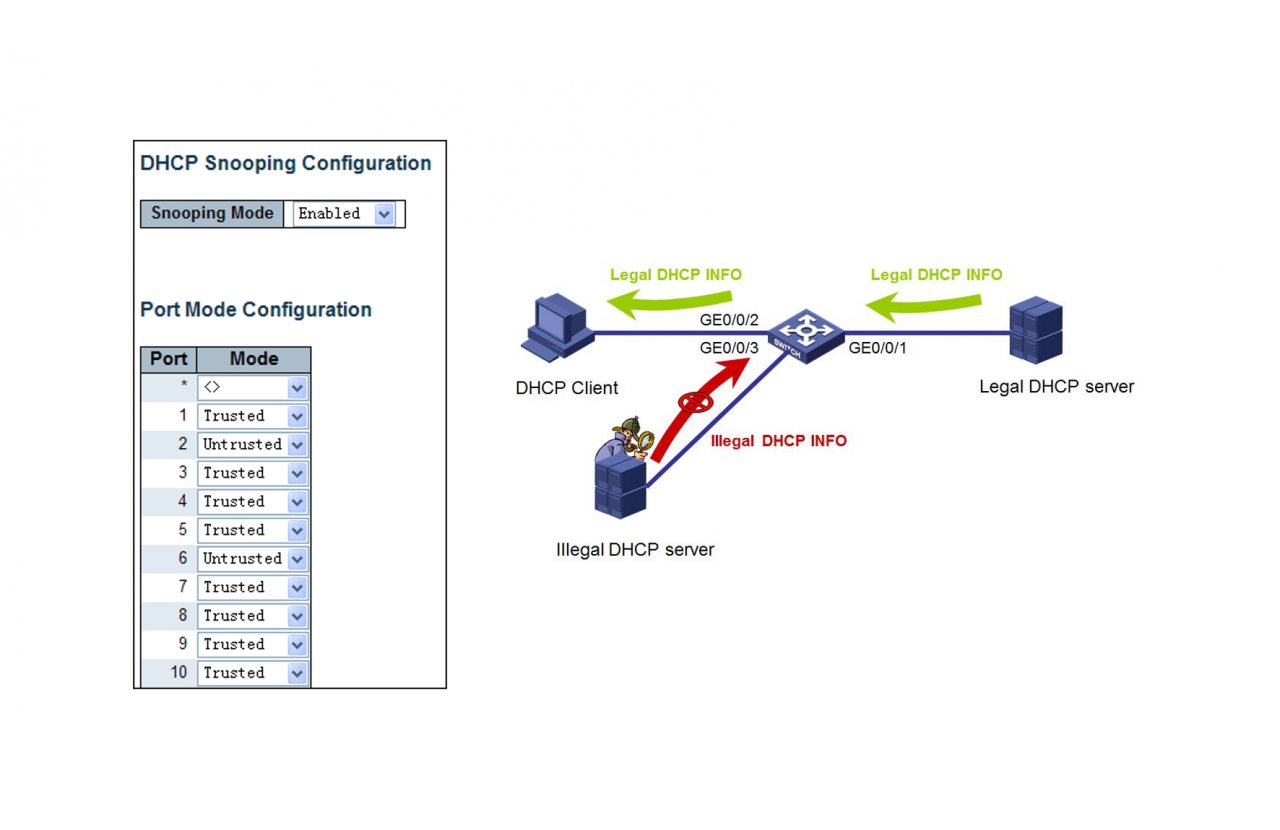

Prevention against illegal Router(DHCP Server) attacks or sending DHCP information.
L3 VLAN IP Routing Interface Management

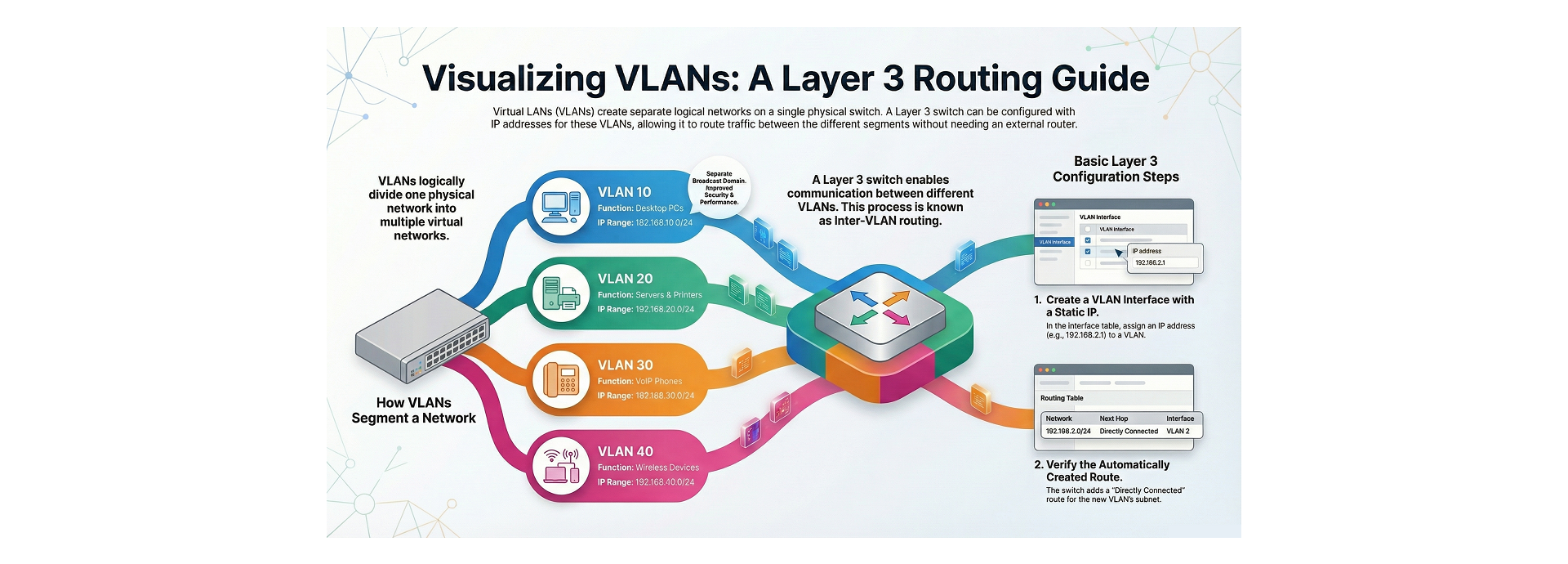

L3 VLAN IP Routing Interface Management

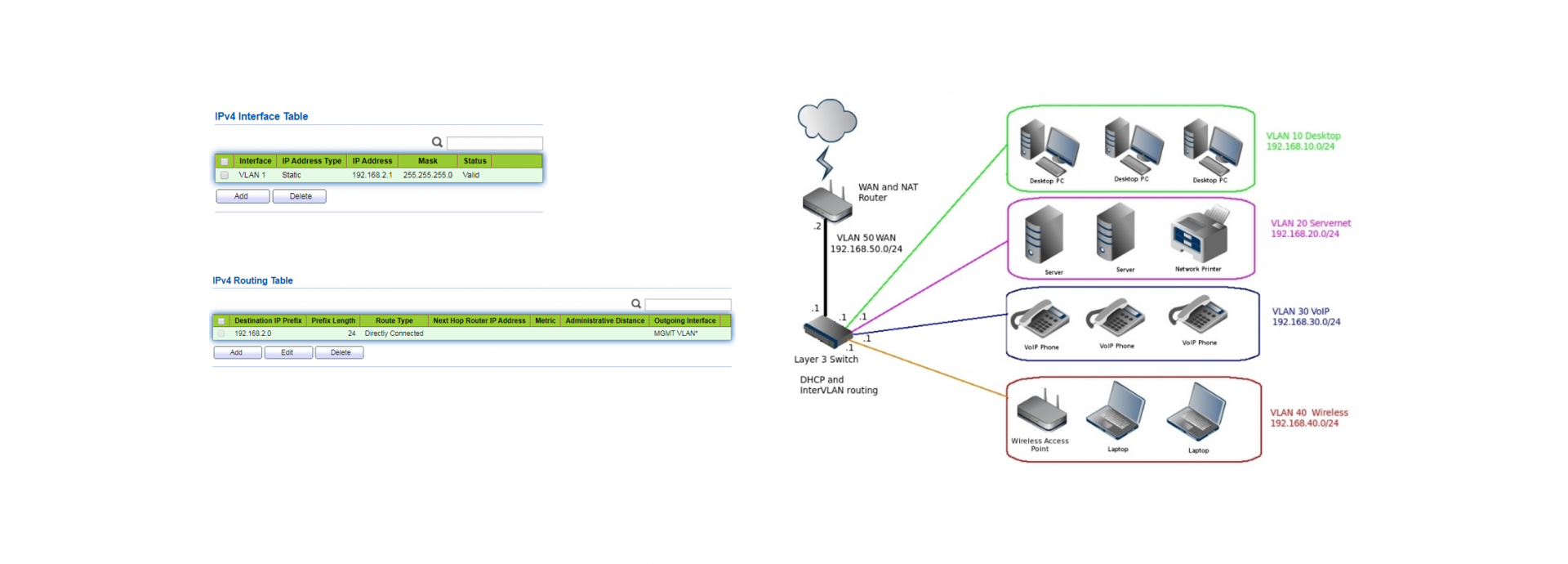

The L3-2TX2406 provides 3 layers of VLAN interface, which is used to communicate with network layer devices. VLAN interface is a network layer interface, which can be configured with IP address. Before creating VLAN interface, the corresponding VLAN should be created first. With the help of VLAN interface, switches can communicate with other network layer devices.

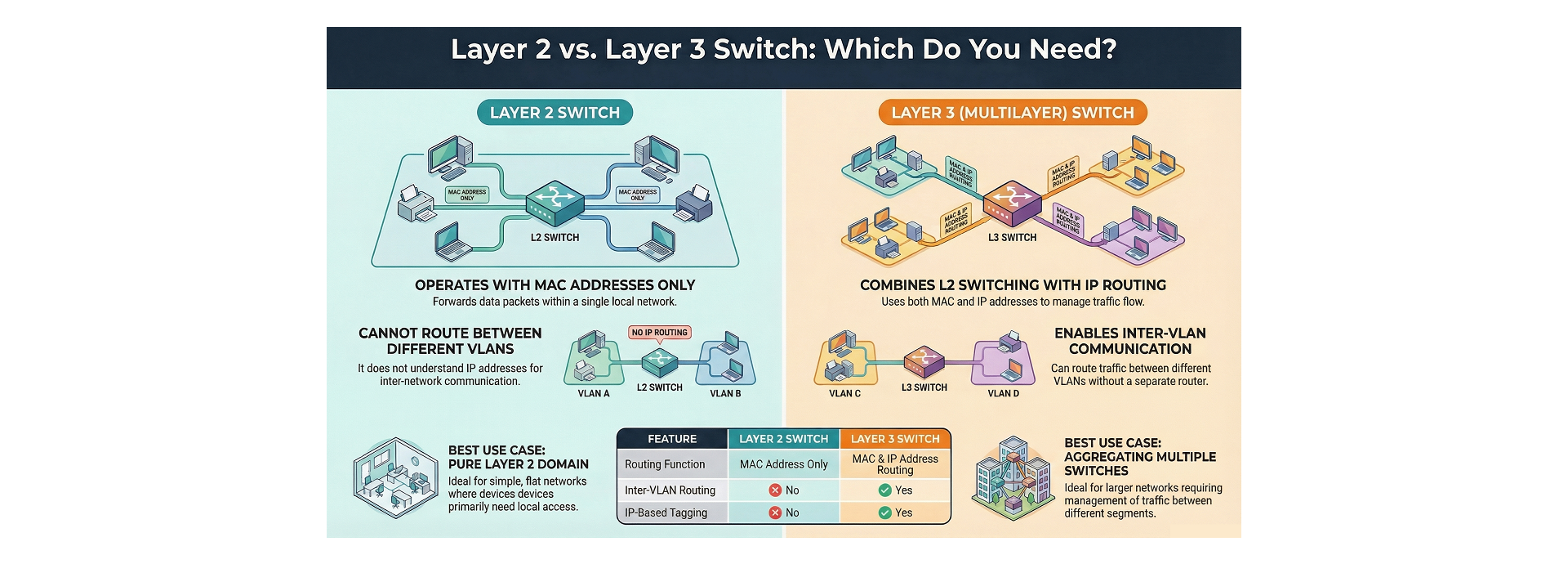

Layer 2 vs Layer 3 Switch
Layer 2 vs Layer 3 Switch

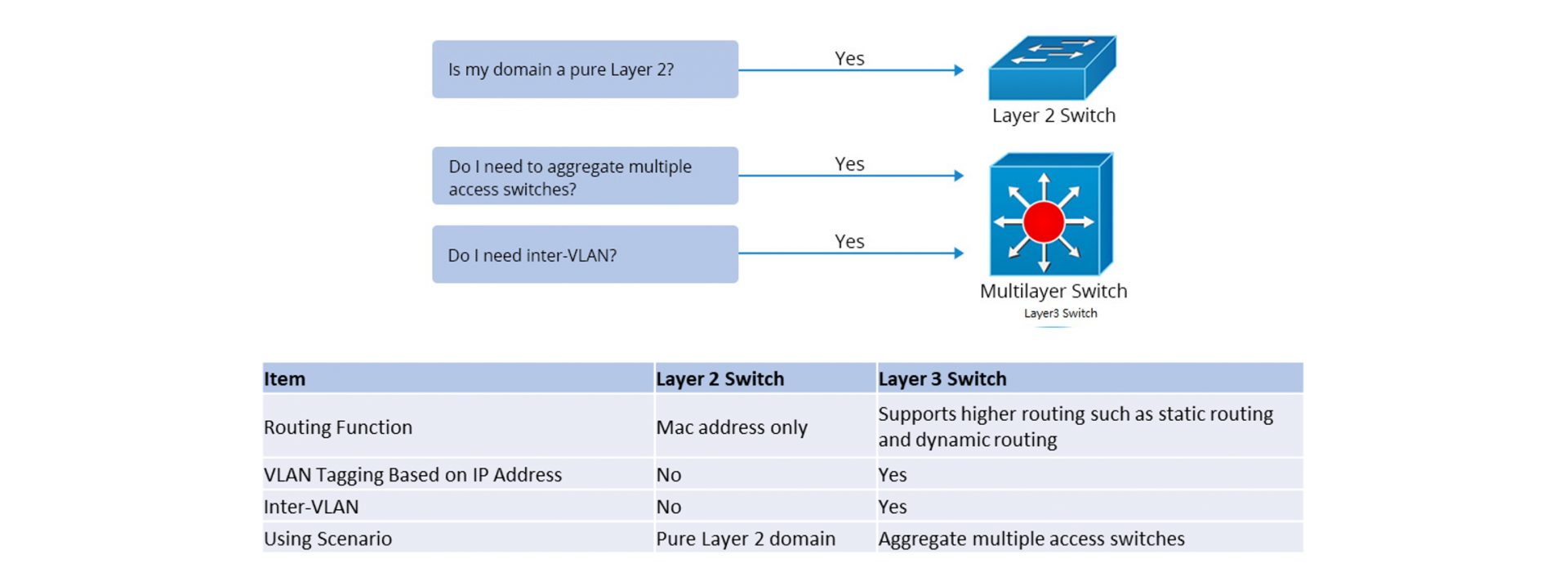

The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well. That means, a Layer 3 switch has both MAC address table and IP routing table and handles intra-VLAN communication and packets routing between different VLANs. There is also layer 2+ (layer 3 Lite) switch that adds only static routing. Other than routing packets, layer 3 switches also include functions that require to understand the IP address information of data entering the switch, such as tagging VLAN traffic based on IP address instead of manually configuring a port. Layer 3 switches are increased in power and security as demanded.
Office Application 1
Office Application 1
Advanced Layer 3 basic features are supported which are necessary for an access or core switch of SME.
Enterprise Application 2
Enterprise Application 2
The L3POE-2TX2406 Series Switches can be deployed as core switches in small and medium enterprises. The Airlive L3 Series Switches not only simplifies the network architecture, but also significantly improves the reliability and efficiency of the network system.
Campus/Hospital Application 3
Campus/Hospital Application 3

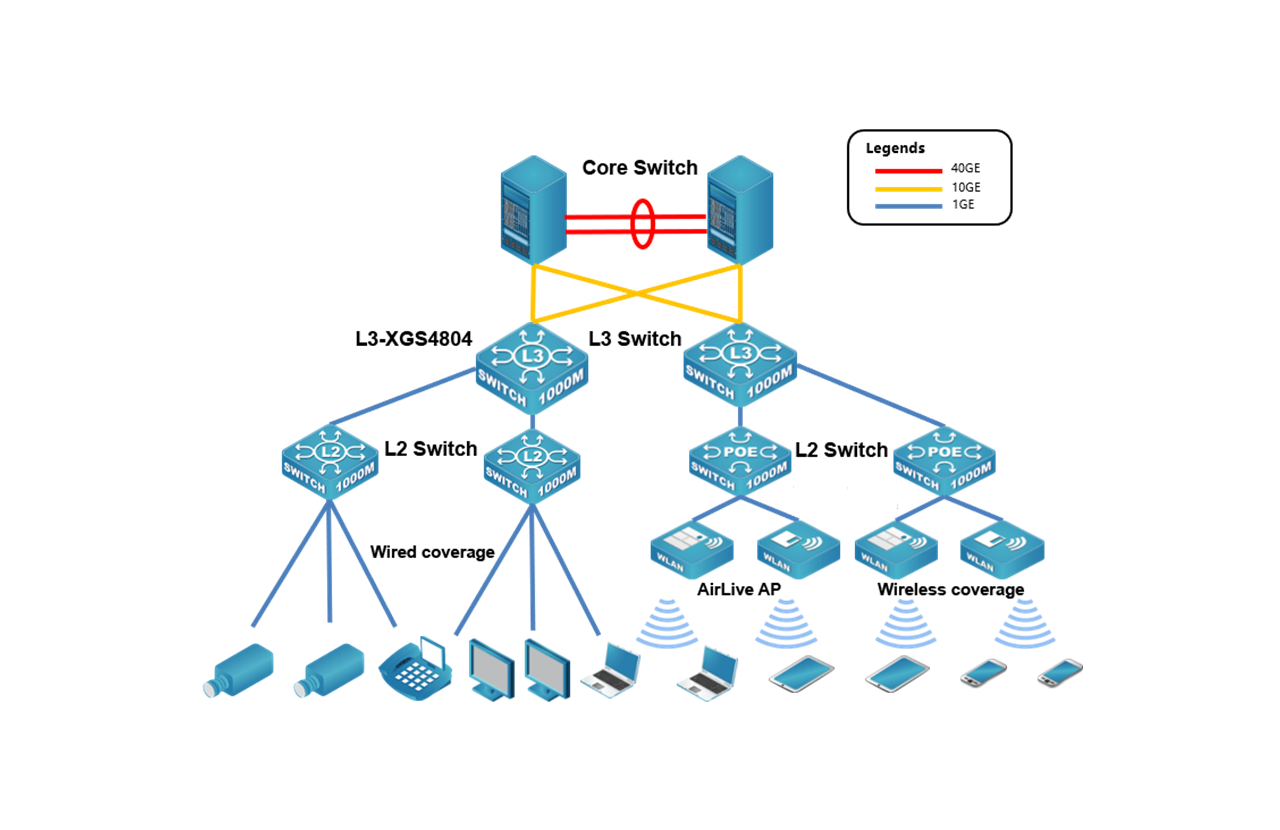

As the aggregation layer switch of large campus network, L3-2TX2406 Series Switches offers high-performance bandwidth link with 10G aggregation to core and higher bandwidth for the access device to meet the growing demand of user traffic.

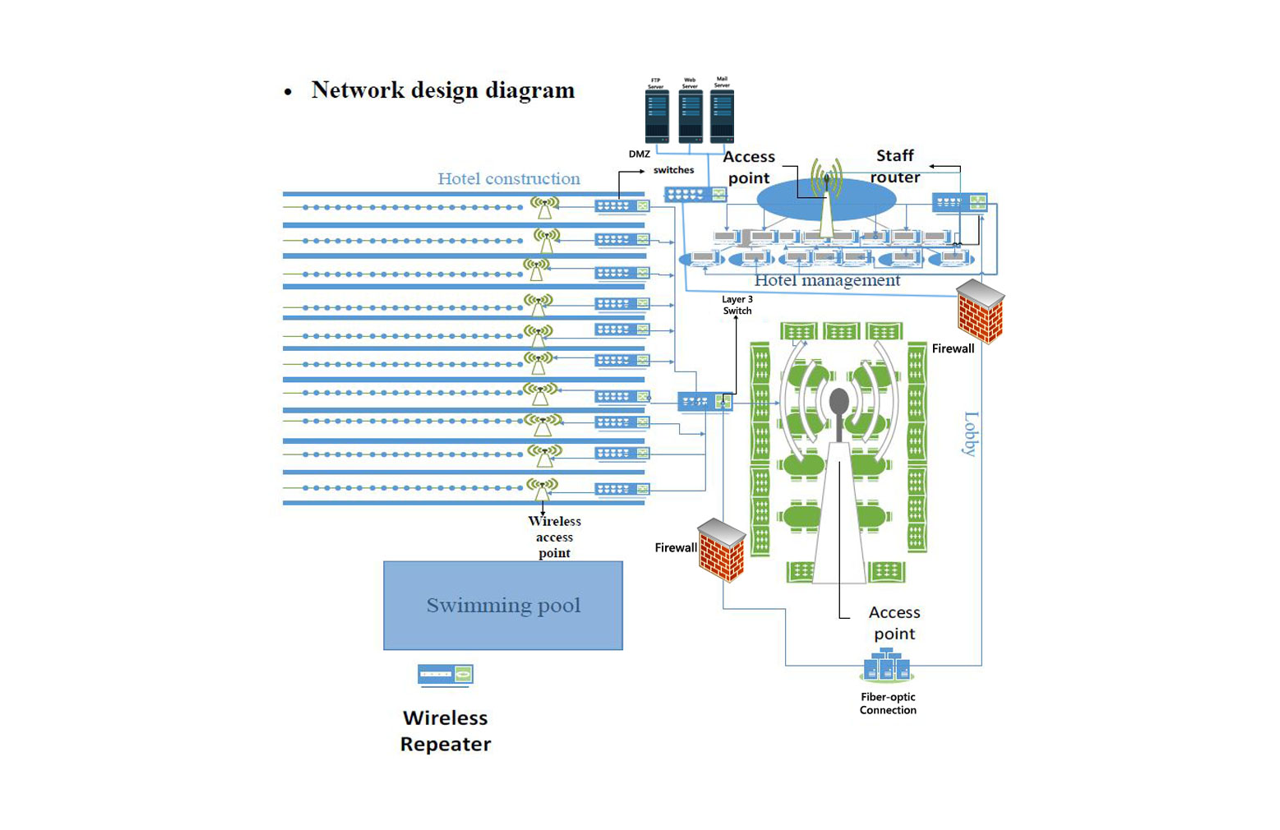

Hotel Application 4
Hotel Application 4
As the aggregation layer switch of hotel network, L3-2TX2406 Series Switches offers high-performance bandwidth link with the high-speed, security, and intelligence needs of Hotel mix networks.
ges
Feature highlights of L3-2TX2404 Series:
* Customized for large campus network: up to 32K MAC address
* Exceptional performance & scalability: up to 240Gbps switching bandwidth capacity
* Out-of-box with advanced Layer 3 IP routing, OSPF features
* Aggregation layer of a large network, core layer of medium-sized network, access of a server cluster, and full Gigabit Layer 3 access of buildings in large enterprise or campus networks.
* The 6 fixed 10G BASE-X ports upgrade the network to a 10G uplink backbone to protect user investment.
* Strong security management mechanisms provide network security defense, high-security access control, and effective network access control.
* Superior management policies facilitate bandwidth management and ensure the performance of key applications such as voice/video conference, music and video streaming and Video on Demand (VoD).
Hardware

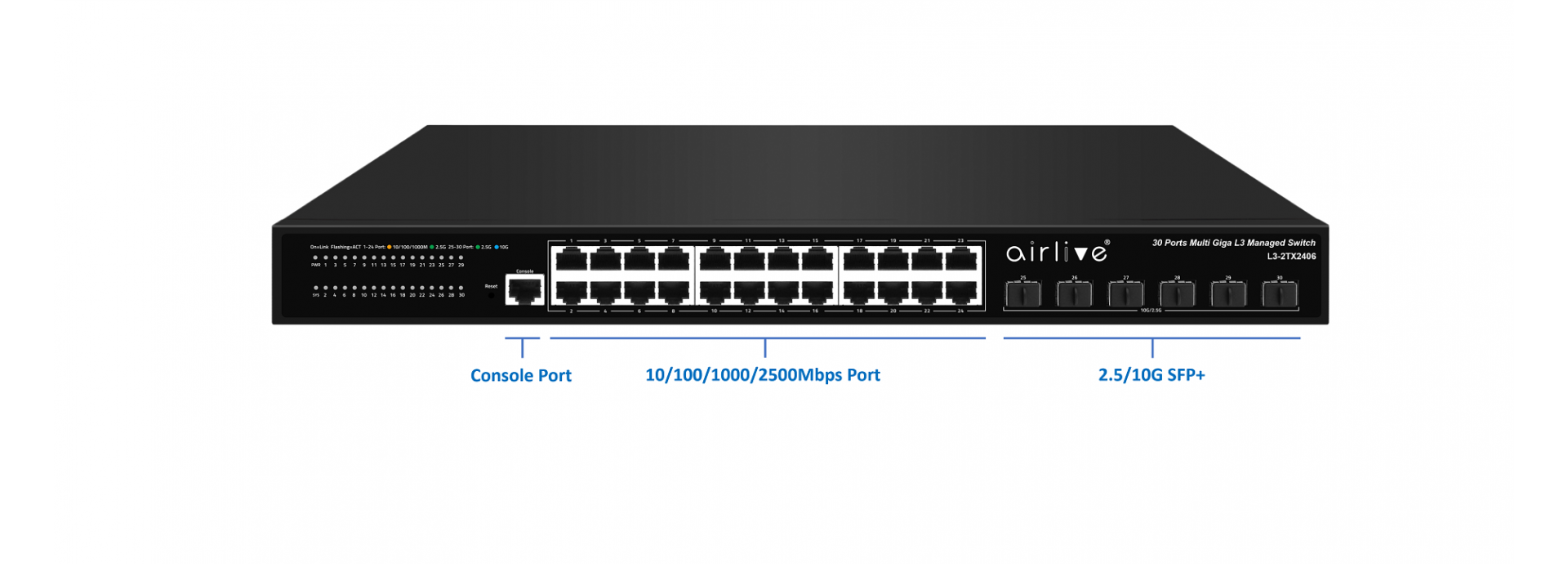

ModelAirLive L3-2TX2406

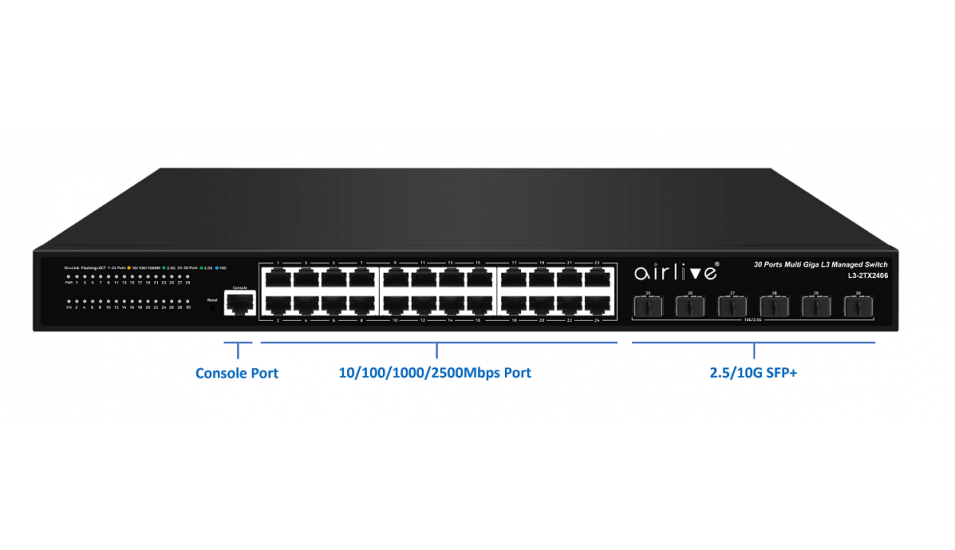

Device Interface24 x 10/100/1000/2500M Ports
6 x 10G SFP+ Ports
1 x RJ45 Console Port
StandardsIEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i: 10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3bz: 2.5GBASE-T Multi Giga Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae: 10G Ethernet (optical fiber)
IEEE 802.3az: Energy Efficient Ethernet
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP
LED IndicatorsPWR(Power indicator),SYS(System lights), Warning Light Temp/Voltage), Link RJ-45 port: Green 2.5G, Yellow 100/1000Mbps, Link SFP+ port: Blue 10G, Green 2.5G
Lighting Surge ProtectionSupport Port Surge Protection: Common Mode 6KV, Differential Mode 2KV; ESD: Contact 6KV, Air 8KV
MechanicalSolid metal 19” 1U rack-mountable
Power
Power InputAC100~240VAC
Power Consumption SwitchMaximum 52W
Switch Architecture | Performance
Switching architectureBandwidth: 240Gbps
Packet Forwarding Rate: 178.56Mpps
DDR SDRAM: 512MB
Flash Memory: 32MB
Package cache: 16Mbit
MAC Address: 32K
Jumbo frame: 10Kbytes
VLANs: 4096
MTBF: 100000 hour
Fiber MediumMulti-mode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Software Function L3
IPv4Support IPv4 VLAN Interface, IPv4 Static Routes, ARP
IPv6Support IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND
RIPSupport V1/V2
OSPFSupport Router-ID, Authentication, V2
Software Function L2
Port FunctionSupport Port Switch Configuration, Port Description Configuration, Port Speed Configuration, Port Duplex Configuration, Port Flow Control Configuration, Jumbo Frame up to 10K, Fiber Module (DDM)
Link AggregationSupport load balance policy; based on MAC and IP-MAC, Static and Dynamic Group, Support LACP Up to 8 groups
Storm ControlSupport Broadcast Suppression, Unknown Multicast, Unknown Unicast
Port MirroringSupport One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups
Port SecuritySupport MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown
Port IsolationSupported
Port Rate-limitSupported
Loopback DetectionSupported
VLANSupport Access/Trunk/Hybrid
Support VLAN Tunnel (Q-in-Q Tunnel)
Support Configurable VID from 1 - 4094; Max. 4K static VLAN groups
Support Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN
Support GVRP
MAC AddressSupport Dynamic Address, Static MAC address, Filtering MAC Address
Spanning treeSupport STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol
Support BPDU Filter, BPDU Guard, Edge Port
ERPS (Ethernet Ring Protection)Support G.8032 (ERPS), ERPS Instance
LLDPSupport LLDP, LLDP MED
MulticastSupport IGMP Snooping, IGMP v1/v2/v3, Router Port, Static IGMP group address, IGMP groups filtering, Querier, MLD Snooping, MVR
QoSSupport Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking
Services
DHCPSupport DHCP Server, IP Pool, Static Binding, DHCP Relay, Option 43
Access ProtocolSupport HTTP. HTTPS, Telnet, SSHv2, Manager ACL, Session Timeout, Password Retry Count, Silent Time
Security
AAASupport RADIUS, TACACS+, 802.1X, Based on port/MAC/local/WEB
DHCP SnoopingSupport Global/VLAN, Option 82, Circuit ID
IP Source GuardSupported
Dynamic ARPSupported
DOS Anti AttackSupported
ACLSupport MAC ACL, IPv4 ACL, IPv6 ACL
Diagnostics
SyslogSupport Logging Message, Remote Server
PingSupported
Copper TestSupported
UDLDSupported
Management
Manager AccessSupport Console, HTTP/HTTPS, Telnet, SSH, SNMP
Manager IPSupport Static Address, DHCP Client, Supports IPv4 and IPv6 address, Manager VLAN, DNS
Time SynchronizationSupport SNTP, Manual Time
SNMPSupport V1/V2C/V3, Community, V3 User, Group, Trap Host
SNMP MIBSupport RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2819 RMON MIB (Groups 1, 2, 3 and 9), RFC 2863 Interface MIB, LLDP, Private MIB
RMONSupport Statistics, History, Event, Alarm
UserSupported
FirmwareSupport Double Image; Swap between Active and Alternate firmware image, Firmware Upgrade
ConfigurationSupport Upload and download, Upload and download via USB interface, Save, Restart, Factory Defaults
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelL3-2TX2406
L3 Managed Multi Giga Switch, 30-Port including 6x 10G SFP+ Fiber ports.
Standard Package
Product Size44.0(L) x 36.0(W) x 4.45(H) cm
Package Size58.0(L) x 44.0(W) x 12.0(H) cm
Package WeightN.W: 5.49kg
G.W: 6.85kg
Package ContentSwitch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1
Carton Package
Quantity2PCS / 1 Carton
Dimensions60.0(L) x 46.0(W) x 27.8(H) cm
Weight14.7kg
QIG
NameDescriptionDownloadDate
L3-2TX2406 QIG
2024/07/29
User Guide
NameDescriptionDownloadDate
L3POE-2TX2406_L3-2TX2406 User Guide
2025/01/06
Spec Sheet
NameDescriptionDownloadDate
L3-2TX2406 Spec Sheet
2025/01/03
