IGM-642BT-1.25G: L2+ Industrial Ring Managed Gigabit POE++ Switch

One of World First Industrial-grade Managed PoE++ Switch supports HiPoE 90W Port
One of World First Industrial-grade Managed PoE++ Switch supports HiPoE 90W Port
AirLive IGM-642BT-1.25G High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 90W power output per port(Port#1~4). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application in outdoor venue.

Stable and Reliable Power Supply
High-power (90 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.
Reliable L2+ Industrial-grade Managed Security POE++ Switch for Critical Location

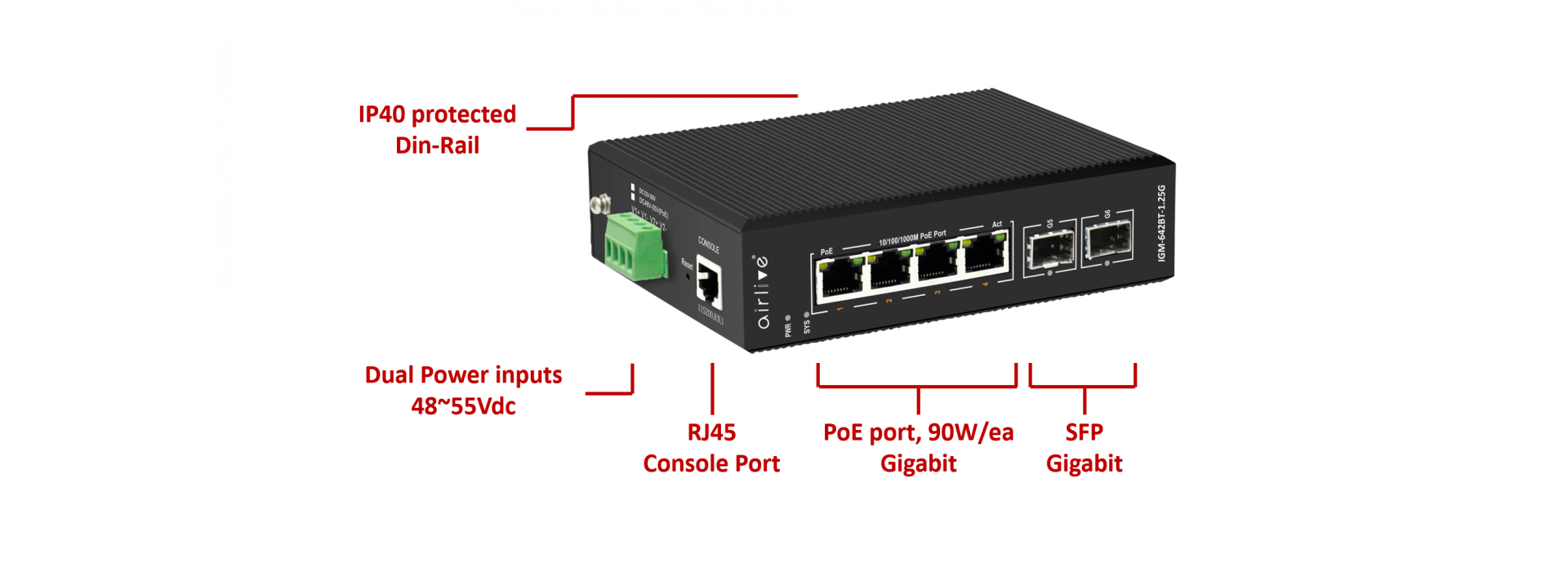

The AirLive IGM-642BT-1.25G is a L2+ managed 6-port Gigabit PoE++ switch including 4 PoE ports and 2 Gigabit SFP ports. Each PoE port supports 802.3bt/at/af up to 90W, Automatic Adjustment, -40°C to 85°C wide temperature range, IP40 metal shell extreme conditions through 4-pin terminal block (DC48 ~ 55V). Industrial 6-port L2 + Gigabit Switch provides comprehensive SNMP management functions, supports VLAN, port aggregation , QoS port mirroring, bandwidth control and token ring ERPS.
Features
  • All 6-port, each port delivers Gigabit high speed
  • Extend the network further with 2x SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • High PoE power, supports 802.3bt/at/af PoE++ up to 90W per port to ensure full power for connected device
  • Automatically detect and offer power for connected PD
  • Support L2 SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control

  • Support PoE management
  • Support PoE watchdog to automatically detect and restart crashed PD
  • Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP for popular network tools management.
802.3BT 90W High Power output
802.3BT 90W High Power output
AirLive IGM-642BT-2.5G Industrial switch supports the high-power output PoE++ at 90W per port. This higher output allows it to power more device then just an IP camera or Access point. The 90W PoE can be used to power on high power needed PoE Systems, Digital Signage or even PoE LED lighting and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.
Efficient PoE Watch dog technology and PoE Management
Efficient PoE Watch dog technology and PoE Management
The Switch IGM-642BT-1.25G supports high Power and each port at 90W auto adaptively. With PoE management function you can control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system. PoE 90W supports devices which need more power, this can be for example a POS system, Digital Signage, or LED lighting.

After PoE Watchdog function enabled, the IGM-642BT-1.25G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on.

The PoE watchdog is particularly useful for cameras. For example, when the switch is turned on, it will recognize the front camera 24 hours a day, 7 days a week. If there is no data traffic from the camera, the camera is considered to be frozen, and the PoE watchdog is used to restart the front camera to solve the problem.
Wide temperature coverage from -40°C ~ 85°C
Wide temperature coverage from -40°C ~ 85°C
The IGM-642BT-1.25G switch can operate from -40°C ~ 85°C. And each POE port has 6KV surge protection. It is the ideal solution for applications which work under hash environment and require stable network and PoE power, such as parking lot or IP surveillance. The IGM-642BT-1.25G has a rugged high strength compact size metal case which is rated at IP40 and has a DIN35 Rail connection making it ideal for network use in a heavy industry or factories. It can be placed in almost any harsh environment.
Intelligence - Layer 2+ Manage Advanced Feature
Intelligence - Layer 2+ Manage Advanced Feature
The IGM-642BT-1.25G can be used for advanced switch management functions such as dynamic port link aggregation, Q-on-Q VLAN, rapid spanning tree protocol, QoS from layer 2 to layer 4, bandwidth control and IGMP inspection can be programmed. The switch offers VLANs with 802.1Q tags, and the permitted VLAN groups are up to a maximum of 255. By supporting port aggregation, the IGM-642BT-1.25G PoE enables the operation of a high-speed trunk that combines several ports. A maximum of 2 trunk groups with 2 ports trunk group and also supports failover.
ERPS Ethernet Ring Protection
ERPS Ethernet Ring Protection
ERPS is supported by the IGM-642BT-1.25G Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backup, load sharing and other work methods in <50ms switching. This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover with in 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.
Fiber backbone for Long Distance
Fiber backbone for Long Distance
Extend the network further with SPF slots. Use the IGM-642BT-1.25G as a backbone of your network, can reach up to 20KM in speed 1250Mbps data transmission.
Dual Power Inputs
Dual Power Inputs
The IGM-642BT-1.25G supports 2 DC power inputs for power redundancy. That greatly improves the reliability and uptime of a sensitive network in a harsh environment. When one of the DC power inputs fails, the second input will continue to power on the switch. The Switch supports an input of DC 48 ~ 55V. User can define policy for video conferring / voice data in high priority, to ensure your video meeting will not lag coursing by any networking jam.
Industrial Application Harsh Environment
Industrial Application Harsh Environment
AirLive IGM-642BT-1.25G Industrial switch meets the high standard demands of providing reliable networking connectivity, able to withstand harsh industrial environment, and cost-effectively.
Outdoor Digital Signage Application
Outdoor Digital Signage Application
High power Digital Signage application in outdoor venue
PoE Lighting
PoE Lighting
PTZ Cameras
PTZ Cameras
Saft Cities-Urban safety and security. cctv camera or surveillance operating in city
Small cells
Small cells
Smart Cities-Urban Internet Surf and Connectivity
POS
POS
Point of Sale (POS) terminals
test
–40°C to 85°C operating temperature range and IP40 protection for application in various tough environments

Supports PoE++ up to 90W (Port 9~10 90W per port)

Extend network further with 2x 2.5G SFP and 2x 1.25G SFP slots that accept fiber transceivers and go beyond the limits of Ethernet

Optimized network deployment and low network construction costs

Flexible installation modes of DIN-rail
Hardware
ModelAirLive IGM-642BT-1.25G
Device Interface4 x 90W PoE 10/100/1000 RJ45
2 x Gigabit SFP
6-port totally
1x RJ45 console Port
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and  Authentication
IEEE802.3at/af PoE
IEEE802.3az Energy Efficient Ethernet
IEEE802.1ab LLDP/ Device Link Layer Discovery Protocol
LED IndicatorsPWR (power supply), SYS(System), 1-4 PoE, 1-4 Link & ACT , 5-6 Link & Act
Lighting Surge Protection6KV (general mode), 2KV (differential mode), ESD15KV
MechanicalIP40 rugged high-strength metal case, DIN35 Rail
Mounting
Power and PoE
ProtocolIEEE802.3bt (90W), IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port4
POE Power Output / PoE Portmax. 90 watts
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/100/120Km
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 12Gbps
Switch packets Capacity; 8.928Mbps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Packet Buffer: 4Mb
Flash Memory: 16MB
DDR SDRAM: 128MB
L2/L2+ Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, MTU setting
Flow-Control
Port Information Check
Port MirroringSupport both side-way port
Port Speed LimitPort-based input/output bandwidth management
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link AggregationSupport static manual aggregation
Support LACP dynamic aggregation
VLANSupport 4K VLAN
Access, Trunk, Hybrid
Support Port-based
Support Generic GVRP dynamic VLAN registration
MACSupport static, dynamic, addition, deletion
MAC address learning limit
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1w Spanning Tree protocol
Support BPDU protection
MulticastSupport Static addition, deletion
Support IGMP-Snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDMSupport SFP DDM
L2/L2+ Management Extension Function
ACLBased on source MAC, destination MAC, Protocol type, source IP, destination IP, L4 port
Support time-range time management
QoSBased on 802.1p (CoS) classification
Based on DSCP Classification
Classification based on source IP, destination IP and port number
Support SP, WRR, DRR scheduling strategy
Support flow rate limit CAR
LLDP DiscoverySupport LLDP discovery protocol
User SettingADD/Delete users
LogUser login, operation, status, events
Anti-attack (Security)DOS defense (port-based)
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
Certification | AuthenticationSupport 802.1x port authentication
Support AAA authentication
Support TACAS+ authentication
Network diagnosisSupport Ping, Telnet, Trace
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc.
L3 ( Layer 3 Switching ) and Router Function
Interface ConfigurationSupport virtual VLAN interface
ARPSupport check ARP
Router FunctionStatic Router
System Management
CLISupport serial port command line management
TELNETSupport serial command line management
SSHSupport SSHv1/2 remote management
SNMPSupport v1/2/3, support trap
WEBSupport two layers of settings
PoESupport PoE Power
Other FunctionsSupport DHCP Snooping
Dying Gasp
Power Supply
Input VoltageDC48~55V
Input Type4 Pin Terminal (block V1+V1- V2+ V1- Supports Dual Power Input)
Environment
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
Humidity5%~95%, non-condensing



Ordering Information

ModelIGM-642BT-1.25G
L2+ Industrial Gigabit POE++ Managed Switch
6-Port PoE++ Gigabit including 2*1.25G SFP
Standard Package
Produc Size14.5(L) x 12.5(W) x 4(H) cm
Package Size25(L) x 21(W) x 6.5(H) cm
Package WeightN.W: 0.6KGS
G.W: 0.8KGS
Package Content1 x Switch
1 x Serial Cable
Standard Carton Package
Quantity36 PCS / 1 Carton
Dimensions60.8(L) x 50(W) x 43.5(H) cm
