IGM-1082BT-2.5G: Industrial Ring Managed Gigabit PoE++ Switch

One of World First Industrial-grade Managed PoE++ Switch supports HiPoE 90W Port
One of World First Industrial-grade Managed PoE++ Switch supports HiPoE 90W Port
AirLive IGM-1082BT-2.5G High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 90W power output per port(Port#9~10). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application in outdoor venue.

Stable and Reliable Power Supply
High-power (90 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.

Reliable L2+ Industrial-grade Managed Security POE++ Switch for Critical Location
The AirLive IGM-1082BT-2.5G is a L2+ managed 8-port Gigabit PoE++ switch including 2 PoE++ ports, 6 PoE+ ports. Port 1~2 are 10/100/1000BASE-T 802.3bt (90W) compliant and port 3~8 are 10/100/1000BASE-T 802.3at/af (30W) compliant automatically adaptive, and 2 fiber optic ports 2500Mbps. Made for extreme environments with its wide temperature range from -40°c to 85°c and rugged IP40 metal housing; Dual power inputs using a 4pin terminal block (DC48~55V).

The 10-port Industrial Gigabit management switch offers comprehensive SNMP management functions including IGMP, VLAN , Port aggregation, QoS port mirroring, bandwidth control. Ring Network Protocol ERPS is supported. ERPS supports multi-ring and multi-domain structures. It supports main device backups, load sharing and other work methods in 50ms switching, making for one of the lowest fault recovery time and makes sure that your critical industrial network keeps working.
Features
  • All 10-port, each port delivers Gigabit high speed
  • Extend network further with 2x 2.5G SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • Supports PoE++ up to 90W (Port 1~2 90W per port), (Port 3~8 30W per port)
  • Automatically detect and offer power for connected PD
  • Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control

  • Support PoE management
  • Support PoE watchdog to automatically detect and restart crashed PD
  • Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management
802.3BT High Power PoE
802.3BT High Power PoE
Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3bt standard, industrial design, long-distance PoE technology, and The unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

AirLive IGM-1082BT-2.5G Industrial switch supports the high-power output PoE++ at 90W for ports 1 and 2. This higher output allows it to power more device then just an IP camera or Access point. The 90W PoE can be used to power on high power needed PoE Systems, Digital Signage or even PoE LED lighting and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.
Efficient PoE Watch Guard  PoE Watch dog technology and PoE Management
Efficient PoE Watch Guard PoE Watch dog technology and PoE Management
The Switch IGM-1082BT-2.5G supports high power on port 1~2 at 90W and 30W on ports 3 ~8 auto adaptively. With PoE management function to control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system. PoE 90W supports devices which need more power, this can be for example a PoS system, Digital Signage, or LED lighting.

After PoE Watchdog function enabled, the IGM-1082BT-2.5G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on. PoE Watchdog is especially helpful for camera. For example, when turning on the function, the switch will detect the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera will be restarted through PoE power failure to solve the problem.
Built for Harsh Environment
Built for Harsh Environment
The IGM-1082BT-2.5G switch can operate from -40°C ~ 85°C. And each POE port has 6KV surge protection. It is the ideal solution for applications which work under harsh environment and require stable network and PoE power such as parking lot or IP surveillance. The IGM-1082BT-2.5G has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment.
ERPS Ethernet Ring Protection
ERPS Ethernet Ring Protection

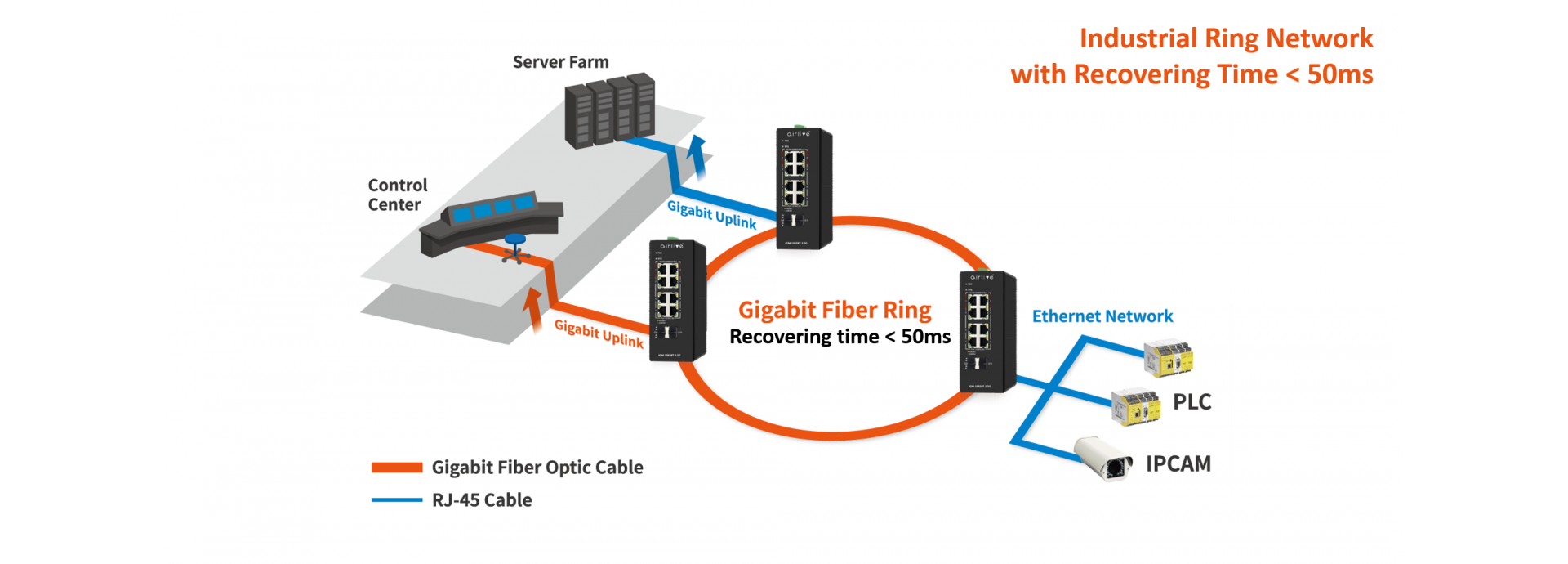

ERPS is supported by the IGM-1082BT-2.5G Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backups, load sharing and other work methods in <50ms switching.
This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover within 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.
Fiber for Long Distance up to 120Km
Fiber for Long Distance up to 120Km
Extend the network further with the 2.5G SFP slots. The SFP ports also supports DDM which offers more information about the fiber connection and makes it easier to find any faults or bad connections.
Industrial Application Harsh Environment
Industrial Application Harsh Environment
AirLive IGM-1082BT-2.5G Industrial switch meets the high standard demands of providing reliable networking connectivity, able to withstand harsh industrial environment, and cost-effectively.
VLAN, Dying Gasp, QoS and more
VLAN, Dying Gasp, QoS and more
The IGM-1082BT-2.5G is management switch which is packed with feature, use the many VLAN functions to separated the traffic on your network, use Dying Gasp to get an alert when a remote connected device (CPE) is failing. Or use the QoS functions to stream your network in a smooth and non congested network these and many more functions can be found in the AirLive industrial Switch.
Outdoor Digital Signage Application
Outdoor Digital Signage Application
High power Digital Signage application in outdoor venue
PoE Lighting
PoE Lighting
Smart buildings with enterprise IoT (connected LED lighting)
PTZ Cameras
PTZ Cameras
Saft Cities-Urban safety and security. cctv camera or surveillance operating in city
Small cells
Small cells
Smart Cities-Urban Internet Surf and Connectivity
POS
POS
Point of Sale (POS) terminals
test
–40°C to 85°C operating temperature range and IP40 protection for application in various tough environments

Supports PoE++ up to 90W (Port 9~10 90W per port)

Extend network further with 2x 2.5G SFP and 2x 1.25G SFP slots that accept fiber transceivers and go beyond the limits of Ethernet

Optimized network deployment and low network construction costs

Flexible installation modes of DIN-rail
Hardware
ModelAirLive IGM-1082BT-2.5G
Device Interface2 x 90W PoE 10/100/1000 RJ45 (Port 1~2)
6 x 30W PoE 10/100/1000 RJ45
2 x ports Gigabit SFP 2.5G (compatible with 1.25G/155M)
10-port totally
1 x RJ45 console port
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and Authentication
IEEE802.3at/af/bt PoE
IEEE802.3az Energy Efficient Ethernet
IEEE802.1ab LLDP/ Device Link Layer Discovery Protocol
LED IndicatorsPWR (power supply), SYS(System), 1-8 PoE, 1-8 Link & ACT , 9-10 Link & Act
Lighting Surge Protection6KV (general mode), 2KV (differential mode), ESD15KV
MechanicalIP40 rugged high-strength metal case, DIN35 Rail Mounting
Power and PoE
ProtocolIEEE802.3bt (90W), IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port8
POE Power Output / PoE Port 1~2max. 90 watts
POE Power Output / PoE Port 3~8max. 30 watts
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/100/120Km
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 26Gbps
Switch packets Capacity; 19.34Mbps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Packet Buffer: 4Mb
Flash Memory: 16MB
DDR SDRAM: 128MB
L2/L2+ Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, MTU setting
Flow-Control
Port Information Check
Port MirroringSupport both side-way port
Port Speed LimitPort-based input/output bandwidth management
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link AggregationSupport static manual aggregation
Support LACP dynamic aggregation
VLANSupport 4K VLAN
Access, Trunk, Hybrid
Support Port-based
Support Generic GVRP dynamic VLAN registration
MACSupport static, dynamic, addition, deletion
MAC address learning limit
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1w Spanning Tree protocol
Support BPDU protection
MulticastSupport Static addition, deletion
Support IGMP-Snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDMSupport SFP DDM
L2/L2+ Management Extension Function
ACLBased on source MAC, destination MAC, Protocol type, source IP, destination IP, L4 port
Support time-range time management
QoSBased on 802.1p (CoS) classification
Based on DSCP Classification
Classification based on source IP, destination IP and port number
Support SP, WRR, DRR scheduling strategy
Support flow rate limit CAR
LLDP DiscoverySupport LLDP discovery protocol
User SettingADD/Delete users
LogUser login, operation, status, events
Anti-attack (Security)DOS defense (port-based)
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
Certification | AuthenticationSupport 802.1x port authentication
Support AAA authentication
Support TACAS+ authentication
Network diagnosisSupport Ping, Telnet, Trace
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc.
L3 ( Layer 3 Switching ) and Router Function
Interface ConfigurationSupport virtual VLAN interface
ARPSupport check ARP
Router FunctionStatic Router
System Management
CLISupport serial port command line management
TELNETSupport serial command line management
SSHSupport SSHv1/2 remote management
SNMPSupport v1/2/3, support trap
WEBSupport two layers of settings
PoESupport PoE Power
Other FunctionsSupport DHCP Snooping
Dying Gasp
Power Supply
Input VoltageDC48~55V
Input Type4 Pin Terminal (block V1+V1- V2+ V1- Supports Dual Power Input)
Environment
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
Humidity5%~95%, non-condensing



Ordering Information

ModelIGM-1082BT-2.5G
Industrial Ring Managed Gigabit PoE++ Switch
10 Ports including 2-port SFP 2.5G fiber ports
Standard Package
Produc Size16.5(L) x 13(W) x 6.5(H) cm
Package Size24.5(L) x 21(W) x 8.8(H) cm
Package WeightN.W: 0.8KGS
G.W: 1.1KGS
Package Content1 x Switch
1 x Serial Cable
Standard Carton Package
Quantity28 PCS / 1 Carton
Dimensions60(L) x 49.5(W) x 43.5(H) cm
QIG
NameDescriptionDownloadDate
QIG for 6-10-14 Port IGM Switch
QIG for 6-10-14 Port IGM Switch PoE/BT
2022/11/10
User Guide
NameDescriptionDownloadDate
IGM-642POE/BT & IGM-1082POE/BT Series - User Guide
2021/06/18
Spec Sheet
NameDescriptionDownloadDate
IGM-1082BT-2.5G Spec Sheet
2022/08/01
CE
NameDescriptionDownloadDate
IGM-1082BT-2.5G CE+RoHS
2022/06/07
FCC
NameDescriptionDownloadDate
IGM-1082BT-2.5G FCC
2022/06/07
