IG-641RBT: Industrial Unmanaged Gigabit PoE++ Switch

ADD INQUIRY
Reliable Industrial-grade Unmanaged POE Switch for extreme environment
Reliable Industrial-grade Unmanaged POE Switch for extreme environment
The AirLive IG-641RBT is an Unmanaged Gigabit PoE++ switch with 1 PoE++ Port and 3 PoE+ Ports. Port 1 is 10/100/1000BASE-T 802.3bt (90W) compliant and port 2~4 are 10/100/1000BASE-T 802.3at/af (30W) compliant automatically adaptive, and 2 Uplinks ports: 1 Gigabit RJ-45 and 1 SFP port 100/1000/1250Mbps. Use the Fiber connection to connect the switch to a larger network. Made for extreme environments with its wide temperature range from -40°c to 75°c and rugged metal housing; Dual power inputs using a 4pin terminal block (DC48~55V).
Features
  • All 6-port, each port delivers Gigabit speed
  • Supports PoE++ up to 90W (Port 1 90W per port), (Port 2~4 30W per port)
  • Extend the network further with 1 SFP slot that accept fiber transceivers and go beyond the limits of Ethernet
  • Automatically detect and offer power for connected PD
Features
  • DIP Switch
  • VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
  • Surge Protection; ESD Protection

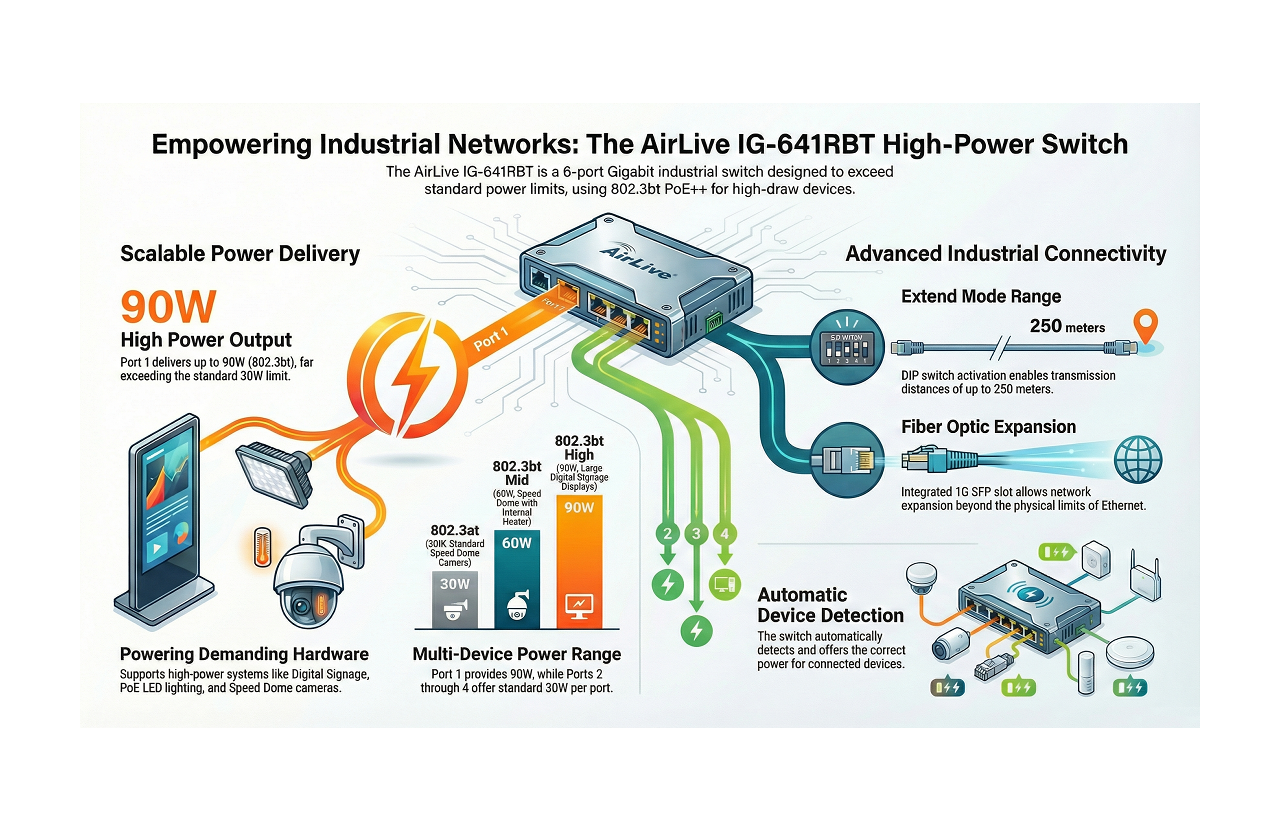

802.3BT High Power PoE
802.3BT High Power PoE
Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3bt standard, industrial design, long-distance PoE technology, and The unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

AirLive IG-641RBT Industrial switch supports the high-power output PoE++ at 90W for port 1 This higher output allows it to power more devices than just an IP camera or Access point. The 90W PoE can be used to power on high power needed PoE Systems, Digital Signage or even PoE LED lighting and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.

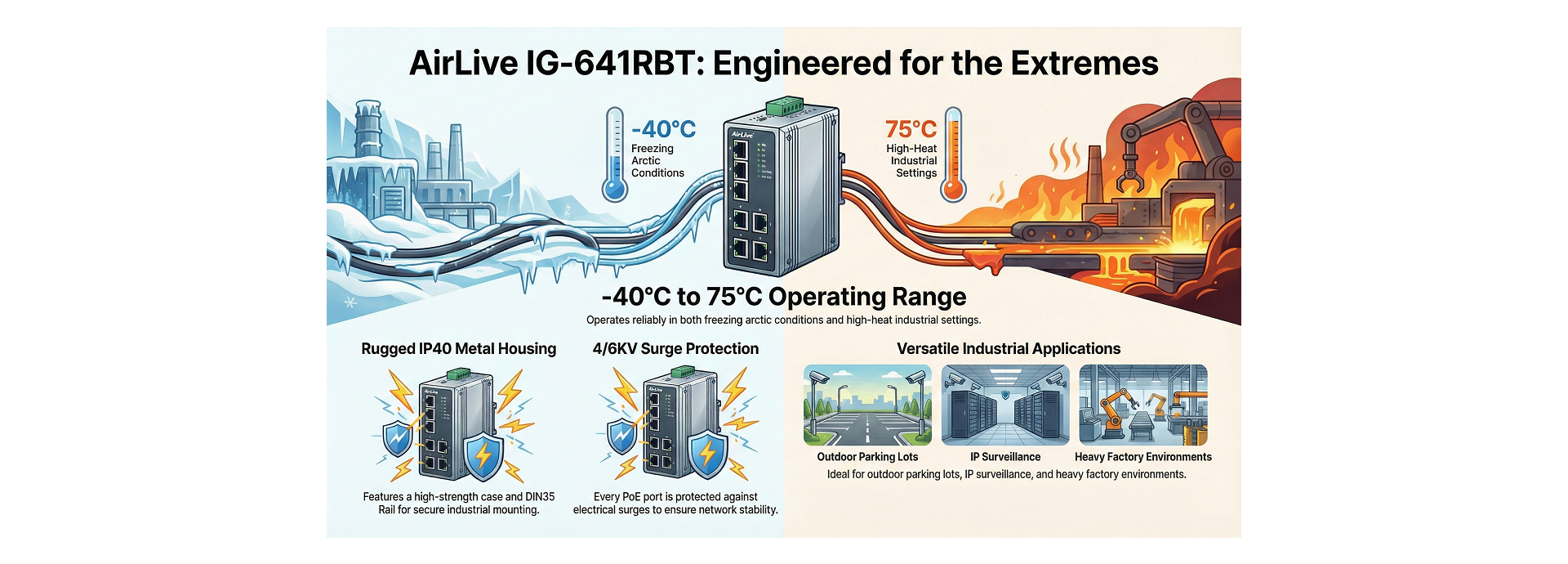

Built for Harsh Environment
Built for Harsh Environment
The IG-641RBT switch can operate from -40°C ~ 75°C.  And each POE port has 4/6KV surge protection (depending on model). It is the ideal solution for applications which work under harsh environment and require stable network and PoE power such as parking lot or IP surveillance. The IG-641RBT has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment.
Fiber for Long Distance
Fiber for Long Distance
Extend the network further with the 1.25G SFP slot/
Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km
Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
(Distance depended on module used (not included))
Dual Power Inputs
Dual Power Inputs
The AirLive IG-641RBT supports 2 DC power inputs, DC48~55V, for power redundancy.  Which greatly improves the reliability and uptime of a sensitive  network in a harsh environment.  When one of the DC power inputs fails, the second input will continue to power on the switch.
ges
* –40°C to 75°C operating temperature range and IP40 protection for application in various tough environments

* Supports PoE++ up to 90W (Port 1 90W per port), (Port 2~4 30W per port)

* Extend network further with 1x 1.25G SFP slot that accept fiber transceivers and go beyond the limits of Ethernet

* Hardware VLAN and 250m Extend mode

* Optimized network deployment and low network construction costs

* Flexible installation modes of DIN-rail
Hardware
ModelAirLive IG-641RBT
Device Interface1 x 90W PoE 10/100/1000 RJ-45
3 x 30W PoE 10/100/1000 RJ-45
1 x 10/100/1000 RJ-45
1 x 1.25G SFP
6-port totally
StandardsIEEE802.3
IEEE802.3i
IEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3at/af/bt PoE
LED IndicatorsPWR (power supply), 1- 6 Link & ACT
Industry standardEMI: FCC Part 15, CISPR (EN55032) class A
EMS:
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Lighting Surge / ESD Protection:
Surge 6/4KV, ESD 15KV(Air), 8KV (Contact).
Mechanical:
High-strength metal case IP40, DIN35 Rail Mounting
Power and PoE
Protocol IEEE802.3bt (90W), IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port4
PoE Power Output / PoE Port 1max. 90 Watts per port, (depends on power source used.)
PoE Power Output / PoE Port 2~4max. 30 Watts per port, (depends on power source used.)
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/100/120Km
Switching architecture: Store and ForwardBandwidth: 12Gbps
Packet Forwarding Rate 8.928Mpps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Transfer Mode: Store and Forward
MTBF: 100000 hours
DIP Switch Control

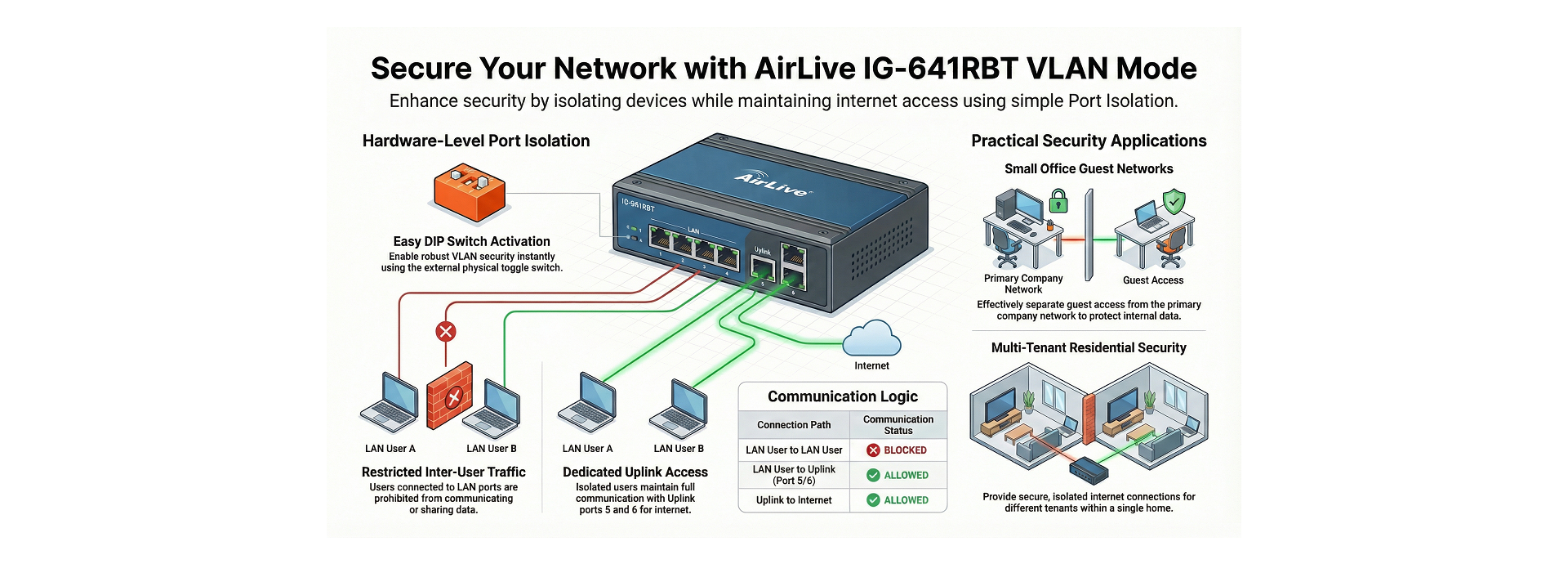

VLANPort isolation mode. In this mode ports (1~4) cannot communicate with each other and can only communicate with the UP-Link port 5/6
DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m, the transmission rate is 10M/100/1000M adaptive.

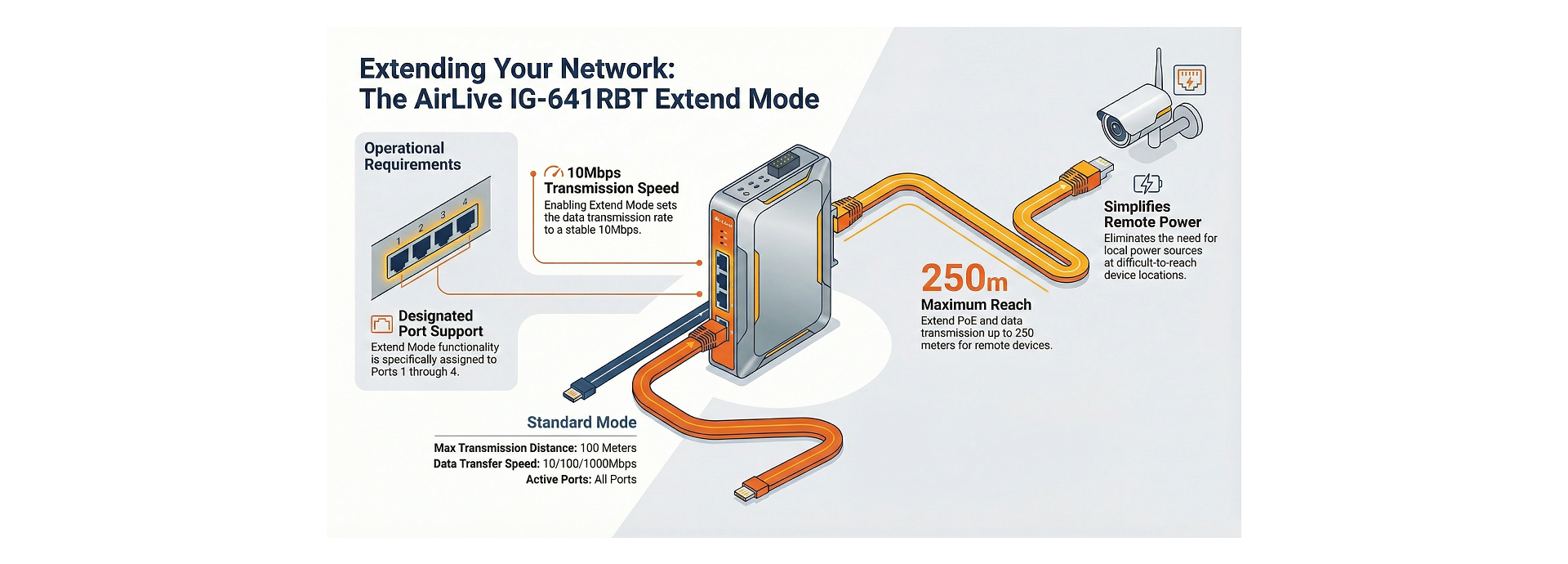

ExtendExtension mode, data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 1~4 only.
Power Supply
Input VoltageDC 48~55V
Input Type4 Pin Terminal (block V1+V1- V2+ V1- Supports Dual Power Input)
DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
Environment
Operating Temperature-40°C to +75°C
Storage Temperature-40°C to +85°C
Humidity5%~95%, non-condensing



Ordering Information

ModelIG-641RPBT
Industrial Unmanaged Gigabit PoE++ Switch
6 Ports Including 1 x PoE++ 10/100/1000Mbs RJ-45, 3 x PoE+ 10/100/1000Mbs RJ-45, 2 x Uplink (1 x SFP, 1 x RJ-45)
Standard Package
Product Size12(L) x 8.7(W) x 3(H) cm
Package Size17.5(L) x 13(W) x 5.5(H) cm
Package WeightN.W: 0.441KGS
G.W: 0.530KGS
Package Content1 x Switch, 1 x Pull Arm
Standard Carton Package
Quantity40 PCS / 1 Carton
Dimensions54(L) x 29(W) x 37.5(H) cm
Carton Weight22.2KGS
Spec Sheet
NameDescriptionDownloadDate
IG-641RBT Spec Sheet
2023/06/14
