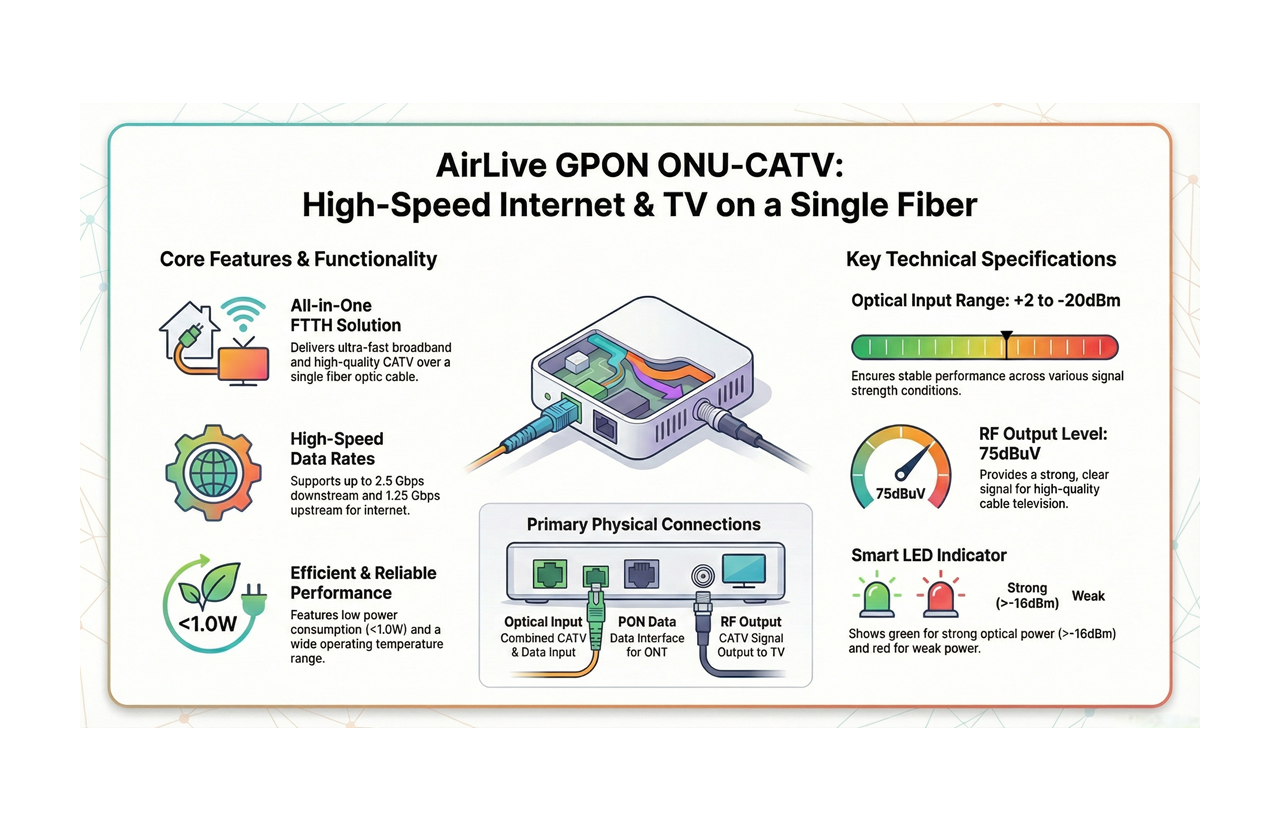

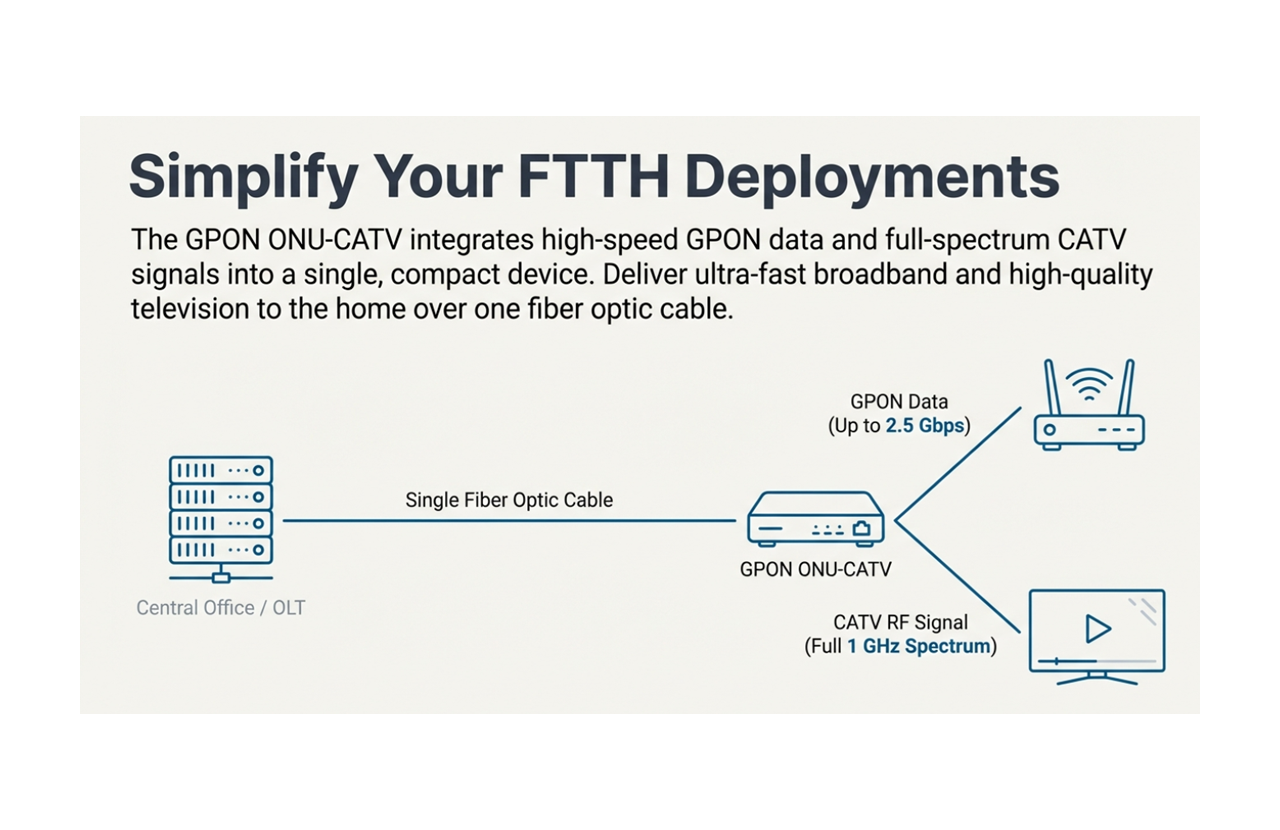

The GPON ONU-CATV is a recently launched ONU that is a mini optical receiver with build in WDM. The GPON ONE-CATV, is a high-performance device that combines gigabit passive optical network (GPON) technology with cable television (CATV) services. This receiver allows you to enjoy ultra-fast broadband internet and high-quality TV channels over a single fiber optic cable. It supports up to 2.5 Gbps downstream and 1.25 Gbps upstream data rates, as well as 1550 nm wavelength for CATV signal transmission. The ONU is specially designed to meet the needs for FTTH (home) transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption.
| Hardware | |
| Model | AirLive GPON ONU-CATV |
| Device Interface | •Optical Connector Type: •OPT 1x (1550/1490/1310nm Optical input SC/APC) •PON 1x (1490/1310nm Data interface SC/PC) •RF Output: 1x RG6 Connector •LED Optical Indicator Optical power <-16dBm ,Red Optical power >-16dBm ,Green |
| Optical Specifications (Forward Path) | |
| Wavelength | 1550/1490/1310nm (Com Port (OPT)) 1490/1310nm (For ONT (PON)) |
| Optical Power Input Range | +2 ~ -20dBm |
| AGC Range | +2 ~ -15dBm |
| Optical Input Return Loss | ≥45dB |
| RF Specifications (Forward Path) | |
| Bandwidth | 47 ~ 1003Mhz |
| Flatness | ±1.0dB (47 ~ 1003MHz, At 25 ℃) |
| Slope | 0 ~ 2.0dB (47 ~ 1003MHz, At 25 ℃) |
| Temperature Stability | ±1.5dB (In the operating temperature range (-25 ~ +65 ℃)) |
| Output Level | 75±2dBuV (-15dBm input optical power, The analog channel, per channel modulation 4.0%, in the 860MHz point test, at 25℃) |
| Impedance | 75 Ohm |
| Return Loss (47 ~ 1000MHz) | •≥12dB At 25 ℃ |
| MER | ≥30dB -15 ~ -5dBm Input optical power ≥24dB -20 ~ -16, Input optical power |
| Power | <1.0W |
| Power Supply | |
| Power | 5V, 0.5A external AC-DC power adaptor |
| Environment | |
| Working Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | ≤95%, non-condensing |
| Model | GPON ONU-CATV AirLive GPON ONU-CATV Conterver with WDM |
| Standard Package | |
| Product Size | 9(L) x 8.5(W) x 2.5(H) cm |
| Package Size | 11(L) x 10(W) x 5.5(H) cm |
| Package Weight | N.W: 0.082KGS G.W: 0.190KGS |
| Package Content | 1 x Device, 1 x Power Adpater, QIG |
| Carton Package | |
| Quantity | PCS / 1 Carton |
| Dimensions | (L) x (W) x (H) cm |
| Weight | KGS |
