Integrated Optics: Features a high-quality Built-in PON optic module, reducing the need for external transceiver installation.

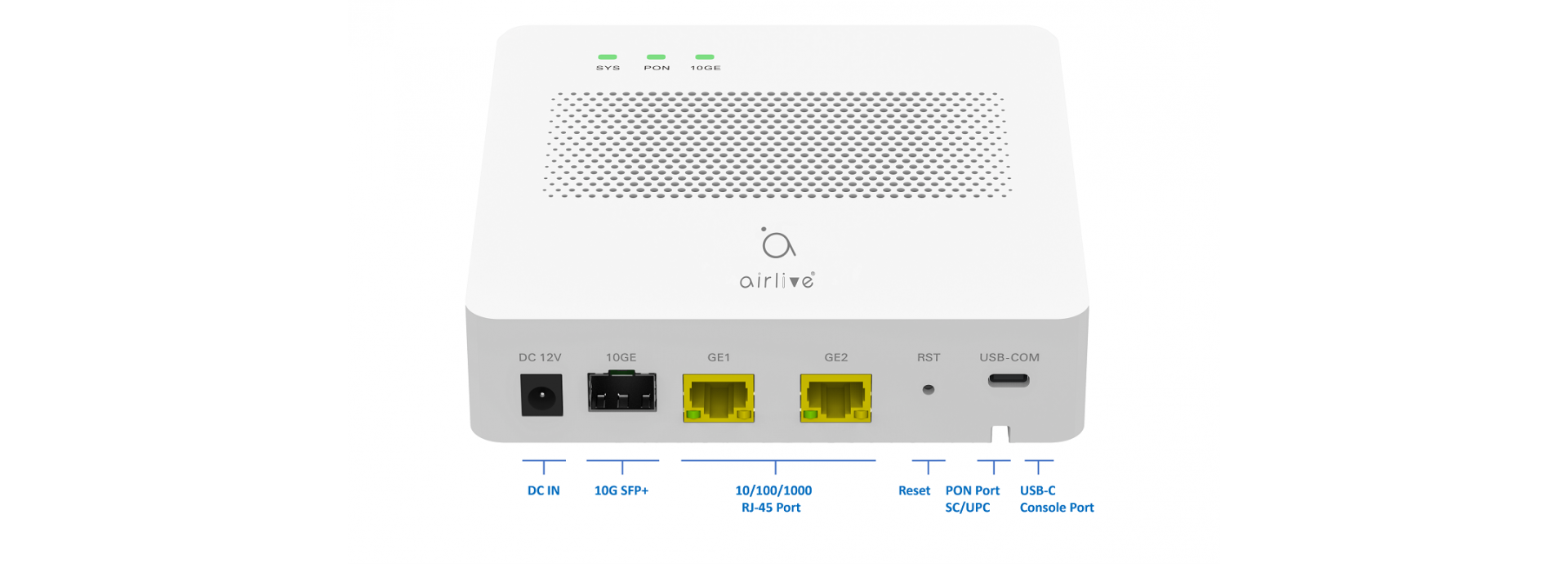

Versatile Port Configuration:
1 × PON Port: Dedicated for high-density fiber distribution.
1 × 10G SFP/SFP+ Port: High-speed uplink for backbone connectivity.
2 × 1G RJ45 Ports: Standard copper uplinks for local management or server connections.
Asymmetric Bandwidth: Optimized for modern internet usage with 2.488 Gbps Downstream and 1.244 Gbps Upstream.

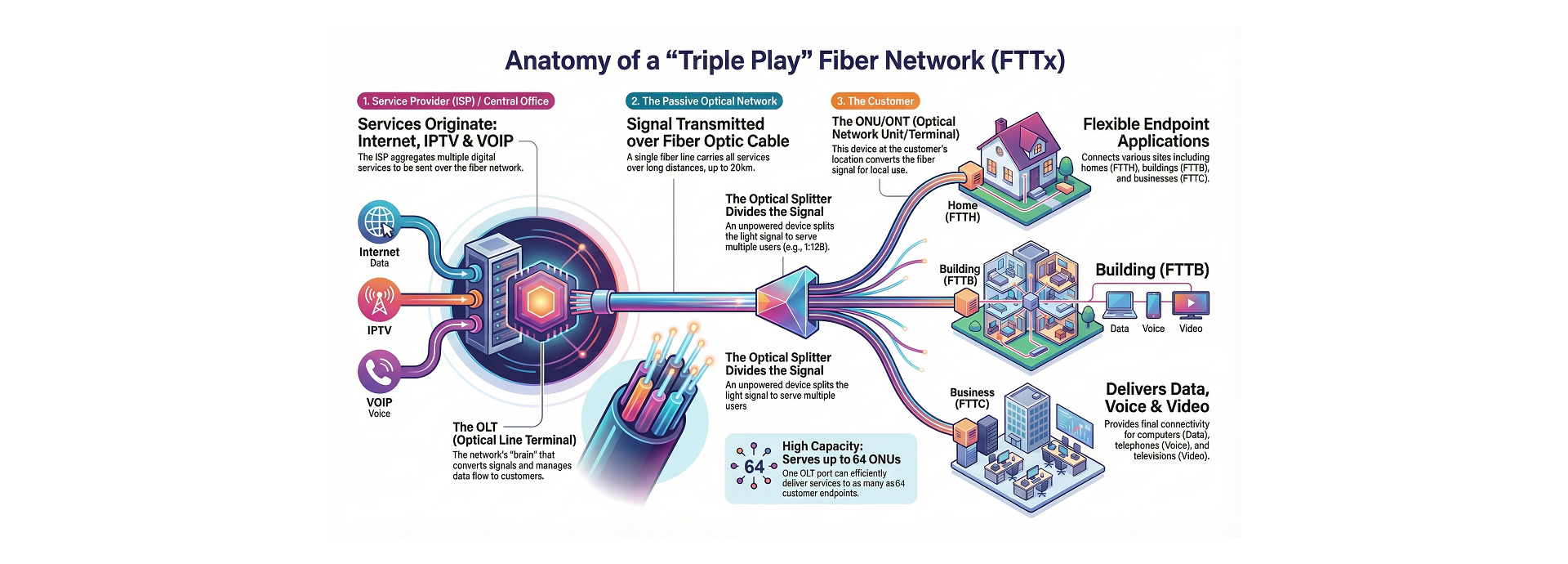

High Split Ratio: A single PON port is capable of supporting up to 64 ONUs (Optical Network Units), making it highly cost-effective for residential or commercial buildings.
| Hardware | |
| Model | AirLive GPON OLT-121-64 |
| Device Interface | •PON Port: 1x 1.25Gbps/2.5Gbps •Uplink: 2x 1G RJ45 •Uplink: 1x 10G SFP+ •Console: 1 x USB-COM Type C port •Fiber Type: 9/125μm SM •PON Connector: SC/UPC, TX>7.5dBm ±0.5dBm, Sen: -30dBm •Support ONUs:64 •GPON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps •Wavelength: TX 1490nm, RX 1310nm •Max splitting ratio: 1:64 •Transmission Distance: 20KM •Backplane Bandwidth: 29Gbps •Port Forwarding Rate: 21.576Mpps •Management Mode: Console/WEB/Telnet/CLI/SNMP •Lightning protection level: Power supply 4KV/Device Interface 1KV |
| Firmware features | |
| Management Function | Telnet ,CLI, WEB, SNMP Port Status monitoring and configuration management Online ONU configuration and management User management Alarm management |
| Layer2 Switch | 8K Mac address Support 4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support VLAN translation, QinQ and P2P Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Access control list IEEE802.x flow control Port stability statistic and monitoring |
| Multicast | IGMP Snooping 256 IP Multicast Groups |
| DHCP | Support DHCP server, DHCP relay, DHCP snooping Support DHCP option82 Support DHCPv6 server, DHCPv6 relay |
| Layer 3 Route | Support dynamic/static ARP Support WAN (DHCP/PPPOE/Statics) Support static routing, NAT, DMZ Support QoS based on DSCP, MAC, IP, L4 port, protocol, etc. Support ACL based on source MAC address, source IP address, source L4 port, destination IP address, destination L4 port, protocol type, etc. |
| IPv6 | Support IPv6 Ping, IPv6 Telnet, IPv6 routing Support ACL based on source MAC address, source IPv6 address, source L4 port, destination IPv6 address, destination L4 port, protocol type, etc Support IPv6 SLAAC Support MLD v1/v2 snooping (Multicast Listener Discovery snooping) |
| PON Function | Tcont DBA Gemport traffic In compliant with ITU-T984.x standard Up to 20KM transmission Distance Support data encryption, multi-cast, port VLAN, separation, etc Support ONT auto-discovery/link detection/remote upgrade of software Support VLAN division and user separation to avoid broadcast storm Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function |
| Power Consumption | |
| Power | • DC 12V/1A |
| Power Usage | • Max: 5W |
| Environment | |
| Working Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%~95%, non-condensing |
| MTBF | 200000 hrs. |
| Model | GPON OLT-121-64 AirLive GPON OLT-121-64 1 PON Port GPON OLT with 10G SFP+ |
| Standard Package | |
| Product Size | 14.0(L) x 14.0(W) x 3.65(H) cm |
| Package Size | (L) x (W) x (H) cm |
| Package Weight | N.W: tbd kg G.W: tbd kg |
| Package Content | 1 x Device, 1 x Power Cable |
| Carton Package | |
| Quantity | PCS / 1 Carton |
| Dimensions | (L) x (W) x (H) cm |
| Weight | kg |
