AirMax5X ll: Wi-Fi 5Ghz N300 Outdoor CPE

Overview
Overview
High Performance 5GHz Outdoor AP/Repeater CPE
AirMax5X II is a high performance 300Mbps Outdoor AP/Repeater/CPE built to the highest standard. It features dual polarity MIMO antenna to ensure optimal reception. 48V PoE passive PoE is featured to allow long cabling distance.

Professional Outdoor design+ Internal Lightning Protection, Suit for multiple harsh environment
Adopt outdoor ABS Plastic shell and professional lightning protection components, provide IP65 water-proof, dust-proof, suit for multiple harsh environment. even in extreme hot and cold environment(-30°C ~ +70°C), also cam work stable.


Features

  • 802.11 a/g/n/ compliant
  • Point to Point Mode 3KM Distance
  • LED Status Display
  • IP 65 Enclosure
  • Built-in 14 dbi Antenna
  • 1 x 10/100mbps WAN
  • 1 x 10/100mbps LAN
  • 48V PoE power input (WAN)
Simple to Configure
Simple to Configure
It with slide switch to change the operation mode; then with LED display to show and configure the IP address, channel, no need to access into GUI, avoid the complex setup program, simple to check the working status.
Support PoE Pass Through for IP Camera/CCTV
Support PoE Pass Through for IP Camera/CCTV
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost. The WAN port support 802.3at 48V PoE in, make device can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure; The LAN port support 802.3af 48V PoE out. Can work as a PoE switch, easy to provide PoE power for IP Camera/CCTV, saved much material cost and human cost.
Wireless Bridge(Host CPE/Client CPE/Signal Strength/IP address) LED Display
Wireless Bridge(Host CPE/Client CPE/Signal Strength/IP address) LED Display
With Visible LED Display and signal strength automatic detection function for quickly build point to point and point to multi point wireless connection. easily installation and debugging. save installation cost.
Advanced AP/ Repeater Operation Mode
Advanced AP/ Repeater Operation Mode
The AirLive AirMax5 II offers several different ways to control and operate
  • AP and Repeater mode: In this mode the AirMax5 II works as a AP or Repeater mode. Allow installer to setup the Point to point or point to multiple point wireless application.
Multiple Application Environment-1
Multiple Application Environment-1

Elevator Monitor

Multiple Application Environment-2
Multiple Application Environment-2

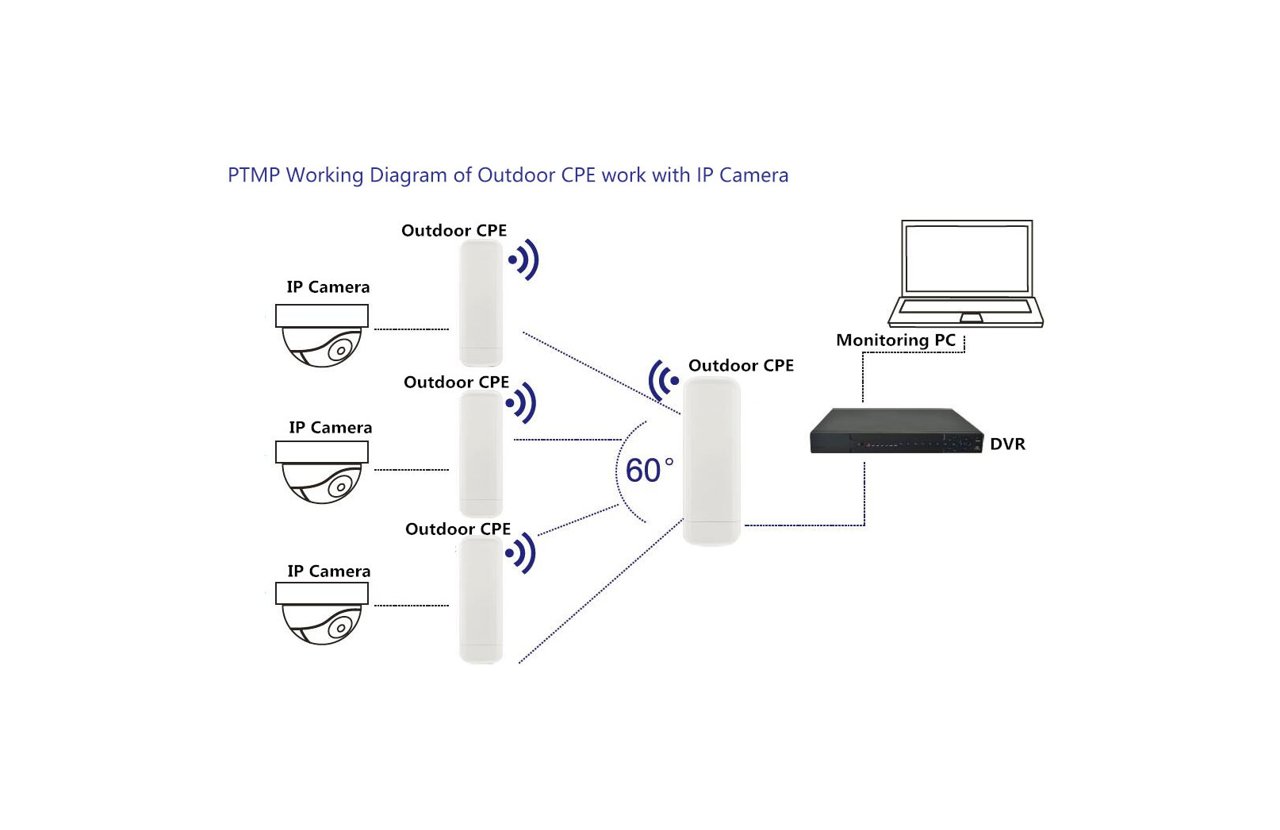

Point To Multiple Point connection application

Multiple Application Environment-3
Multiple Application Environment-3

Point To Point connection application

Device Interface
ModelAirMax5X ll
Device Interface•Main Chip: AR9344
•Flash:16MB
•RAM:64MB
•Standard:IEEE802.3, IEEE 802.11n, IEEE 802.11a
•Frequency:5.150GHz-5.825GHz
•Channel:CH36 ~CH165
•Modulation: OFDM = BPSK, QPSK,16-QAM,64-QAM; DSSS = DBPSK, DQPSK, CCK
•Data Rate:300Mbps
•RF Output Power:≤ 26dBm
•Antenna:14dBi Dual-polarized panel antenna
•Antenna Angle: H 33°, V 33°
•WAN:1 * 10/100Mbps RJ-45 WAN Port, support 802.3at 48V PoE in
•LAN:1 * 10/100Mbps RJ-45 LAN Port, support 802.3af 48V PoE out
•LED Display:1 * LED display with F(function) and S(select) buttons, show and set operation mode, channel, IP address, signal strength.
•Slid Switch: Operation mode switch, H mean host, AP mode; C mean client, Repeater mode
•Reset Button:1 * Reset Button, press 1 second, work with slid switch to change the operation mode;
Press 10 seconds, the device will revert to factory default settings.
•LED Light: Power, Wi-Fi, WAN, LAN
•Power Consumption:< 15W
•Water-proof Level:IP65
Firmware Function
Wireless•SSID broadcast
•Multiple SSID up to 4
•SSID hide
•MAC filter: support while/black list
•WiFi timed on/off
•Multicast acceleration
•User Isolation
•VLAN pass through
•Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK
•Support RF power adjustable based on environment
•Max Users: 64
Network FunctionVLAN setting
DHCP server
Device Management•Backup the configuration information
•Restore the configuration information
•Reset to factory default settings
•LAN PoE out disable/enable
•Device reboot: reboot immediately or timed reboot
•Firmware upgrade
•Time management: including system time and time synchronization
•System log
•Support WEB GUI management
Multiple LanguageEnglish
ESD ProtectionContact: ±6KV, Air: ±8KV
Environment
Operating Temperature-30°C to +70°C
Storage Temperature-40°C to +70°C
Operating Humidity5%~95%, non-condensing
EnclosureIP65



Ordering Information

ModelAirMax5X llWi-Fi 5Ghz N300 Gigabit Outdoor CPE
Standard Package
Package Size33.2(L) x 10.6(W) x 5.82(H) cm
Package WeightN.W: TBC KGS
G.W: TBC KGS
Package Content

1 x AirMax5X ll, PoE Adapter, Install Accessory, LAN Cable, User Manual

Carton Package
QuantityTBC PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
Weight KGS
QIG
NameDescriptionDownloadDate
Airmax5xll connect to airmax5x
Airmax5xll connect to airmax5x
2022/07/20
AirMax5X II QIG
2022/07/19
User Guide
NameDescriptionDownloadDate
AirMax5X II User Guide
2023/11/15
Spec Sheet
NameDescriptionDownloadDate
AirMax5X ll Spec Sheet
2023/11/15
CE
NameDescriptionDownloadDate
Outdoor CPE Series CE
2023/08/04
