You can centrally set up, configure, monitor, and manage certain Airlive devices around the clock, every day of the year, using cloud-based remote network management. This unified remote management solution helps cut costs and save time. Airlive offers an full range of access points, in-wall APs, outdoor CPEs, and mobile hotspots through AirCloud, providing a comprehensive network ecosystem.

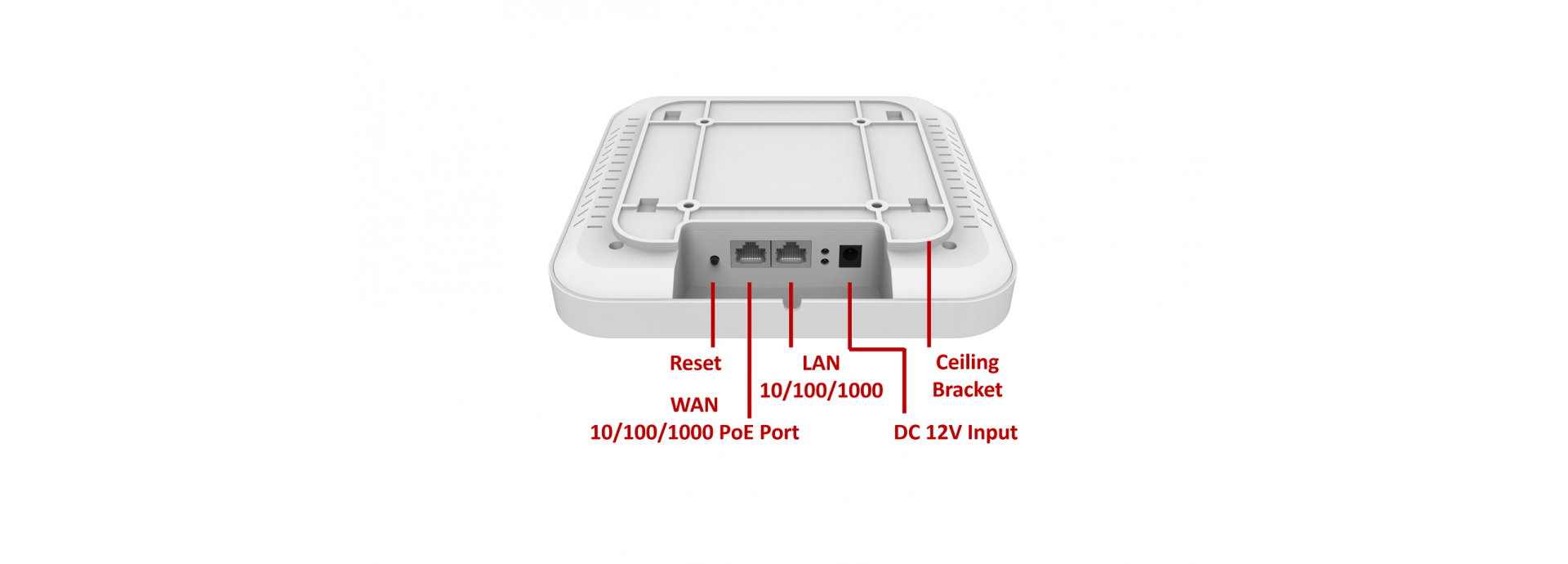

The Airlive TOP-30AX-1G is an advanced Wi-Fi 6 compliant 3000Mbps Dual Band multi functions Access Point which features 1x 1Gbps LAN port and 1x 1Gbps WAN 48V PoE input port. It is supported by AirCloud and AirLive Wireless controller. Large Enterprises or organizations can centrally manage large numbers of APs in a single location with the Wireless controller. Or do the management and access from anywhere anytime with an internet connection via AirCloud, cloud-based platform. Moreover, it can work as a standalone AP at home or office when setting in FAT operation mode.

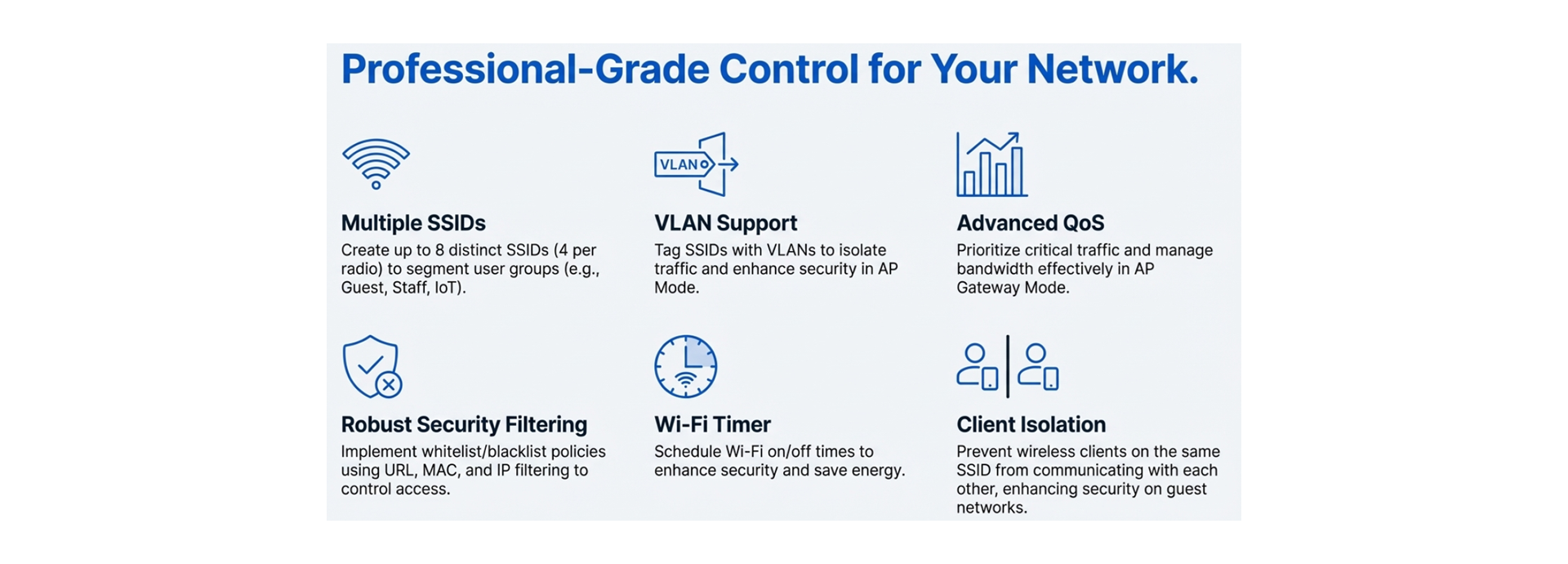

Choose AP orAP Gateway mode, In AP Gateway mode the TOP-30AX-1G offers the WAN port features like PPPoE and functions like QoS, URL & MAC filtering. In AP mode the TOP-30AX-1G is a standalone default Access Point. The TOP-30AX-1G can also be controlled via AirCloud, Cloud control.

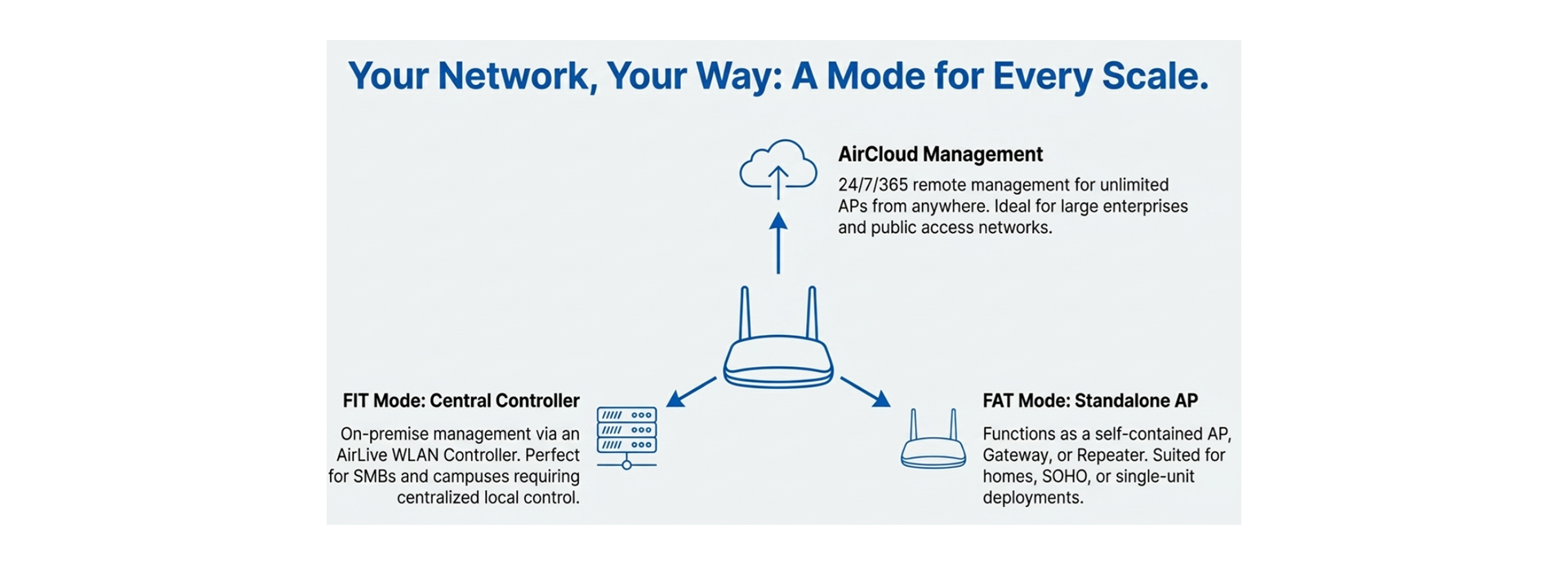

Flexible Operation - Central Management, Cloud Management, Stand-Alone AP

The AirLive TOP-30AX-1G can be a FIT AP or FAT AP. It can work as a standalone Access Point or Gateway for home or small WLAN applications. For Large Enterprises or organizations, the TOP-30AX-1G is supported by the AirLive Wireless Controller and AirCloud  with advanced and efficient central or/and cloud management.

24/7 365 Central and Cloud management for unlimited APs via AirCloud for Large Enterprises or Public Access

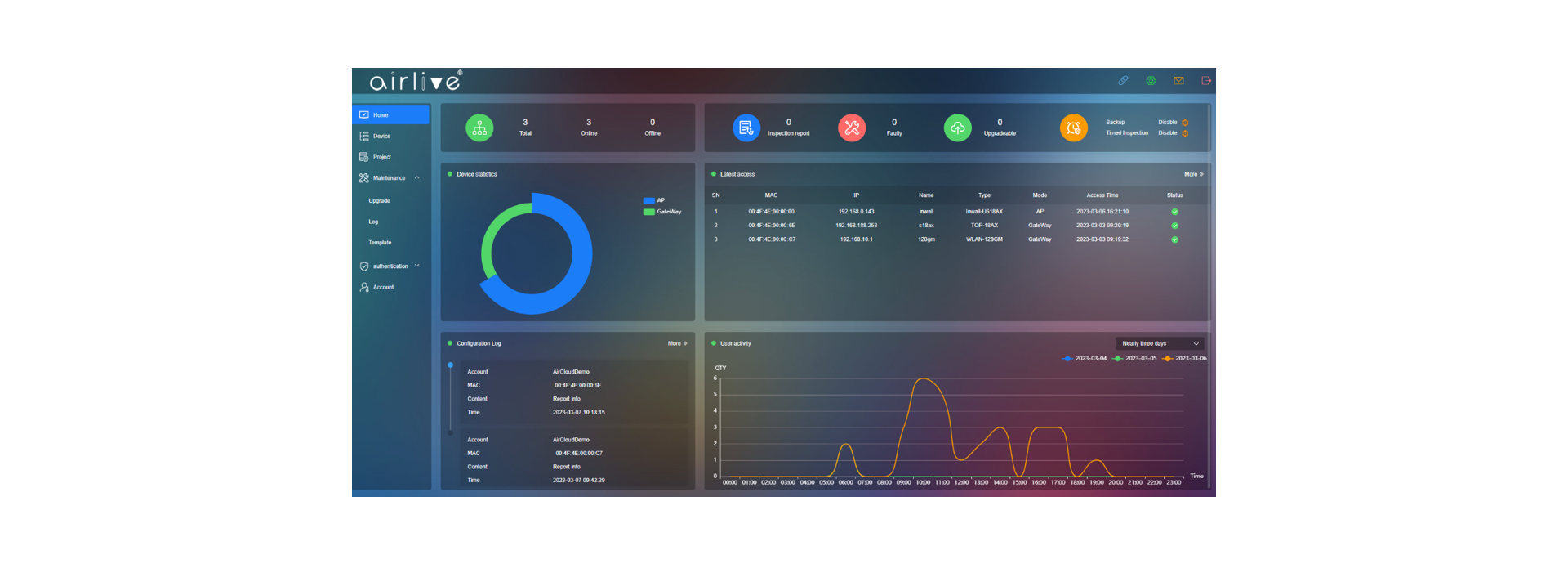

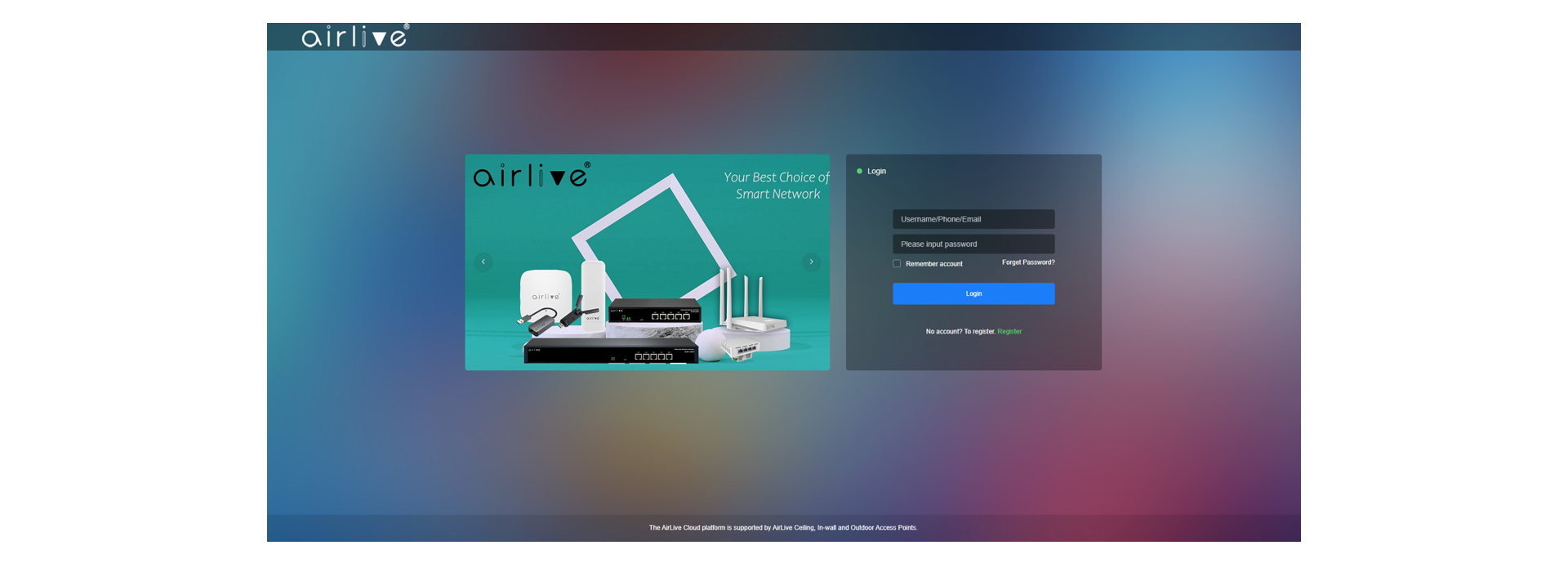

Cloud Control: the AirLive TOP-30AX-1G can be managed through the AirCloud once it has been added to the Cloud. This provides remote control from any location, making it advantageous for large networks of Access Points as local access is not necessary and support can be provided from a remote office. Additionally, multiple levels of control can be assigned in the Cloud, ranging from admin to viewer rights. Access Points can be easily added or removed at any time.

Central Management via AirLive Wireless Controller for SMB

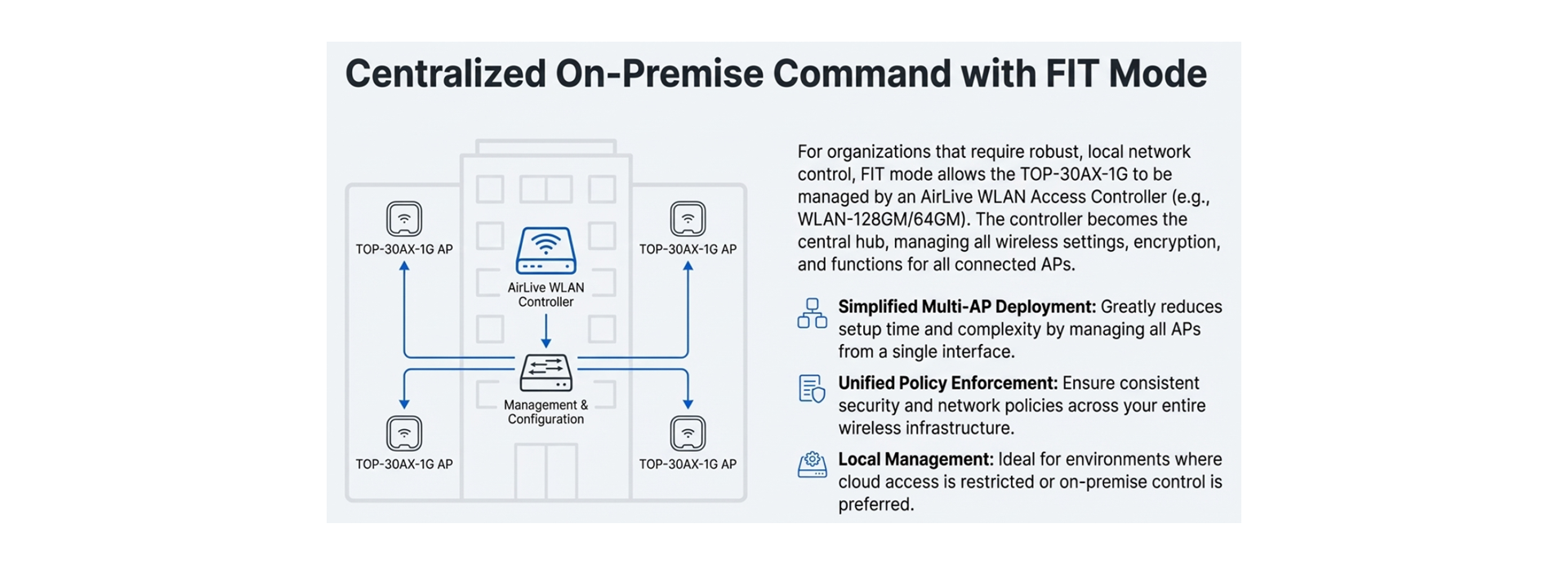

Fit mode: is a setting for the TOP-30AX-1G Access Point that allows it to be controlled by an AirLive WLAN Access Controller. The WLAN controller manages all wireless settings, encryption, and other functions, serving as the central control hub for the
TOP-30AX-1G Access Point. Fit mode is ideal for SMB or large enterprise setups where multiple access points need to be controlled at once. By using Fit mode and a WLAN Access Controller, it can manage all connected APs in a single location; setup time and complexity can be greatly reduced.

Works as standalone AP for Home or SOHO Office
Fat mode: The TOP-30AX-1G Access Point functions as a standalone device with all wireless and encryption functions being controlled within the AP itself. This mode is more suitable for small setups like residential or offices with fewer APs. The Fat mode supports three operation modes - AP mode, AP Gateway mode and Repeater mode. In AP Gateway mode, the TOP-30AX-1G works as a gateway and uses its WAN port connecting to a modem/router via PPPoE, DHCP, or Static IP. In AP mode, the TOP-30AX-1G can be connected to an existing network and work without the WAN port features.

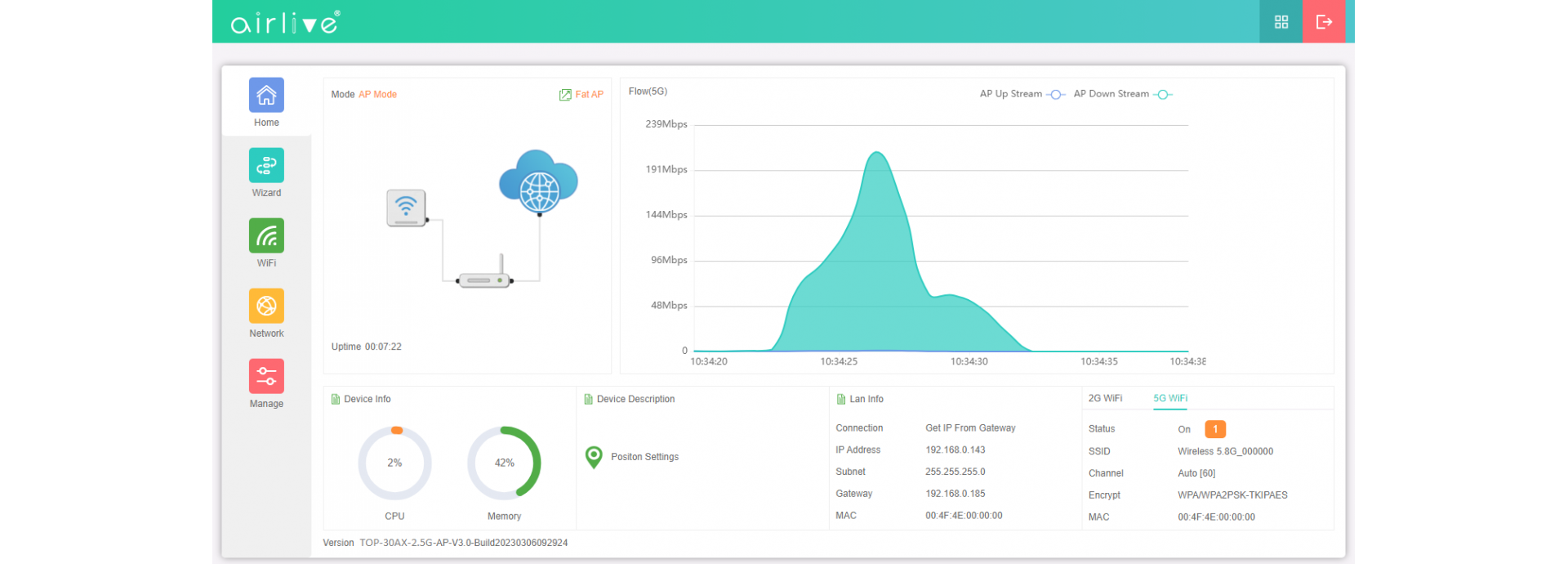

Monitoring your Wireless internet usage by live stream graph, you can gain real-time insight into your network activity and make informed decisions about managing your internet resources.

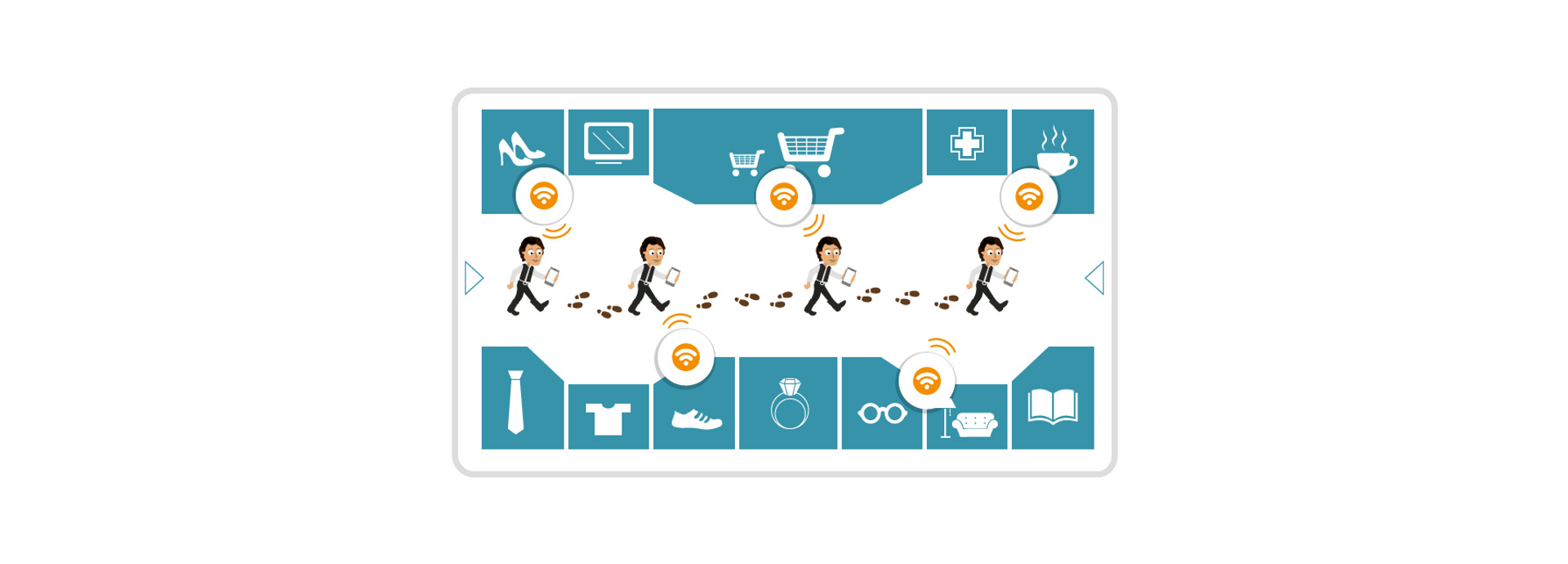

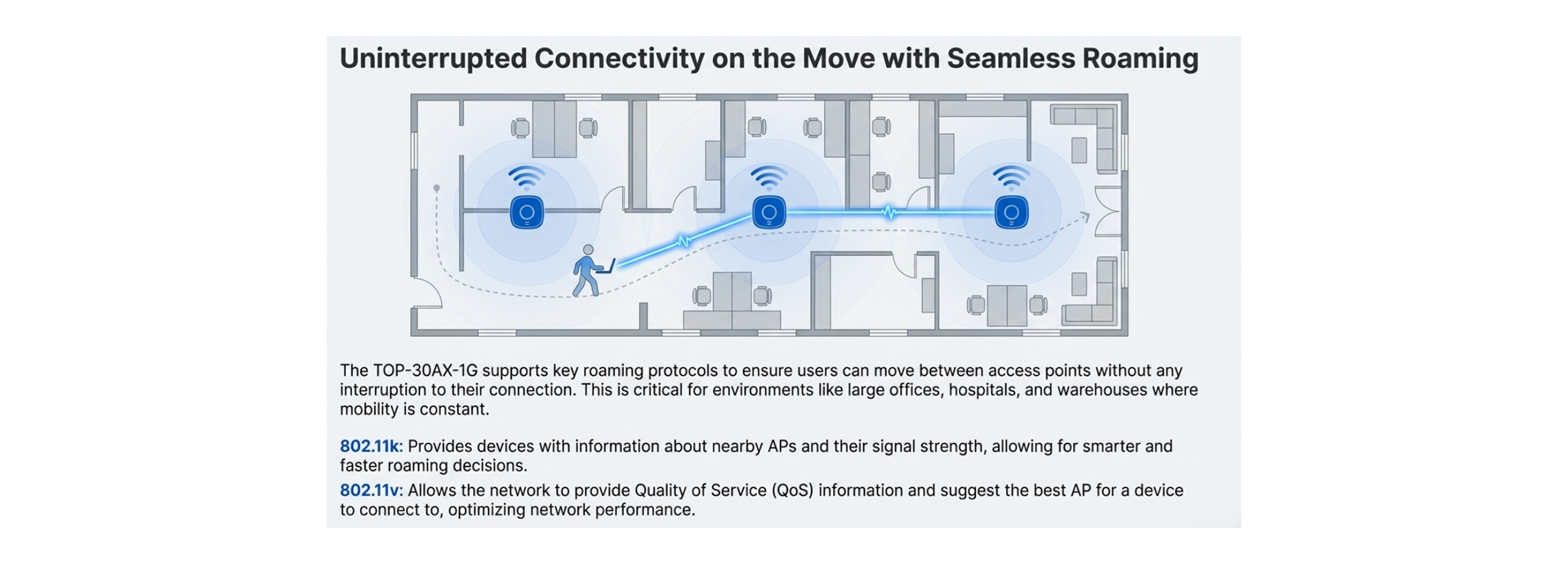

Wireless seamless roaming allows devices to switch between different wireless access points without any interruption to their connection note that the SSID and wireless password of the all the access points should be the same.
It is particularly useful in environments where users need to move around frequently while staying connected to the network, such as in large office buildings, hospitals, and public areas like airports or train stations. To enable seamless roaming, wireless networks use a combination of protocols and technologies, such as 802.11k, and 802.11v, which are supported by the AirCloud ceiling and inwall access points that allow devices to make quick and accurate decisions about which access point to connect to. The overall goal of wireless seamless roaming is to simplify the process of staying connected to a wireless network as the user moves around, without any interruption or loss of connectivity.

Overall, wireless seamless roaming is an important technology that enables users to stay connected to the network while moving around, without any interruption or loss of connectivity. Wireless seamless roaming simplifies the process of maintaining a continuous connection to a wireless network as a device moves from one area to another without any interruption. Here are a few key points to simplify the concept:

• 802.11k: This protocol enables the wireless network to provide more accurate and timely information about the signal strength and capabilities of nearby access points, allowing the device to make better decisions about which access point to connect to.
• 802.11v: This protocol enables the wireless network to provide information about the quality of service (QoS) offered by different access points, allowing the device to choose the best access point based on its needs.
