Hardware | |
Model | AirCam EYDL-640MXAI-MS-2713 |

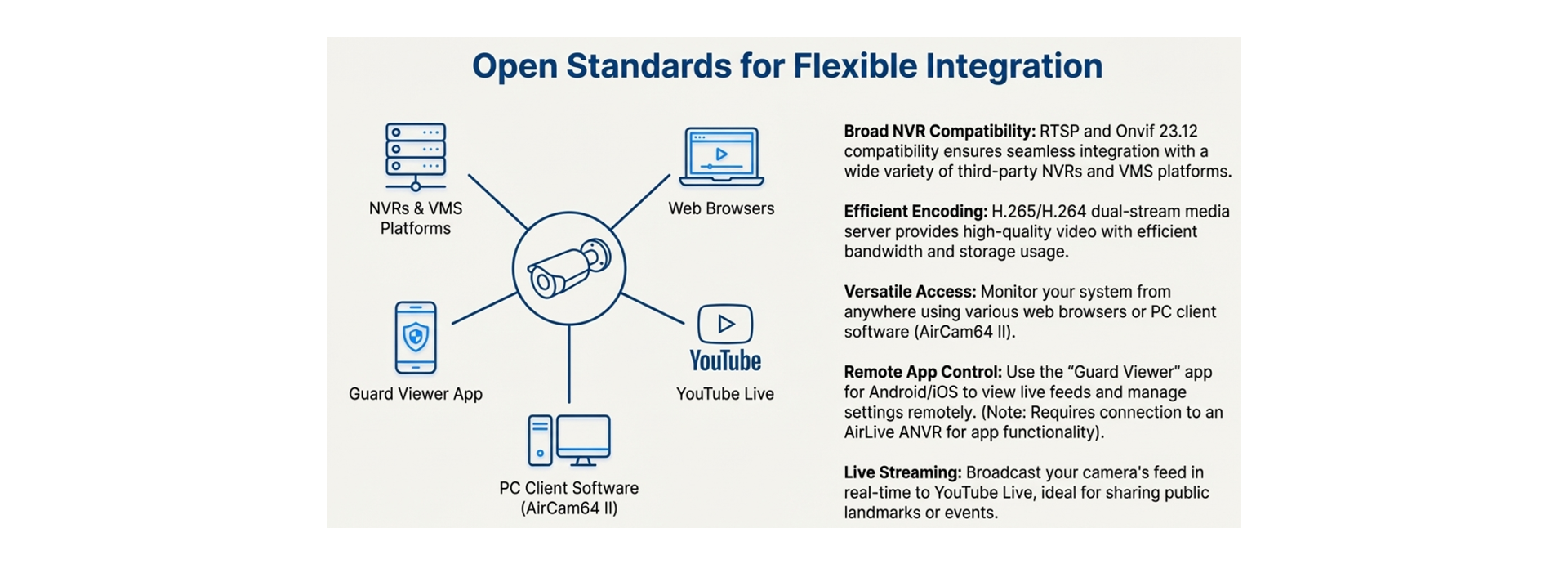

Device Interface | Network Interface: PoE 802.3af 1xRJ45 10M/100M Media: AirCam64, Android, iOS, Webui Onvif: 23.12 compatible (profile S G T M) Standard: HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |

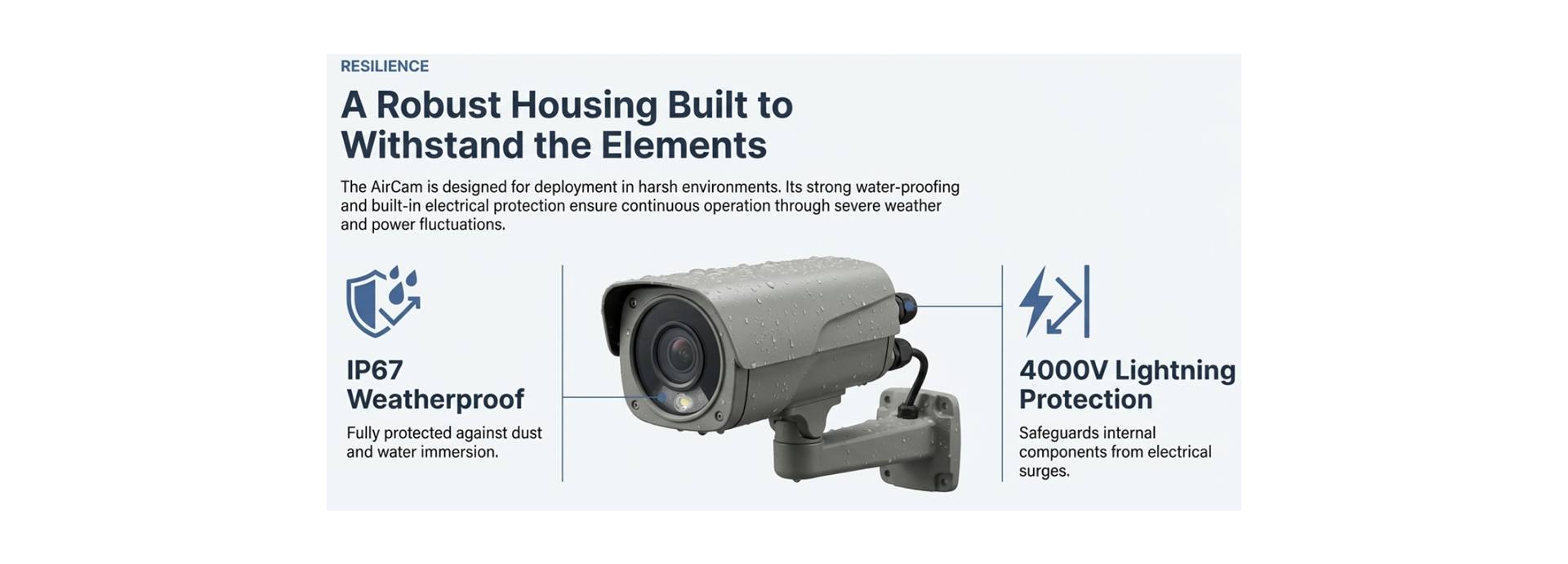

Camera | Image Sensor : 1/2.8" Sony CMOS CPU: Sigmastar Effective Pixels : 6 Megapixels (3072(H)×2048 (V)) Exposure Shutter : Auto, 1/10s ~ 1/8000s, Max. Shutter speed adjustable Day/Night : Auto (Active/passive/schedule)/Day/Night, switch threshold, sensitivity Image Adjust : Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%) adjustable WDR : WDR Low Illumination : 0.01Lux White Balance : AWB/MWB DNR : 2D/3D DNR Light Mode : Smart(dual-light)/Pure Infrared/ Pure White light, adjustable Light Control : Auto/Manual, Brightness level (0-100%) adjustable Other : Day/ Night (ICR), AWR, IR-CUT Mechanical : Waterproof IP67 Housing |
Encode | Video Standard : H.265/H.264/MJPEG Video Resolution : Main Stream : 25fps@6MP(3072x2048)/30fps@5MP(2592x1944)/4MP(2592x1440)/3MP(2304x1296)/1080P/720P Sub stream : 10fps@720P, 30fps@D1(704x576)/(720x480)/VGA(640x480)/QVGA(640x360) Video Bitrates : Sub stream: 64kbps-8Mbps, Sub stream: 64kbps-2048kbps, VBR/CBR, quality(1-9), GOP(1-128) Image Rotation : 0 / 90 / 180 / 270 degree adjustable Border Crop : X crop, Y crop Image Mirror : Horizon / Vertical / Horizon & Vertical adjustable OSD Overlay : Font size(1-4), Position, Time, Title, AM/PM, Color, User OSD, Alarm OSD Privacy Mask : 4 areas Region of Interest : ROI: Each stream support 8 areas Audio Standard : G.711-u/G.711-a/AAC/PCM, AEC Two Way Audio: Supported Microphone : Built-in Mic Speaker : Built-in Speaker |

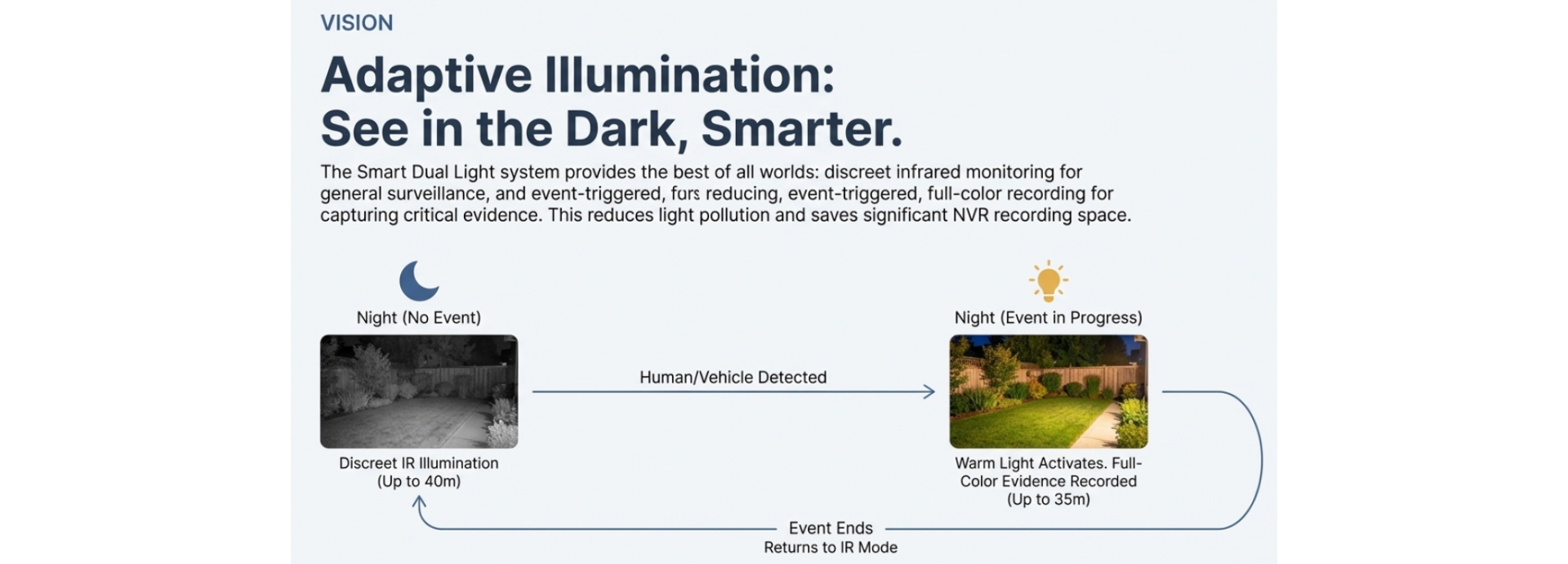

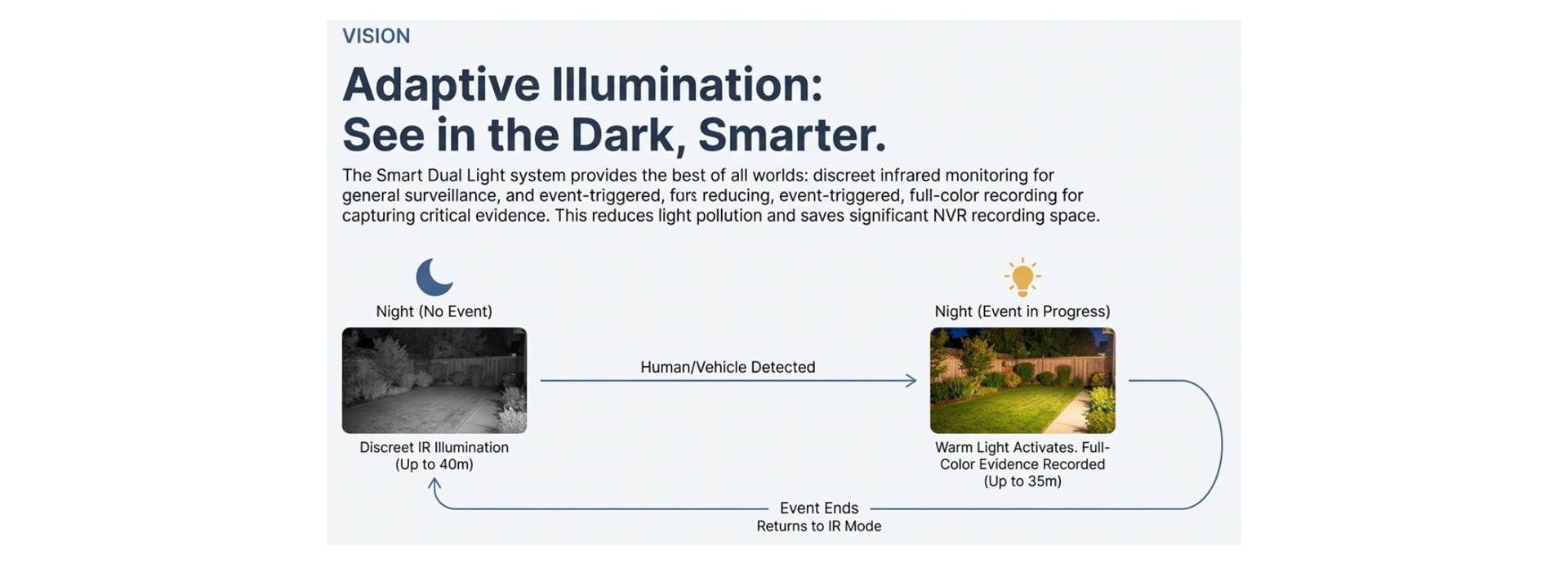

LED | Light : 4pcs IR LEDs & Warm Light Light Distance: 30~40m IR Distance: 30~40m |

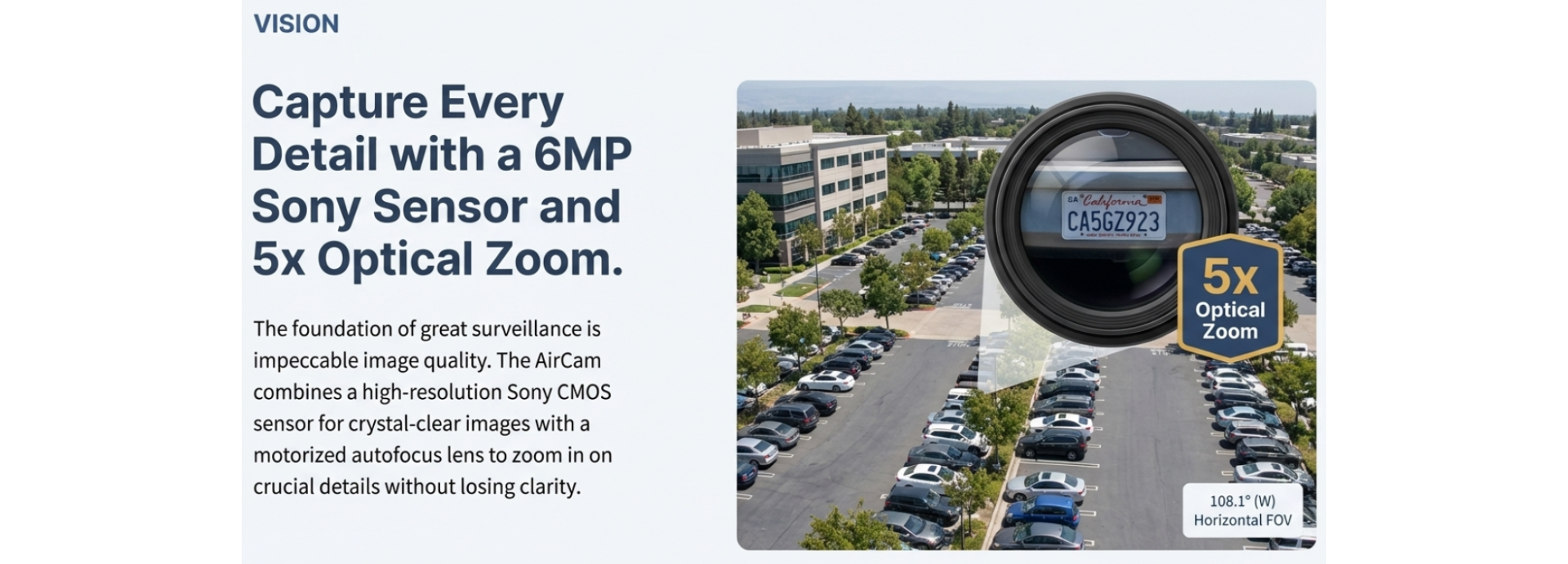

Lens | Lens Focal length: 2.7-13.5 mm Motorized lens Zoom: 5x Optical Zoom FOV: 1/2.8 |108.1° (W) – 30.3° (T) | 56.3° (W) – 17.1° (T) | 130.9° (W) – 34.8° (T), H x V x D: 130.9° x 108.1° x 56.3° |

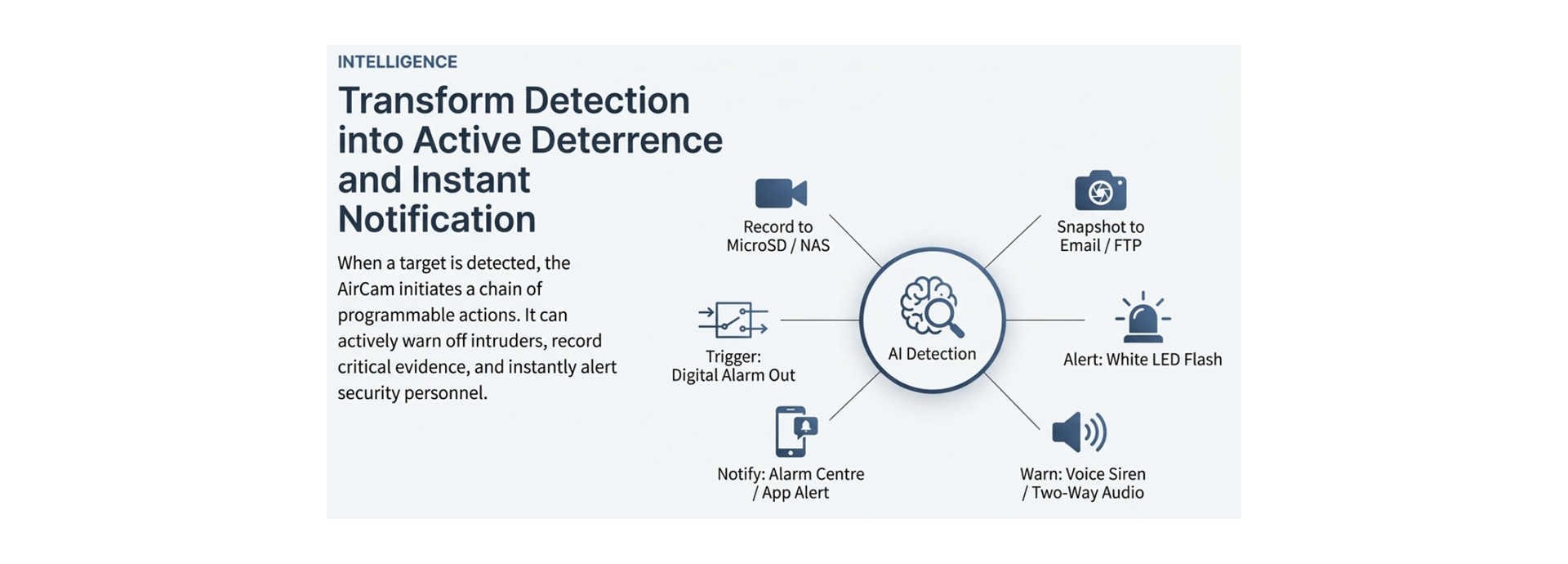

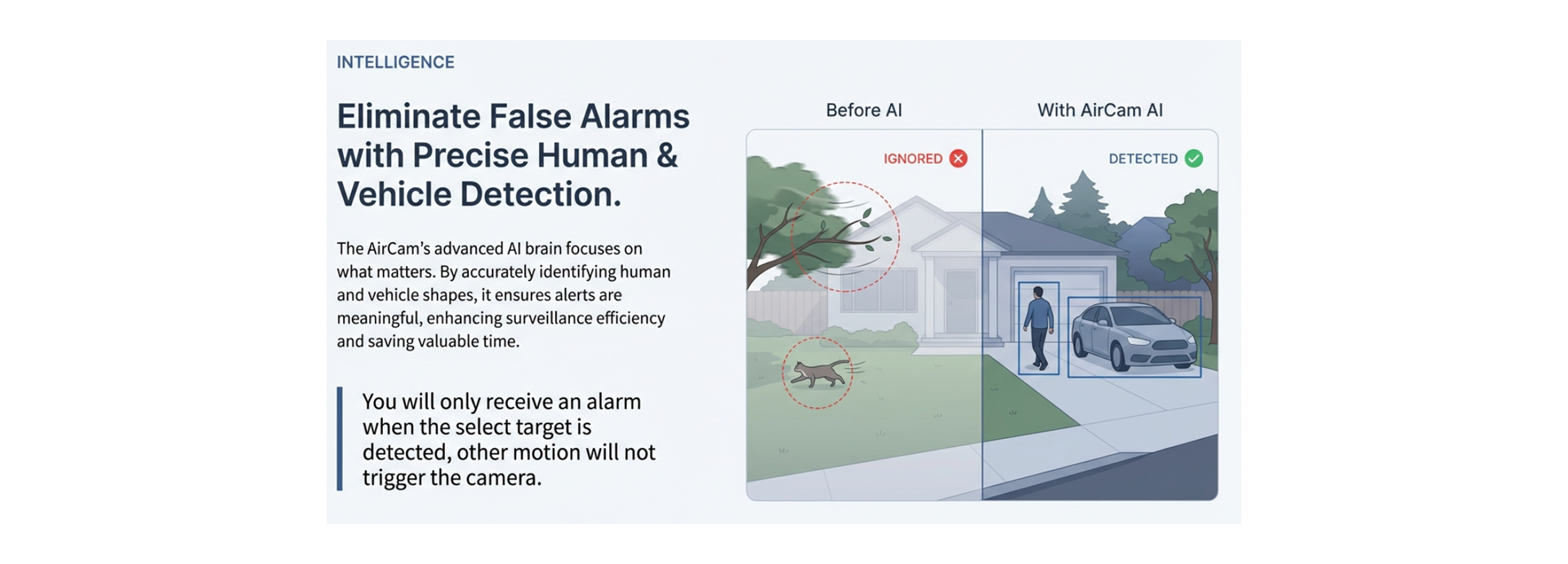

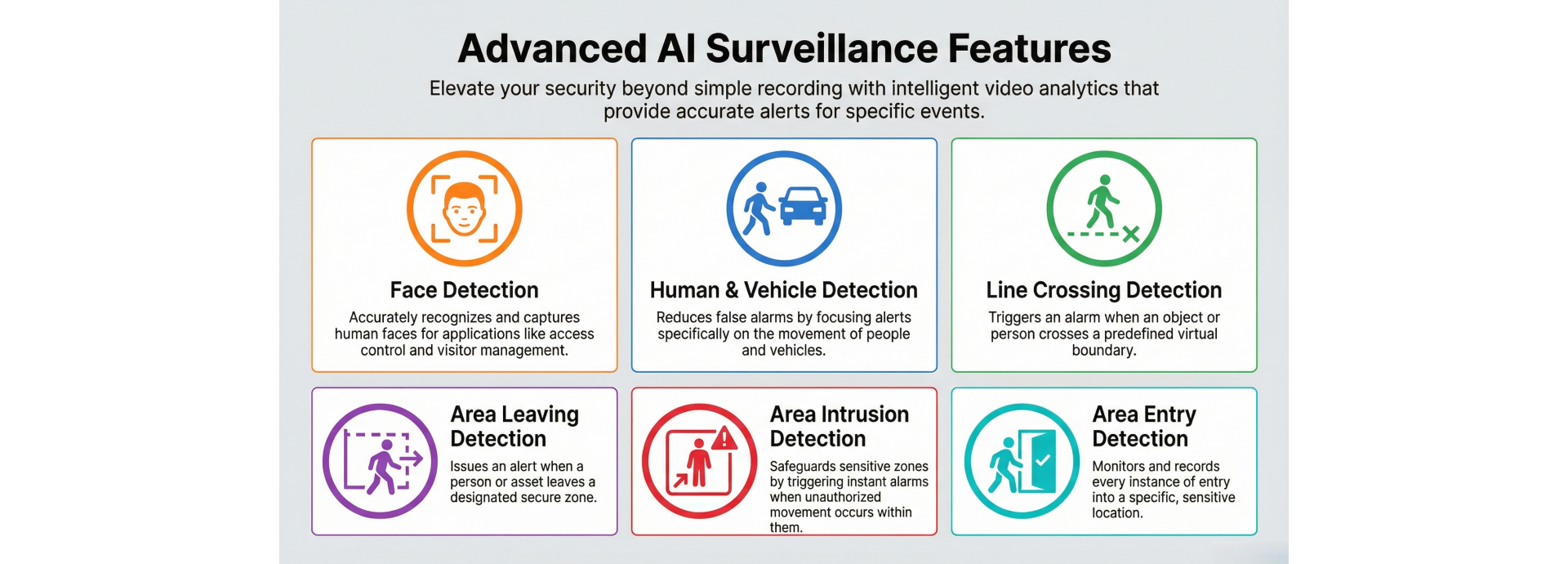

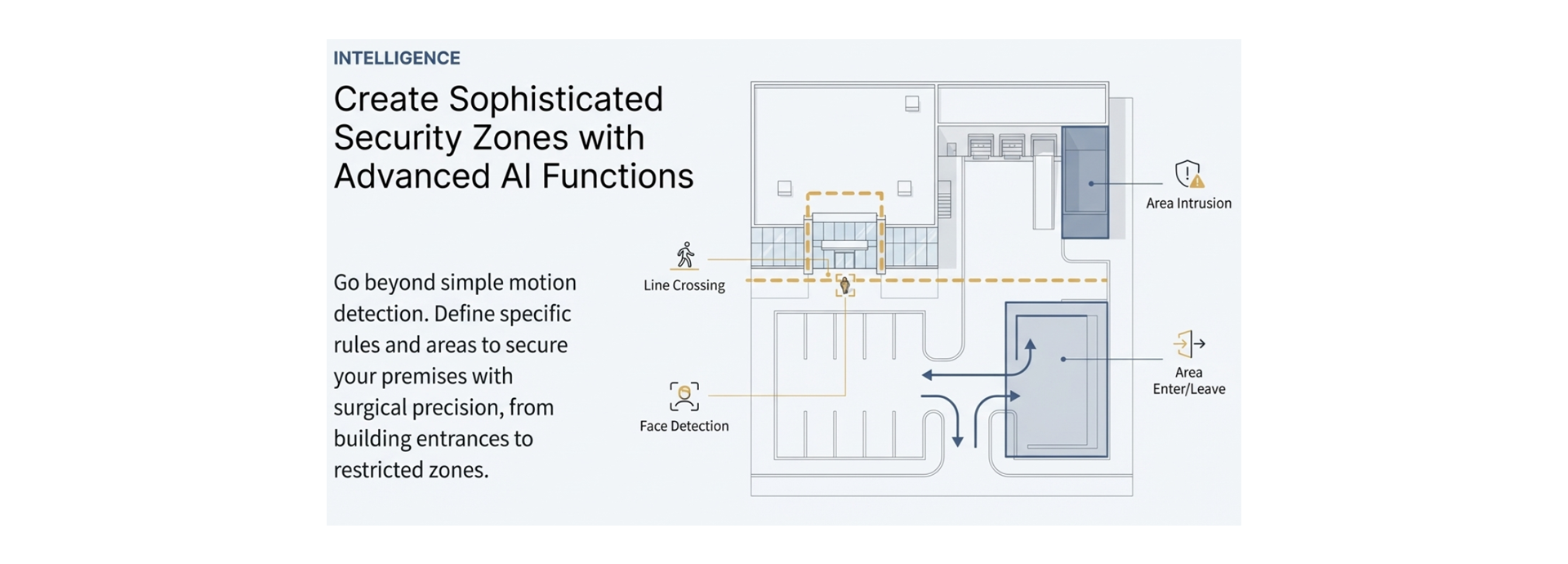

Smart Detection | Digital IO Alarm : 1 pair Alarm-in/Alarm-out, normally open/normally close (for the digital alarm, you can send alarm message from ANVR or App to camera directly) Support MicroSD : Up to 512GB. (256GB is recommended) Motion Detection : Schedule/Detection area/Trigger Recording/Trigger Snapshot/Link Blink/Upload Alarm Centre/Trigger Audio Intelligent Detection : Human,Vehicle, Cross Line, Enter/Leaving Area, Intrusion and Face Detection. Target Detection Type : Human Shape, Vehicle, Non-motor vehicle, Pet, Face (32px-800px) Trigger Action Linkage : Snapshot, Record, Relay, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage, Support audio alarm to warn intruders off Simultaneous Detection : Maximum 16 targets simultaneous detection Storage Type : Schedule/Trigger: Micro-SD, Email, FTP, NAS |
Multiple Language | English, Chinese Traditional/Simplified, Russian, Deutsch, Italiano, Türkiye, Polski, Korean, Japanese, Ukrainian |
APP and Software Control | |

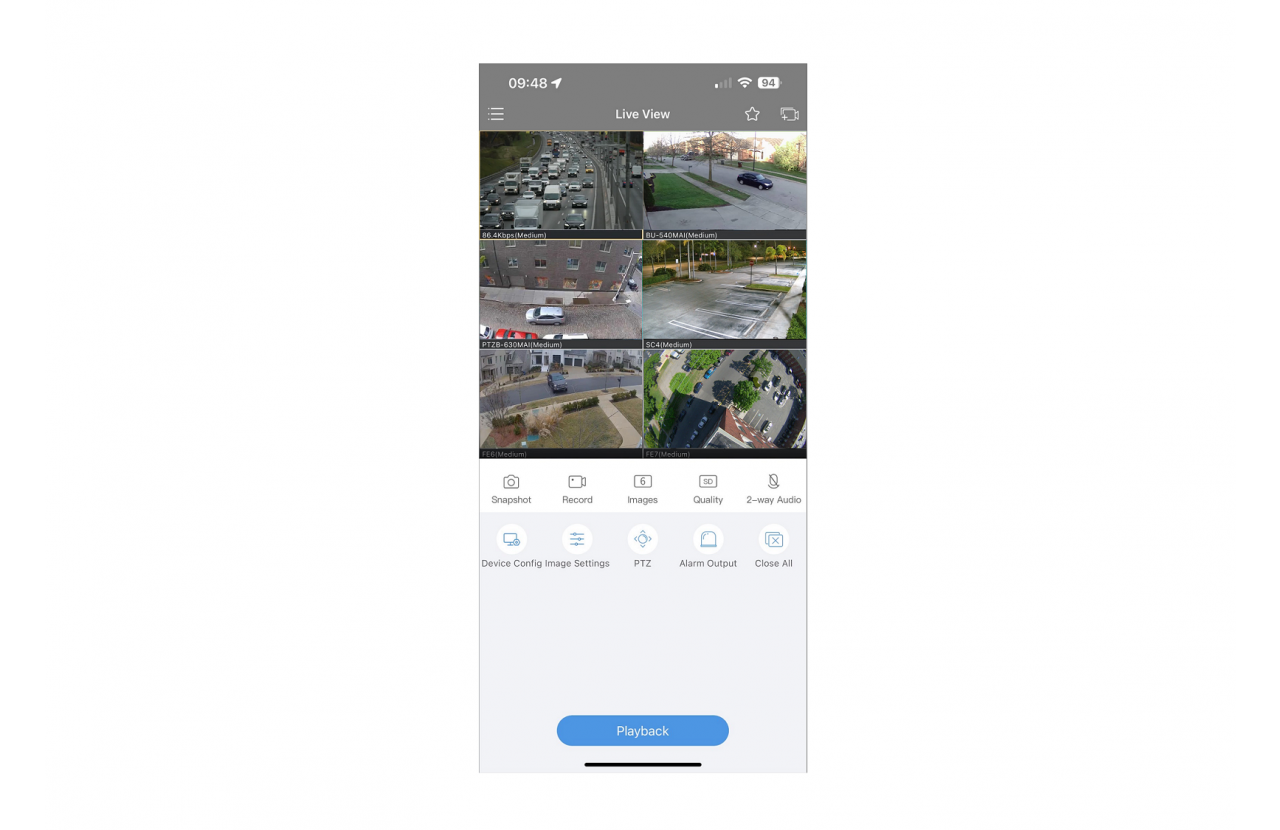

APP/Software | Windows: Web browser, AirCam64 iOS/Android: Download “Remoteyes” App from APP/Play Store) *NVR APP iOS/Android: Download “Guard Viewer” App from APP/Play Store, (can be used when camera has been added to ANVR AI.) |
Power Input | |
Power Input | Power Supply: 12V DC or PoE: 802.3af Power Consumption: ≤8 W |
Environment | |
Operating Temperature | -20°C to +60°C |
Operating Humidity | 10%~90%, non-condensing |
Model | AirCam EYDL-640MXAI-MS-2713 6MP Autofocus Smart AI 40M Dual Light, Dome PoE IP Camera |
Standard Package | |
Product Size | φ139.21x 1121.78mm (H) |
Package Size | 15.0 x 14.7 x 14.5cm(L*W*H) |
Package Weight | N.W: 0.6745kg G.W: 0.7945kg |
Package Content | IP Camera/Network cable/QIG/Waterproof connector |
Carton Package | |
Quantity | 24 PCS / 1 Carton |
Dimensions | 57.0 x 29.0 x 42.0cm (L*W*H) |
Weight | TBDkg |
Name | Description | Download | Date |
AirCam EYDL-640MXAI-MS-2713 Spec Sheet | 2025/05/02 |
