Hardware | |
Model | AirCam EYDL-830XAI-MS |

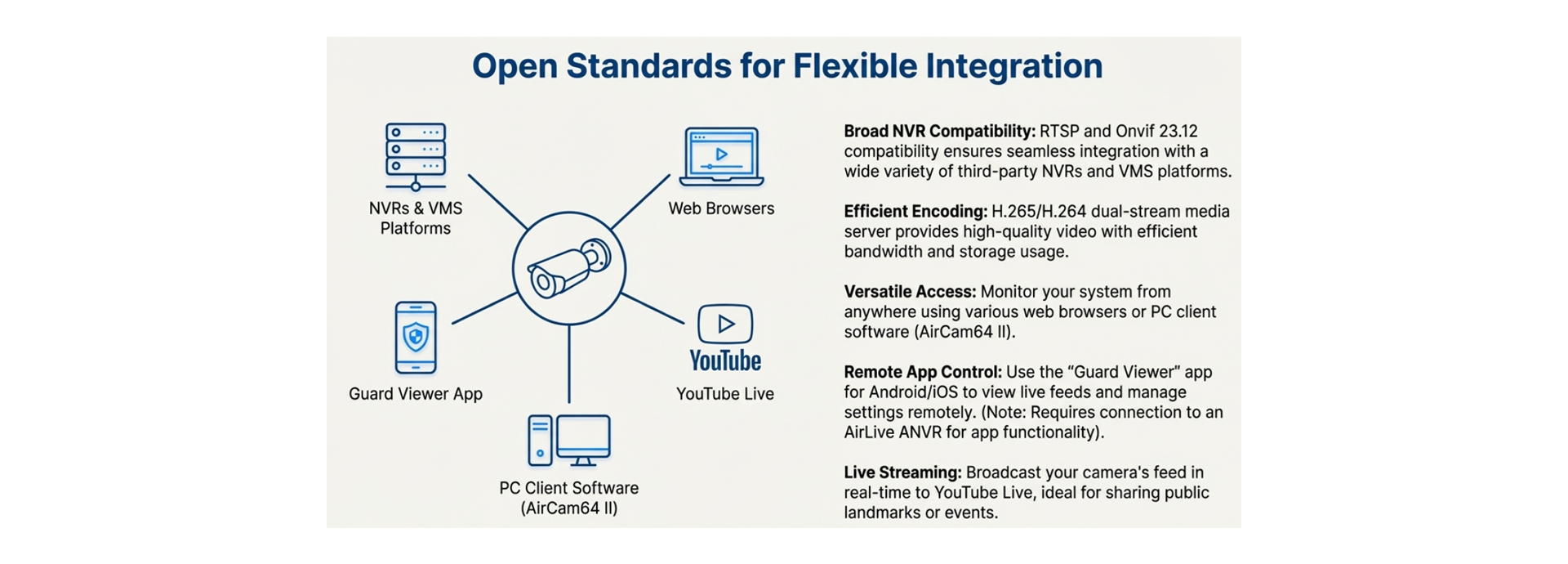

Device Interface | Network Interface: PoE 802.3af 1xRJ45 10M/100M Media: Webui, AirCam64 II, Android, iOS Onvif: 23.12 compatible (profile S G T M) Standard: HTTP(s)/RTSP/FTP/SMTP/DHCP/NTP/DST/RTP/RTMP/P2P/HiK/IPv4/IPv6/NFS |

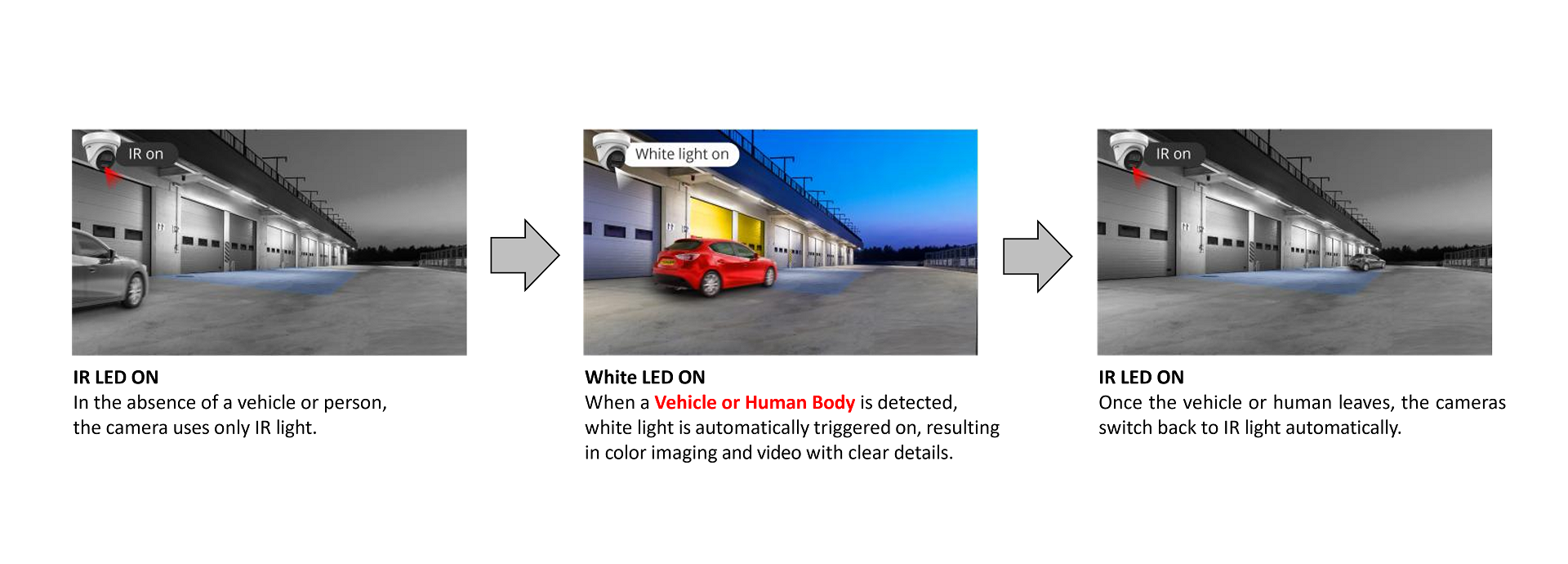

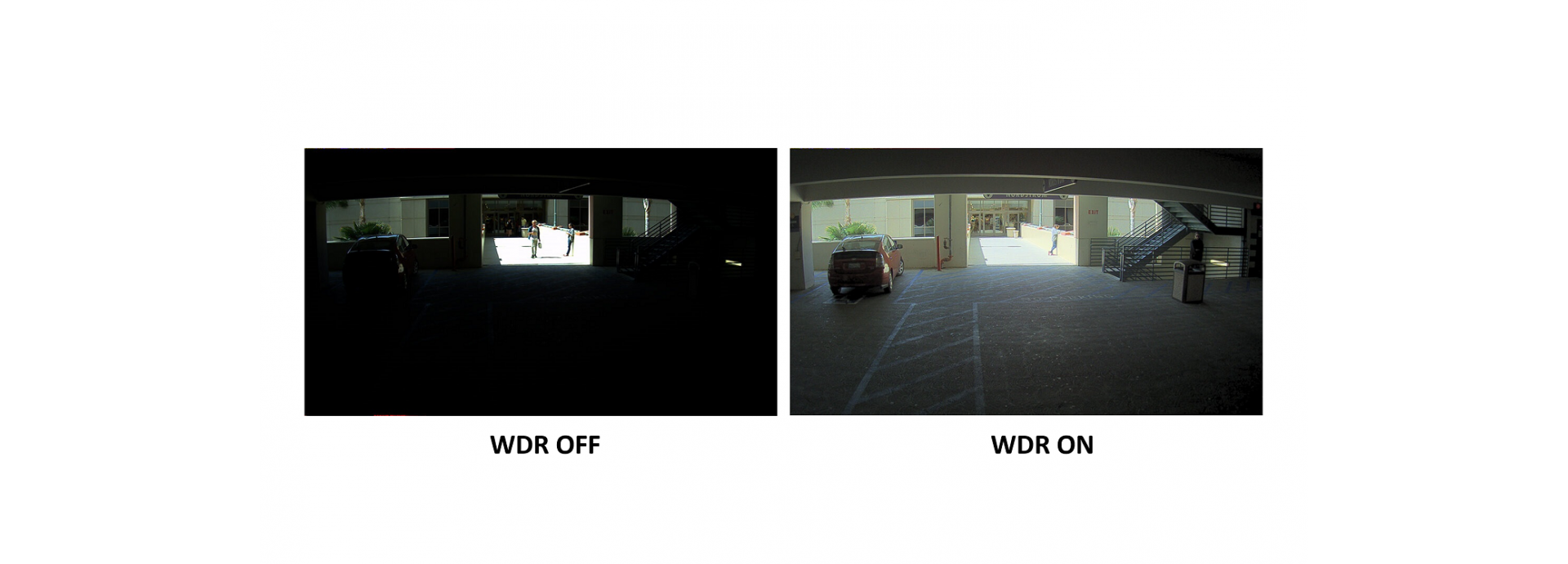

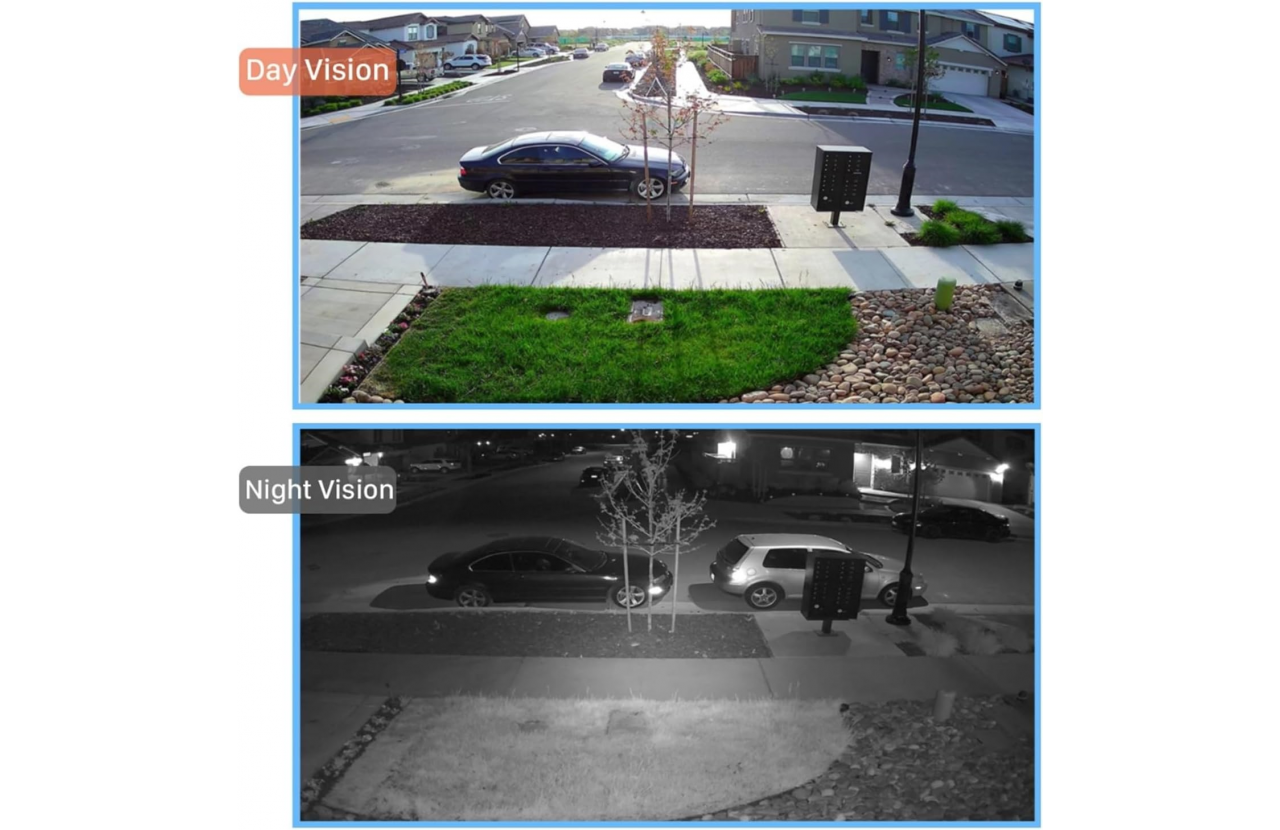

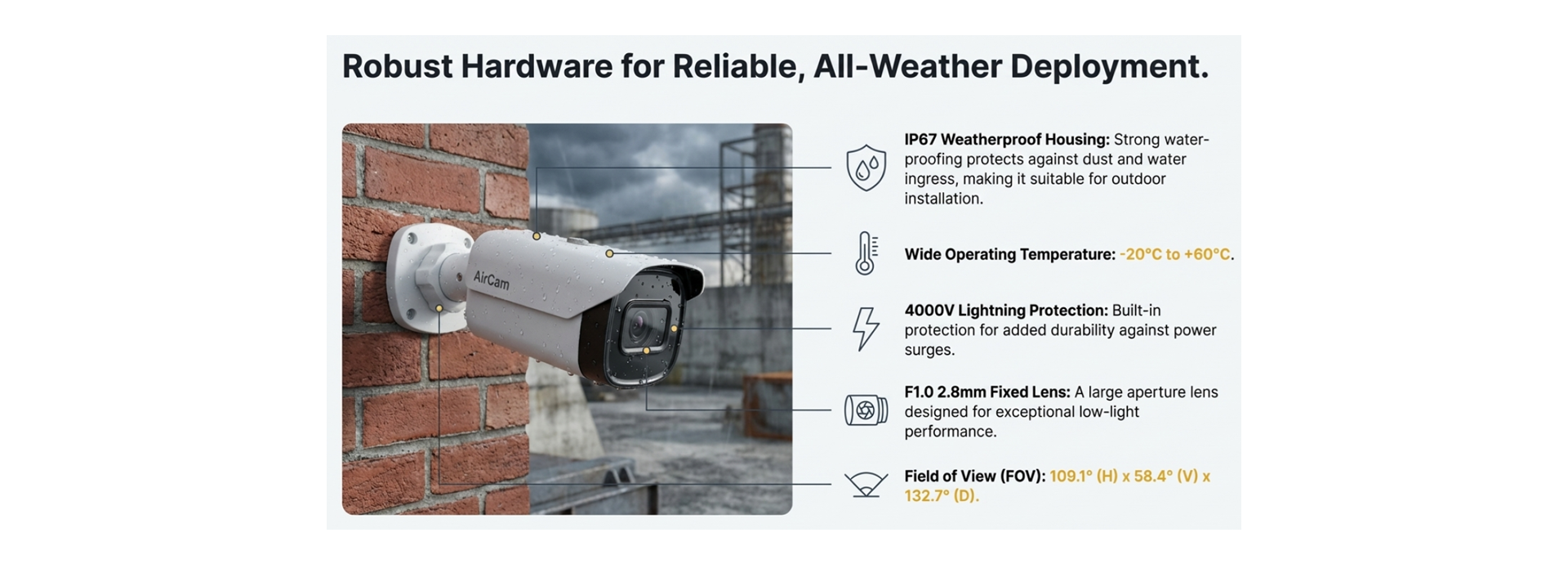

Camera | Image Sensor : 1/2.8" Sony CMOS CPU: Sigmastar Effective Pixels : 8 Megapixels (3840(H)×2160(V)) Exposure Shutter : Auto, 1/10s ~ 1/8000s, Max. Shutter speed adjustable Day/Night : Auto (Active/passive/schedule)/Day/Night, switch threshold, sensitivity Image Adjust : Brightness, Saturation, Sharpness, Contrast, Denoise (0-100%) adjustable WDR : 100db WDR Low Illumination : 0.01Lux White Balance : AWB/MWB DNR : 2D/3D DNR Light Mode : Smart (Dual-Light) / Pure Infrared / Pure White Light, adjustable Light Control : Auto/Manual, Brightness level (0-100%) adjustable Other : Day/ Night (ICR), AWB, IR-CUT Mechanical : Waterproof IP67 Housing |
Encode | Video Standard : H.265/H.264 Video Resolution : Main Stream : 20fps@8MP(3840x2160) (default)/30fps@6MP(3072x2048)/5MP(2592x1944)/4MP(2560x1440)/ 3MP(2304x1296)/1080P/720P Sub stream : 10fps@720P, 30fps@D1(704x576)(default)/(720x480)/VGA(640x480)/QVGA(640x360) Video Bitrates : Sub stream: 64kbps-8Mbps, Sub stream: 64kbps-2048kbps, VBR/CBR, Quality (1-9), GOP (1-128) Image Rotation : 0 / 90 / 180 / 270 degree adjustable Border Crop : X crop, Y crop Image Mirror : Horizon / Vertical / Horizon & Vertical adjustable, Flip OSD Overlay : Font size (1-4), Position, Time, Title, AM/PM, Color, User OSD, Alarm OSD Privacy Mask : 4 areas Region of Interest : ROI: Each stream support 8 areas Audio Standard : G.711-u/G.711-a/AAC/PCM, AEC Two Way Audio: Supported Microphone : Built-in Mic Speaker: Built-in Speaker |

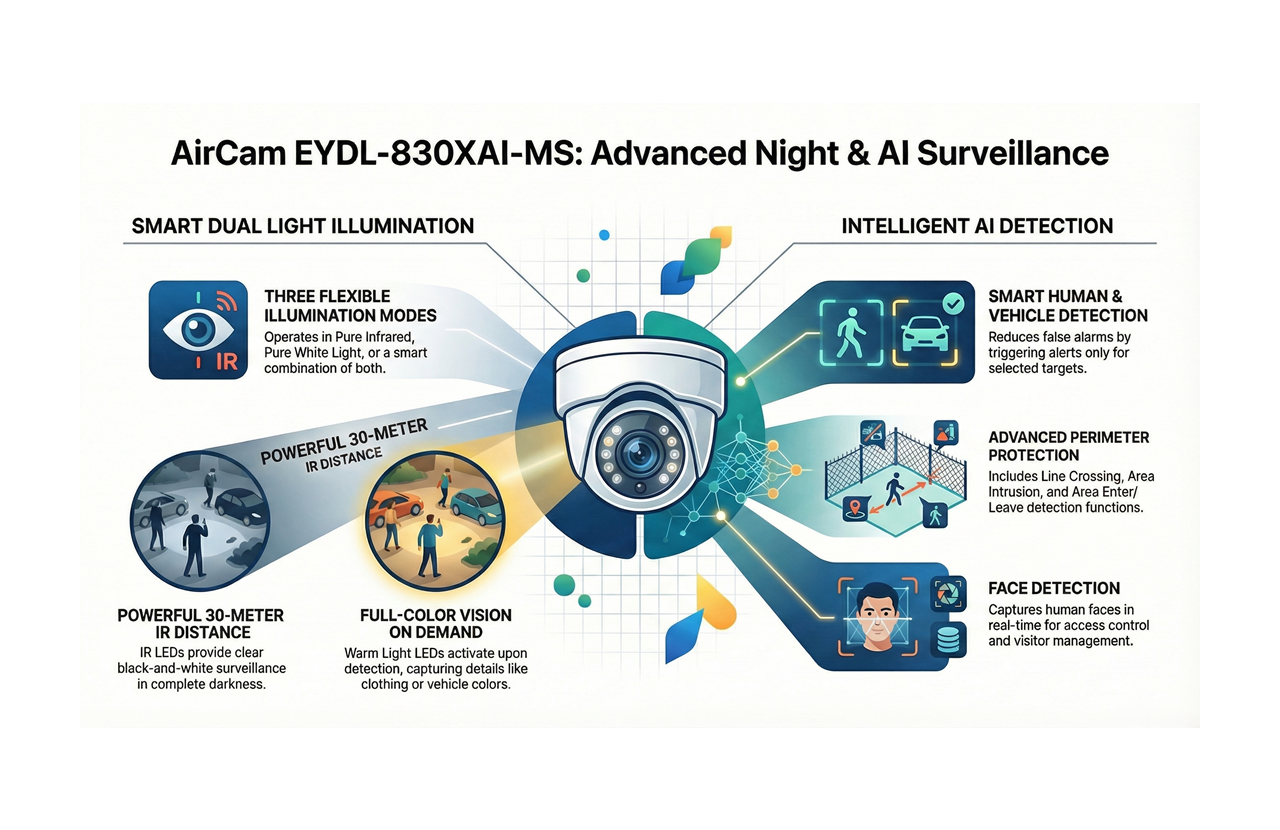

LED | Light : 2pcs IR LEDs & Warm Light Light Distance: 20~25m IR Range: 20~30m |
Lens | Lens Focal length: F1.0 2.8 mm Fixed Lens FOV: 1/2.8 |109.1°±5% x 58.4°±5% x 132.7°±5% (H x V x D), 2.8mm F1.0 |

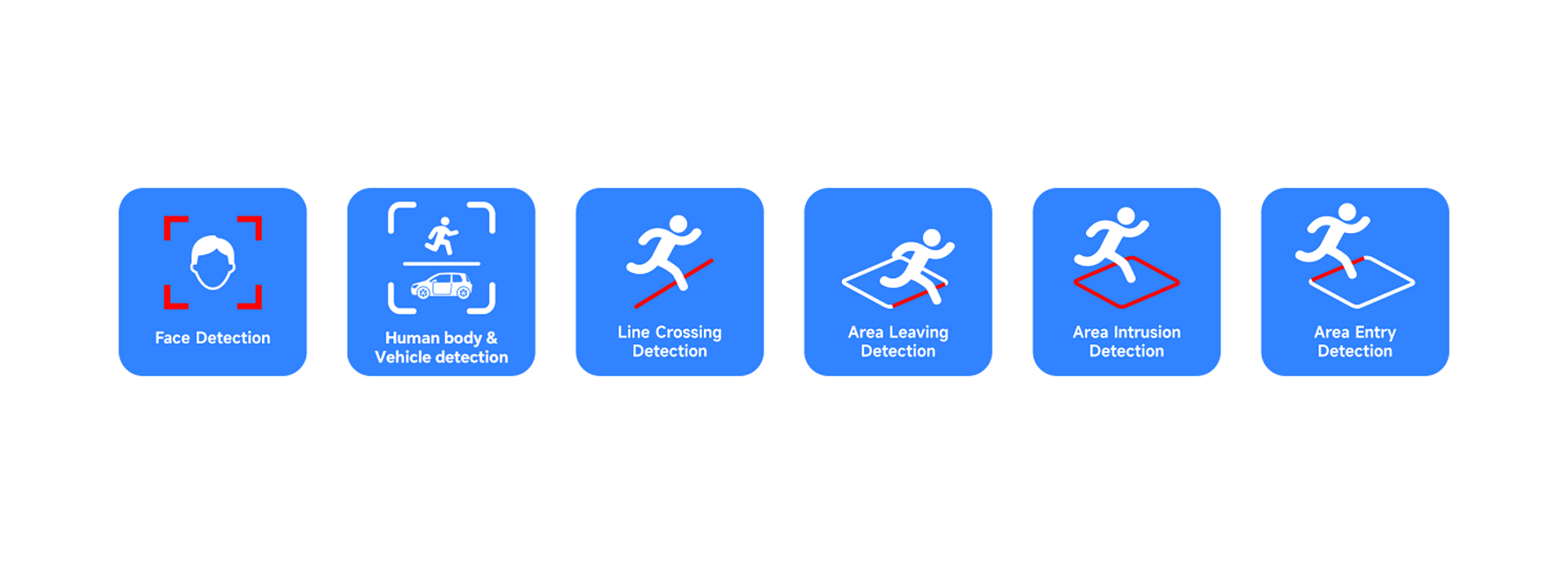

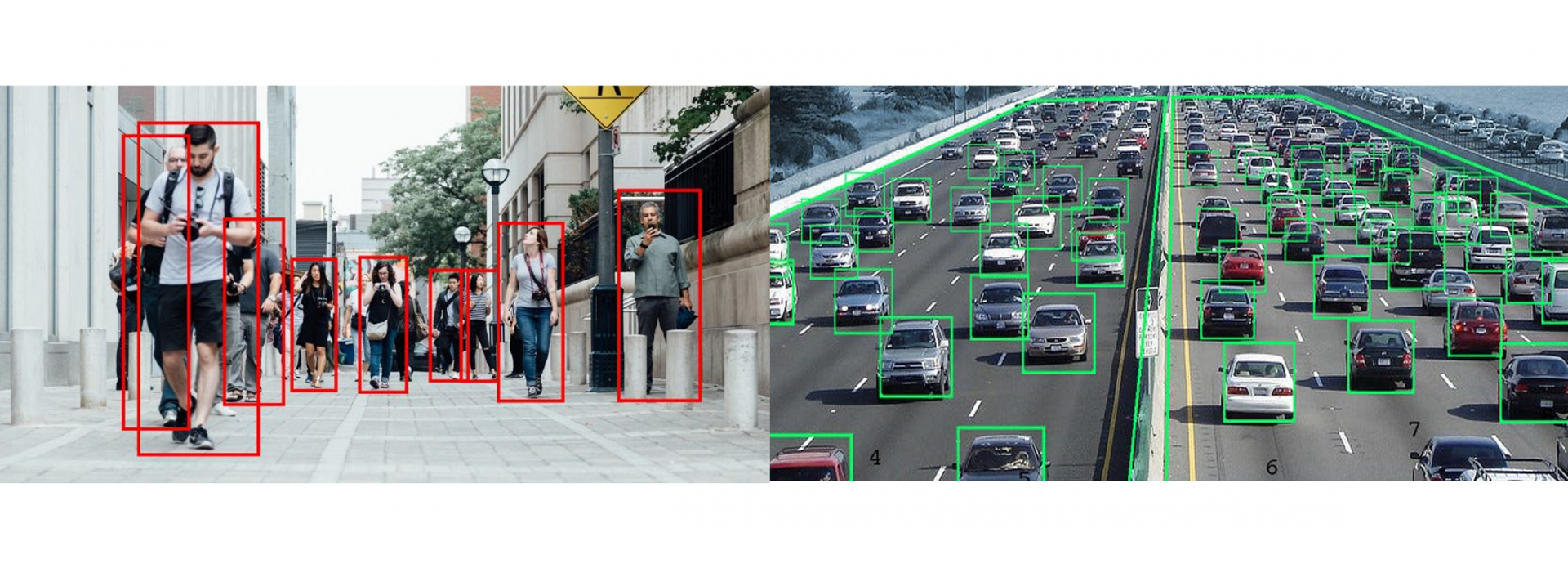

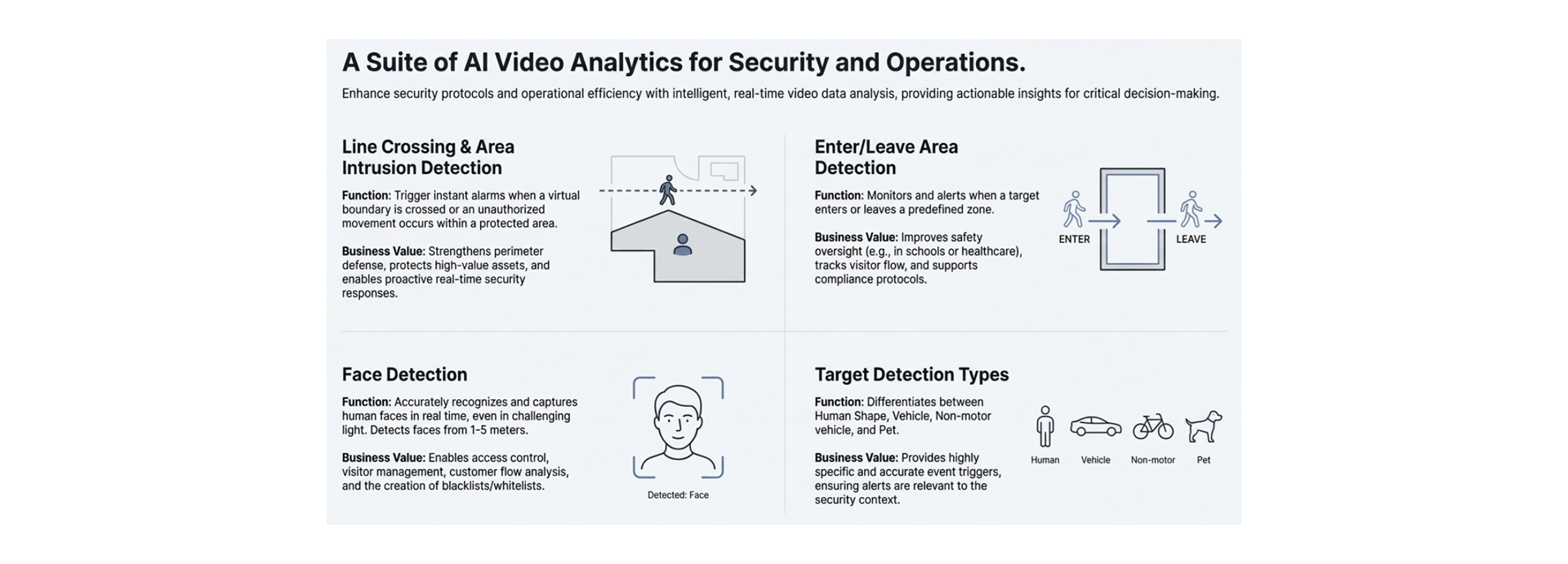

Smart Detection | Digital IO Alarm : 1 pair Alarm-in/Alarm-out, normally open/normally close (for the digital alarm, you can send alarm message from ANVR or App to camera directly) Support MicroSD : Up to 512GB. (256GB is recommended) Motion Detection : Schedule/Detection area/Trigger Recording/Trigger Snapshot/Link Blink/Upload Alarm Centre/Trigger Audio Intelligent Detection : Human,Vehicle, Cross Line, Enter/Leaving Area, Intrusion and Face Detection. •Human Vehicle Detection: 2-20 meters •Cross Line Detection: 4 lines •Perimeter protection: 4 areas •Face Detection: 1-5 meters Target Detection Type : Human Shape, Vehicle, Non-motor vehicle, Pet, Face (12px-1000px) Trigger Action Linkage : Snapshot, Record, Relay, White LED Flash, Voice siren, Micro-SD, Email, FTP, NAS storage, Support audio alarm to warn intruders off Simultaneous Detection : Maximum 16 targets simultaneous detection Storage Type : Schedule/Trigger: Micro-SD, Email, FTP, NAS |
Multiple Language | English, Chinese Traditional/Simplified, Russian, Deutsch, Italiano, Türkiye, Polski, Korean, Japanese, Ukrainian |
APP and Software Control | |

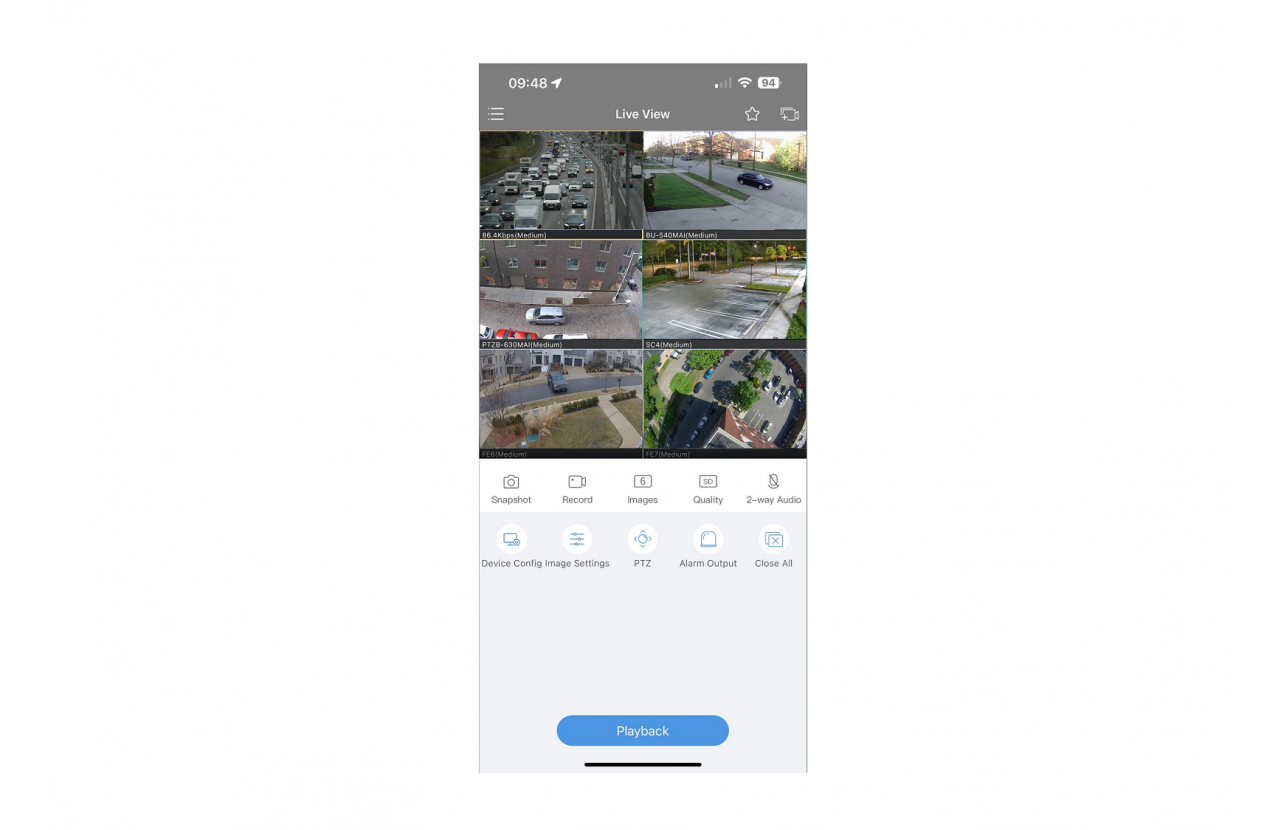

APP/Software | Windows: Web browser, AirCam64 II *NVR APP iOS/Android: Download “Guard Viewer” App from APP/Play Store, (can be used when camera has been added to ANVR AI.) |
Power Input | |
Power Input | Power Supply: 12V DC or PoE: 802.3af Power Consumption: ≤8 W |
Environment | |
Operating Temperature | -20°C to +60°C |
Operating Humidity | 10%~90%, non-condensing |

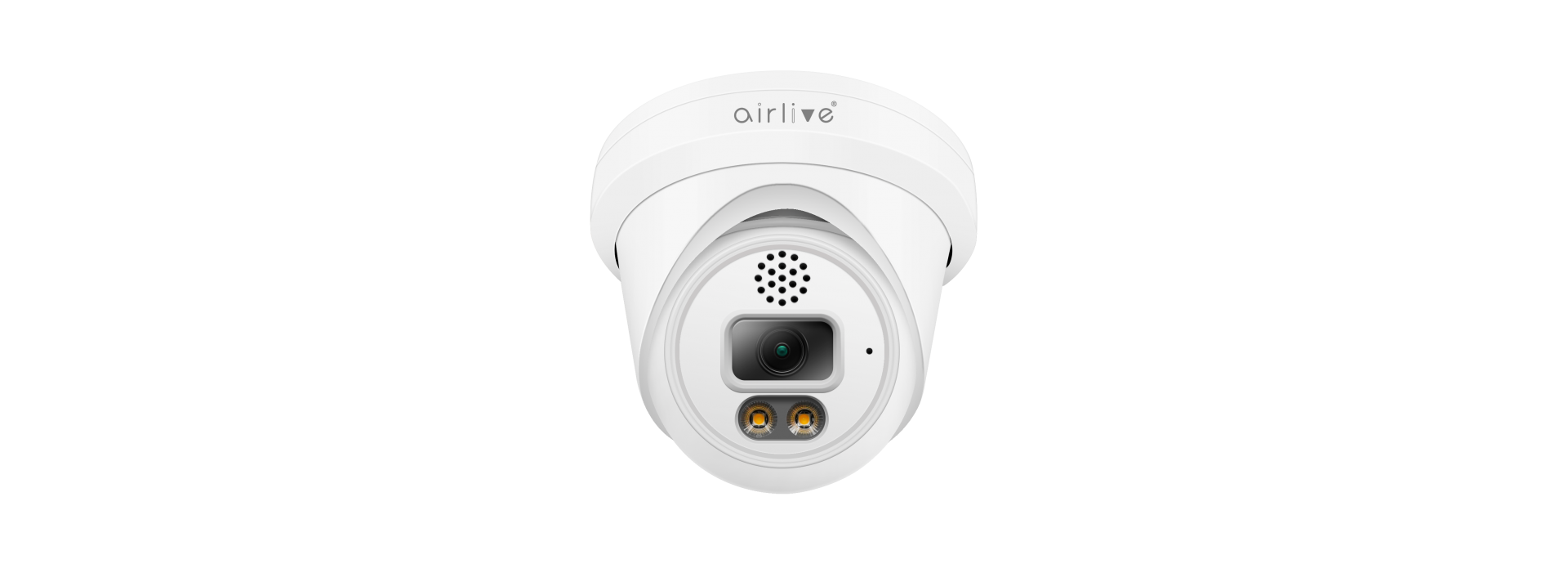

Model | AirCam EYDL-830XAI-MS 6MP Smart AI 30M Dual Light, Dome PoE IP Camera with Mic, Speaker |
Standard Package | |
Product Size | φ127 (base) x 104.7mm (H) |
Package Size | 12.7 x 13.0 x 12.5cm (L*W*H) |
Package Weight | N.W: tbd kg G.W: 0.5kg |
Package Content | IP Camera/Network cable/QIG/Waterproof connector |
Carton Package | |
Quantity | 24 PCS / 1 Carton |
Dimensions | 53.7 x 40.8 x 26.8cm (L*W*H) |
Weight | 16.0kg |
Name | Description | Download | Date |
AirCam EYDL-830XAI-MS Spec Sheet | 2025/08/06 |
