Hardware | |
Model | ANVR16-2S AI |

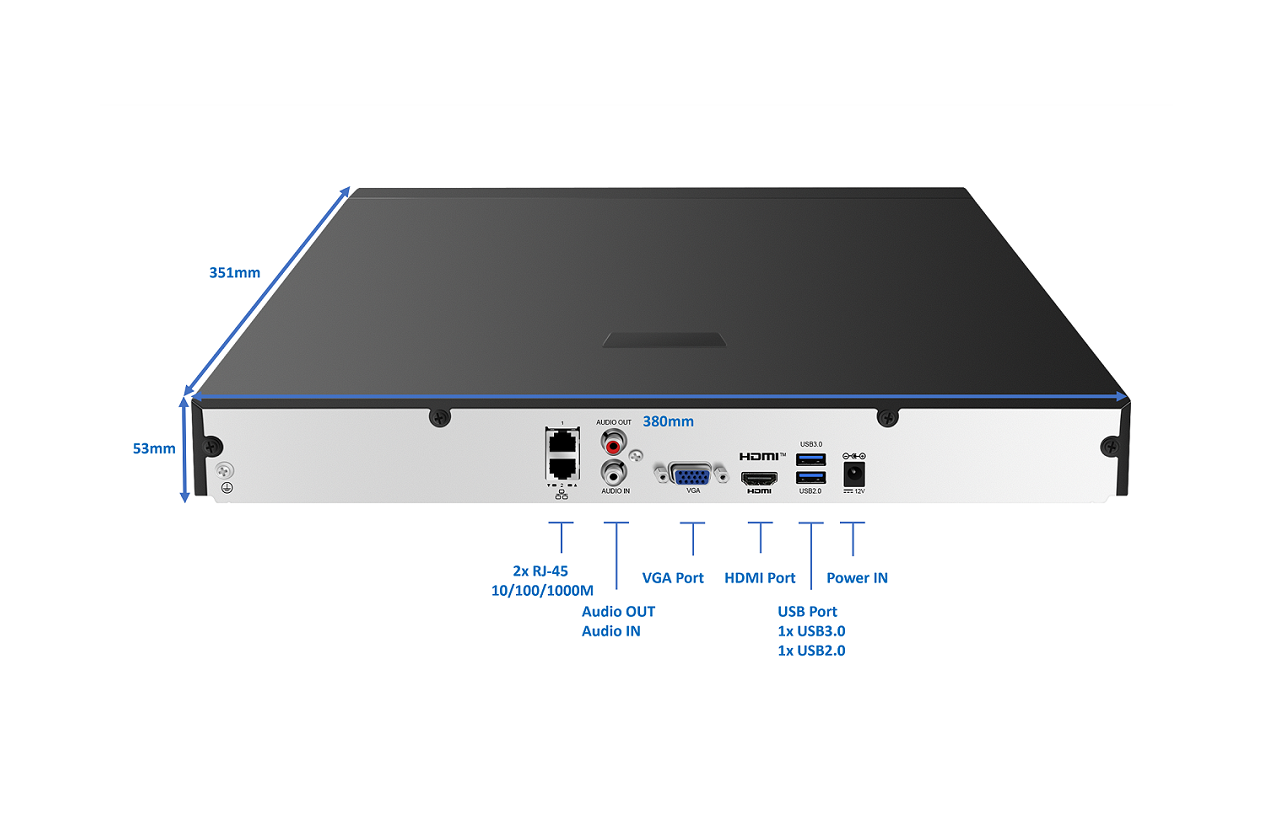

Device Interface | Network Interface: 2x RJ45 10M/100/1000M self-adaptive Ethernet Interface USB Interface: Rear panel: 1x USB3.0, 1x USB2.0, Front panel: 1x USB2.0 Hard Disk: 2x SATA interface Capacity up to 10TB Standard: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Video Input: 16 Incoming Bandwidth: 160Mbps Outgoing Bandwidth: 128Mbps Remote Users: 128 HDMI/VGA Output HDMI: 4K 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Recording Resolution: 12MP/8MP./6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Out: 1-ch, RCA Audio Compression:G.711A, G.711U Two-way Audio: 1-ch, RCA (Using the audio input and output) Synchronous Playback in Local: 16-ch Live view display: 1/4/6/8/9/16 Corridor Mode Screen: 3/4/5/7/9/10/12/16 Support: Mainstream Cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols Snapshot: FTP/Schedule/Event: 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
Decoding | Decoding format: H.265/H.264 Decoding Capability: Smart Off: 2 x 12MP@30FPS, 2 x 4K@30FPS, 4 x 4MP@30FPS, 10 x 1080P@30FPS, 16 x 720P@30FPS Smart On: 2 x 4K@30FPS , 4 x 4MP@30FPS, 8 x 1080P@30FPS, 16 x 720P@30FPS Decoding Capability Description: The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |

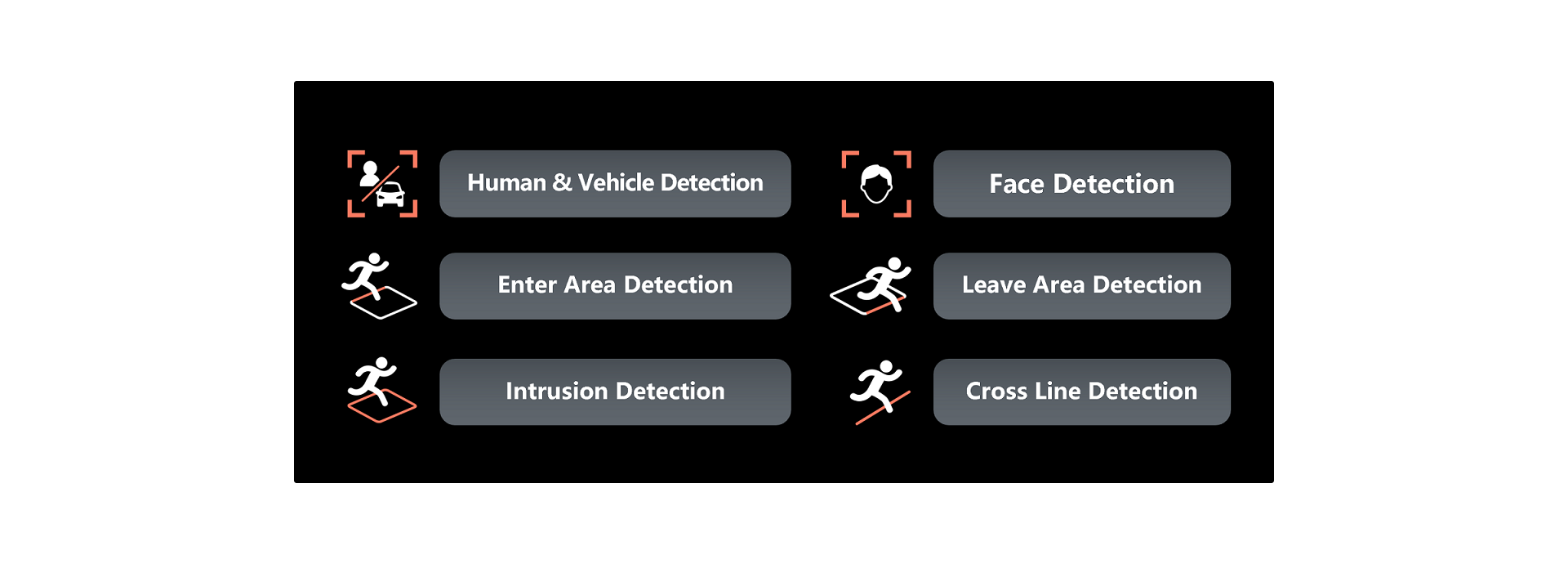

Smart (Function depends if supported by Camera) | VCA Detection by IPC: Face Detection, Face Comparison (Max 3000 faces), Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring Smart by NVR: Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) VCA Search: Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch Smart by IPC: All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection, SIP, UMD, Traffic Monitoring Vehicle Picture Library: Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total (Need LPR Camera for this function) SIP by NVR: 2-ch UMD by NVR: 4-ch |
General Alarm | General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
Multiple Language | 38 languages: Simplified/Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
APP and Software Control | |

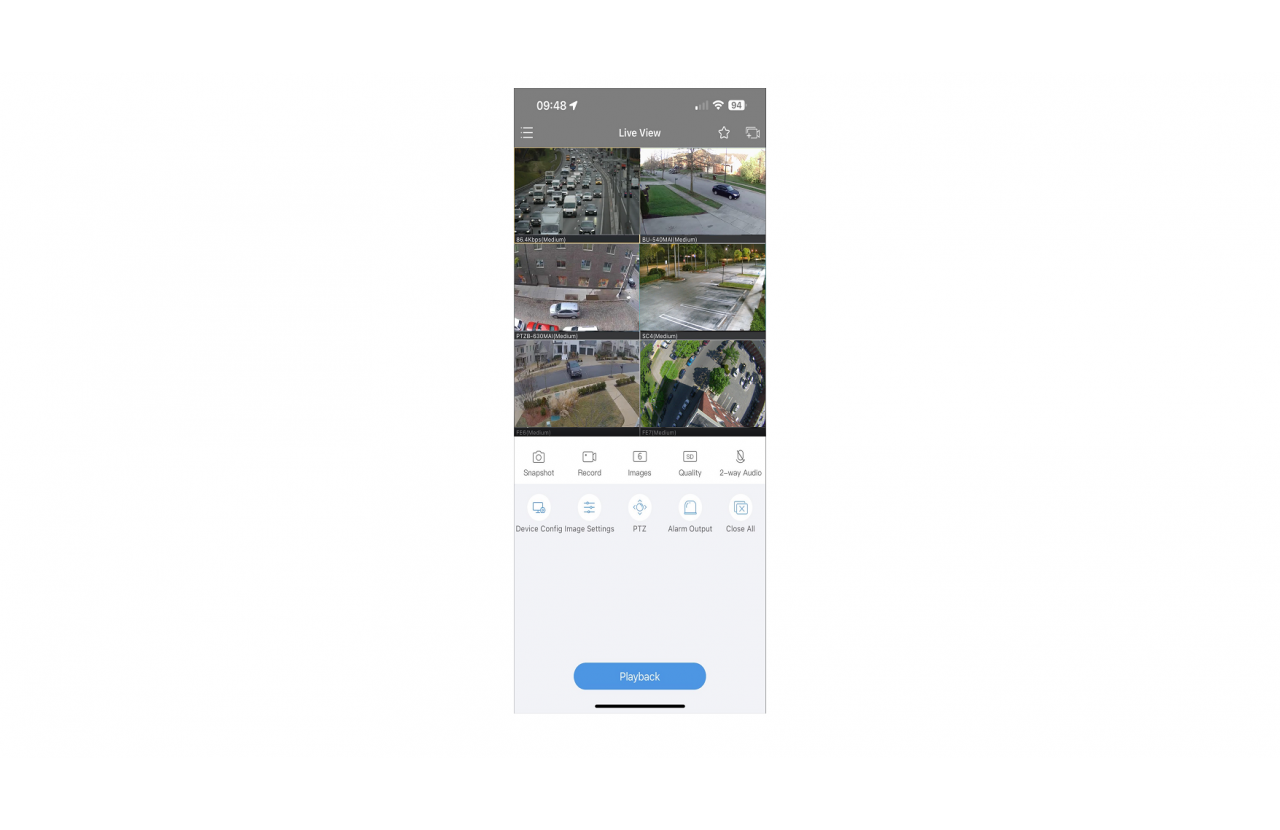

APP/Software | Windows: Web browser APP iOS/Android: Download “Guard Viewer” App from APP/Play Store |
Power Input | |
Power Input | Power Supply: 12V/3A DC Power Consumption: ≤12 W (without HDD) |
Environment | |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤ 90% RH (non-condensing) |

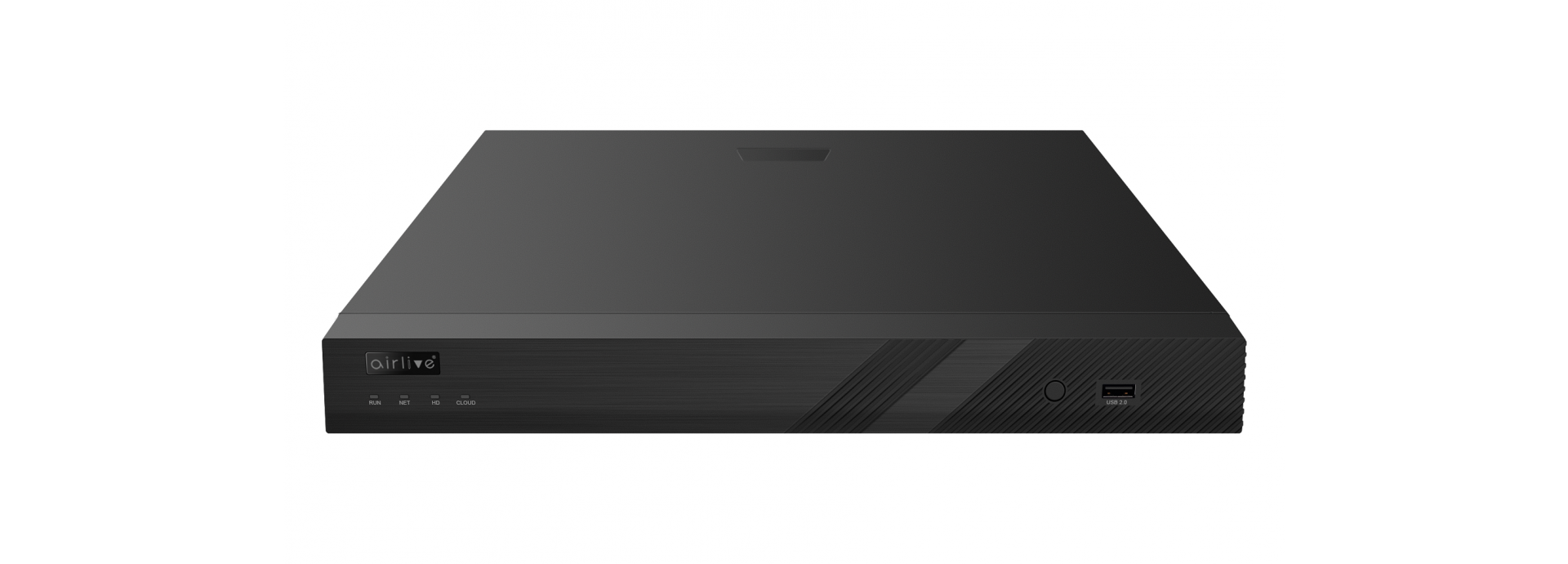

Model | ANVR16-2S AI 16-CH AI Network Video Recorder with HDMI |
Standard Package | |
Product Size | 38.0(L) x 31.5(W) x 5.3(H) cm |
Package size | 52.0(L) x 10.5(W) x 39.5(H) cm |
Package Weight | (without HDD): ≤2kg (4.4 lb) (G.W) |
Package Content | 1x ANVR16-2S AI, Power Adapter, Mouse, QIG |
Carton Package | |
Quantity | 5 PCS / 1 Carton |
Dimensions | 59.0(L) x 55.0(W) x 44.5(H) cm |
Weight | 13.7kg (G.W) |
Name | Description | Download | Date |
AirLive ANVR16-2S AI Spec Sheet | 2025/08/12 |
