GPON OLT-121: 1 PON Port GPON OLT with 10G SFP+

Overview
Overview


Revolutionize Your Network with AirLive GPON OLT-121 Built-in GPON module for lightning-fast speeds, enhanced reliability, and streamlined network management. Benefits for Your Business Plug and play, Built-in GPON Transmitter. Ease of Installation, Designed with simplicity in mind, the GPON OLT-121 can be set up quickly, reducing downtime and operational costs. Interoperability: Complies with ITU-T G.984/G.988 standards, ensuring compatibility with other GPON-compliant equipment. Cost-Effective: A cost-efficient solution that offers flexibility for network deployment without compromising on quality or performance. The AirLive GPON OLT-121 is not just a product; it's a promise of reliability, efficiency, and high performance for your network. Embrace the future of connectivity and give your customers the experience they deserve. The GPON OLT-121 can manage up to 128 ONU devices in a fiber broadband network. Its ease of installation and maintenance make it an attractive option for small to medium-sized deployments. The GPON OLT-121 is designed for use in FTTH (Fiber-to-the-Home) and small business applications with its single PON port with a splitting ratio of 1:128. It can transmit data up to a distance of 20KM and has high uplink and downlink bandwidth capabilities of 1.25Gbps/2.5Gbps. It also includes a 10G SFP+ Uplink port.

Highlight Feature
Highlight Feature
Features
  • Built-in PON optic module

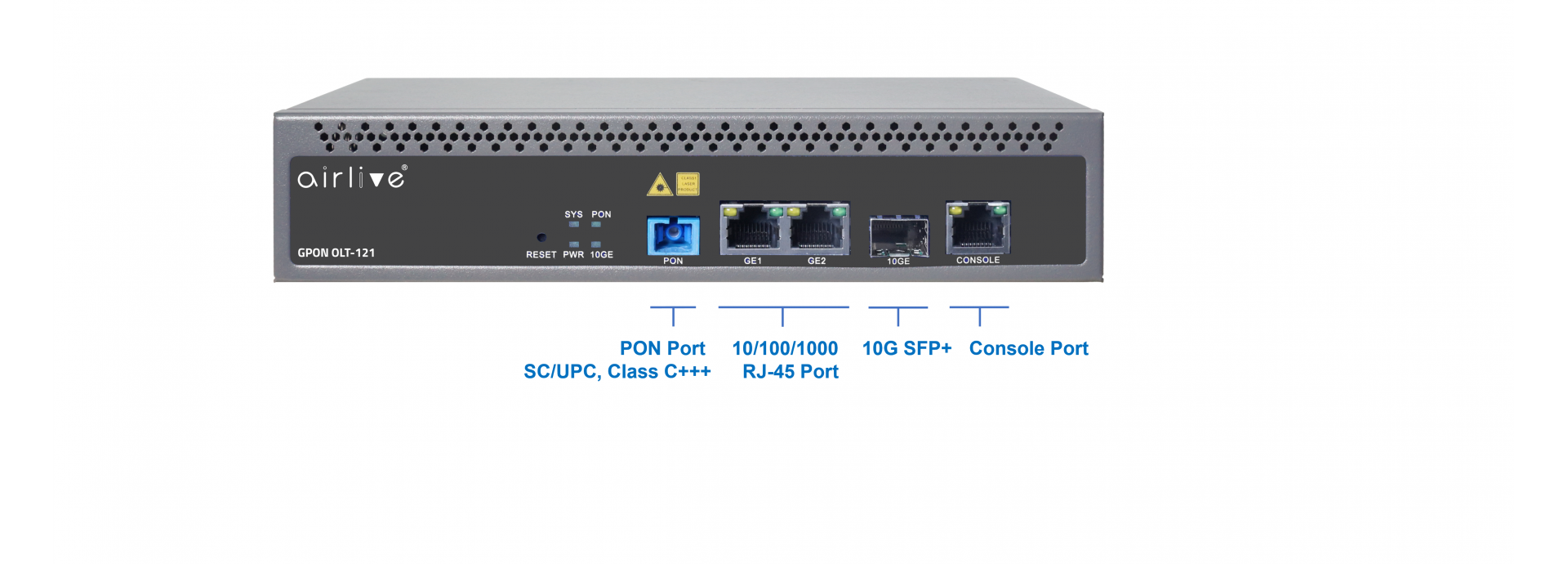

  • 1 PON ports, 1*SFP/SFP+ 10G, 2*RJ45 1G
FTTX Application
FTTX Application

GPON OLT-121 offers a complete, end-to-end network infrastructure application products for FTTX networks. From the CO to the customer premises, regional carriers, independent operators, municipalities, Multiple System Operators (MSOs), utilities, and developers worldwide have tapped the experience and innovation to build their FTTX networks.

High-speed and Long-distance Coverage for Triple Play Services
High-speed and Long-distance Coverage for Triple Play Services

The GPON OLT-121 offers a robust solution for providing high-speed and long-distance coverage in triple play service applications such as HDTV, IPTV, voice-over-IP (VoIP), and multimedia. It supports downstream bandwidths of up to 2.5Gbps and upstream bandwidths of 1.25Gbps, enabling fast and reliable data transmission. Capable of transmitting data up to a distance of 20KM, it's perfect for expansive network deployments. Scalable Network Management: Manage up to 128 ONU devices with ease, making it an ideal solution for growing network infrastructures. Its reliable and scalable network ensures a seamless and efficient experience for users. Future-Proof Technology: Equipped with a 10G SFP+ uplink, the device is ready to handle the increasing demands of next-generation network applications.

Hardware
ModelAirLive GPON OLT-121
Device Interface•PON Port: 1x 1.25Gbps/2.5Gbps
•Uplink: 2x 1G RJ45
•Uplink: 1x 10G SFP+
•Console: 1 x USB-COM Type C port
•Fiber Type: 9/125μm SM
•Connector: SC/UPC, Class C+++
Class C+++ : TX>7.5dBm, Sen:  -33dBm
•Support ONUs:128
•GPON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps
•Wavelength: TX 1490nm, RX 1310nm
•Max splitting ratio: 1:128
•Transmission Distance: 20KM
•Backplane Bandwidth: 16Gbps
•Port Forwarding Rate: 23.808Mpps
•Management Mode: Console/WEB/Telnet/CLI/SNMP
•Lightning protection level: Power supply 4KV/Device Interface 1KV
Firmware features
Management FunctionTelnet ,CLI, WEB, SNMP
Port Status monitoring and configuration  management
Online ONU configuration and management
User management
Alarm management
Layer2 Switch1K Mac address
Support 4096 VLANs
Support port VLAN
Support VLAN tag/Un-tag, VLAN transparent transmission
Support VLAN translation, QinQ and P2P
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Access control list
IEEE802.x flow control
Port stability statistic and monitoring
MulticastIGMP Snooping
256 IP Multicast Groups
DHCPSupport DHCP server, DHCP relay, DHCP snooping
Support DHCP option82
Support DHCPv6 server,DHCPv6 relay
Layer 3 RouteSupport dynamic/static ARP
Support WAN (DHCP/PPPOE/Statics)
Support static routing, NAT, DMZ
Support QoS based on DSCP, MAC, IP, L4 port, protocol, etc.
Support ACL based on source MAC address, source IP address, source L4 port,
destination IP address, destination L4 port, protocol type, etc.
IPv6Support IPv6 Ping, IPv6 Telnet, IPv6 routing
Support ACL based on source MAC address, source IPv6 address, source L4 port,
destination IPv6 address, destination L4 port, protocol type, etc
Support IPv6 SLAAC
Support MLD v1/v2 snooping (Multicast Listener Discovery snooping)
PON FunctionTcont DBA
Gemport traffic
In compliant with ITU-T984.x standard
Up to 20KM transmission Distance
Support data encryption, multi-cast, port VLAN, separation, etc
Support ONT auto-discovery/link detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Power Consumption
Power•  DC 12V/2.5A (Optional)
•  AC 100~240V, 50/60Hz (Default)
Environment
Working Temperature-20°C to +60°C
Storage Temperature-40°C to +70°C
Relative Humidity5%~95%, non-condensing
FAN1x Built in FAN



Ordering Information

ModelGPON OLT-121
AirLive GPON OLT-121 1 PON Port GPON OLT  with 10G SFP+
Standard Package
Product Size21.0(L) x 17.3(W) x 4.36(H) cm
Package Size35.0(L) x 26.0(W) x 7.0(H) cm
Package WeightN.W: 1.282kg
G.W: 1.667kg
Package Content1 x Device, 1 x Power Cable
Carton Package
Quantity PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
Weight kg
QIG
NameDescriptionDownloadDate
GPON OLT-121 QIG v2
AirLive GPON OLT-121 with USB-C Console Port.
2024/07/04
GPON OLT-121 QIG
AirLive GPON OLT-121 with RJ-45 Console Port.
2023/08/17
User Guide
NameDescriptionDownloadDate
GPON OLT-121 CLI User Guide
2024/09/04
GPON OLT-121 User Guide
2023/08/22
Spec Sheet
NameDescriptionDownloadDate
GPON OLT-121 Spec Sheet
2024/07/03
CE
NameDescriptionDownloadDate
GPON OLT-121 CE
2023/08/08
Firmware & Software
NameDescriptionDownloadDate
GPON OLT-121 Firmware V1.1.1
Version V1.1.1.20240514
Add Layer 3 functions
2024/07/16
GPON OLT-121 Firmware V1.0.8
Version V1.0.8.20230728
2024/01/10
How to setup AirLive GPON OLT-121 & XPON 2.5GE and 1GE ONU Route
Please click the PDF file.

Download
How to setup AirLive GPON OLT-121 with fw 1.1.1 or higher & XPON 2.5GE and 1GE ONU Route
Only use this version when your OLT-121 has FW 1.1.1 or higher.
Please click the PDF file.

Download
How to setup AirLive GPON OLT-121 & XPON 2.5GE and 1GE ONU Bridge
Please click the PDF file.

Download
How to setup AirLive GPON OLT-121 & XPON 2.5GE and 1GE ONU with PortVlan.
Please click the PDF file.

Download
Adding a new ONU with fw 1.1.1 or higher.
Adding a new ONU with fw 1.1.1 or higher. By default the ONU AutoLearn function is enabled.
If you prefer to manually add new ONU's via the ONU AutoFind function then Disable the ONU AutoLearn.

Please click the PDF file.

Download
Why do i get an error message when uploading a config file.
Please do not use a space in the name of the saved configuration file.
File names with a space in them will not be able to be uploaded back to the OLT.
How do i connect to the Console Port of the AirLive GPON OLT-121.
Please click the PDF file.

Download
How do i connect to the USB-C Console Port of the AirLive GPON OLT-121.
Please click the PDF file.

Download
AirLive GPON OLT-121 Front Panel Lights Information.
Please click the PDF file.

Download
