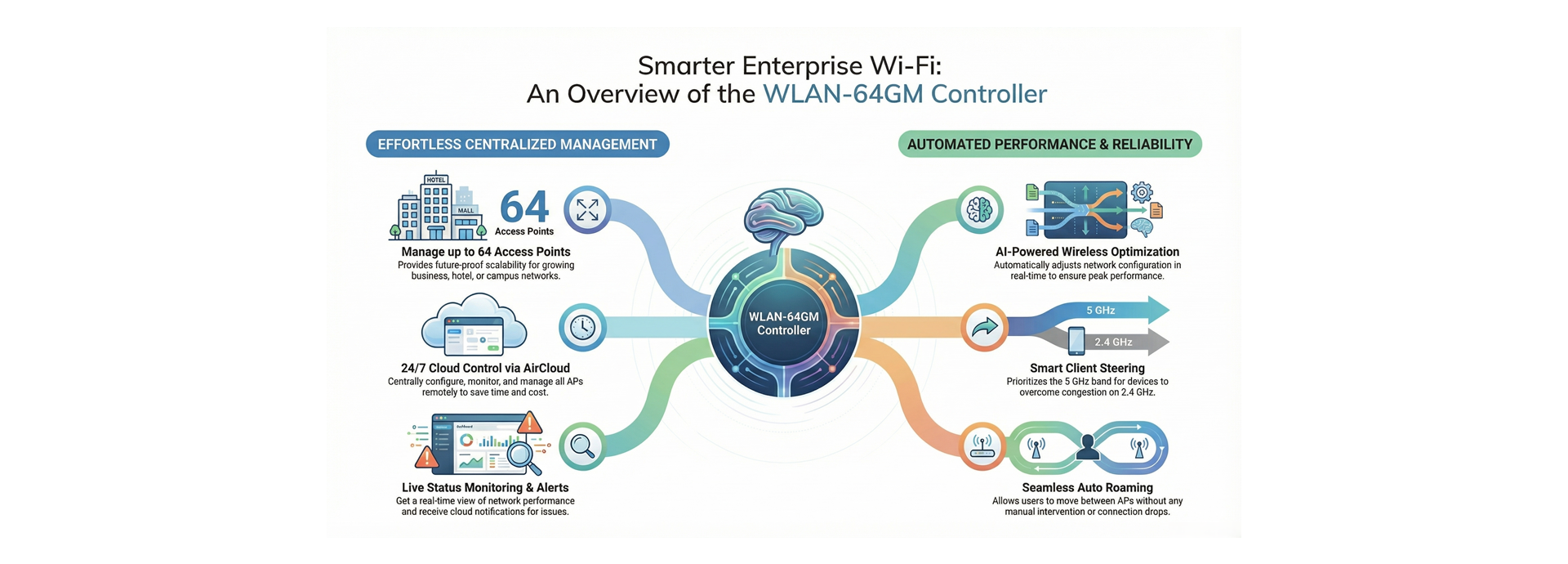

WLAN-64GM: Enterprise Wireless Controller & Gateway

WLAN64GM service 24/7 365 Management via the AirCloud
WLAN64GM service 24/7 365 Management via the AirCloud
You can centrally set up, configure, monitor, and manage certain Airlive devices around the clock, every day of the year, using cloud-based remote network management. This unified remote management solution helps cut costs and save time. Airlive offers an full range of access points, in-wall APs, outdoor CPEs, and mobile hotspots through AirCloud, providing a comprehensive network ecosystem.
Centralized Wireless AP/Lan Management
Centralized Wireless AP/Lan Management
The WLAN-64GM is designed to provide resellers and enterprises with a solution that functions as an access point planning, deployment, monitoring and maintenance solution by offering management, authentication and guest access within an aligned device. Consistent to provide high efficiency and professional network connectivity for hotels, businesses, internet bars, shopping malls. In addition, it can quickly and stably manage the hotspot centrally and remotely, provide full solution wireless coverage, convenient and practical.
Highlight Feature

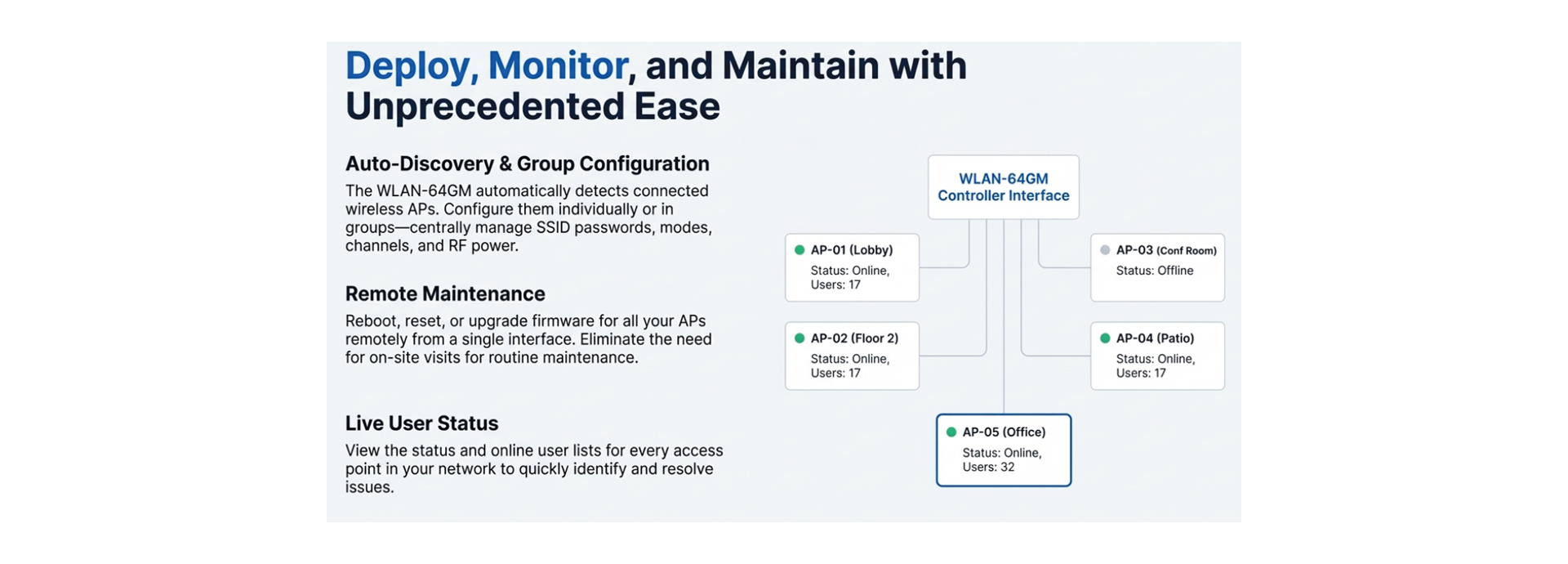

AP L2/L3 ManagementGroup or Single Configure: WLAN-64GM auto detect the wireless AP, support group or single configuration, central to manage the SSID password, mode, channel, RF power, coverage threshold; Then reboot, reset or upgrade firmware remotely to complete the maintenance.

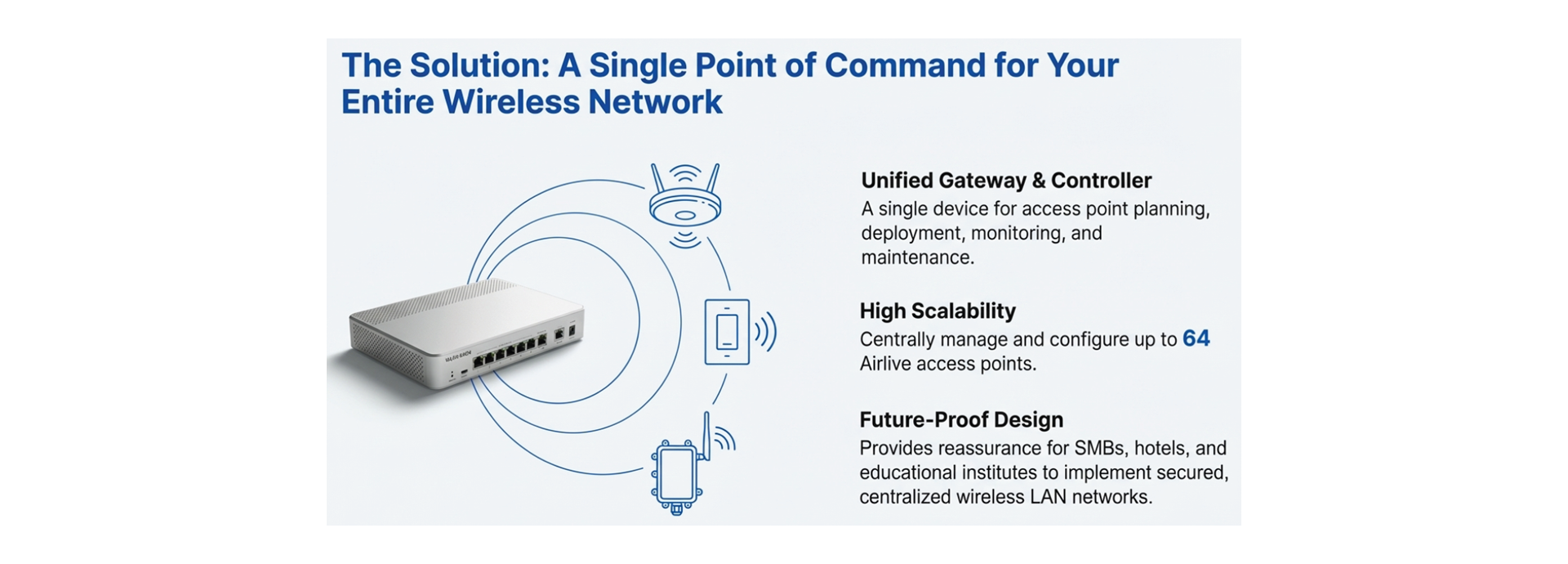

High Scalability
The WLAN-64GM supports the management of the access points to provide complete wireless LAN functions for the business. As standard the WLAN64GM support provides scalability to the maximum supported total up to 64 APs. WLAN-64GM principle provides reassurance and future proofing for SMBs, hotels and educational institutes to implement secured, centralized wireless LAN networks.
Highlight Feature

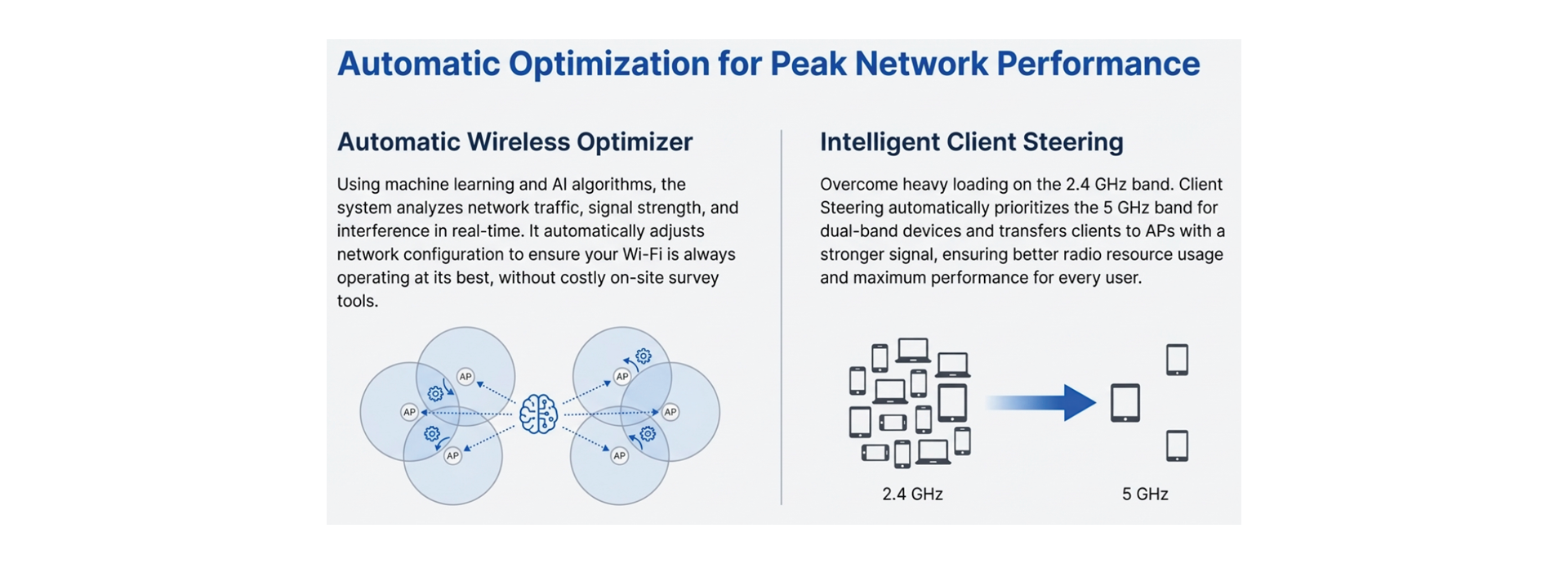

Automatic Wireless Optimizer
The WLAN-64GM supports Wireless Optimizer to simplify planning, deployment and management of business WiFi without costly on-site survey tools and additional sensors or location servers.
Client Steering
Client Steering sets 5 GHz as priority for dual-band devices to overcome heavy loading on 2.4 GHz, while client signal threshold transfer devices to APs with stronger signal. With these two functions, the WLAN-64GM ensures better radio resource usage to provide max wireless network performance for users.

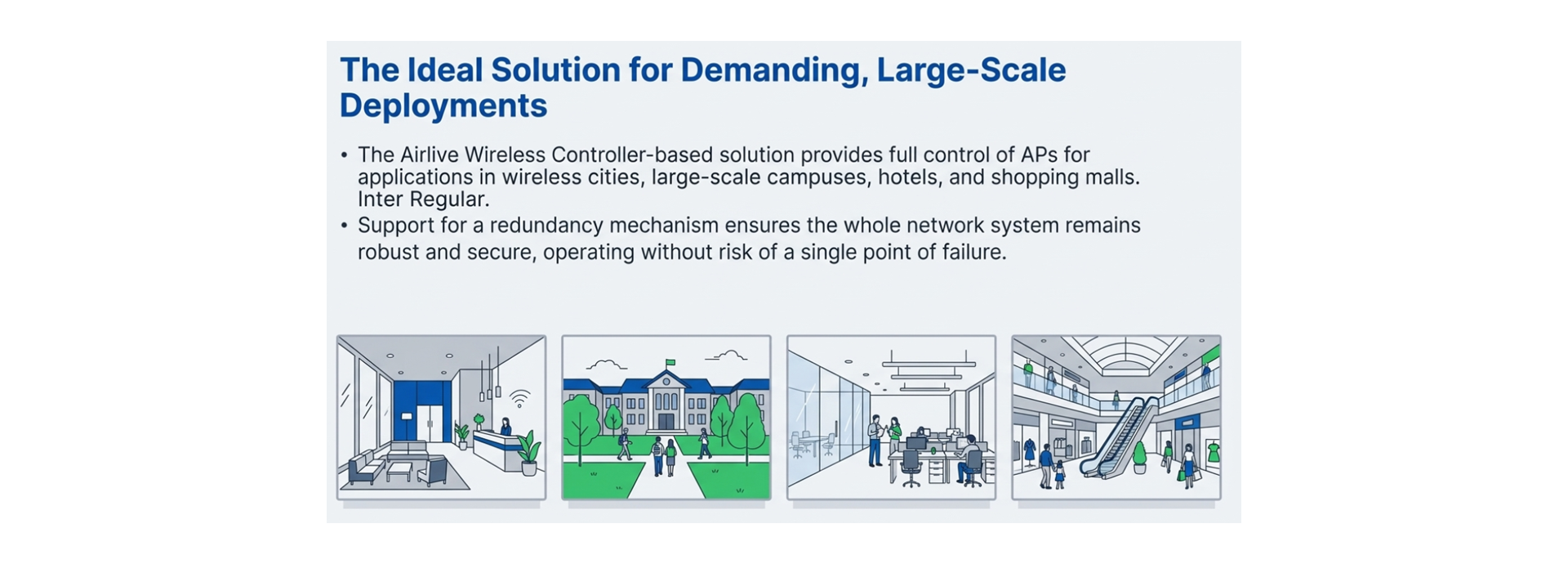

Large Scale deployment of Campus Application
Large Scale deployment of Campus Application
Airlive Wireless Controller-based Solution can provide full control of aps, the Wireless Access Controllers and indoor 11ac/ax dual band Access Point. The solution can be applied for wireless city, large scale campus, hotel & shopping mall. Through Airlive Wireless Controller, can manage all Access Point easily. Also, with Airlive Cloud Service, Access Controllers can manage Access Point independently. Besides, Airlive Wireless Controller also support redundancy mechanism make whole networks system always keep robust & secure environment without any risks.
Wireless optimization
Wireless optimization
WLAN-64GM Automatic wireless optimization refers to the use of software tools and algorithms that automatically adjust and optimize the configuration of a wireless network. The goal of automatic wireless optimization is to simplify the process of optimizing a wireless network, and to ensure that the network is always operating at peak performance.

Automatic wireless optimization typically uses machine learning and artificial intelligence algorithms to analyze the performance of the network in real-time and make adjustments to its configuration as needed. The software can take into account various factors such as network traffic, signal strength, interference levels, and the presence of new devices or access points, in order to make decisions about how to optimize the network.

By automating the optimization process, automatic wireless optimization can help to ensure that a wireless network is always operating at peak performance, without the need for manual intervention. This can improve the user experience and increase productivity, particularly in large, complex networks with many devices and access points.

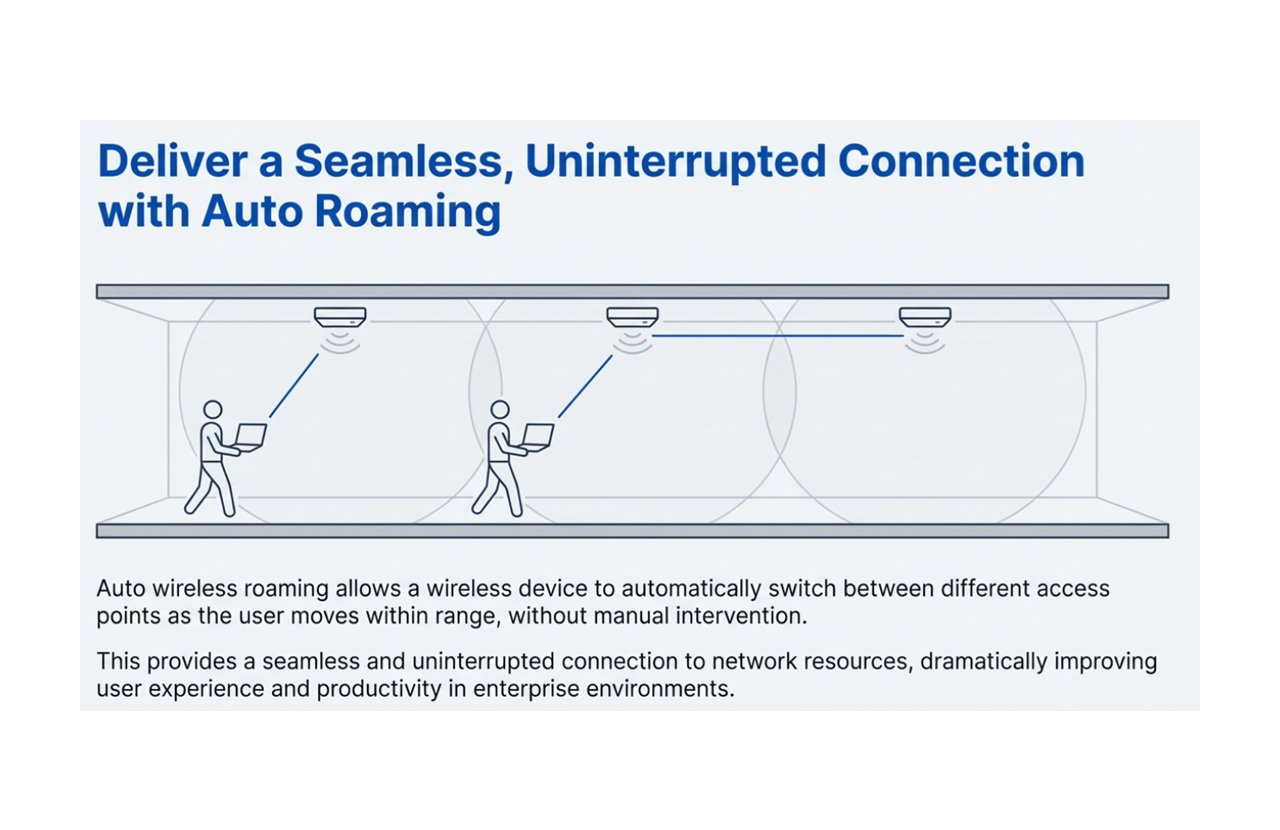

Auto Wireless Roaming
Auto Wireless Roaming
Auto wireless roaming refers to the ability of a wireless device to automatically switch between different access points or wireless networks as the device moves within range, without manual intervention. This allows the device to maintain a seamless and uninterrupted connection to the internet or other network resources, improving user experience and productivity. Auto wireless roaming is commonly used in Wi-Fi networks, particularly in enterprise environments.

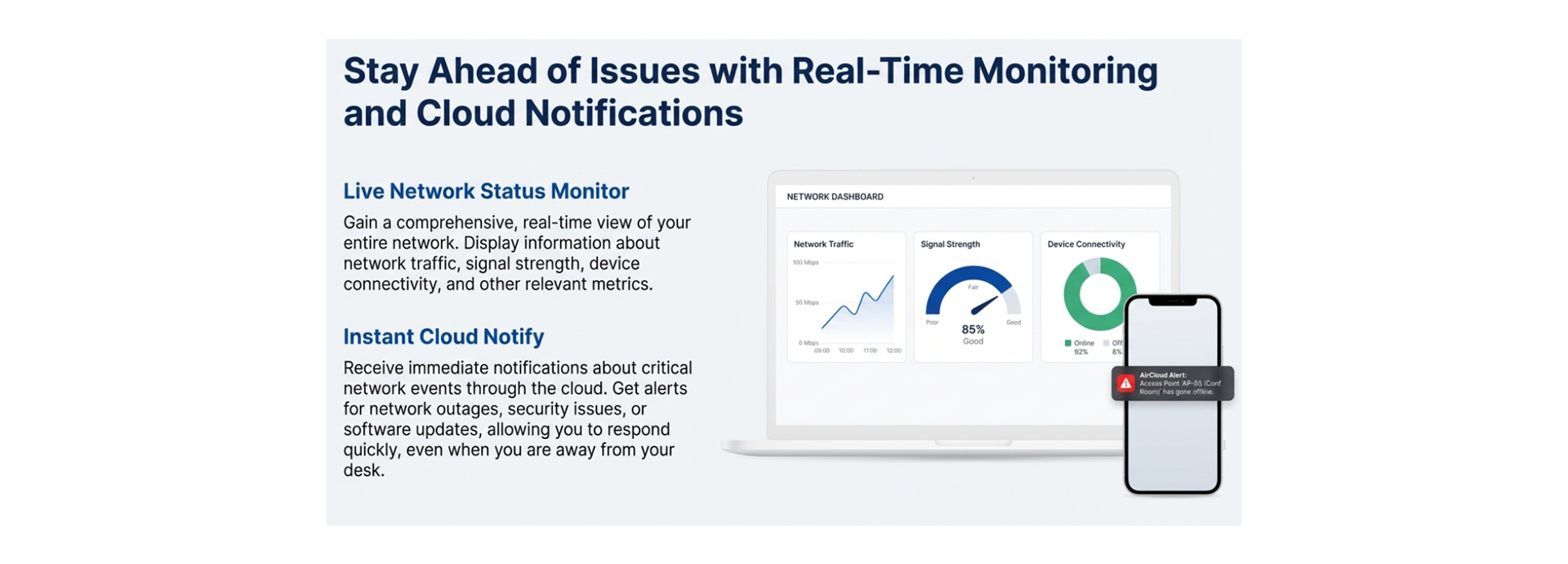

Live Network Status Monitor and Cloud Notify
Live Network Status Monitor and Cloud Notify
A Live Network Status Monitor is a tool that provides real-time monitoring and analysis of the performance of a network. It can display information about network traffic, signal strength, device connectivity, and other relevant metrics, and provide alerts when there are issues that need attention.

Cloud Notify refers to a feature that allows network administrators to receive notifications about network events and issues through a cloud-based service. This can include alerts about network outages, security breaches, and other issues, as well as updates about software upgrades and other important events.

When combing, a Live Network Status Monitor with the Cloud Notify it can provide a comprehensive view of the performance of a network. And allow network administrators to quickly respond to any issues that may arise. By using cloud-based notifications, administrators can stay informed about network events even when they are away from their desks. and take action to resolve issues as needed. This can help to improve the reliability and performance of a network and ensure that users are able to access the resources they need when they need them.
Hardware
ModelWLAN-64GM
Device Interface•Main Chip: MTK MT7621
•Flash:16MB
•SSD:256MB
•Ethernet (LAN): 4 x RJ45 10/100/1000mbps
•WAN: 1x RJ-45 10/100/1000mbps
•Network Protocol: IEEE 802.3, 802.3u, 802.3ab, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP, CAPWAP Protocol
•Heat Dissipate: Super silent ball fan
•Power Input: 1 x 12VDC
•Power:AC:100-240V,50HZ
WANPPPoE, DHCP, Static IP, by Pass mode
Firmware featuresAP Management:
Max to manage 64 PCS wireless AP
Centrally and remotely to manage/configure wireless AP
AP Template deploy
View user’s status
Wireless Country Code
Reboot/Reset
Web Password
Delete AP
Online User List
AP Configure
AP Template:
Device Add
Device Configure
Wireless Device
Wireless Frequency: 2.4G/5.8G
Encryption
VLAN ID
Virtual AP1~4
Country Code
Max Station
User Isolation
Short GI
Beacon Interval
Coverage Threshold
Fragment Threshold
RTS Threshold
Reboot Regularly
Device Web Password
Device UpgradeOnline upgrade
Local Upgrade
Firmware Upgrade
Device ServiceAC Enable\Disable
DHCP Enable\Disable
Server IP Address
Address Count
Lease Time
Allocated IP
IP List
Static Binding
IPTV SettingEnable IPTV mode
IPTV tags
Topology Graph
Device Auto RoamingAuto Roaming
5G priority
NetworkLan Setting
IP Address
Subnet
DHCP Service
Start/End IP
Primary/Secondary DNS
DHCP Lease Time
DHCP Allocation Number
WAN SettingInternet Access: DHCP/Static IP/PPPoE/ByPass
MTU
Line Detection
CloudCloud Enable/Disable
Cloud Server
Latitude/Longitude
Binding State
User Speed LimitOne Key Enable/Disabled
IP Group
Time Group
Up/Down
Remake

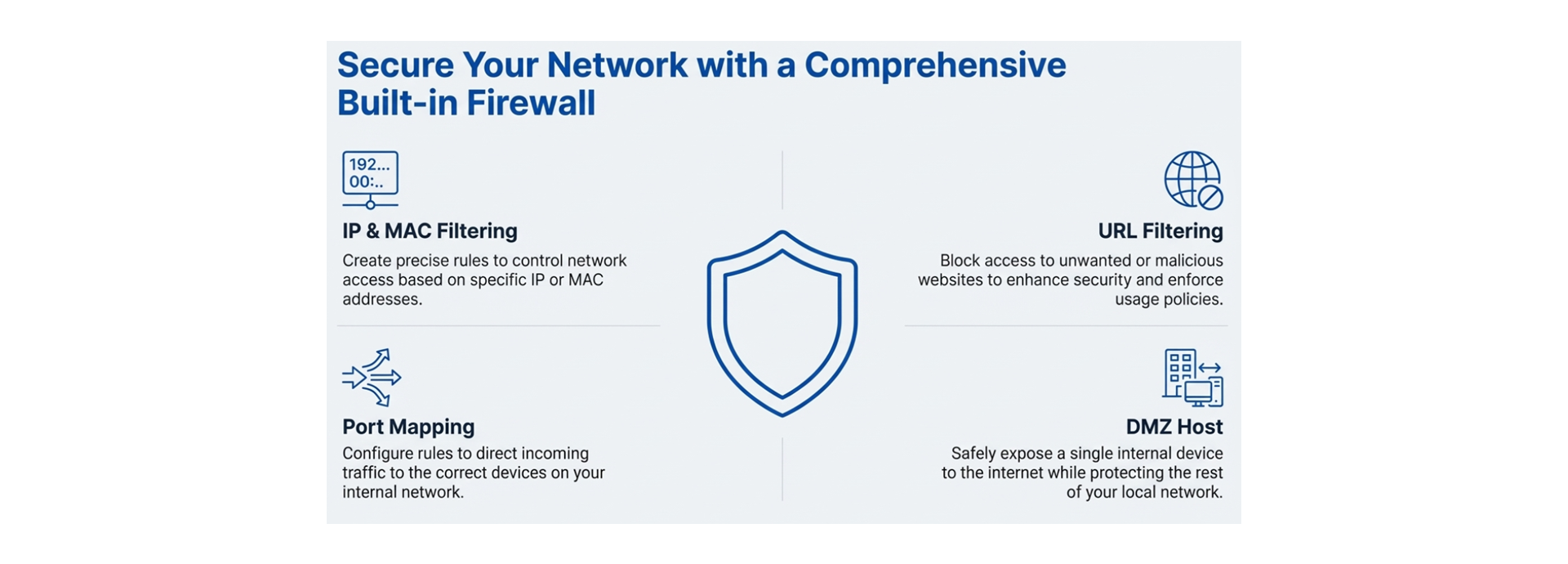

FirewallIP Filter
Rule Name
Protocol
TCP/UDP
IP Address
Search
External Port
Internal Port
MAC Filter
Name
Time Group
Mac Address
Search Mac Address
URL Filter
Name
Time Group
URL Address
Port Map
Name
Protocol
TCP/UDP
IP Address
Search
External/Internal Port
DMZ Host
DMZ IP Address
Search
SystemSystem Time
Current version
Upgrade Type
Online Upgrade
Local Upgrade
Upgrade Time
Restore Default Configure
Upgrade
MaintainRemote Login
Remote Telnet
Reboot Regularly
DHCP Conflict Detection
Capture packet
Network
Protocol
Source Address
Target Address
Target Port
Number
Ping
Environment
Operating Temperature-20°C to +55°C
Storage Temperature-40°C to +70°C
Working Humidity5%~97%RH (No condensation)



Ordering Information

ModelWLAN-64GM
Enterprise Gateway & Wireless Controller
Standard Package
Product Size27.78(L) x 18(W) x 3.37(H) cm
Package Size50(L) x 28.5(W) x 8(H) cm
Package WeightN.W: TBC KGS
G.W: TBC KGS
Package Content
Carton Package
Quantity10 PCS / 1 Carton
Dimensions54.5(L) x 32.5(W) x 23.5(H) cm
Weight10KGS
QIG
NameDescriptionDownloadDate
WLAN-64GM QIG
2023/03/30
User Guide
NameDescriptionDownloadDate
WLAN-64GM User Guide
2023/03/21
Spec Sheet
NameDescriptionDownloadDate
WLAN-64GM Spec Sheet
2023/03/09
CE
NameDescriptionDownloadDate
WLAN-128GM and WLAN-64GM CE
2023/04/19
