POE-GSH800-120-BT: 8-port Gigabit POE Switch, 802.3at/bt, 120W

ADD INQUIRY
802.3af/at/bt PoE+ Gigabit Switch, with Port#1~2 Hi PoE 60W
802.3af/at/bt PoE+ Gigabit Switch, with Port#1~2 Hi PoE 60W
AirLive POE-GSH800-120-BT High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 60W power output per port(Port#1~2). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application.

Stable and Reliable Power Supply
High-power (60 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.
8-Port Gigabit PoE+ Switch with VLAN
8-Port Gigabit PoE+ Switch with VLAN

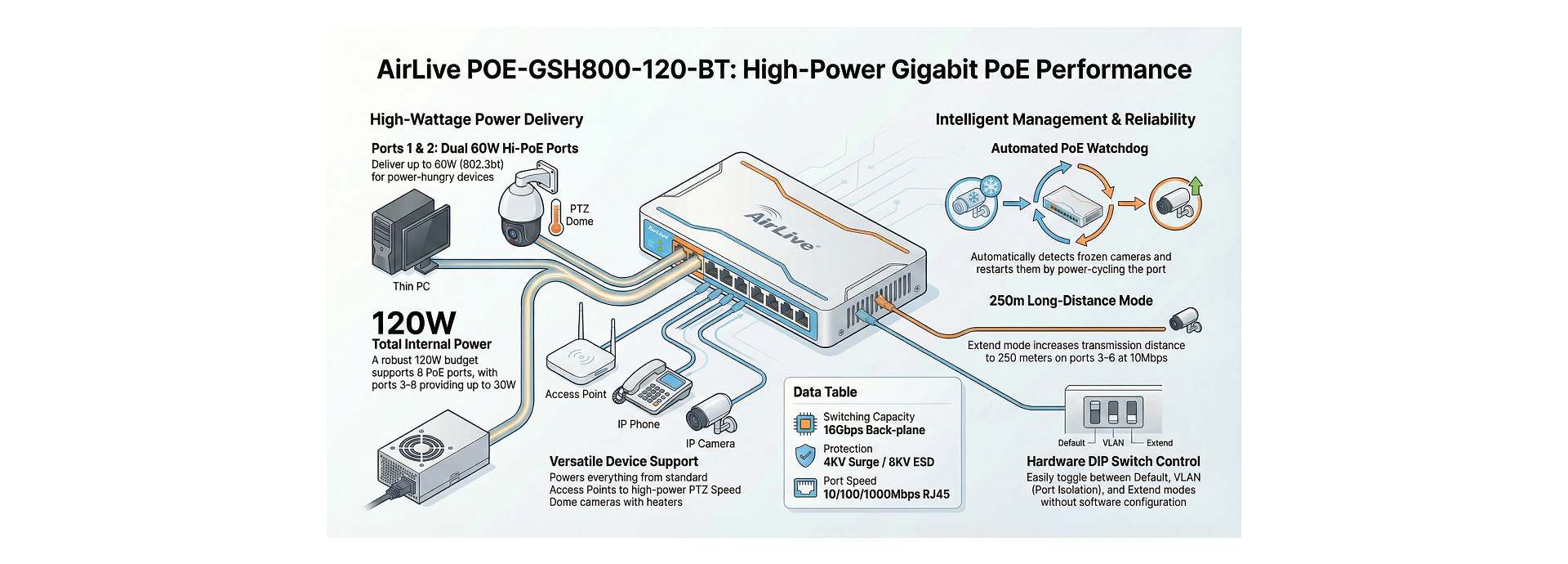

The AirLive POE-GSH800-120-BT switch is a plug and play unmanaged PoE switch with VLAN and 250meter cabling extension, that you can set easily by its DIP switch. When either the VLAN mode or Extend mode is enabled the PoE Watchdog function will also be active.
Features

  • All 8-port, each port delivers Gigabit high speed
  • 8 x PoE port (up to 30W, Port #1~2 up to 60W)
  • PoE power, supports 802.3at/802.3bt PoE+ / PoE++
  • Internal Power 120W

  • VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
  • Setting by hardware DIP switch
  • Surge Protection; ESD Protection
  • PoE Watchdog in VLAN and Extend mode.

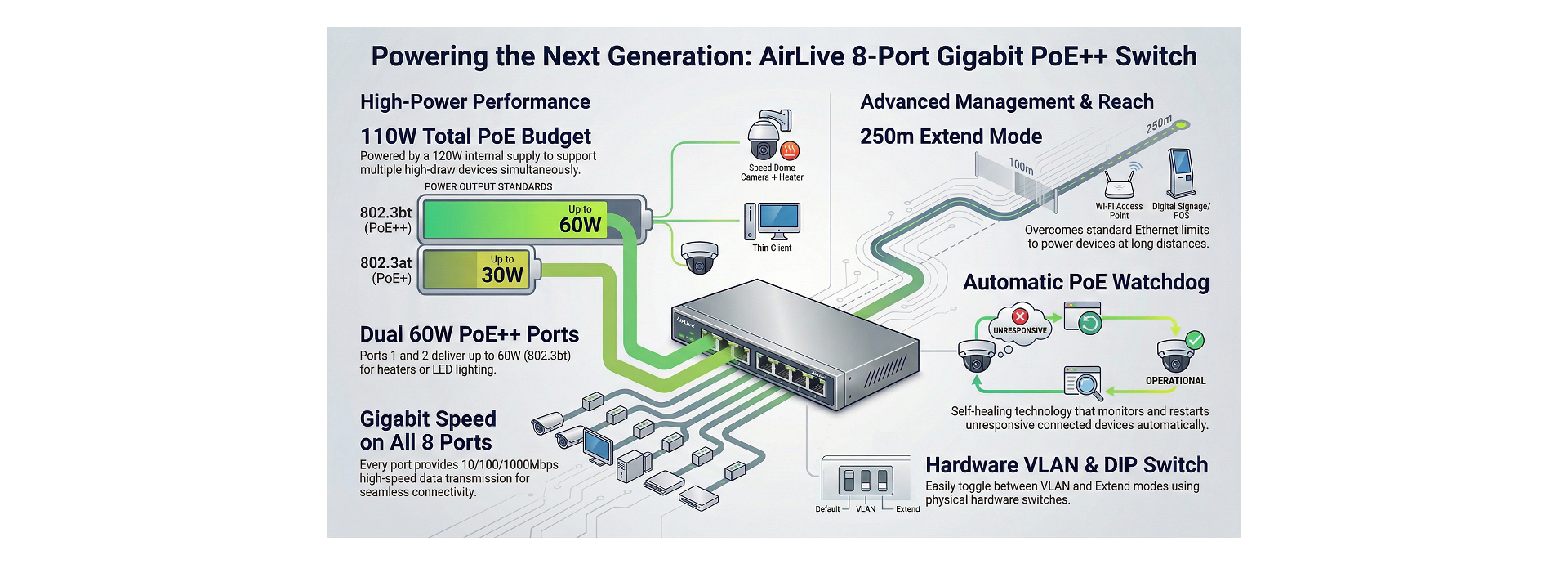

Efficient PoE technology BT Hi Power and AT PoE.
Efficient PoE technology BT Hi Power and AT PoE.
Connect several PoE devices to the switch, Port 1 and 2 of the switch can power devices up to 60W.
60W can be used by high power IP camera or by PoE Led, thin clients. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W. Other devices like Access Points or normal IP cameras can connect to any of the PoE ports on the switch and by power on up to max 30W (at).
Efficient PoE Watch dog technology
Efficient PoE Watch dog technology

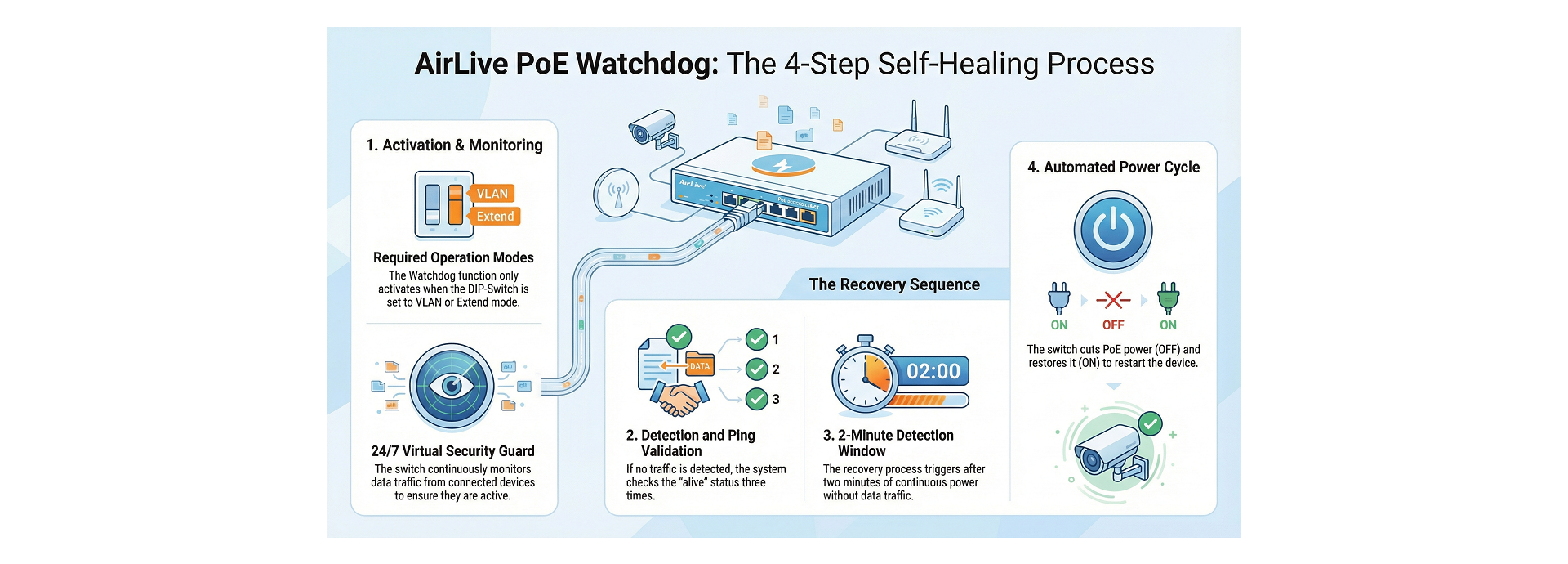

The Switch POE-GSH800-120-BT supports PoE Watchdog when the Dip-Switch switches to either VLAN mode or Extend mode. After PoE Watchdog function enabled, the POE-GSH800-120-BT switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on.

The PoE watchdog is particularly useful for cameras. For example, when the switch is turned on, it will recognize the front camera 24 hours a day, 7 days a week. If there is no data traffic from the camera, the camera is considered to be frozen, and the PoE Watchdog is used to restart the front camera to solve the problem.
*Note: Function available in VLAN or Extend Mode.
VLAN and Extend Mode
VLAN and Extend Mode

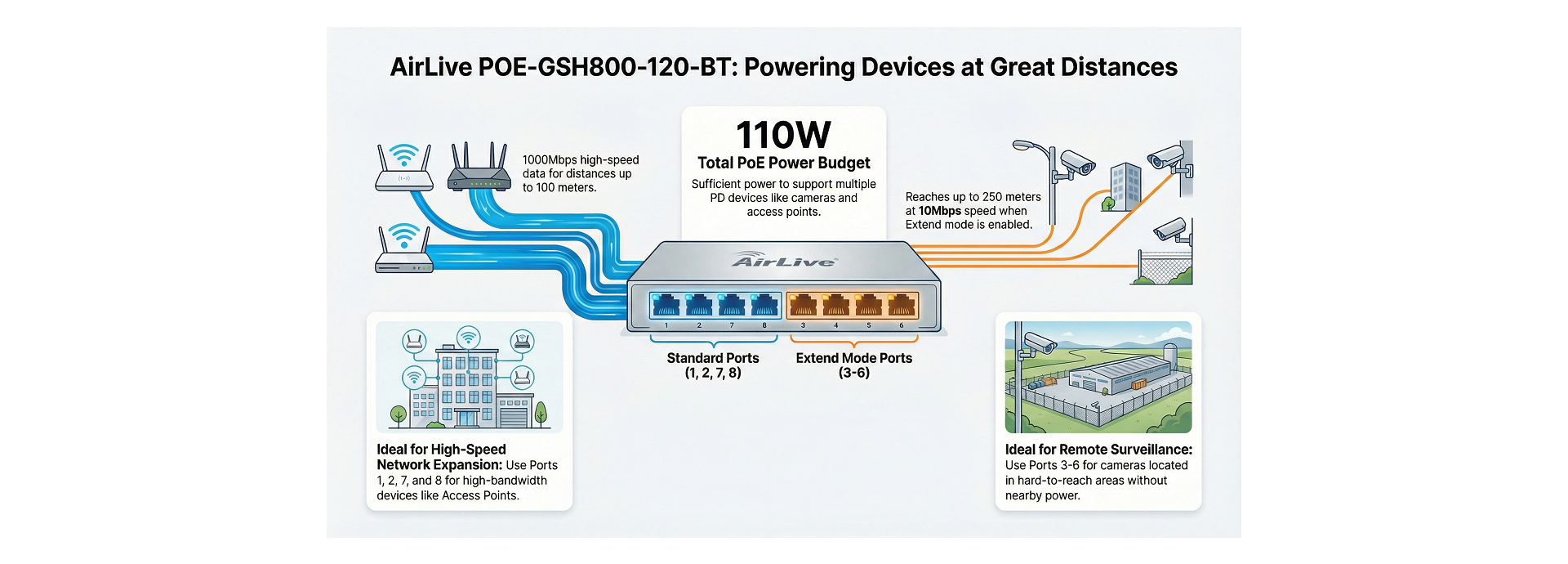

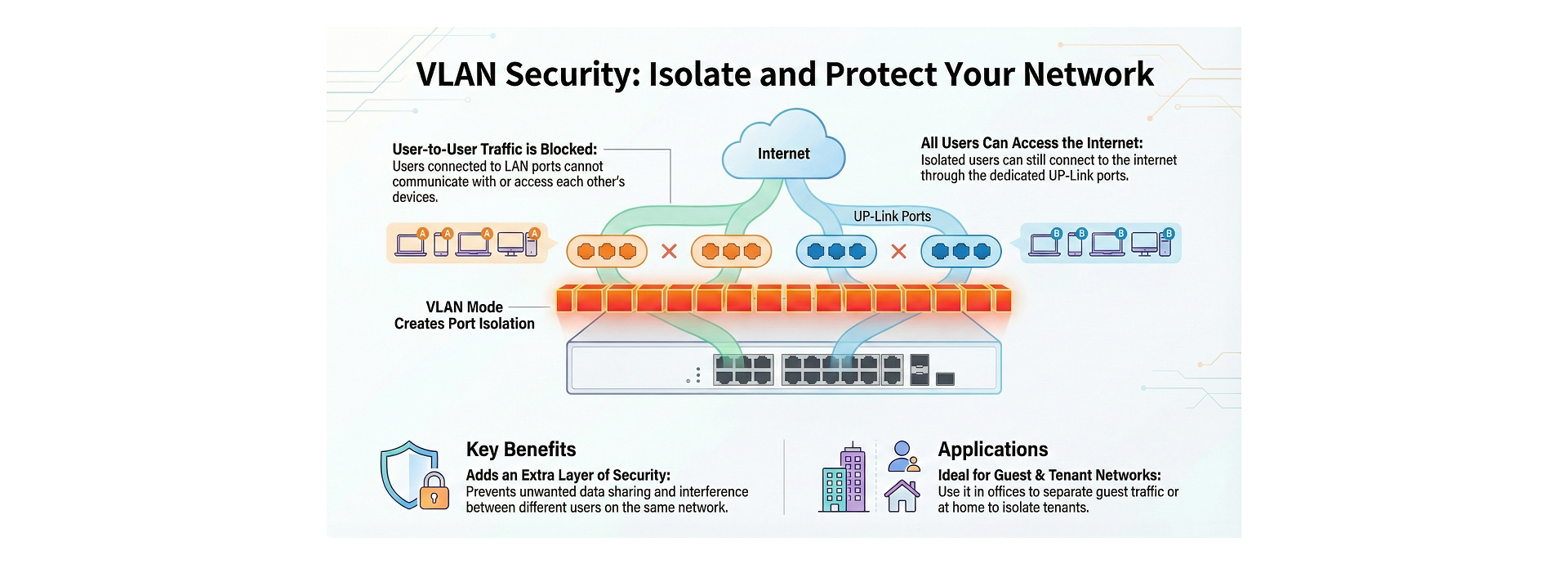

The POE-GSH800-120-BT switch can be set in Extend mode to reach a distance of up to 250m (limited to 10Mbps), this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 3~6 on the switch and when enabled the transmission rate will be 10Mbps. VLAN mode: When the Port Isolation mode is enabled the PoE ports (1~6) cannot communicate with each other and can only communicate with the UP-Link port 7/8.
ENABLING NEW APPLICATIONS
ENABLING NEW APPLICATIONS
Support for higher power with PoE opens more opportunities. It enables new markets and widens PoE’s scope to existing markets that require higher power in applications such as:
• Smart buildings with enterprise IoT (connected LED lighting)
• Safe cities (PTZ cameras)
• Kiosks(Digital Signage)
• Point of Sale (POS) terminals
• Thin clients(Cloud Desktop)
• Access points
• Small cells
• TV
• Video Conference
gess
No independent power supply system required
Two-in-one network and power cable
Shortened construction period
Reduced costs of power and network deployment
PoE power, supports 802.3at/802.3bt PoE+ / PoE++
VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
Hardware
ModelPOE-GSH800-120-BT
Device Interface8 x 30W PoE 10/100/1000 RJ45, Port#1~2 up to 60W
StandardIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3at/af/bt PoE
IEEE802.3x
IEEE802.3az Energy Efficient Ethernet
Industry standard compliantEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4(EFT), EN61000-4-5(Surge)
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
LED IndicatorsPWR (power supply)
Mode (DIP): VLAN, Default, Extend
Link and Data
MechanicalMetal
Power and PoE
ProtocolIEEE802.3bt (60W), IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port8
PoE Power Output / PoE Portmax. 60 watts (Port #1~2) and max. 30W (port 3~8)
PoE Power Output / PoE switch120W
Surge and ESD protection
Surge and ESD protection4KV (Surge), 8KV (EDS)
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/Km
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 16Gbps
Throughput; 11.9Mpps
MAC Address: 8K
Packet Buffer: 1Mb
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF:100000 hour
DIP Switch Control
VLAN

Port isolation mode. In this mode PoE ports (1~6) cannot communicate with each other and can only communicate with the UP-Link port 7/8, Also, the PoE Watchdog function is Enabled.

DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m,   the transmission rate is 10M/100/1000M adaptive. No Watchdog function.
ExtendExtension mode, PoE power supply and data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 3~6 only. Also, the PoE Watchdog function is Enabled.
Power Supply
Input VoltageAC100~240V
Power Supply52V/2.3A
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +85°C
Operating Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelPOE-GSH800-120-BT
8 x PoE 10/100/1000 (Port#1~2 up to 60W)
Standard Package
Product Size20(L) x 11.8(W) x 4.4(H) cm
Package Size24.5(L) x 19(W) x 6(H) cm
Package WeightN.W: 0.6KGS
G.W: 0.9KGS
Package Content1 x Switch, 1 x Power code
Carton Package
Quantity20 PCS / 1 Carton
Dimensions50.5(L) x 32(W) x 40.2(H) cm
Weight19 KGS
