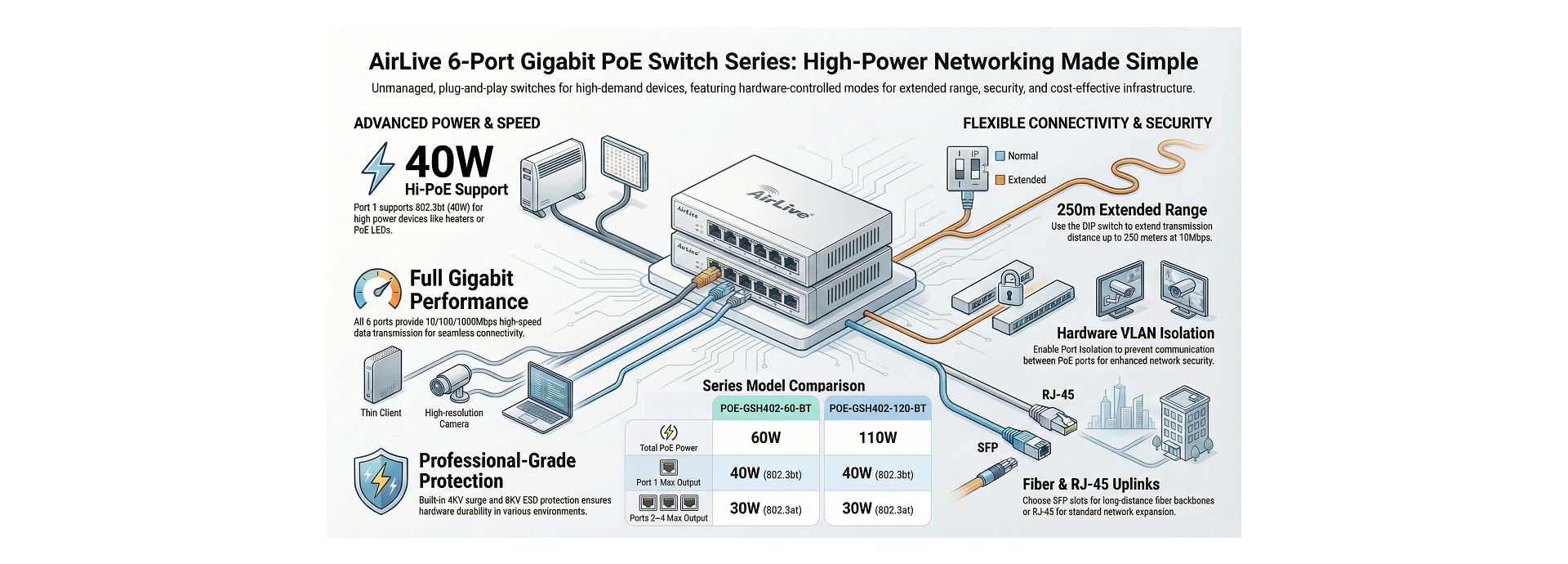

AirLive POE-GSH402-BT High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 40W power output per port(Port#1~2). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application.

Stable and Reliable Power Supply
High-power (40 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.

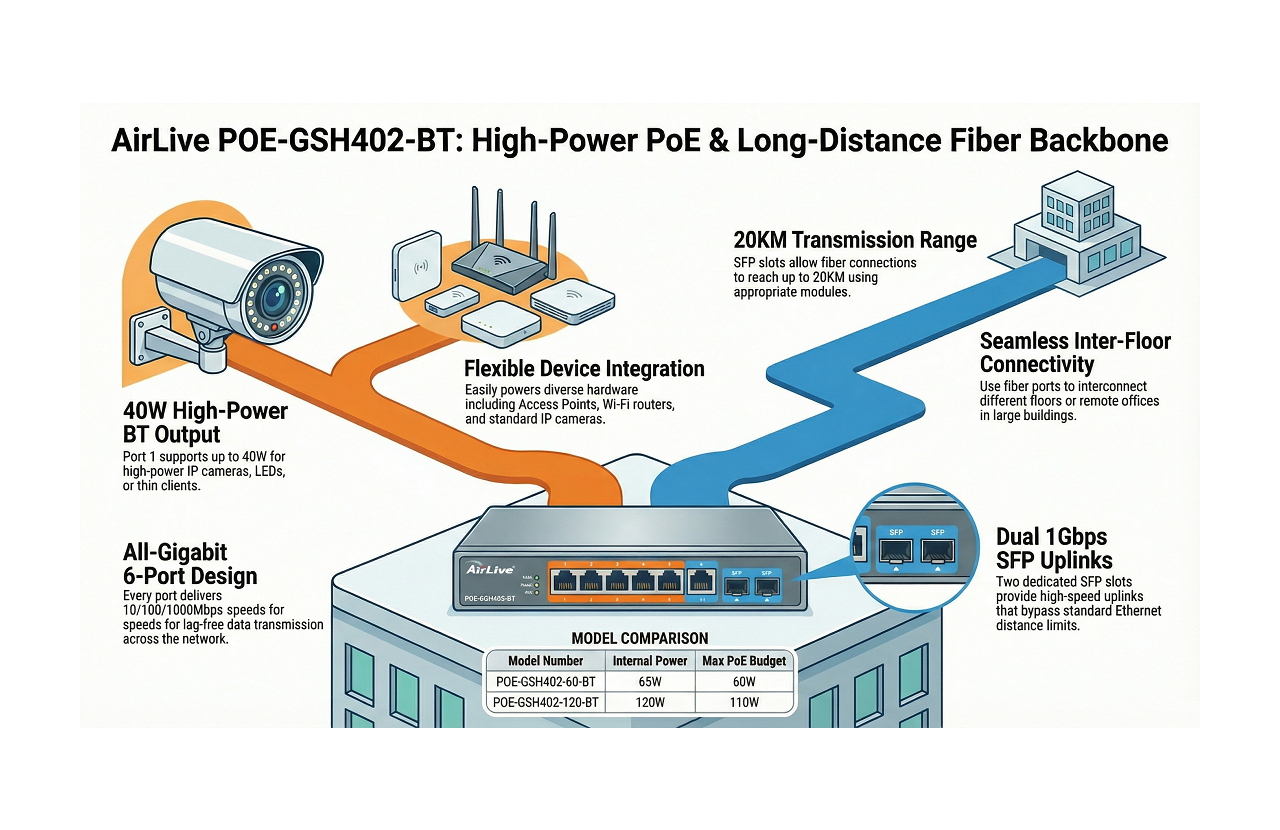

  The AirLive POE-GSH402-BT series switches are plug and play unmanaged PoE switches with VLAN and 250meter cabling extension, that you can set easily be set by its DIP switch. The two Gigabit Uplink ports SFP which help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office.

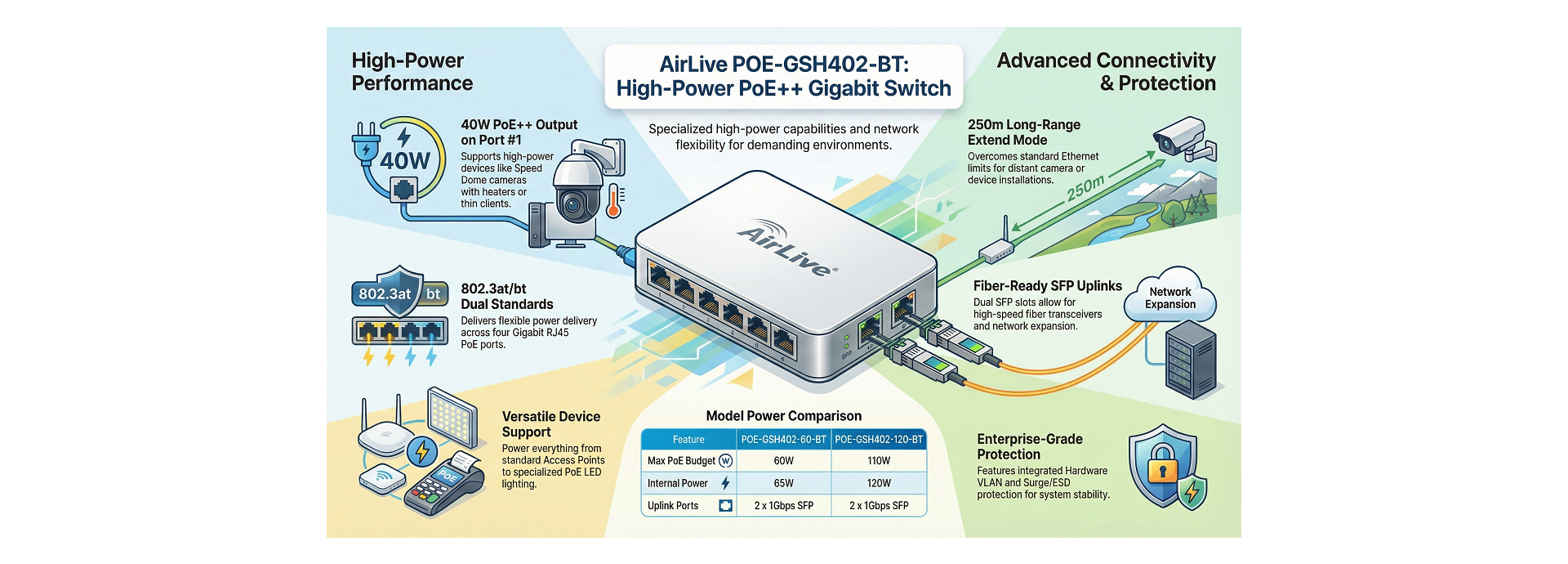

Connect several PoE devices to the switch, Port 1 of the switch can power devices up to 40W.
40W can be used by high power IP camera or by PoE Led, thin clients. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W . Other devices like Access Points or normal IP cameras can connect to any of the PoE ports on the switch and by power on up to max 30W (at).

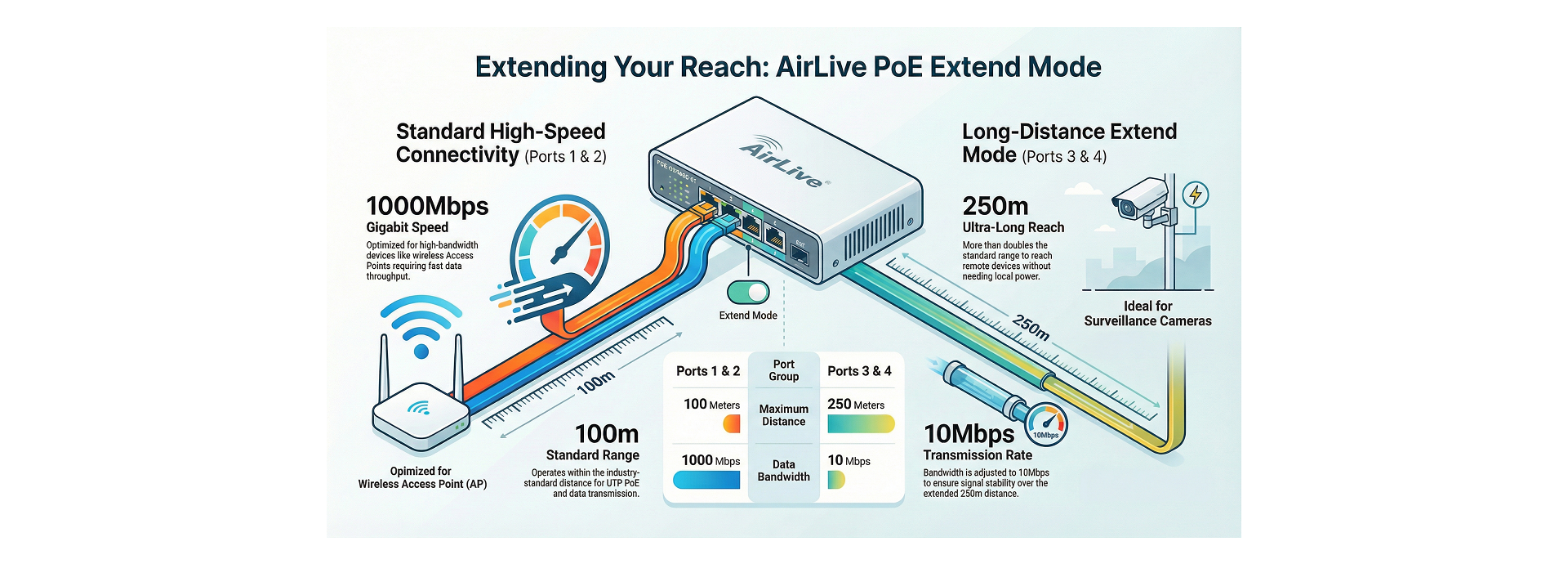

The POE-GSH402-BT switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 3 and 4 on the switch and when enabled the transmission rate will be 10Mbps.

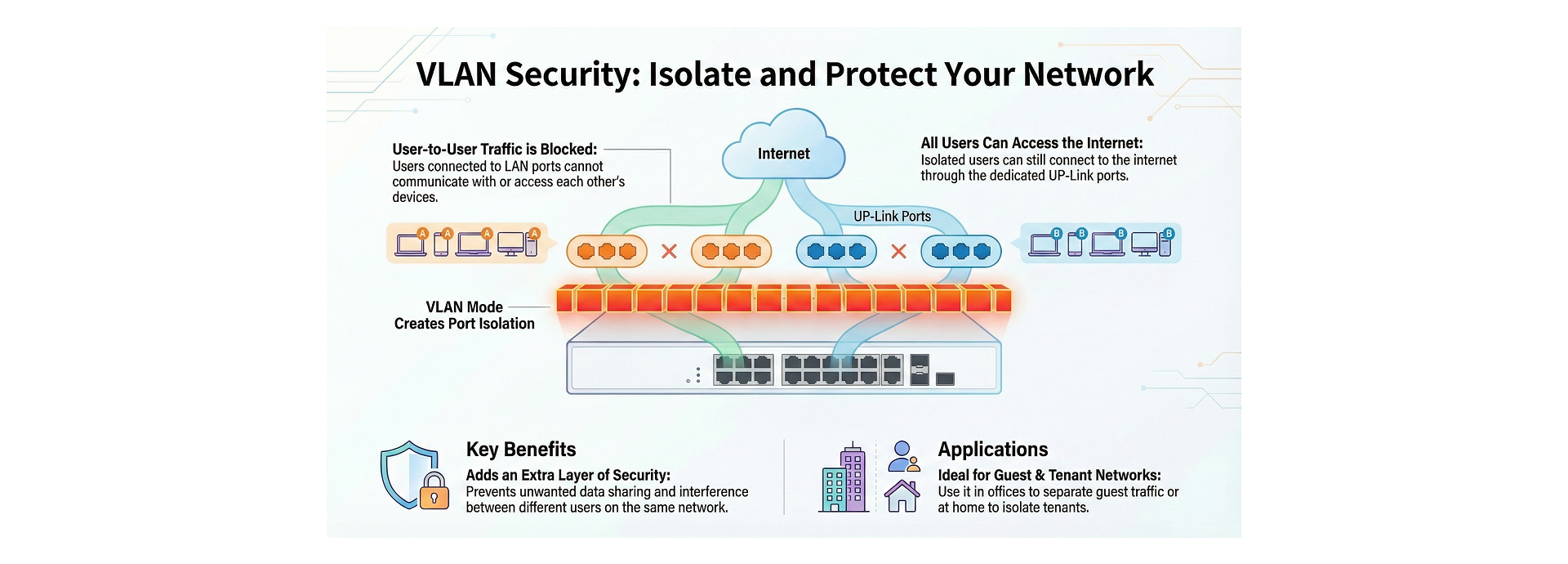

VLAN mode: When the Port Isolation mode is enabled the PoE ports (1~4) cannot communicate with each other and can only communicate with the UP-Link port.
