POE-FSH808PW 10-port Web-smart PoE Switch

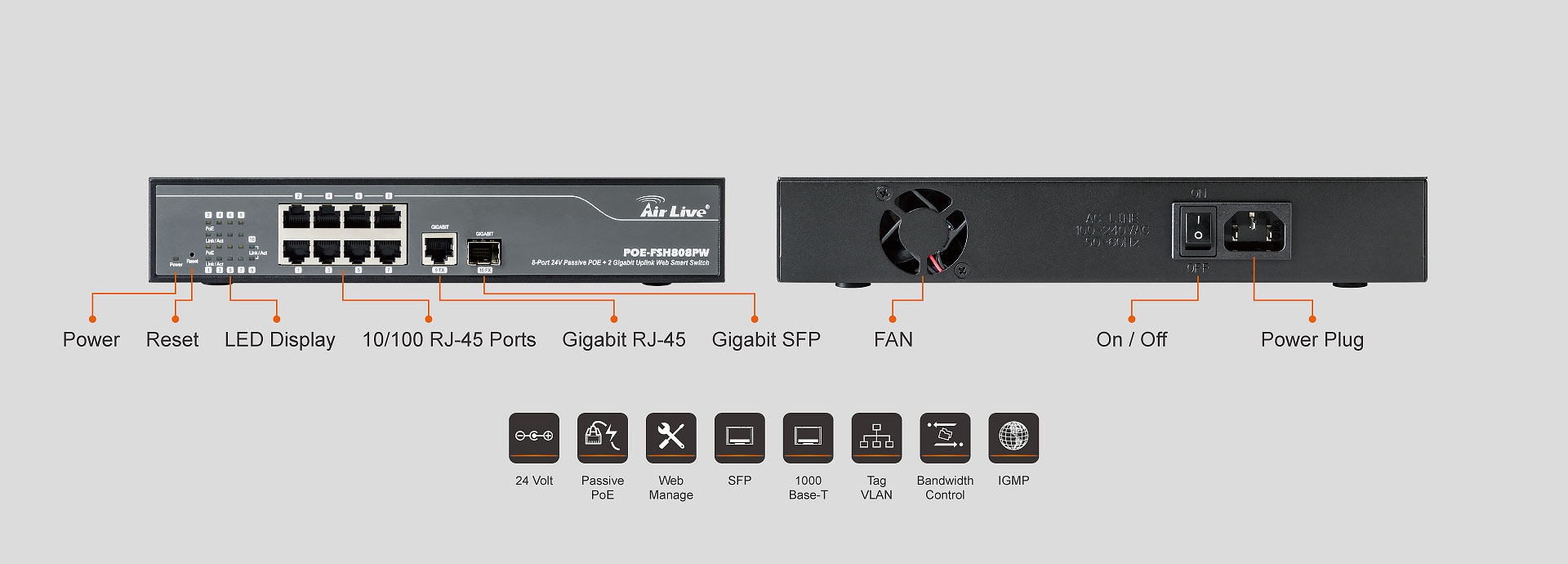

Function introduction
Function introduction
AirLive POE-FSH808PW consists of 8 10/100Mbps RJ-45 ports with 24V PoE integrated, 1 Gigabit RJ-45 uplink and 1 Gigabit SFP Port. With the Passive PoE function integrated, it can power 24V PoE CPE, AP, or Camera. Data and Power can be delivering over Cat.5e or Cat.6 cables at 100meter conveniently. Moreover, it provides smart remote management function for enabling/disabling the POE power output. POE-FSH808PW also provides other useful network management functions, such as port based VLAN, Tag VLAN, Bandwidth Control, Trunking, and Broadcast Storm Control.
Made in Taiwan and Internal Power Supply
Made in Taiwan and Internal Power Supply
The AirLive PoE Switches are made in Taiwan for premium quality.  It features internal power supply which is much more reliable than external power adapter.

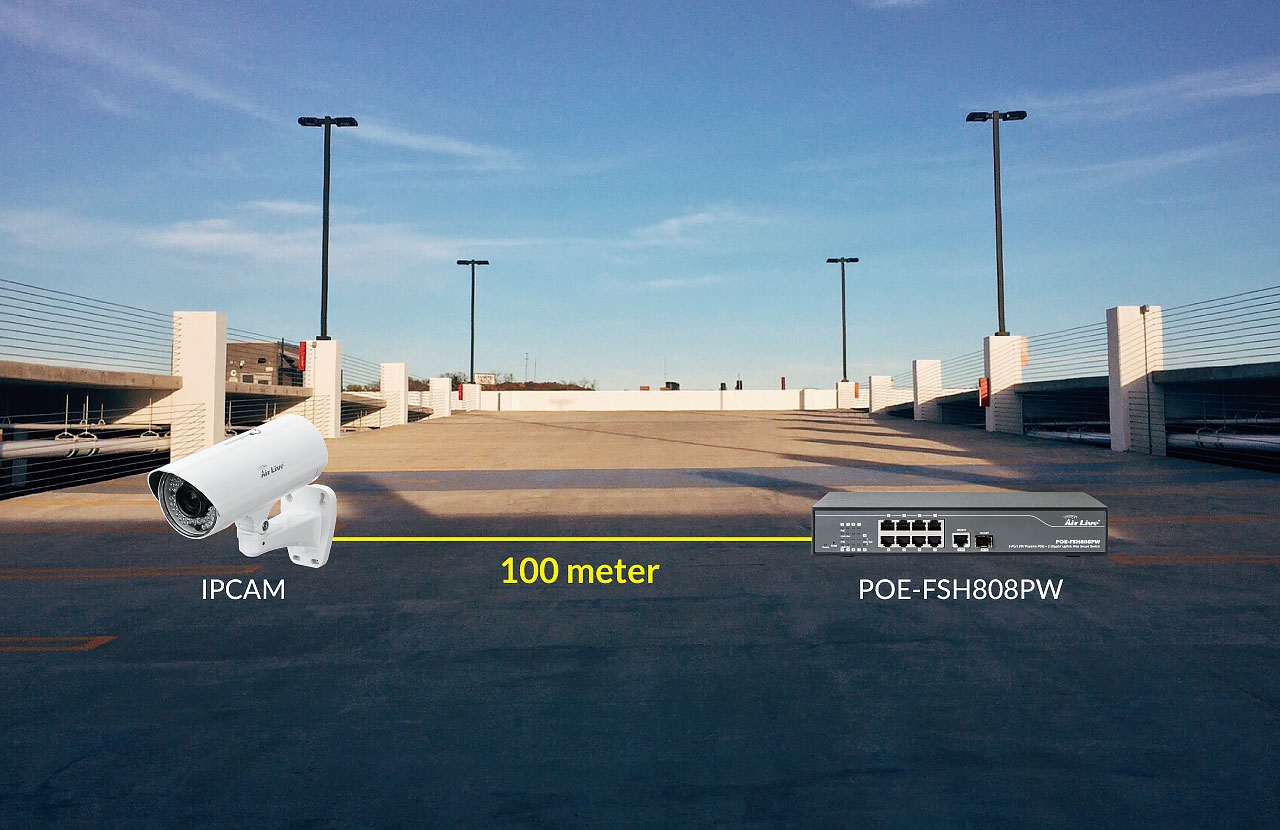

True 100 meter PoE Distance
True 100 meter PoE Distance
A lot of company claim their POE distance is 100 meter but turn out to be well short of the distance.  The AirLive PoE switches guaranteed it will go the full 100 meter length.

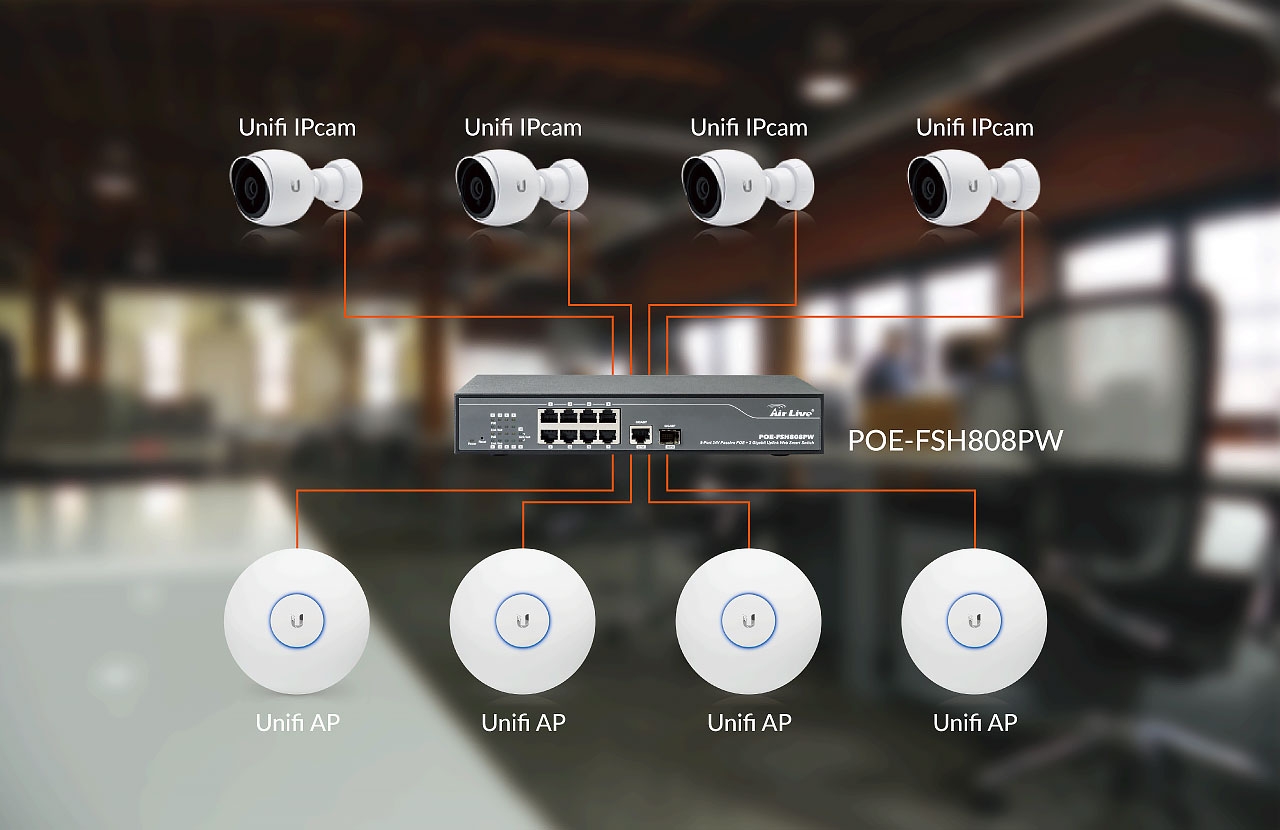

10-port Passive PoE Switch with 1SFP Port for UBNT’s device
10-port Passive PoE Switch with 1SFP Port for UBNT’s device
AirLive’s POE-FSH808PW is a 24V passive PoE switch that can deliver power to UBNT’s AP and IP cameras.  But there is a big price difference comparing with UBNT’s switch. Better yet, it delivers more power than the UBNT solution.

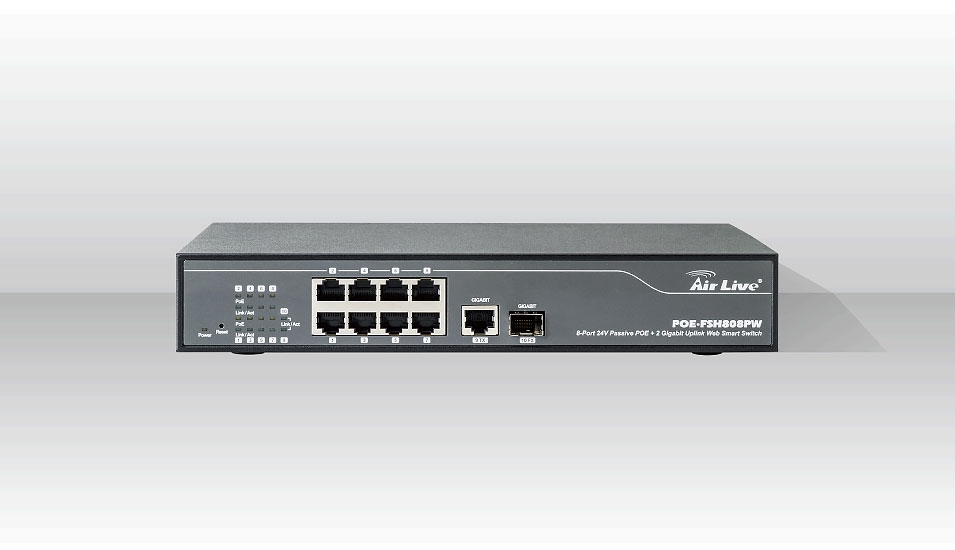

1
* Fast Ethernet and Gigabit Network available
* 24V PoE integrated for delivering power and data over Cat.5e or Cat.6 cables
* Gigabit Uplink available
* Gigabit SFP port Fiber Optic connectivity available
* Full Power 180Watt Built-In Power Supply
* Smart Web-Base Management
   - Configuring POE On/Off
   - Bandwidth Control
   - VLAN (Tag VLAN available)
* More management functions supported such as
   - IGMP Snooping, Port Mirroring, MAC Binding
   - Spanning Tree Advanced Network Management Function
   - Port Mirroring, Password-Protected Access
ModelPOE-FSH808PW 10-port Web-smart PoE Switch
StandardIEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow Control
IEEE 802.3ad Trunk (Link Aggregation)
IEEE 802.1q VLAN (Port Based and Tag Based)
IEEE 802.1p Class of Service, Priority Protocols
IEEE 802.1x
IEEE 802.1d Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
Port8 ports fast Ethernet Auto-MDIX
1 Port Gigabit RJ45
1 port SFP
FeaturePort VLAN: 8
Tagged VLAN: 4094
Trunk Groups : 2 (1~4 port for each group)
Quality of Service: up to 4 queues
PoE function ON/OFF Remote Control, power consumption, short protection
STP/RSTP (Spanning Tree Protocol and Rapid Spanning Tree Protocol)
MAC Filtering
IGMP Snooping
Management: Broadcast Strom Control, Bandwidth Control,
Port Mirroring, Password-protected Access, Port Settings,
Web-base Management, Configuration Back and Restore…etc.
PoE Port8
MAC Address4 K
Jumbo Frames9 K
Packet Buffer96 Kb
Power Input100 ~ 240 V AC
PoE Power Output24 V - 16.8 W per port
PoE Power Budget134.4 Watts
Operating Temerature0 ℃ to 40 ℃
Humidity10 % ~ 90 % (non-condensing)
Dimensions44 * 266 * 160 mm (H * W * D)
Weight1.8 kg
CertificatesCE Class A
FCC



Ordering Information

ModelPoE-FSH808PW
10-port Web-smart PoE Switch
EAN Code13 Code:4719869617019
14 Code:14719869617016
Package Content
Package ContentSwitch * 1, Power Cord * 1, QIG * 1, CD * 1
Carton Package
Quantity10
Dimensions61.5 * 38 * 27.5 cm
Weight23.58 kg
QIG
NameDescriptionDownloadDate
POE-FSH808PW - QIG
2018/09/05
User Guide
NameDescriptionDownloadDate
POE-FSH808PW - User Guide
2018/09/05
Spec Sheet
NameDescriptionDownloadDate
POE-FSH808PW - Spec Sheet
2018/09/05
Firmware & Software
NameDescriptionDownloadDate
POE-FSH808PW - Firmware
2018/09/05
