ONU-10XG-1001-10G: 1 Port 10G XG PON ONU

ADD INQUIRY
Overview
Overview

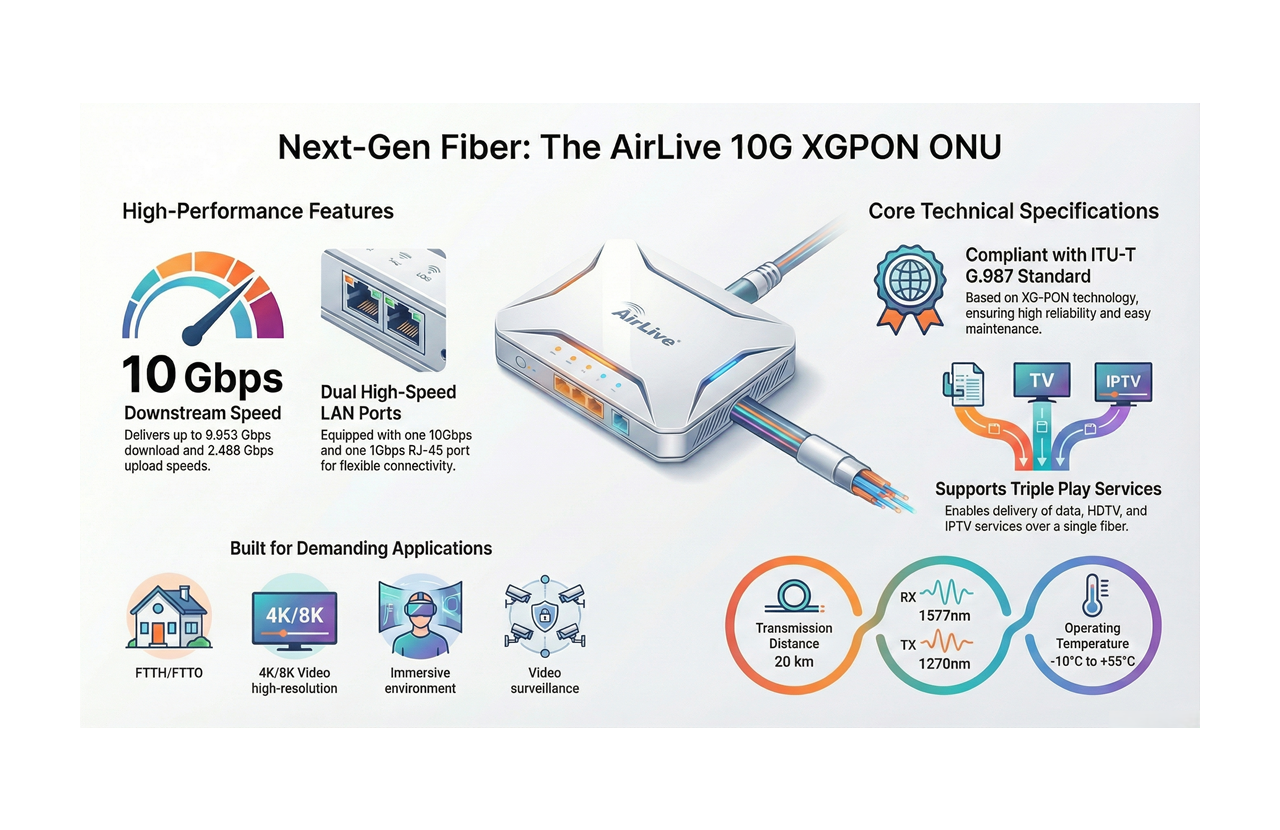

The AirLive ONU-10XG-1001-10G is a recently launched ONU that caters to new optical fiber communication networks. It conforms to international standards like ITU-T G.987 (XG-PON). The ONU comes with 1 x 10GE + 1 x 1GE RJ-45 ports for ultra fast connection speeds. The ONU can bring fast Internet access experience and lower Internet latency for home users and enterprise users. The ONU is specially designed to meet the needs for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, 4K/8K, VR, video surveillance, etc. It is based on XGPON technology, with high reliability, easy maintenance, and can provide QoS guarantee for different services.
Features
  • 10G XGPON with UL 2.5Gbps, DL: 10Gbps Speeds
  • 1x 10Gbps RJ-45 Port for High-speed networking
  • 1x 1Gbps RJ-45 Port

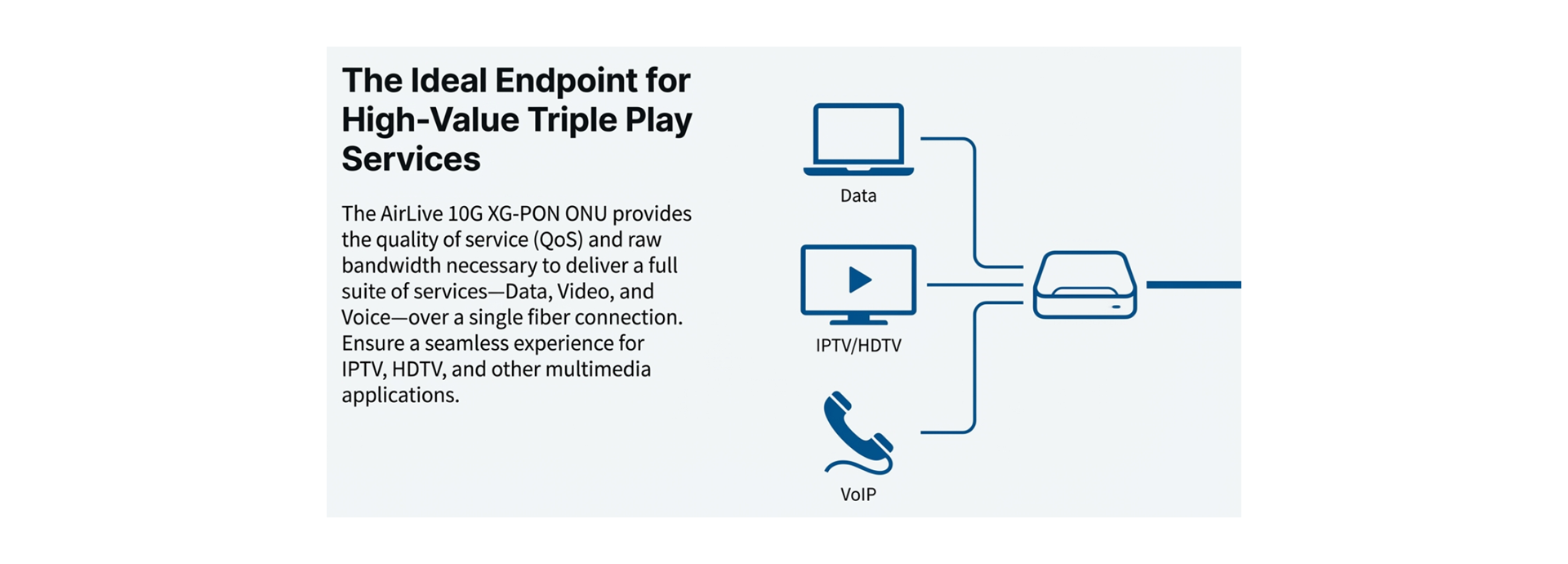

High-speed and Long-distance Coverage for Triple Play Services
High-speed and Long-distance Coverage for Triple Play Services
The AirLive 10G XGPON ONU offers a solution for providing high-speed and long-distance coverage. The AirLive XG-PON AX supports full Triple Play of services enabling Data and Video services through Ethernet, help Internet Service Providers to deliver internet service speeds of more than 2.5Gbps which is limited by GPON. Triple play service applications such as HDTV, IPTV, and multimedia, enabling fast and reliable data transmission. With a large range between equipment nodes, the 10G XGPON ONU is a cost-effective access technology that offers flexibility for network deployment. Its reliable and scalable network ensures a seamless and efficient experience for users.
Hardware
ModelAirLive ONU-10XG-1001-10G
Device Interface•PON Port: 1x 10G PON: Class B+
•Connector: SC single mode, SC/UPC
•TX optical power: 5dBm (XG-PON)
•RX sensitivity: -28dBm
•Overload optical power: -8dBm
•Wavelength: XG-PON: RX 1577nm/TX 1270nm
•Transmission Distance: 20km
•10G PON layer: ITU-T G.987 (XG-PON)
•XG-PON ONU Speed: Upstream 2.488Gbps, Downstream: 9.953Gbps
•LAN / USB Port:
1 x 10G RJ-45 Port
1 x 10/100/1000M RJ-45 Port
•LED: SYS, PON, LOS, LAN1, LAN2
Firmware Features

Internet Connection

Support Bridge/Router mode
MulticastIGMPv1/v2/Snooping
Support multicast protocol VLAN and multicast data stripping
Support multicast translation function
AlarmSupport Dying Gasp
Support Port Loop Detect
LANSupport Port rate limiting
Support Loop detection
Support Flow control
Support Storm control
VLANSupport VLAN tag mode
Support VLAN transparent mode
Support VLAN trunk mode
Support VLAN hybrid mode
QoSSupport Port rate limiting
FirewallSupport WRR, SP+WRR
ManagementSupport WEB/TELNET/SHH/OMCI/
Support private OMCI protocol and Unified network management of AirLive OLT
OtherSupport log function
Power Supply
Power Input12V, 1A external AC-DC power adaptor
Power UsagePower Usages Max: ≤ 12W
Environment
Working Temperature-10°C to +55°C
Storage Temperature-40°C to +70°C
Working Humidity5%~95%, non-condensing
Storage Humidity5%~95%, non-condensing
MTBF100000 hrs.



Ordering Information

ModelONU-10XG-1001-10G
AirLive 10G XGPON ONU 1 PON Port XGPON ONU with 1x 10GE RJ45, 1x 1GE RJ45
Standard Package
Product Size14.0(L) x 14.0(W) x 3.65(H) cm
Package Size(L) x (W) x (H) cm
Package WeightN.W: 0.316kg
G.W: kg
Package Content1 x Device, 1 x Power Adapter, QIG
Carton Package
Quantity 20PCS / 1 Carton
Dimensions67.5(L) x 37.0(W) x 27.0(H) cm
Weight10 kg
