Live-8GT: 8-port SOHO Gigabit switch, VLAN, QoS, Plug and Play, Metal

ADD INQUIRY
More than just a Plug-and-Play 8-Port Gigabit Switch, VLAN, QoS, Cable-extend additional also supported
More than just a Plug-and-Play 8-Port Gigabit Switch, VLAN, QoS, Cable-extend additional also supported
Designed as plug-and-play unmanaged Gigabit switch, the price of AirLive Live-8GT switch is very affordable. Moreover, it provides additional and useful functions such as VLAN Security and Cable-extend that you can set easily by its DIP switch. It also supports QoS data priority and has a Loop alarm build inside. The Gigabit switch is easy to manage and maintain with its fan less design and small size, the product can be widely used in home, SOHO office, or as client switch for SMB.
Feature
  • 8-port, each port delivers Gigabit high speed
  • Loop Alarm
  • QoS data priority (Port 1~2)
  • VLAN Mode: Enhanced Security
Feature
  • Extended Mode: Up to 250M in Extend Mode
  • Setting easily by hardware DIP switch
  • Surge Protection; ESD Protection

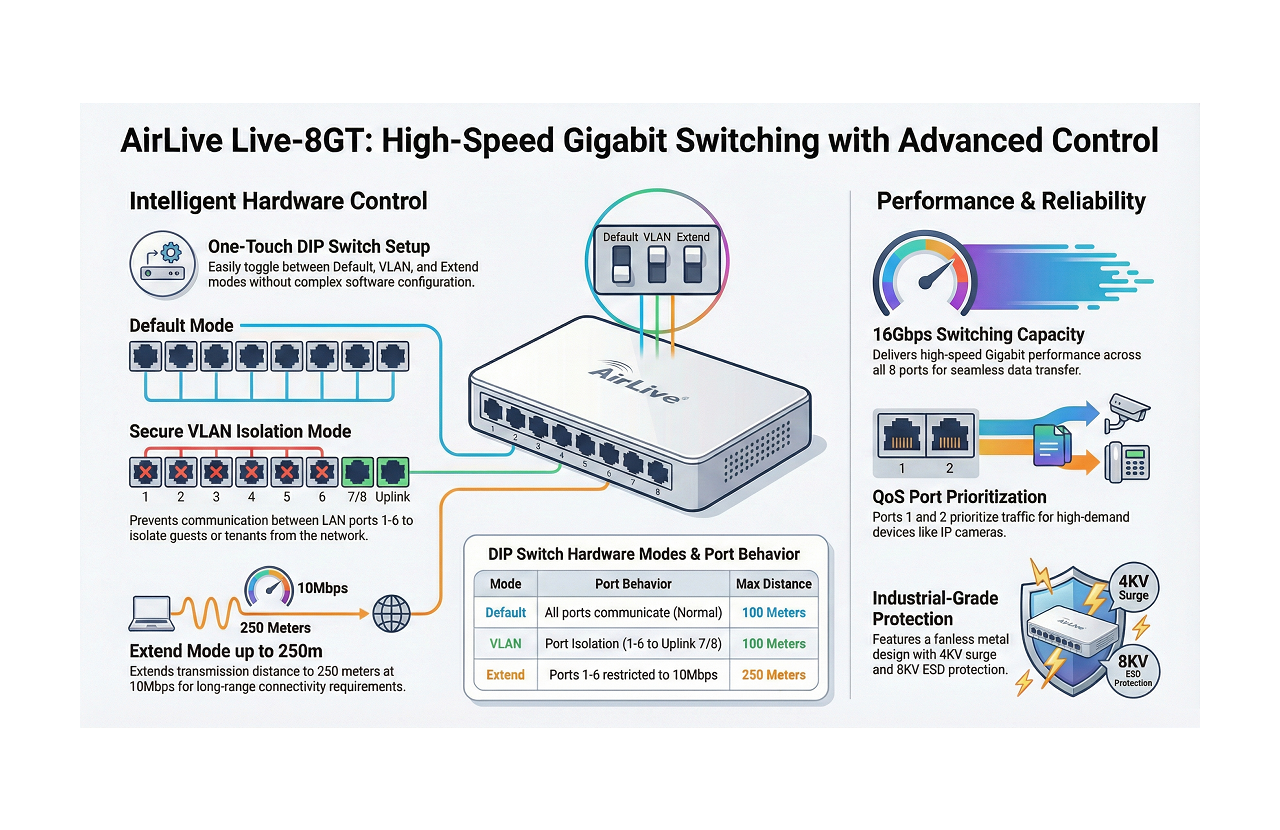

VLAN Mode
VLAN Mode
This additional feature gives the switch extra security for the users connected to it. The VLAN mode works as Port isolation, meaning that when it’s enabled the users connected to the LAN ports cannot communicate with each other but only communicate with the UP-Link ports (port 7/8). This way there is an extra layer of security and data will not be shared between the users. This can be used in a small office to separated guests from the company network or in a home to separate tenants.
QoS Priority (Port 1~2):
QoS is supported for data priority, this can be helpful for a IPCAM or high priority preferred device.
Extend Mode:
The switch’s Extend-mode feature allows data to be transmitted over a longer distance, up to 250Meter, using an RJ-45 cable. However, please note, the speed will drop to 10Mbps for port 1~6 when setting in “Extend Mode”. The Uplink Ports 7/8 still delivers Gigabit speed.
Hardware
ModelLive-8GT
Device Interface8 x 10/100/1000Mbps RJ45
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3x
Industry standard compliantEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4(EFT), EN61000-4-5(Surge)
LED IndicatorsPWR (power supply), Loop ; Port Loop, Link
MechanicalMetal
Surge and ESD protection
Surge and ESD protection4KV (Surge), 8KV (EDS)
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 16Gbps
Throughput; 11.9Mpps
MAC Address: 1K
Packet Buffer: 2.5Mb
Jumbo Frame: 2K
Transfer mode: Store and forward
MTBF:100000 hour
DIP Switch Control
VLAN

Port isolation mode. In this mode ports (1~6) cannot communicate with each other and can only communicate with the UP-Link port 7/8.

DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m, the transmission rate is 10M/100/1000M adaptive, Loop Support.
ExtendExtension mode, Data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 1~6 only. 1-6 ports support 100M speed reduction negotiation, 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port at 1000Mbps
Note: VLAN and Extend mode cannot be used at the same time.
Power Supply
Power SupplyDC 5V1A
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Operating Humidity10%~95%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelLive-8GT: 8-port Gigabit Switch, VLAN, QoS, Plug and Play
Standard Package
Package Size17.5(L) x 12(W) x 6.3(H) cm
Package WeightN.W: 0.3KGS
G.W: 0.5KGS
Package Content1 x Switch, 1 x Power Adapter
Carton Package
Quantity40 PCS / 1 Carton
Dimensions50.2(L) x 32(W) x 40(H) cm
Weight21 KGS
QIG
NameDescriptionDownloadDate
Live-8GT QIG
2022/06/08
Spec Sheet
NameDescriptionDownloadDate
Live-8GT Spec Sheet (metal)
2022/03/23
CE
NameDescriptionDownloadDate
Live-8GT CE+RoHS
2022/06/07
FCC
NameDescriptionDownloadDate
Live-8GT FCC
2022/06/07
