Live-2TX402: 2.5Gbps Base-T Multi Gigabit Switch, Auto-Adaptive

ADD INQUIRY

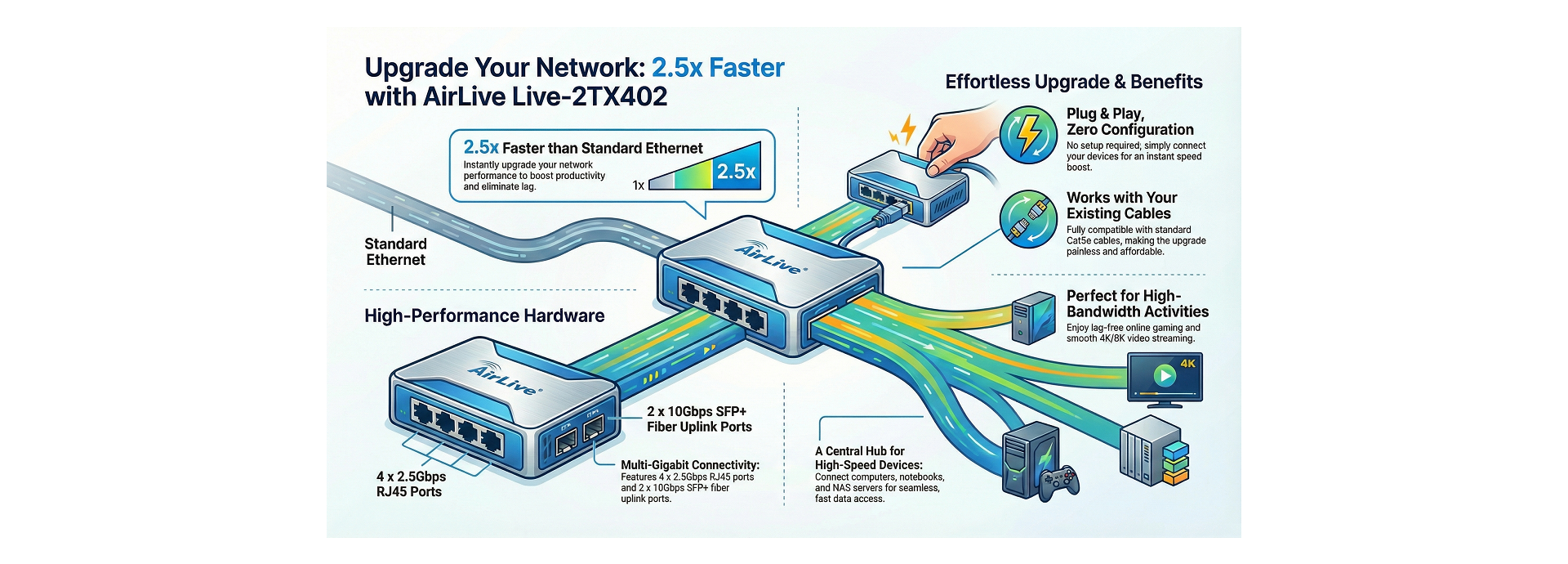

2.5Gbps & SFP+ 10G Super High speed Network Connectivity
2.5Gbps & SFP+ 10G Super High speed Network Connectivity
The AirLive Multi-Giga switch, Live-2TX402, supports 4 RJ45 and 2 SFP+ ports for delivering up to 2.5Gbps extra high-speed connection on RJ-45 and 10G SFP+ on fiber optic. With the 2.5G multi-Giga switch, you can connect to a variety of 2.5GbE-enabled devices, such as NAS | NVR | PC | Server | Laptop, for enjoying faster experience and handle bandwidth-hungry applications. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.

Higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed. Even, when doing backup to a NAS drive or Core switches, use the SPF+ Fiber port as uplink to a larger network at 10Gbps extreme high speed.
Features
  • 4 x 10/100/1000/2500Mbps RJ45
  • 2 x 10G SFP+
  • All ports at Multi Gigabit high speed, auto-negotiation
  • Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
Features
  • Super Fast 2.5Gbps RJ-45 and 10Gbps SFP+ Networking
  • Existing Cat5e cable suitable, painless upgrading
  • Plug and Play, Zero configuration
  • Compact size for Home or SMB Network Connectivity

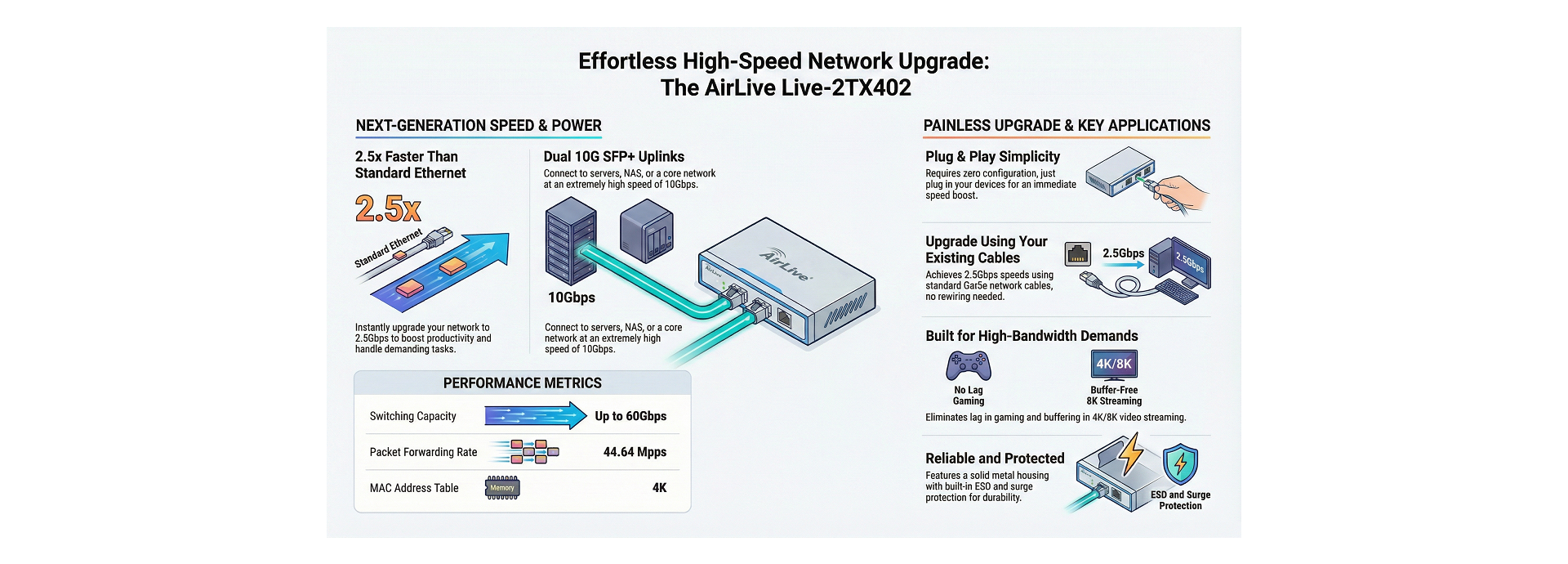

Painless Upgrading via your existing Cables
Painless Upgrading via your existing Cables
With the AirLive Live-2TX402 2.5Gbps switch, it is possible to connect several high-speed devices together via RJ-45 connections using your existing normal Cat.5e network cable, plug-and-play, painless.
Features & Applications
Features & Applications
2.5 Times Faster
2.5GbE is 2.5 times faster than standard Ethernet (1GbE), high network performance to boost productivity
Works with existing cables
No special cables or connectors are required to take advantage of 2.5GbE. Simply use your existing CAT5e cables as normal with your new 2.5GbE infrastructure.
Video Streaming
Higher bandwidth improves the playback quality of 4K/8K videos.
Gaming
No lag when you are Gaming.
Hardware
ModelAirLive Live-2TX402
Device Interface4 x 10/100/1000/2500 RJ45
2 x 1.25G/2.5/10G SFP +
6-port totally
StandardsIEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5GBase-T
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet (optical fiber)
IEEE802.3x Flow Control and Back Pressure
Industry standard compliantEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), IEN61000-4-5 （Surge）
LED IndicatorsPWR (power supply),Link/Act (Indicator), 2.5G (Indicator)
Lighting Surge / ESD ProtectionSupport Port Surge Protection: Common Mode 4KV, Differential Mode 2KV (Class C);
ESD air 8KV, Contact 6KV (Class C).
MechanicalSolid Metal Housing, Desktop
Power
Power Input12V/1A Power Adapter
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 60Gbps
Pack forward rate: 44.64Mpps
Packet Cache: 8Mbit
MAC Address: 4K
Transfer mode: Store and forward
MTBF:100000 hour
Transmission Distance10Base-T: Cat3,4,5 UTP(≤250 meter)
100Base-TX: Cat5 or later UTP(150 meter)
1000Base-TX: Cat5e or later UTP(150 meter)
2500Base-TX: Cat5e or later UTP(150 meter)
Fiber Medium1000BASE-SX: 62.5μm MMF (Multi mode) (Minimum range: 2m～275m) or 50μm MMF
1000BASE-LX: 62.5μm/50μm MMF (Minimum range: 2m～550m)or 10μm
SMF (Minimum range: 2m～5km)
2500BASE-X: G.652D SMF (Single mode) (Minimum range: 2m～500m or 2m～5Km)
10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m～300m)
10GBASE-LR: IEC B1.1 and B1.3 SMF (Minimum range: 2m～10km)
Environment
Operating Temperature-10°C to +40°C
Storage Temperature-40°C to +70°C
Operating Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelLive-2TX402
6-port 2.5Gbps Multi Gigabit Switch, incl 4x RJ45 2.5G and 2x SFP+ 10G, Plug and Play, auto-negotiation
Standard Package
Product Size14.0(L) x 9.3(W) x 2.8(H) cm
Package Size20.3(L) x 16.0(W) x 5.5(H) cm
Package WeightN.W: 0.33KGS
G.W: 0.46KGS
Package Content1 x Switch, 1 x Power adapter
Carton Package
Quantity40 PCS / 1 Carton
Dimensions58.0(L) x 33.5(W) x 44.5(H) cm
Weight19.5 KGS
QIG
NameDescriptionDownloadDate
Live-2TX402 QIG
2023/12/21
Spec Sheet
NameDescriptionDownloadDate
Live-2TX402 Spec Sheet
2024/02/19
CE
NameDescriptionDownloadDate
AirLive MultiGiga Switch Series CE+RoHS
AirLive MultiGiga 2.5G, 10G, 100G Switch Series CE+RoHS
2024/06/17
