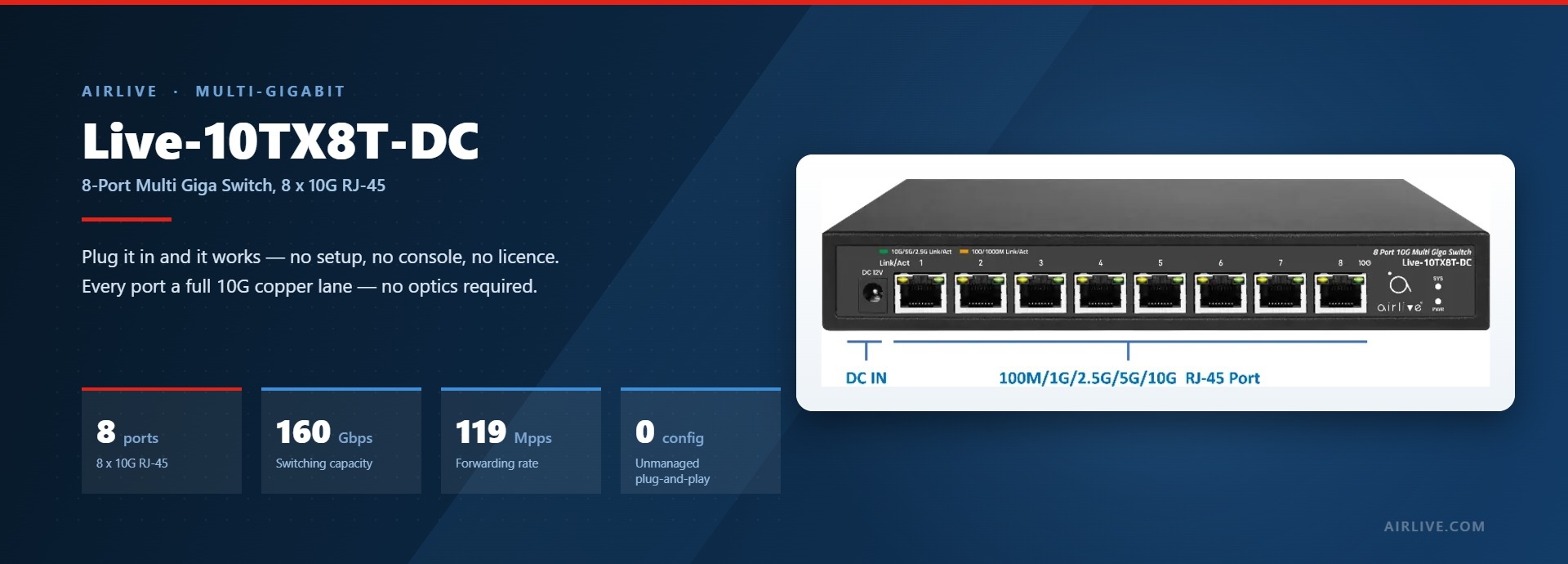

| 8 ports All 10G RJ-45 | 160 Gbps Switching capacity | 119.04 Mpps Forwarding rate | Fanless Silent metal housing |
| Model | Ports | Switching | PoE budget |
| Live-10TX5T-DC | 5 × 10G RJ-45 · unmanaged | 100 Gbps | — |

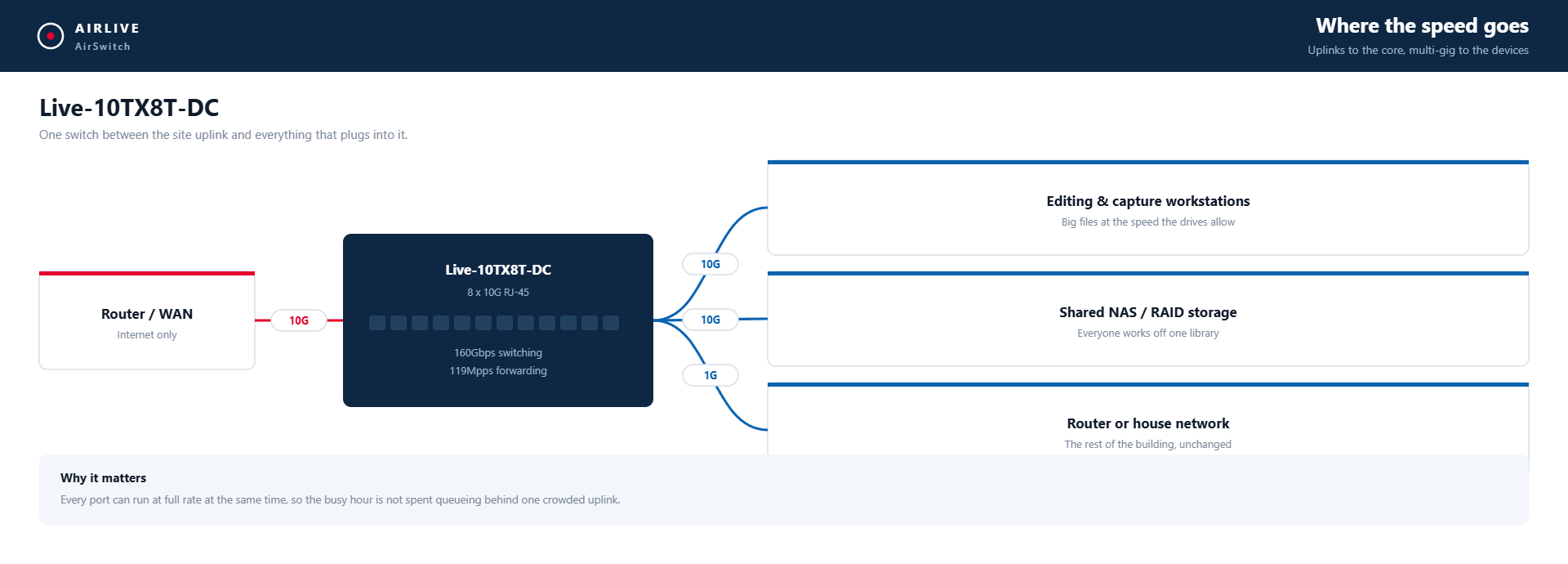

Eight ports, all of them 10 gigabit, so there is no single uplink for everything else to queue behind. Put the shared storage on one port and the workstations on the rest, and files move at the speed the drives can manage rather than the speed the network allows.
Ports negotiate down cleanly to 5G, 2.5G, 1G and 100M, so existing machines and the house router plug straight in.
Edit suites and colour bays, streaming and broadcast racks, recording studios, home labs and any small group of machines that share one big library. Fanless and DC powered, so it can sit in the room people are working in.
Studio & content creation
Camera rigs, capture machines and the edit workstation on one 10G island. 4K and 6K footage moves off the card while the edit is still running.
Live streaming & broadcast
Encoders, switchers and the streaming PC all want a clean path at the same moment. Ten gigabit per port means the camera feed and the upload never queue behind each other.
Audio & music production
Networked audio, sample libraries and session files served straight off the NAS to every room in the studio, with headroom left for the video reference feed.
Home lab & high-speed gaming
A small rack of hosts, a NAS and the gaming machines, all wired rather than fighting over Wi-Fi. Fanless and DC powered, so it lives in the room you work in.

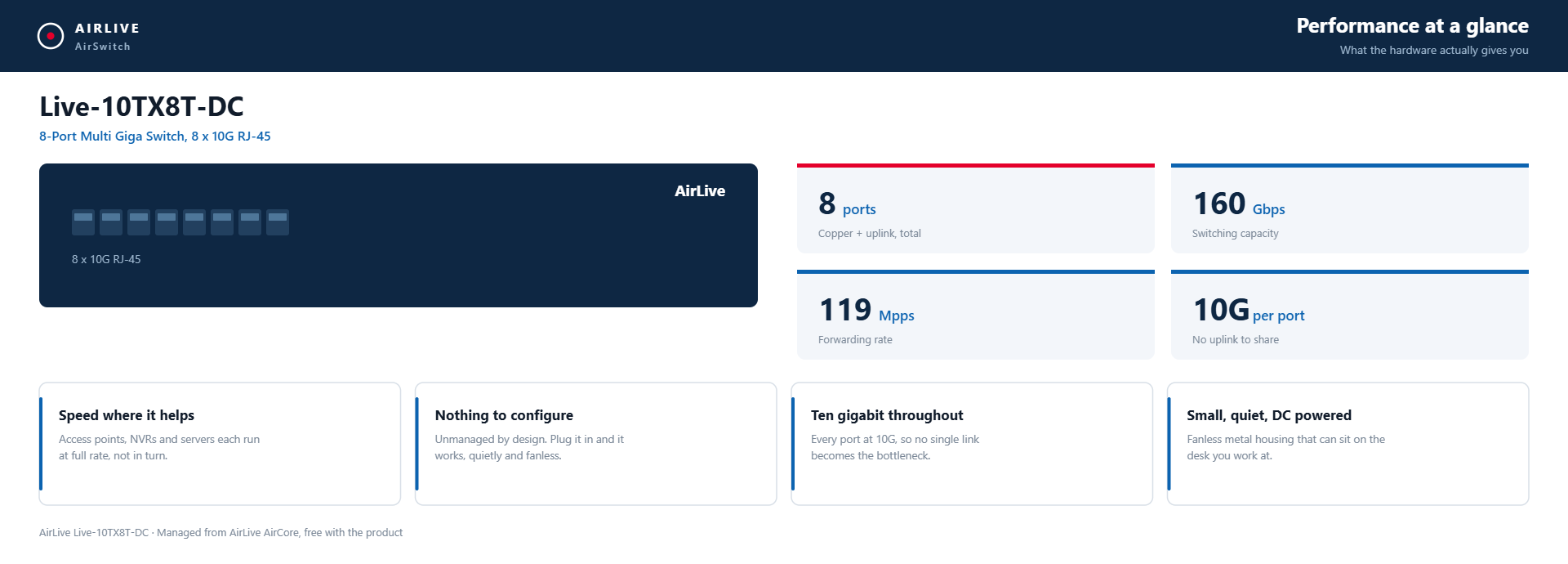

Why this model
The Live-10TX8T-DC gives every port the full 10G — there is no single uplink to fight over. Fanless, DC powered, and nothing to configure: plug it in and it works.
Ten gigabit on every port
No uplink to fight over — every port runs at the full rate.
Nothing to set up
Unmanaged by design. Plug it in and it works.
Quiet, small, DC powered
Fanless metal housing that can sit on the desk.
| Hardware | |
| Model | AirLive Live-10TX8T-DC |
| Device Interface | 8 x 100M/1000M/2.5G/5G/10G RJ45 8-port totally |
| Standards | IEEE802.3 10Base-TX IEEE802.3u 100Base-TX IEEE802.3ab Gigabit 1000Base-T IEEE802.3bz 2.5/5G Base-T IEEE 802.3cb 2.5/5G Operation ove Backplane IEEE 802.3an 10GBase-T IEEE802.3x Flow Control |
| LED Indicators | 8x link/act indicators, 8x10G speed indicators, power input indicator, system operation indicator |
| Lightning Surge / ESD Protection | ±6KV Contact Static electricity & ±8KV Air Static electricity |
| Mechanical | Solid Metal Housing, Desktop |
| Network Medium | |
| RJ-45 | 100BASE-TX:UTP/STP of Cat. 5 or above (Max 100 m) 1000BASE-T: UTP/STP of Cat. 5e or above (Max 100m) 2.5GBASE-T: UTP/STP of Cat. 5e or above (Max 100m) 5GBASE-T: UTP/STP of Cat. 5e or above (Max 100m) 10GBASE-T: UTP of Cat 6 (Max 55m) or STP of Cat 7 (Max 100m) |
| Power | |
| Power Input | DC 12V/3A Power Adapter |
| Power Usages Max | 26W |
| Switch Architecture | Performance | |
| Switching architecture: Store and Forward | Bandwidth: 160Gbps Packet Forward Rate: 119.04Mpps MAC Address: 16K Cache: 12Mbit Jumbo Frame: 12Kbytes Transfer mode: Store and forward IGMP v2 v3 support |
| Environment | |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Model | Live-10TX8T-DC 8-port 10Gbps Multi Gigabit Switch, incl. 8x RJ-45, Plug and Play, 100M/1G/2.5G/5G/10G Auto-negotiation |
| Standard Package | |
| Product Size | 22.5(L) x 12.6(W) x 3.5(H) cm |
| Package Size | 24.8(L) x 19.1(W) x 6.3(H) cm |
| Package Weight | N.W: 0.970kg G.W: 1.250kg |
| Package Content | 1 x Switch, 1 x Power Adapter, 1x QIG |
| Carton Package | |
| Quantity | 16 PCS / 1 Carton |
| Dimensions | 53.5(L) x 31.5(W) x 40.0(H) cm |
| Weight | 21.0 kg |
| Name | Description | Download | Date |
| Live-10TX8T-DC Spec Sheet | 2026/07/20 |
