Live-10GT5: 5-port 10Gbps Base-T Multi Gigabit Switch

ADD INQUIRY

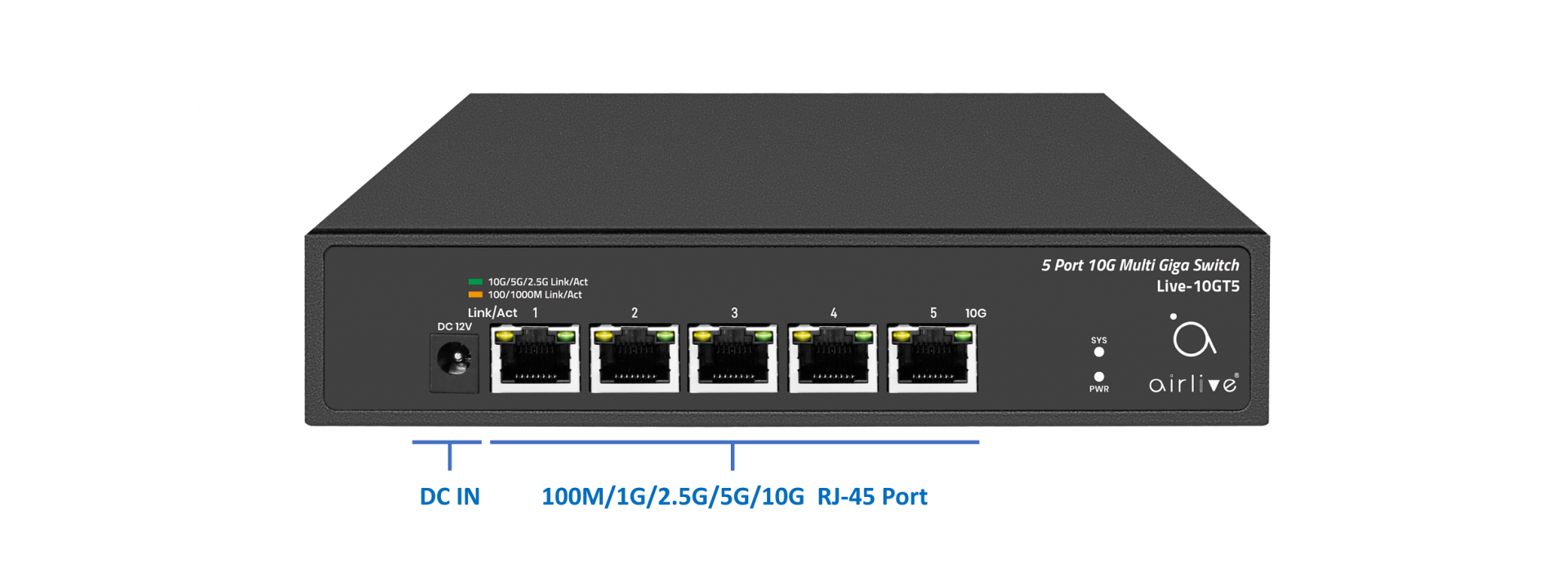

Painless Upgrading your Network Connection to 10Gbps Super High speed Switch
Painless Upgrading your Network Connection to 10Gbps Super High speed Switch
In today’s fast-paced business environment, high-speed and reliable network connectivity is critical to maintaining productivity, driving growth, and staying competitive. AirLive 5-port 10Gbps Super High-Speed Switch, Live-10GT5, is designed to streamline and elevate your network infrastructure, providing a seamless upgrade path to ultra-fast connectivity that’s both powerful and easy to implement.
Features and Specifications
  • 5 x 10Gigabit high-speed RJ45 ports, provide Multi-Giga High bandwidth, up to 100Gbps switching capacity
  • Each port supports 100M/1000M/2.5G/5G/10G smart self-adaptive, auto-fallback, auto-negotiation
  • Plug and play with no configuration required
  • Solid metal iron shell, fan-less
Features and Specifications
  • Clear LED indicators for monitoring power, link/activity, SYS
    Very suitable for 10G NAS, Server, Gaming 2.5G/5G/10G and Wi-Fi 6 or Wi-Fi 7, 8K video / Audio
  • Perfect for multi-users applications, home entertainment, Small or Home office, such as gaming, programmer, designer
AirLive Live-10GT8 10Gbps Switch features
AirLive Live-10GT8 10Gbps Switch features
Unmatched Speed
Unmatched Speed
With 10Gbps connectivity, experience lightning-fast data transfer and significantly reduced latency, enabling smooth operations even with the most demanding applications.

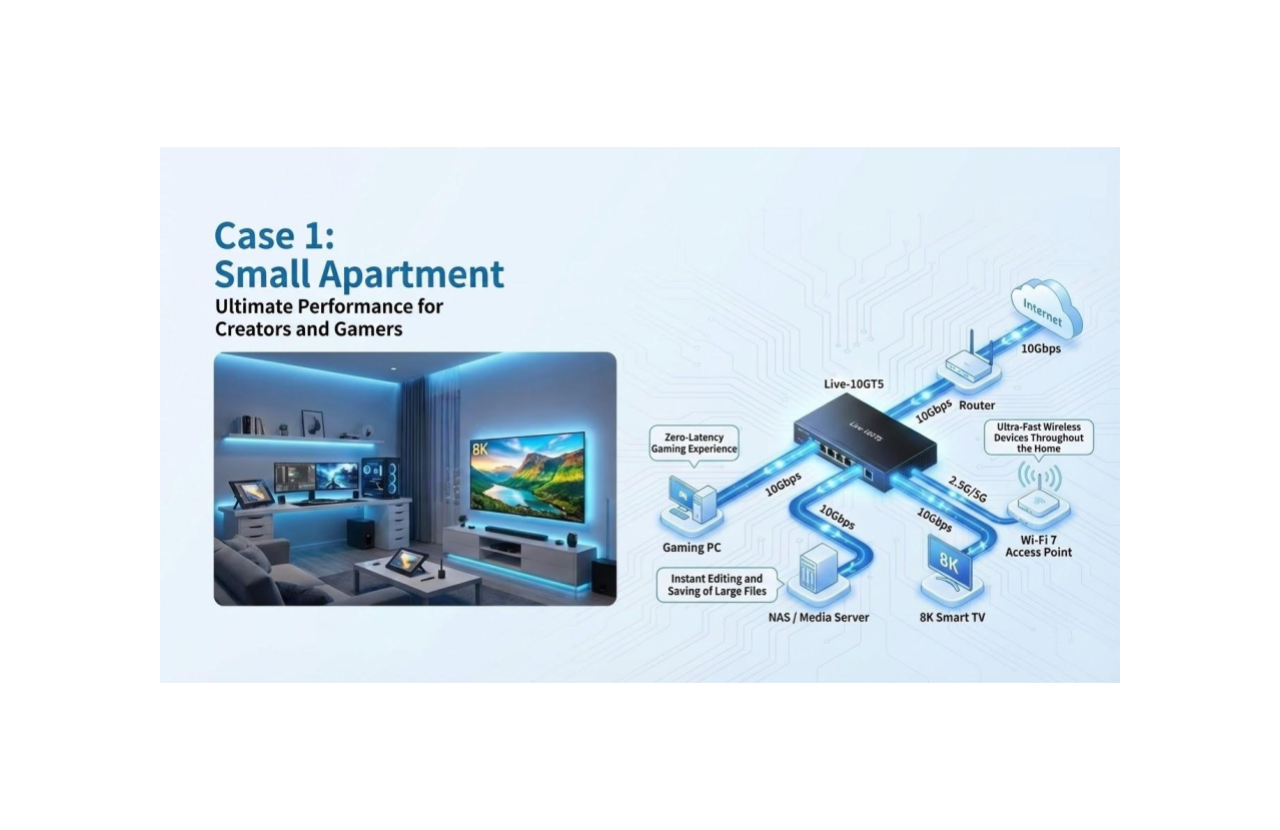

10G Switches Application
10G Switches Application
Perfect for 10G NAS, servers, and gaming environments, as well as Wi-Fi 6/7, 8K video, and multi-user application

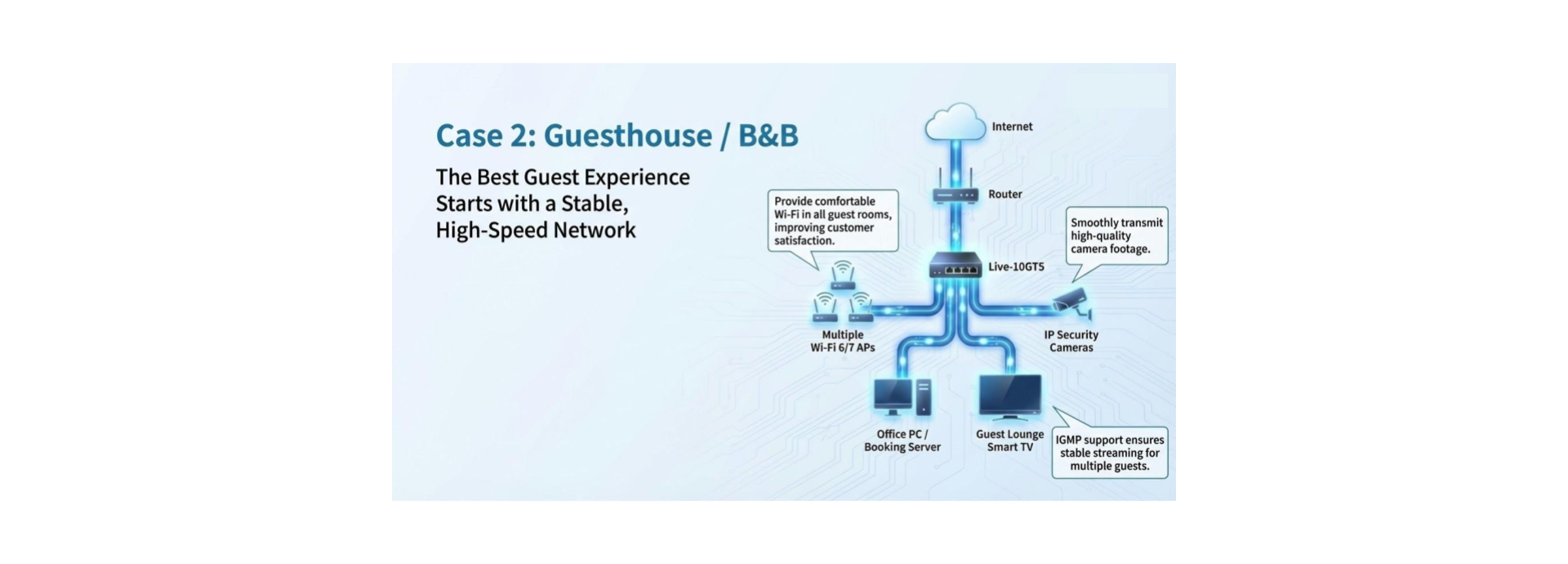

10G Switches Application Case 2
10G Switches Application Case 2
Why is it necessary to increase the transmission speed? The reason is in the aspect of audio and video, because the resolution of images is becoming increasingly refined, from 1080p to 4K or 8K videos, and the data traffic of 4K and 8K videos is larger, so the network transmission speed is increased to make the video streaming smoother.

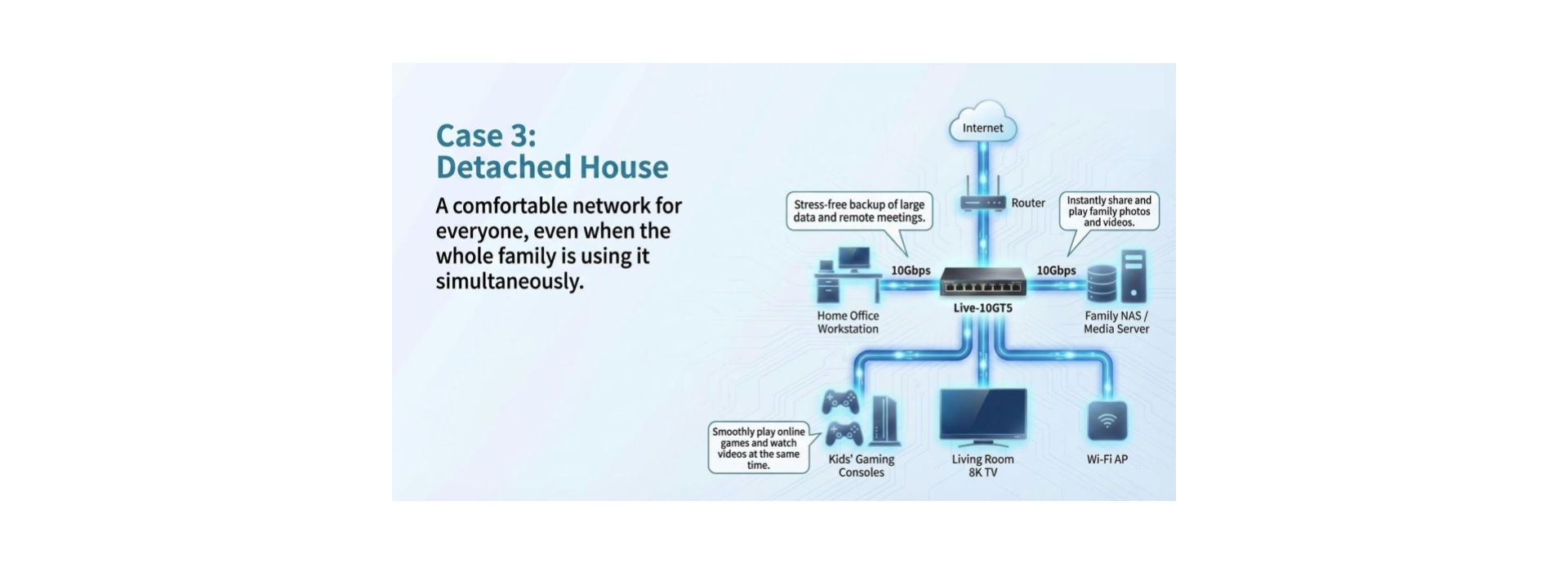

10G Switches Application Case 3
10G Switches Application Case 3
If you are an image editor, creative writer, musician, or gamer, you can experience 10x times faster blazing-fast transfer speeds and transfer reliability, stability, and security no matter where you work or play.; thanks to the 10G advance network technology.
Future Technology Now
Future Technology Now
10G Ethernet can help create a reliable high-speed backbone, which increases data transmission and processing capabilities, reduces traffic congestion, and relieves pressure on the system. In addition, 10GbE improve network reliability as it can lessen connection interruptions or delays. With a 10G Network, you can boost productivity and shorten response time, facilitating business growth in the ever-changing digital world.
Hardware
ModelAirLive Live-10GT5
Device Interface5 x 100M/1G/2.5G/5G/10G RJ45
5-port totally
StandardsIEEE802.3 10Base-TX
IEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5/5G Base-T
IEEE 802.3cb 2.5/5G Operation ove Backplane
IEEE 802.3an 10GBase-T
IEEE802.3x Flow Control
LED Indicators5x link/act indicators, 5x10G speed indicators, power input indicator, system operation indicator
Lightning Surge / ESD Protection±6KV Contact Static electricity & ±8KV Air Static electricity
MechanicalSolid Metal Housing
Power
Power InputDC 12V/2A Power Adapter
Power Usages Max20W
Switch Architecture | Performance
Switching architecture: Store and ForwardBandwidth: 100Gbps
Packet Forward Rate: 74.4Mpps
Cache: 12Mbit
MAC Address: 16K
Jumbo Frame: 12Kbytes
Transfer mode: Store and forward
IGMP v2 v3 support
Transmission Distance100BASE-TX:UTP/STP of Cat. 5 or above (Max 100m)
1000BASE-T: UTP/STP of Cat. 5e or above (Max 100m)
2.5GBASE-T: UTP/STP of Cat. 5e or above (Max 100m)
5GBASE-T: UTP/STP of Cat. 5e or above (Max 100m)
10GBASE-T: UTP of Cat 6 (Max 55m) or STP of Cat 7 (Max 100m)
Environment
Operating Temperature-0°C to +45°C
Storage Temperature-40°C to +70°C
Operating Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelLive-10GT5
5-port 10Gbps Multi Gigabit Switch, incl. 5x RJ45, Plug and Play, 100/1G/2.5G/5G/10G  Auto-negotiation
Standard Package
Product Size19.5(L) x 12.3(W) x 4.0(H) cm
Package Size(L) x (W) x (H) cm
Package WeightN.W: 0688kg
G.W: 0.990kg
Package Content1 x Switch, 1 x Power Adapter, 1 x Rubber Feet, 1x QIG
Carton Package
Quantity9 PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
Weight14 kg
Spec Sheet
NameDescriptionDownloadDate
Live-10GT5 Spec Sheet
2026/01/09
