Data Center Switch with L3 Features and Super High Speed

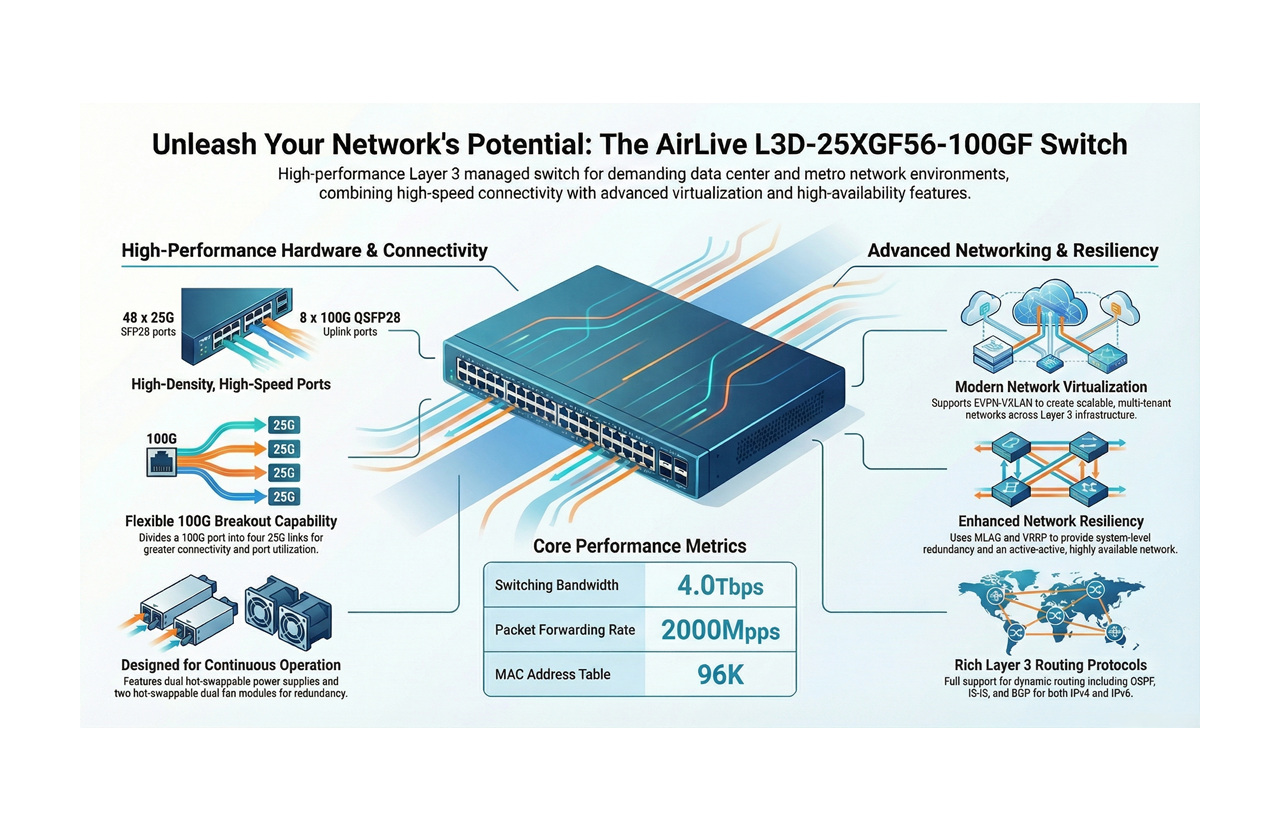

The AirLive L3D-25XGF56-100GF offers high performance full 48 port 25G SFP28 and 8x 100G QSFP28 uplink ports in a compact 1U form factor. The AirLive L3D-25XGF56-100GF with its Broadcom chipset is ideal for Data Centers, and large network users like campus. Combining advantages of zero packet loss, low latency, and non-blocking performance for lossless Ethernet. The layer 3 switch incorporates rich features, including EVPN-VXLAN, MLAG, VRRP, OSFP etc. for scalable and flexible data center designs, redundant hot-swappable power supplies and fans for high availability and security.

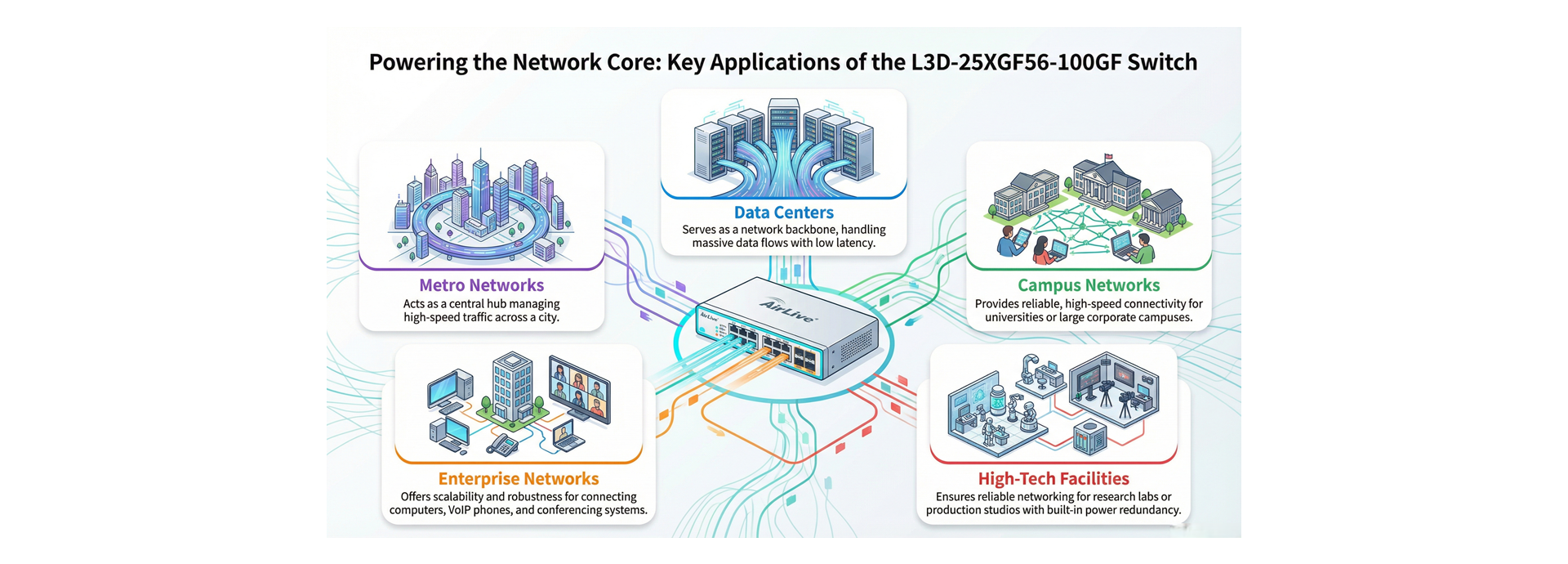

Data Centers: The L3D-25XGF56-100GF switch can be used as the backbone of a data center with its ability to handle massive data flows with low latency. Offering speed and efficiency. Metro Networks: The AirLive switch can be placed in metropolitan area networks (MANs), where it can serve as a central hub managing high-speed traffic across the city. Campus Networks: The Data Center switch can support a campus network, providing reliable connectivity for educational institutions or corporate campuses. Enterprise Networks: The switch’s utility in enterprise environments, offers great scalability and robustness. With connected devices like computers, VoIP phones, and conferencing systems. High-Tech Facilities: For facilities requiring high power integrity, such as research labs or production studios, The AirLive Data Center switch comes with power redundancy for more reliable networking.

Transform your network infrastructure with the revolutionary concept of switch stacking. This innovative technology allows you to manage multiple switches as a single entity, streamlining network operations and boosting efficiency. The AirLive L3D-25XGF56-100GF can do stacking up to 2 units below the master.
Effortless Management: With switch stacking, you can control an entire stack of switches with the simplicity of managing just one, freeing up valuable time and resources.
Future-Proof Networking: As your business scales, switch stacking grows with you. Easily add more switches to the stack without the hassle of complex configurations.
Reliability Redefined: Say farewell to network interruptions. Switch stacking ensures that even if one switch fails, the rest of the stack keeps your network running smoothly.
Optimized Connectivity: Leverage every port to its fullest potential. Switch stacking reduces the need for redundant links, ensuring optimal use of your network’s capabilities. Embrace switch stacking and unlock the full potential of your network, ensuring a seamless, scalable, and resilient infrastructure that’s ready for the demands of tomorrow’s business landscape. If you’re looking to create engaging marketing content that highlights the benefits of switch stacking, I’m here to assist you in crafting a message that resonates with your target audience. Let’s elevate your network together!

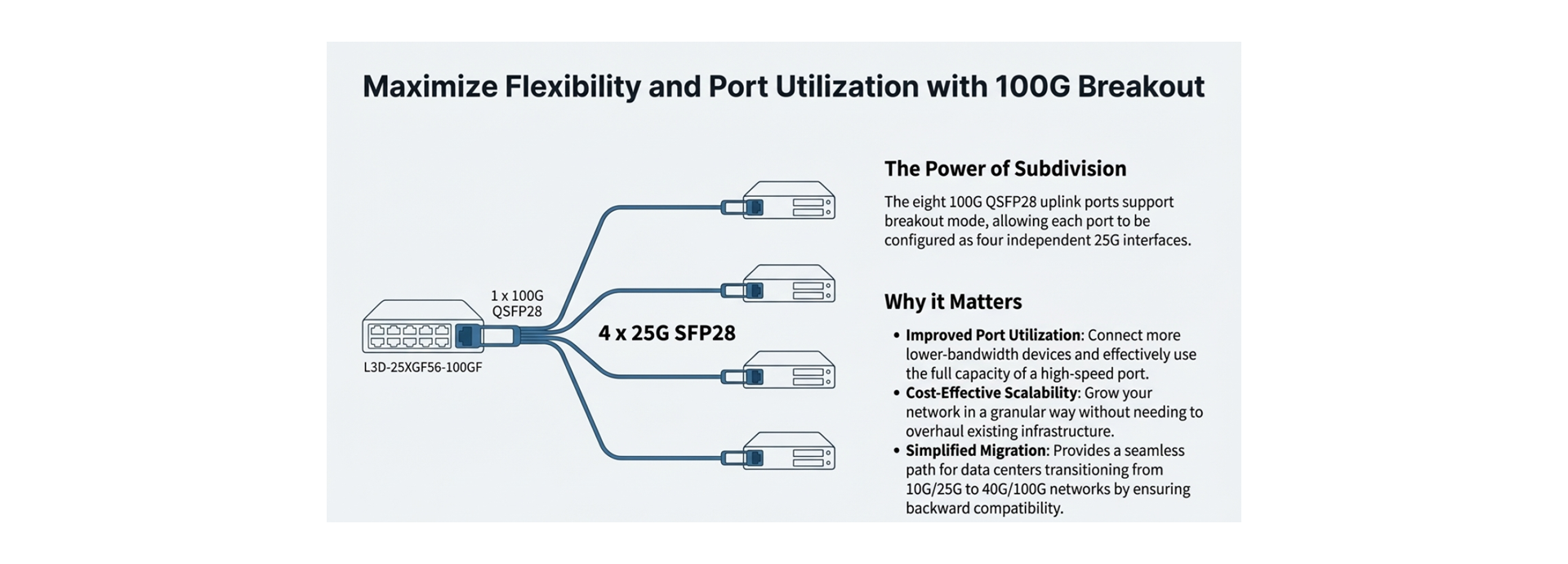

The L3D-25XGF56-100GF supports Breakout cable for the 100G port. This feature is particularly significant as networks demand more flexibility and higher bandwidth capabilities. Breakout is a configuration that used the benefit of a high-bandwidth interface and "breaks it out" into multiple lower-bandwidth interfaces. Normally, this configuration applies to Ethernet switches where a high-speed port, such as a 100G QSFP28, is divided into multiple smaller connections, like 4x25G. This subdivision allows network engineers to connect to devices that require lower bandwidth connections while still fully and efficiently using the switch port resources. Breakout mode is an invaluable feature for data centers transitioning from 10G/25G to 40G/100G networks, as it provides backward compatibility and a smoother migration path.
Flexibility: Breakout allows network builders a varied connectivity for there needs within their network. For example, they can connect switches with 10Gbps ports to a 100Gbps switch without needing to upgrade all equipment to support 100Gbps interfaces.
Improved Port Utilization: Instead of leaving a high-speed port underutilized because there aren't enough devices that work at that speed, breakout mode allows the connection of more devices at lower speeds, thereby utilizing the port’s full capacity more effectively.
Scalability: As network needs grow or change, breakout mode can help accommodate new devices and configurations without the need for immediate infrastructure rebuilds. This helps in growing the network in a cost-effective manner.

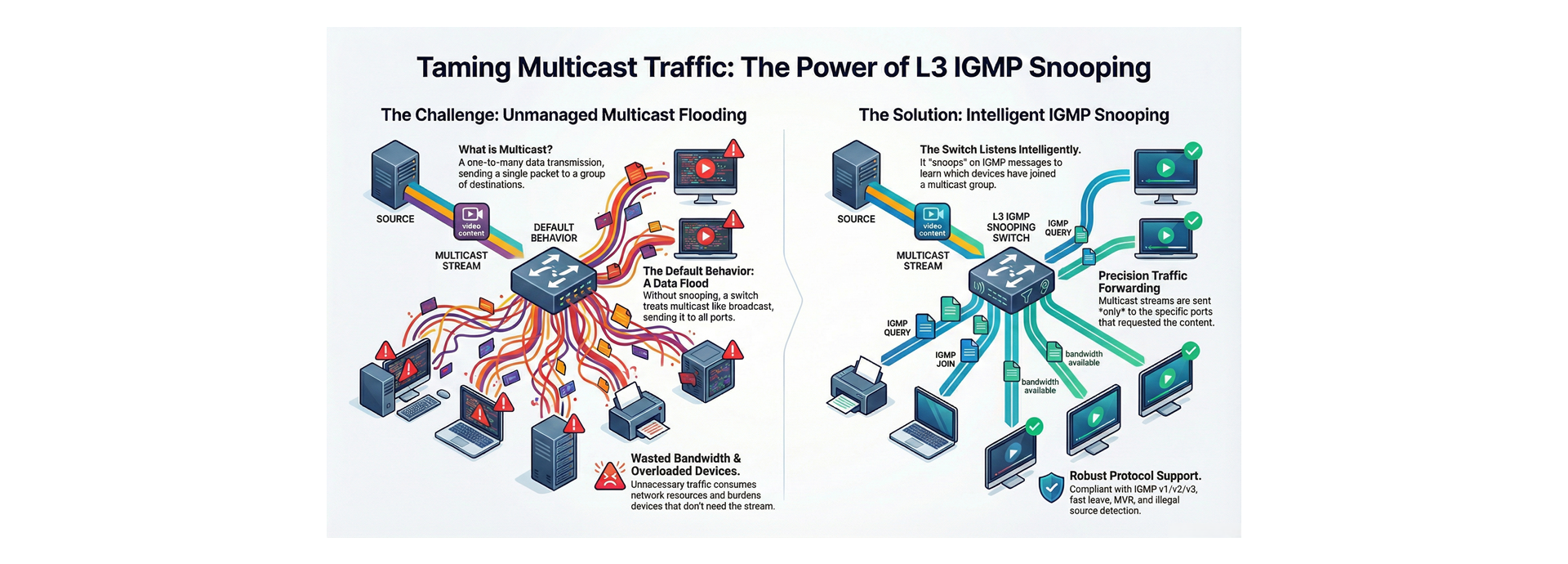

The L3D-25XGF56-100GF supports abundant multicast features. It features IPv4 IGMP, IGMP snooping and MLD snooping. great for any robust networking as well as IPv4 and IPv6 dynamic routing protocols like OSPF, IS-IS, BGP as well as OSPFv3, ISISv6 and BGP4+ The L3D-25XGF56-100GF comes with the complete Layer 3 managed function with comprehensive protocols and applications to facilitate the rapid service deployment and management for both the traditional L2 and L3 networks. With support for advanced features, including RIP, OSPFv3, BGP, BGP4+, etc., this switch is ideal for the traditional or fully-virtualized data center.

The AirLive L3D-25XGF56-100GF supports MLAG (multi-chassis link aggregation group) up to Max 64 Groups. MLAG is a non-standard protocol that implements link aggregation among multiple devices. The devices at both ends of the MLAG send MLAG negotiation packets through the peer-link. The main purpose of MLAG is to deliver system-level redundancy in the event one of the chassis fails. MLAG also a strong scalability as the capacity is not limited to a single device. This is very useful in those application were a network needs to be extended to accommodate more clients. MLAG networks can be expended without any downtime to the current existing network. Making it a very good solution for those location where downtime is not wanted. MLAG can be used at various places in the network to eliminate bottlenecks and provide resiliency.

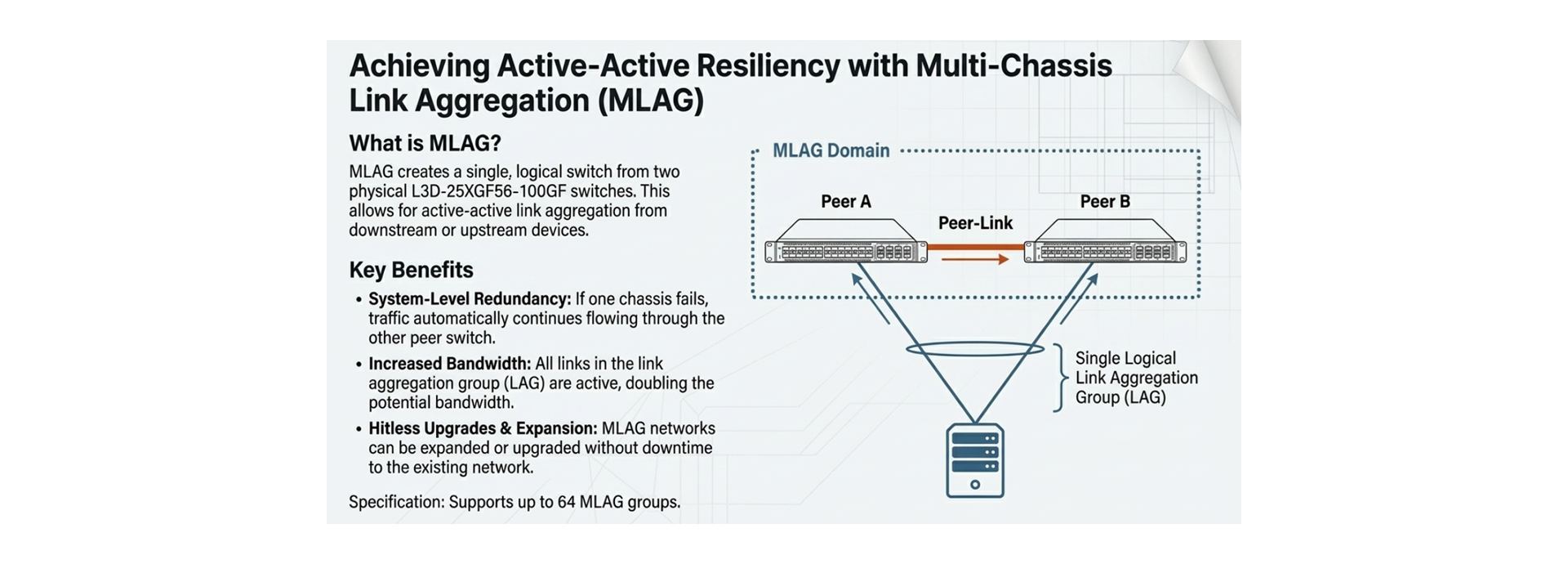

MLAGs provide an active-active split aggregation deployment across two switches acting as one. MLAG creates a more resilient network with higher bandwidth capabilities. The below image shows a basic example of a MLAG Domain. In the example the peer switches are linked together with a special LAG (one or more cables as shown by the “Peer-Link” line in the picture, the peer link’s primary purpose is exchanging MLAG control information between peer switches. Any non-management port on the switch can be used in the Peer-Link. With the Peer-Link configured, the two switches appear as a single switch to partner switches upstream and downstream. Each partner switch contains MLAGs that are simply LAGs (link aggregation groups) whose cables are split between the two peers. Primary and secondary peer roles are chosen automatically by the program when MLAG is enabled.

Elevate your network’s performance and reliability with the cutting-edge Link Aggregation Control Protocol (LACP)—a smart technology designed to streamline your connectivity. LACP, a feature of the IEEE 802.3ad standard, is the key to unlocking seamless link aggregation, ensuring your network is robust and efficient. Here’s why LACP stands out: Automated Pairing: Say goodbye to manual configurations and hello to effortless synchronization. LACP uses intelligent negotiation to form a dynamic link aggregation group (LAG), making network teamwork a breeze. Error-Proof Networking: Eliminate the guesswork and reduce downtime. With LACP, mismatches in configurations are a thing of the past, ensuring a smooth, uninterrupted connection. Self-Healing Links: Experience minimal disruption with LACP’s ability to detect and adjust to link changes, keeping your data flowing even if a connection drops. Universal Compatibility: LACP demands both ends of the link to speak the same language, guaranteeing a harmonious and stable network environment. Choose LACP for a network that’s not just connected but interconnected, where every link is a strong bond, driving your business forward with unmatched stability and speed. Ready to revolutionize your network? LACP is the solution you’ve been waiting for—innovative, reliable, and intelligent.

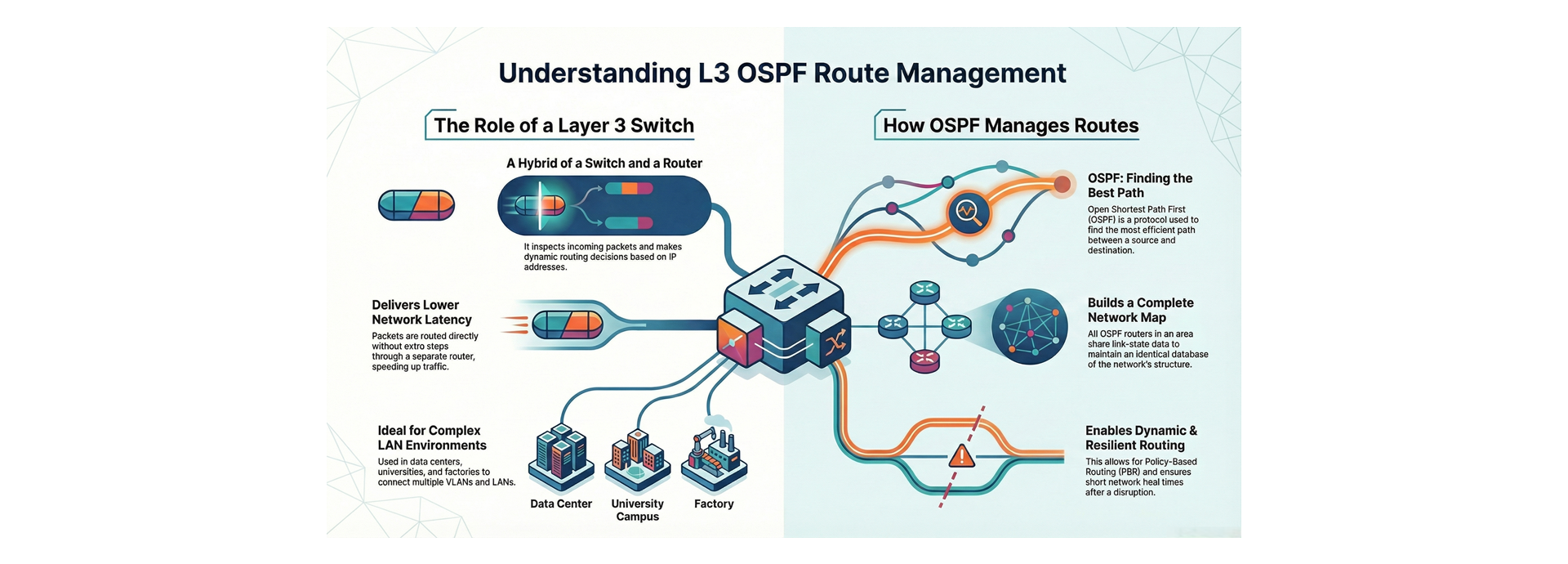

Open shortest path first (OSPF) is a link-state routing protocol that is used to find the best path between the source, which is generally used in the same routing domain. Here, routing domain refers to an autonomous system (as), which refers to a group of networks that exchange routing information through a unified routing policy or routing protocol. In this as, all OSPF routers maintain the same database describing the as structure, which stores the state information of the corresponding links in the routing domain. It is through this database that OSPF routers calculate their OSPF routing tables. As a link state routing protocol, OSPF transmits link state multicast data LSA (link state advertisement) to all routers in a certain area, which is different from distance vector routing protocol. The router running distance vector routing protocol passes part or all of the routing tables to its neighboring routers. The L3D-25XGF56-100GF supports OSFP and OSPFv3.

The L3D-25XGF56-100GF comes with Virtual eXtensible Local-Area Network, or VXLAN (network virtualization technology standard). It allows a single physical network to be shared by multiple different organizations, or “clients,” without any one client being able to see the network traffic of any other. In this way, VXLANs are a discrete, private network segment within a shared physical network.

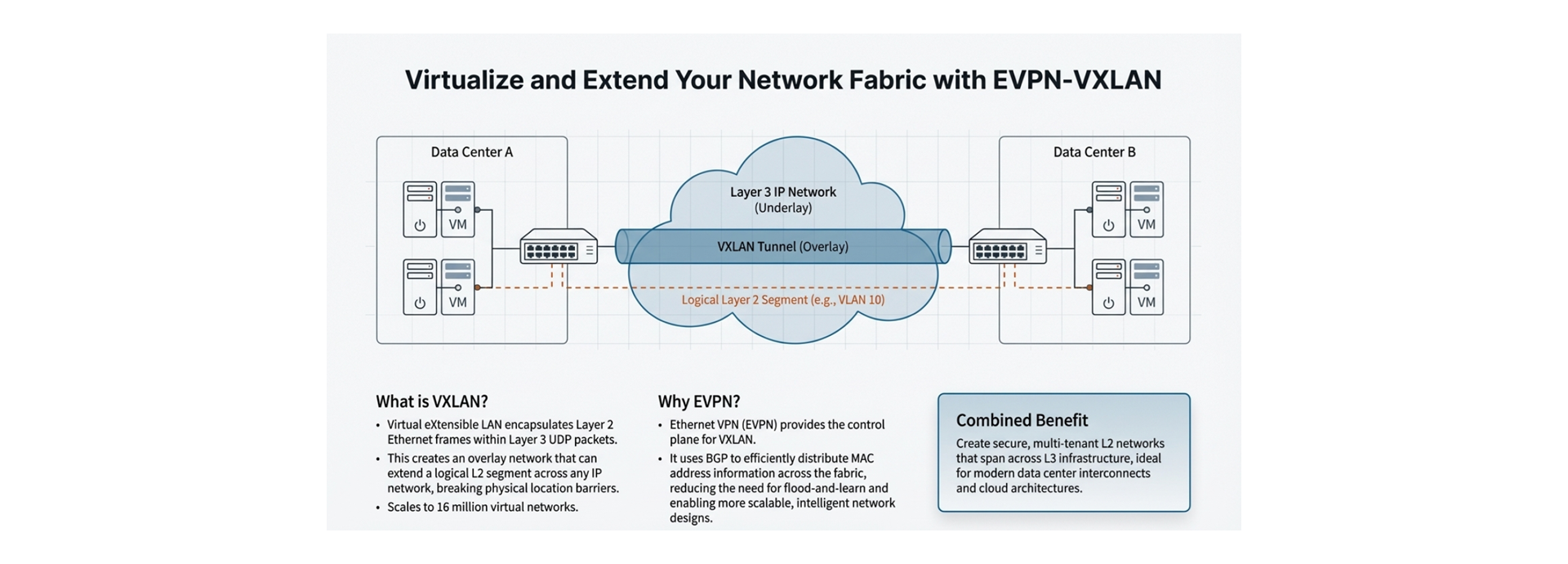

a VXLAN allows a physical network to be segmented into as many as 16 million virtual, or logical, networks. It works by encapsulating Layer 2 Ethernet frames into a Layer 4 UDP packet alongside a VXLAN header. When combined with an Ethernet virtual private network (EVPN)—which transports Ethernet traffic in virtualized networks using WAN protocols—VXLAN allows Layer 2 networks to be extended across a Layer 3 IP or MPLS network.

Because VXLANs are encapsulated inside a UDP packet, they can run on any network able to transmit UDP packets. The physical layout and geographic distance between nodes of the underlying network doesn’t matter, as long as the UDP data is forwarded from the encapsulating VXLAN Tunnel Endpoint to the decapsulating VXLAN Tunnel Endpoint.

When VXLAN is combined with EVPN, administrator can create virtual networks out of physical network ports on any physical network switches that support the VXLAN/EVPN standard and are part of the same Layer 3 network. For example, you could take a port from switch A, two ports from switch B, and another port from switch C and build a virtual network that appears to all the connected devices as a single physical network. Devices participating in this virtual network would be unable to see traffic in any other VXLANs or the underlying network layout.

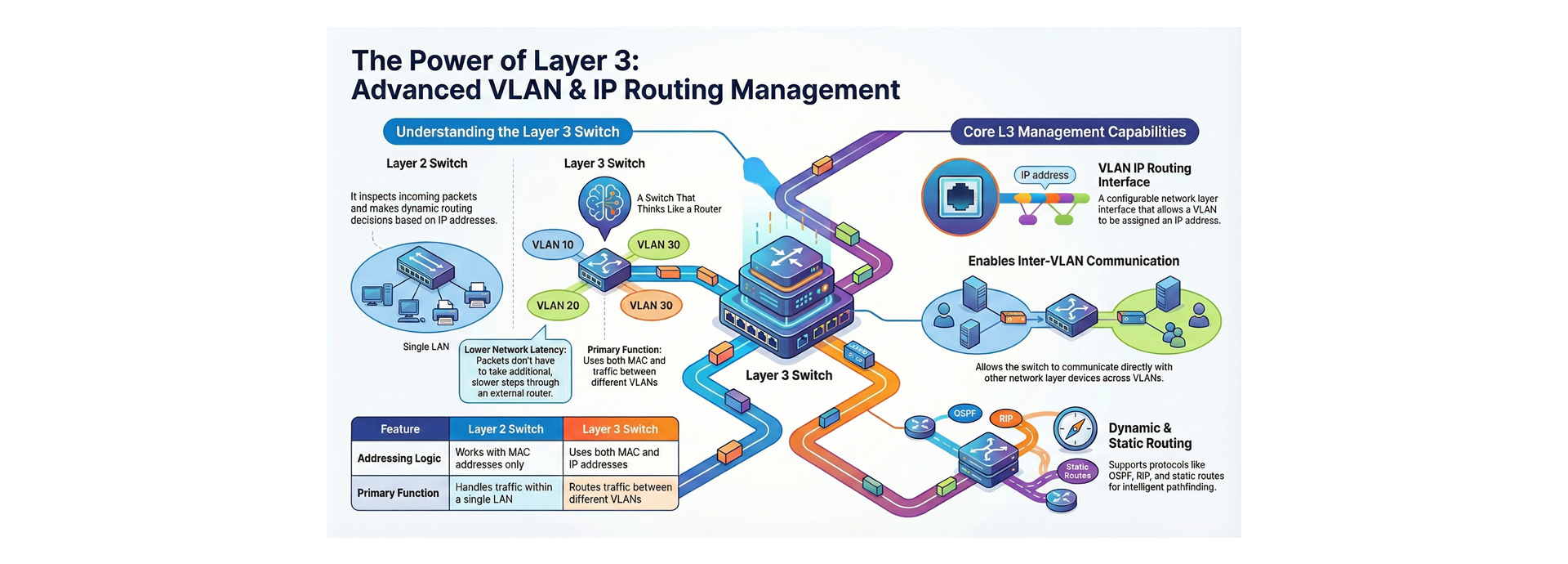

The L3D-25XGF56-100GF provides 3 layers of VLAN interface, which is used to communicate with network layer devices. VLAN interface is a network layer interface, which can be configured with IP address. Before creating VLAN interface, the corresponding VLAN should be created first. With the help of VLAN interface, switches can communicate with other network layer devices. The ideal solution for enterprises, offers greater security, control and bandwidth conservation, and high-speed uplink. The L3D-25XGF56-100GF supports Guest VLAN, Voice VLAN and QinQ among others.

Use the AirLive L3-25XGF56-100GF as the connecting link between a 100G Core switch and the rest of the network. Using its 25G Fiber ports to transfer data fast and reliable.

The AirLive L3D-25XGF56-100GF comes with dual power supplies and smart fans by default, providing high availability and longevity. 1+1 Dual AC PSU 350W, PSUs can be removed/replaced without shutting down the system (Hot-swappable). 2 Hot-swappable Dual Fan Modules, Variable-speed fans for superior cooling, noise and power reduction. Support automatic fan temperature control, temperature monitoring, and fan alarm. Optional DC: -40V~-57V Power module is also available when DC voltage is used at the install location. Optional HVDC: 190~400V Power module is also available when a higher voltage is used at the install location.
