| Hardware | |
| Model | AirLive IGM-642POE-1.25G |

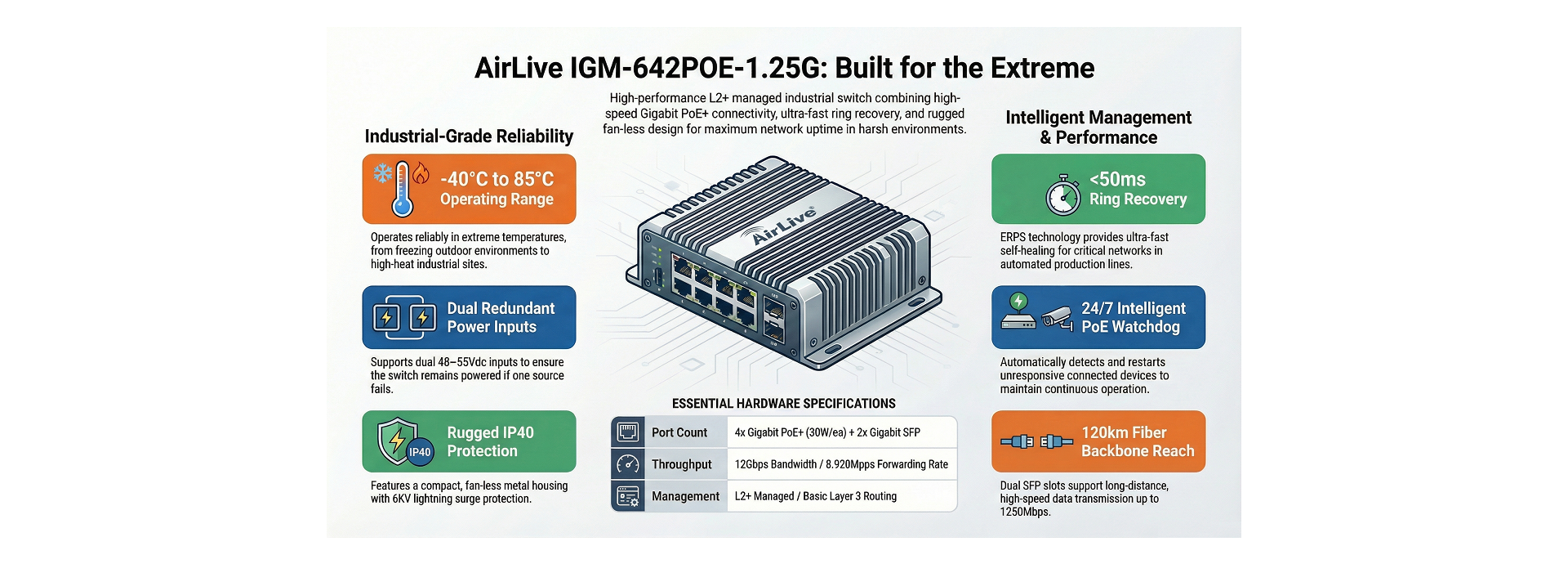

| Device Interface | 4 x 30W PoE 10/100/1000 RJ45 2 x Gigabit SFP 1x Console Port 6-port totally |
| Device Parameters | Bandwidth: 12Gbps Packet Forwarding Rate: 8.928Mpps RAM:128MB Flash:16MB Packet Buffer Memory: 4M Jumbo frame: 9.6Kbytes VLANs:4096 MAC:8K Forwarding Mode: Store-And-Forward |
| Standards | IEEE802.3u 100Base-TX / 100Base-FX IEEE802.3ab Gigabit 1000Base-T IEEE802.3z Gigabit SX/LX (optical fiber) IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af PoE IEEE802.3az Energy Efficient Ethernet |
| LED Indicators | PWR (power supply), 1-4 Link(Green), PoE(Yellow) |
| Lighting Surge Protection | General Mode 6KV, Differential Mode 2KV,ESD:15KV |
| Mechanical | Solid metal desktop design, fan-less |
| Power and PoE | |
| Protocol | IEEE802.3at (30W), IEEE802.3af (15.4W) |
| Power Input | Input Voltage: DC48～55V |
| Type of Input | 4 PIN Industrial Terminal（block V1+V1- V2+ V2-） |
| Single PoE Port Power Output | Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at) |
| PoE Compatibility | IEEE 802.3af / at adaptive |
| POE Power Output | DC 48-55V |
| POE Power Pin | 1/2- ; 3/6+ |
| Fiber Media | |
| Multi-mode | 850nm, 1310nm |
| Transmission Distance | 550m/2Km |
| Single-mode Fiber | 1310nm, 1550nm |
| Transmission Distance | 20/40/60/80/100/120Km |
| Physical Structure | |
| Protect grade | IP40 |
| Installation | DIN Rail |
| Industry Standard | |
| EMI | FCC Part 15, CISPR (EN55032) class A |
| EMS | EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Shock | IEC 60068-2-27 |
| Free fall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| MTBF | 100,000 hours |
| L2/L2+ Management Function | |
| Port Management | Support for enabling/disabling ports Support speed, duplex, MTU settings, etc. Support flow control flow control settings Support port mirroring, etc. Support port access direction |
| STP | Standard Spanning Tree (STP) 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s |

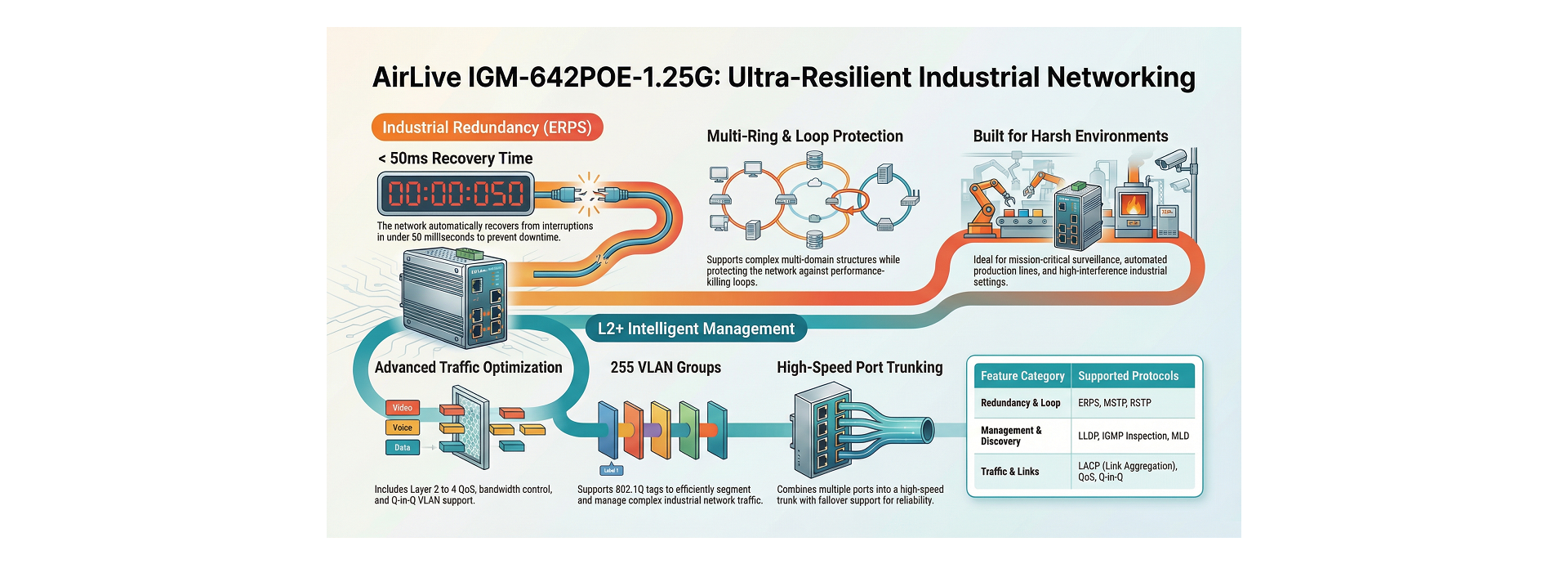

| Ring Network Protocol | ERPS |
| Link Aggregation | Support static manual aggregation Support LACP dynamic convergence |
| Storm Suppression | Support unknown unicast, multicast, unknown multicast Broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering |
| Link Aggregation | Support static manual aggregation Support LACP dynamic aggregation |
| VLAN | Support VLAN and IEEE 802.1Q VLAN |
| GVRP | Global configuration, port configuration |
| IGMP Snooping | Support static add / delete |
| MAC | Support static add / delete MAC address learning limit Support dynamic aging time settings |
| L3 ( Layer 3 Switching ) and Router Function | |
| Interface Configuration | Support virtual VLAN interface |
| ARP | Support check ARP |
| Router Function | Static Router |
| Extended Function | |
| ACL | Based on the source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number, Support time-range time management |
| QoS | Based on 802.1p (COS) classification Based on DSCP classification Based on the source IP, destination IP, port number classification Support SP, WRR, DRR scheduling strategy Support traffic speed limit CAR |
| LLDP | Support LLDP |
| User Setting | Support add/delete user |
| Log | User login, operation, status, event log |
| Port security | Dying Gasp, SNMP Trap |
| Prevent Attack | DOS defense Support for CPU protection, limited to send CPU message rate ARP binding (IP, MAC, PORT binding) |
| System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. |
| Management Function | |
| CLI | Support serial command line management |
| TELNET | Support serial command line management |
| SSH | Support SSHv1/2 remote management |
| SNMP | Support v1/2/3 |
| WEB | Support two layers of settings |
| PoE | PoE Power management |
| Environment | |

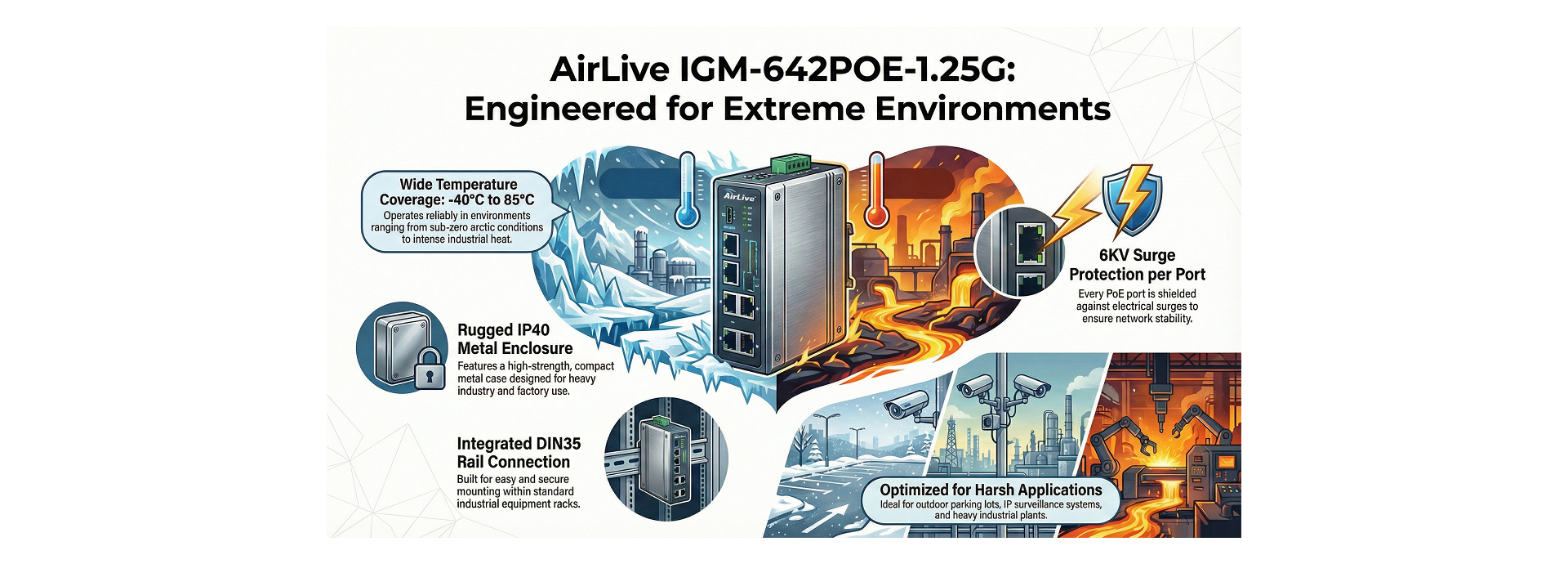

| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%~95%, non-condensing |
| Model | IGM-642POE-1.25G L2+ Industrial Gigabit POE+ Managed Switch 4 PoE*30W plus 2 SFP Gigabit ports |
| Standard Package | |
| Produc Size | 14.5(L) x 12.5(W) x 4(H) cm |
| Package Size | 25(L) x 21(W) x 6.5(H) cm |
| Package Weight | N.W: 0.6KGS G.W: 0.7KGS |
| Package Content | 1 x Switch 1 x Serial Cable |
| Standard Carton Package | |
| Quantity | 36 PCS / 1 Carton |
| Dimensions | 60(L) x 49.5(W) x 43.5(H) cm |
| Name | Description | Download | Date |
| QIG for 6-10-14 Port IGM Switch | QIG for 6-10-14 Port IGM Switch PoE/BT | 2022/11/10 |
| Name | Description | Download | Date |
| IGM-642POE/BT & IGM-1082POE/BT Series - User Guide | 2021/06/18 |
| Name | Description | Download | Date |
| IGM-642POE-1.25G Spec Sheet | 2022/08/01 |
| Name | Description | Download | Date |
| IGM-642POE-1.25G CE+RoHS | 2022/06/07 |
| Name | Description | Download | Date |
| IGM-642POE-1.25G FCC | 2022/06/07 |
