AirLive IGM-642BT-2.5G High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 90W power output per port(Port#1~4). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application in outdoor venue.

Stable and Reliable Power Supply
High-power (90 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.

Reliable L2+ Industrial-grade Managed Security POE++ Switch for Critical Location

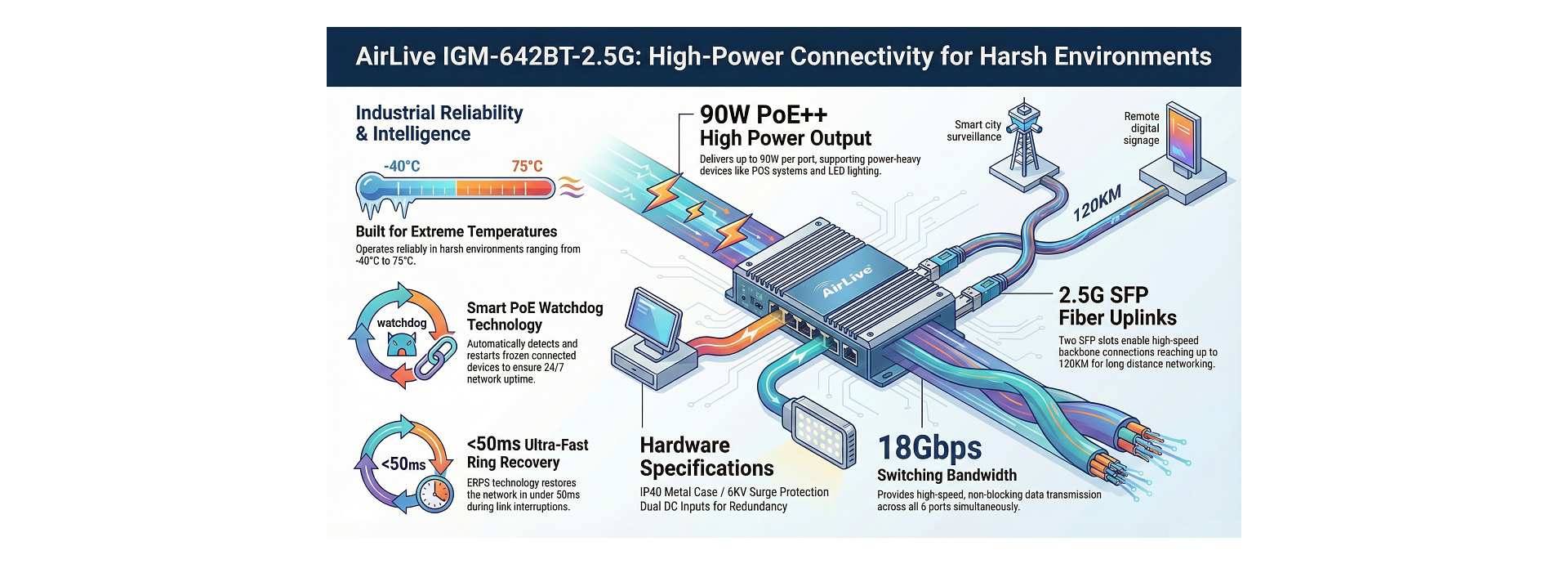

AirLive IGM-642BT-2.5G is a managed L2 + 6-port Gigabit PoE++ switch, including 4 PoE ports and 2x 2.5 Gbit/s SFP ports. Each PoE port supports 802.3bt/at/af up to 90W, Automatic Adjustment, -40°C to 75°C wide temperature range, IP40 metal shell extreme conditions through 4-pin terminal block (DC48 ~ 55V). Industrial 6-port L2 + Gigabit Switch provides comprehensive SNMP management functions, supports VLAN, port aggregation , QoS port mirroring, bandwidth control and token ring ERPS.

The Switch IGM-642BT-2.5G supports high Power and each port at 90W auto adaptively. With PoE management function you can control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system. PoE 90W supports devices which need more power, this can be for example a POS system, Digital Signage, or LED lighting.

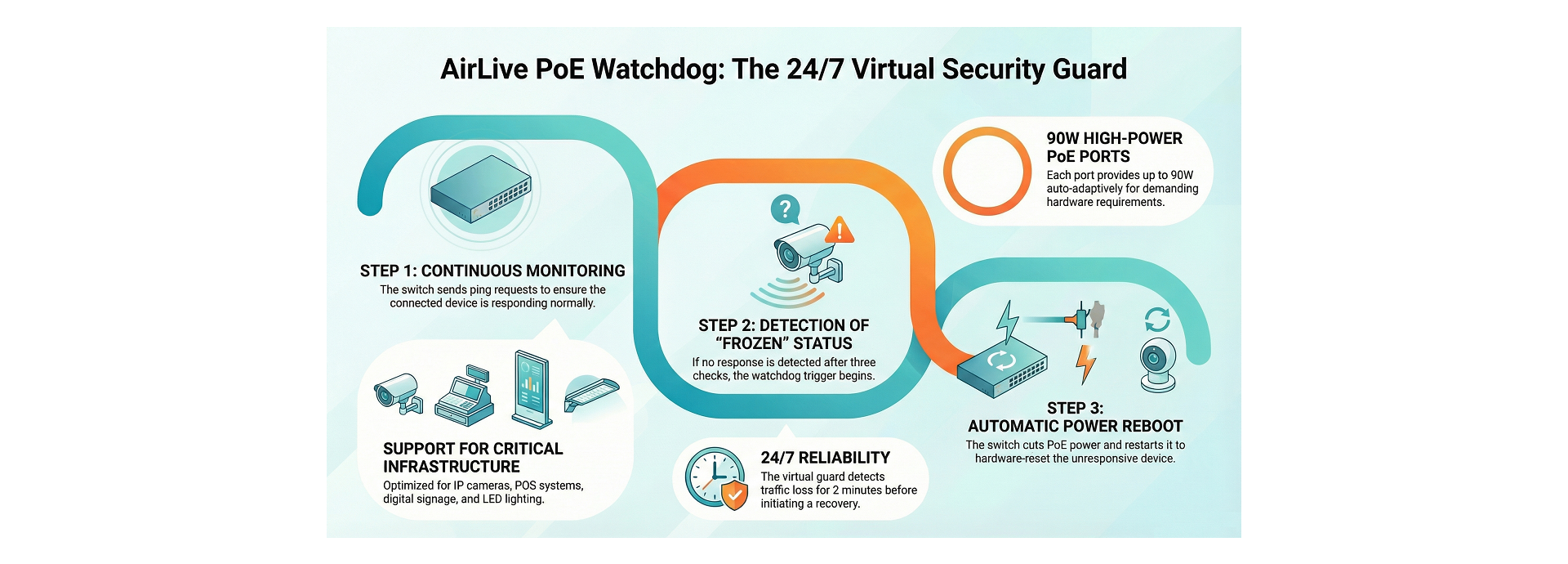

After PoE Watchdog function enabled, the IGM-642BT-2.5G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on.

The PoE watchdog is particularly useful for cameras. For example, when the switch is turned on, it will recognize the front camera 24 hours a day, 7 days a week. If there is no data traffic from the camera, the camera is considered to be frozen, and the PoE watchdog is used to restart the front camera to solve the problem.

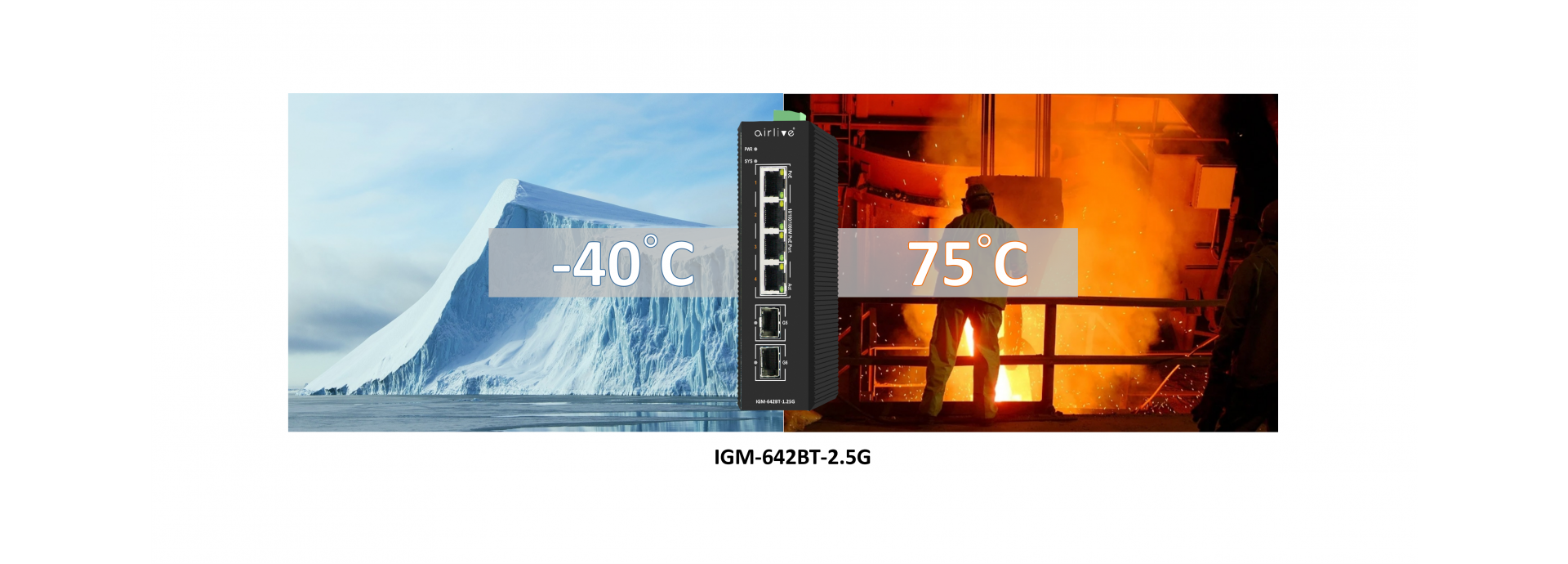

The IGM-642BT-2.5G switch can operate from -40°C ~ 75°C. And each POE port has 6KV surge protection. It is the ideal solution for applications which work under hash environment and require stable network and PoE power, such as parking lot or IP surveillance. The IGM-642BT-2.5G has a rugged high strength compact size metal case which is rated at IP40 and has a DIN35 Rail connection making it ideal for network use in a heavy industry or factories. It can be placed in almost any harsh environment.

The IGM-642BT-2.5G can be used for advanced switch management functions such as dynamic port link aggregation, Q-on-Q VLAN, rapid spanning tree protocol, QoS from layer 2 to layer 4, bandwidth control and IGMP inspection can be programmed. The switch offers VLANs with 802.1Q tags, and the permitted VLAN groups are up to a maximum of 255. By supporting port aggregation, the IGM-642BT-2.5G PoE enables the operation of a high-speed trunk that combines several ports. A maximum of 2 trunk groups with 2 ports trunk group and also supports failover.

ERPS is supported by the IGM-642BT-2.5G Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backup, load sharing and other work methods in <50ms switching. This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover with in 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.
