Airlive L3-XGF28 is a new-generation switch released by AirLive Networks for cloud data centers and high-end parks. It is highlighted by its high performance, high density, and flexible module insert. Airlive L3-XGF28 is a modular slots switches which can accommodate a maximum of 28 SFP ports . The Airlive L3-XGF28fully meet the latest cloud computing Spine-Leaf layer 3 architecture design.
FEATURE HIGHLIGHTS
● Compact 1U design with high-density 10G and 1G
● Maximum support 24x1G SFP ports , 4x10G SFP+ ports and 8 ports RJ-45 ports
● Bundled with Advanced Datacenter features without additional investment e.g. OSPF Routing, IPv6 support upto 65535 subnet, module hot swap, etc.
● High reliability: CLI and Command Script for advance setting; SNMP used for popular network tools management.
The rapid development of applications such as AI/machine learning has driven the evolution of next-generation data center networks to 10G. The next-generation data center network requires equipment in a unit space with higher performance and greater bandwidth. AirLive L3-XGF28 can provide a maximum of 28 ports in a 1U height space. It satisfies the evolution requirements of the next-generation data center network well.
Airlive L3-XGF28 is equipped with built-in combo modules and RJ-45 ports. The hardware of Airlive L3-XGF28 supports IPv4 and IPv6 protocol stacks and multilayer line-rate switching. The hardware differentiates and processes IPv4 and IPv6 packets and supports multiple tunnel technologies (such as manually) configured tunnels, automatic tunnels.The switch can be used to flexibly build IPv6 inter-network communication solutions based on IPv6 network planning and network conditions.The device supports numerous IPv4/v6 routing protocols, including static routing, Routing Information Protocol (RIP), Open Shortest Path First (OSPF). Users can select required routing protocols based on network environments, to flexibly build networks. Employing multi-element binding, port security, time-based ACL, and data stream–based rate limit. It can strictly control the user access to enterprise networks and campus networks and restrict the communication of unauthorized users.

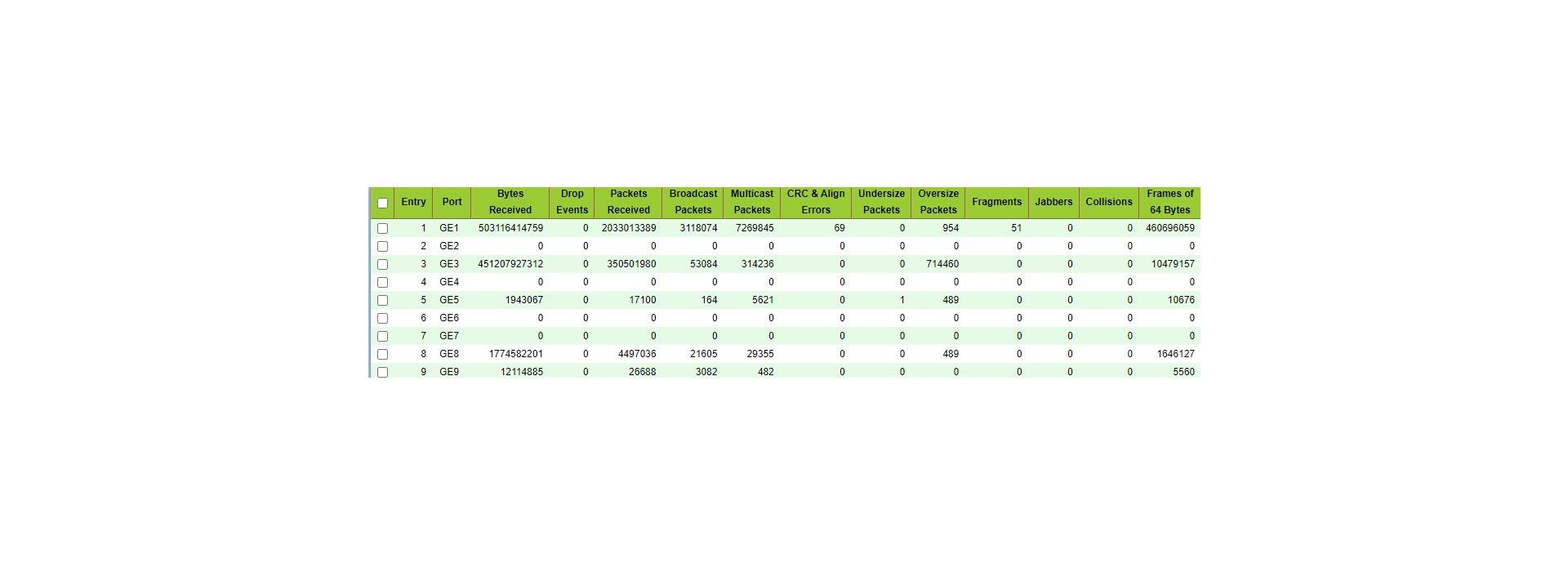

The switch provides various management interfaces such as the Console interface, MGMT interface, and supports SNMP v1/v2/v3 universal network management platform and service management software such like NMS. It supports CLI-based management, telnet, and cluster management, which facilitates device management. The supported encryption modes such as SSH and SSL ensure more secure management. In addition, the device supports the Remote Network Monitoring (RMON)/SNMP MIB to observe ports remotely. It can analyze network traffic and take proper management and maintenance measures accordingly, clearly presenting the service traffic on a network. The device can provide various network traffic analysis reports so that users can optimize the network structure and adjust resource deployment in a timely manner.
| Hardware | |
| Model | AirLive L3-XGF28 |
| Device Interface | 24 x SFP slot 4 x 10G SFP+ slot 8 x GE RJ45 (combo) 1 x RJ45 Console Port |
| Standards | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae：10G Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
| LED Indicators | PWR(Power indicator),SYS(System lights),Link(Link light), Act(data light) |
| Lighting Surge Protection | Surge 6KV，ESD 8KV |
| Mechanical | Solid metal 19” 1U rack-mountable, IP30 |
| Power | |
| Power Input | AC 100~240V 50~60Hz |
| Switch Architecture | Performance | |
| Switching architecture | Bandwidth: 128Gbps Packet Buffer Memory: 95.23Mpps DDR SDRAM: 512MB Flash Memory: 16MB Package cache: 12Mbit MAC Address: 16K Jumbo frame: 12Kbytes VLANs: 4096 MTBF: 100000 hour |
| Fiber Medium | Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km |
| ERPS Ethernet Ring Protection | |
| ERPS Ethernet Ring Protection | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. |
| Software Function | |
| Basic functions | Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, maximum frame length configuration Support Port mirroring, port speed limit, port energy saving |
| Layer 3 Interface | Support Layer 3 interface Support IPv4, IPv6 address configuration Support ARP configuration Support ND configuration |
| Layer 3 Routing | Support IPv4 static routing Support IPv6 static routing Support RIP V1/V2 Support OSPF |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| VLAN | Support 4K VLAN Support 802.1Q VLAN，baesd on port VLAN Support Access、Trunk、Hybrid VLAN mode Support GVRP (VLAN registration protocol) Support MAC VLAN 、IP VLAN Support Voice VLAN |
| MAC Address | Support MAC address automatic learning and aging Support Static, dynamic, filtered address table |
| Security features | Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS、SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping、DHCP Attack protection Support 802.1X Certification Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol Support Port security, port isolation |
| Access control | Support L2(Layer 2)～L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking |
| QoS | Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm |
| Spanning tree | Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support Multi-instance, Support Aggregate interface Support BPDU protection |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast |
| Storm Suppression | Support multicast suppression Support broadcast storm suppression Support unknown unicast suppression |
| Ring protection | Support Ring protection |
| Link Aggregation | Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group) |
| IPv6 | Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP 、IPv6 HTTPS |
| Management and Maintenance | |
| Management and Maintenance | Support WEB Management (HTTP、HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection |
| Environment | |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -45°C to +85°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~90%, non-condensing |
| Model | L3-XGF28 L3 28-port Managed Gigabit Fiber Switch with 10G |
| Standard Package | |
| Package Size | 50(L) x 29(W) x 8.5(H) cm |
| Package Weight | N.W: 3.06KGS G.W: 3.63KGS |
| Package Content | Switch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1 |
| Carton Package | |
| Quantity | 5PCS / 1 Carton |
| Dimensions | 52 x 44.5 x 31 cm |
| Weight | 19.15KGS |
